FallSafe Sketch Model Review b | 2.009 Fall 2013 FallSafe: Market 250K hip fractures among elderly in 2010 95% of hip fractures are fall- related 1 in 5 patients die within one year of injury 2.009 Fall 2013 FallSafe: Product Goals Core

SLIDE 1

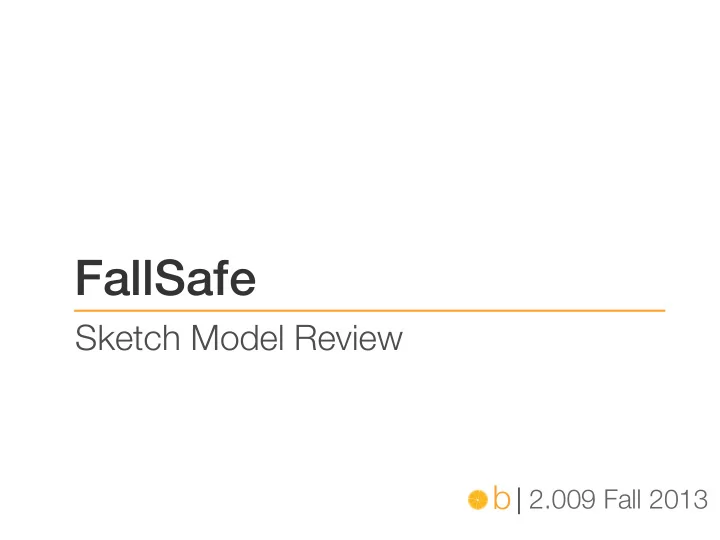

FallSafe

Sketch Model Review

b | 2.009 Fall 2013

SLIDE 2

FallSafe: Market

250K hip fractures among elderly in 2010

95% of hip fractures are fall- related 1 in 5 patients die within

ne year of injury

2.009 Fall 2013

SLIDE 3

FallSafe: Product Goals

2.009 Fall 2013

Inertial Sensor Detects Fall Deployment system inflates airbag prior to impact Communication system calls for help

Core Functionality Other Requirements Possible Implementations

Easy to remove from fallen user
Low visibility before deployment
Permits discrete use
Detector & Inflator module with

disposable airbag belt

Replaceable gas canisters/charges

SLIDE 4

Fall Detection Injury prevention Airbag Deployment FallSafe: Key Risks

2.009 Fall 2013

SLIDE 5

Fall Detection Injury prevention Airbag Deployment FallSafe: Key Risks

2.009 Fall 2013 Reliability False Positives Time available to deploy airbag

SLIDE 6

FallSafe: Sketch Model: Fall Detection

Power Switch Inertial Measurement Unit Battery Arduino Speaker LEDs

(not shown)

SLIDE 7

FallSafe

Sketch Model Demo

b | 2.009 Fall 2013

SLIDE 8

FallSafe: Sketch Model: Results

Detection Impact

127 ms

127 ms available deployment time
Comparison: Auto airbag inflates 80 L in 30 ms
Detection/inflation in the course of a fall is feasible

Results Interpretation:

SLIDE 9

Fall Detection Injury prevention Airbag Deployment FallSafe: Key Risks

2.009 Fall 2013 Hip Impact acceleration Risk to rest of body Safety of Airbag deployment

SLIDE 10

FallSafe: Sketch Model: Injury Prevention

No Airbag Airbag

SLIDE 11

FallSafe: Sketch Model: Injury Prevention

No Airbag Airbag

SLIDE 12

FallSafe: Sketch Model: Injury Prevention

No Airbag Airbag Reduces acceleration of head, neck and arms Less motion of crash pad
