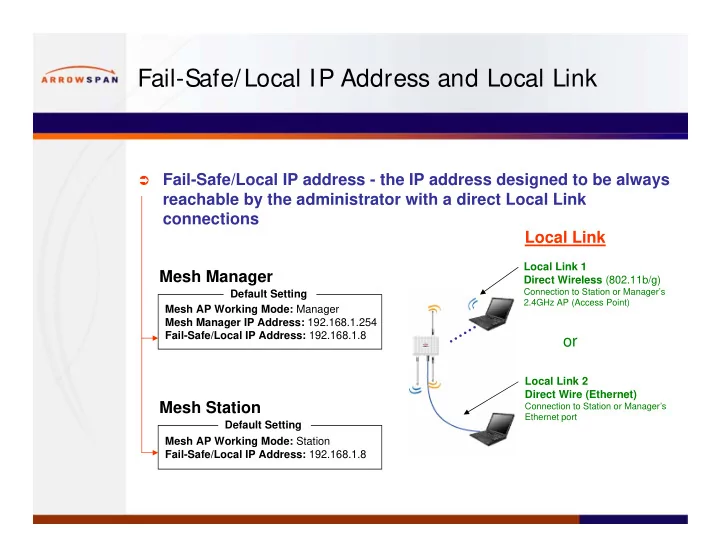

Fail-Safe/Local IP Address and Local Link

  • Fail-Safe/Local IP address - the IP address designed to be always

reachable by the administrator with a direct Local Link connections

Mesh AP Working Mode: Manager Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP Address: 192.168.1.8 Default Setting Local Link 1 Direct Wireless (802.11b/g)

Connection to Station or Manager’s 2.4GHz AP (Access Point)

Local Link 2 Direct Wire (Ethernet)

Connection to Station or Manager’s Ethernet port

  • r

Mesh AP Working Mode: Station Fail-Safe/Local IP Address: 192.168.1.8 Default Setting

Mesh Manager Mesh Station Local Link

slide-2
SLIDE 2

Accessing Mesh Manager and Station

Using two IP Addresses

  • Mesh Manager IP Address:

192.168.1.254

  • Fail-Safe/Local IP Address:

192.168.1.8

  • Fail-Safe/Local IP Address:

192.168.1.8

  • Through Mesh Manager

Access Mesh Manager Access Mesh Station

slide-3
SLIDE 3

Find Out Mesh Manager IP address

Static setting or acquiring IP Address from DHCP Server

Mesh Manager IP address could be assigned as static IP address or obtained from a DHCP server when “Mesh Manager IP Setting” is set to DHCP mode. Fail-Safe/Local IP address could be used to login to the Mesh Manager to

  • bserve what IP address is assigned by DHCP server.

Login Mesh Manager through Local Link and 192.168.1.8 Review DHCP assigned IP address

slide-4
SLIDE 4

Fail-Safe/Local IP Address

When Station is in connected to mesh network

Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP: 192.168.1.8

Option 1: Access Via Fail-Safe/Local IP: 192.168.1.8 Option 2: Access Via Mesh Manager - Topology IP: 192.168.1.254

Internet

Mesh AP Working Mode: Station Fail-Safe/Local IP Address: 192.168.1.8 Default Station Setting Mesh AP Working Mode: Manager Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP Address: 192.168.1.8 Default Manager Setting

Option 1: Access Via Fail-Safe/Local IP: 192.168.1.8 Option 2: Access Via Mesh Manager - Topology IP: 192.168.1.254 Mesh Link Mesh Link

Fail-Safe/Local IP address is ALWAYS reachable via Local Link (Direct wire or wireless)

Local Link (Wireless) Local Link (Ethernet)

Station 1 IP Address: Not exist Fail-Safe/Local IP: 192.168.1.8 Station 2 IP Address: Not exist Fail-Safe/Local IP: 192.168.1.8

slide-5
SLIDE 5

Fail-Safe/Local IP Address

When Station has no mesh connection

Internet

Mesh AP Working Mode: Station Fail-Safe/Local IP Address: 192.168.1.8 Default Station Setting Mesh AP Working Mode: Manager Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP Address: 192.168.1.8 Default Manager Setting

Mesh Link No Link

Fail-Safe/Local IP address is ALWAYS reachable via Local Link (Direct wire or wireless)

Option 1: Access Via Fail-Safe/Local IP: 192.168.1.8 Option 1: Access Via Fail-Safe/Local IP: 192.168.1.8

Local Link (Wireless) Local Link (Ethernet)

Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP: 192.168.1.8 Station 1 IP Address: Not exist Fail-Safe/Local IP: 192.168.1.8 Station 2 IP Address: Not exist Fail-Safe/Local IP: 192.168.1.8

slide-6
SLIDE 6

Change Fail-Safe/Local IP Address of Station

Internet

Node: Station 2 Mesh AP Working Mode: Station Fail-Safe/Local IP Address: 192.168.1.8 Default Station Setting Node: Station 2 Mesh AP Working Mode: Station Fail-Safe/Local IP Address: 10.10.10.8 New Station Setting

Mesh Link Mesh Link

Station’s Fail-Safe/Local IP address could be set to either 192.168.1.8

  • r 10.10.10.8 when there is concern or need.

Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP: 192.168.1.8 Station 2 IP Address: Not exist Fail-Safe/Local IP: 10.10.10.8

slide-7
SLIDE 7

Option 1: Access Via Fail-Safe/Local IP: 192.168.1.12 Option 2: Access Via Mesh Manager IP: 192.168.1.254

Change Fail-Safe/Local IP Address of Manager

Internet

Node: Mesh Manager Mesh AP Working Mode: Manager Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP Address: 192.168.1.8 Default Manager Setting Node: Mesh Manager Mesh AP Working Mode: Manager Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP Address: 192.168.1.12 New Manager Setting

Option 1: Access Via Fail-Safe/Local IP: 192.168.1.12 Option 2: Access Via Mesh Manager IP: 192.168.1.254 Mesh Link Mesh Link

Manager’s Fail-Safe/Local IP address can be changed to a set of predefined addresses when there is concern or need. (see next page)

Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP: 192.168.1.12

Local Link (Wireless) Local Link (Ethernet)

slide-8
SLIDE 8

Changeable Fail-Safe/Local IP Address List

Fail-Safe/Local IP address can ONLY be changed to a set of predefined addresses. Manager ‘s IP address can be changed to any IP address reachable from network.

Mesh AP Working Mode: Station Fail-Safe/Local IP Address: 192.168.1.8 Default Station Setting Mesh AP Working Mode: Manager Mesh Manager IP Address: 192.168.1.254 Fail-Safe/Local IP Address: 192.168.1.8 Default Manager Setting

At webpage of Mesh -> Setup -> Advanced At webpage of Mesh -> Setup -> Advanced

slide-9
SLIDE 9

Clear ARP Table on Laptop or PC

for connecting to different MeshAPs with same (i.e.) Fail-Safe/Local IP address

Situation: A number of MeshAPs are being accessed with a laptop or PC via Ethernet port to perform

  • configuration. The Ethernet connection to the first device works fine, but connecting to subsequent

MeshAPs with same IP address requires some technique to work correctly. Explanation: The laptop or PC will record the MAC and IP address of the first MeshAP’s Ethernet port in its ARP (address resolution protocol) table. After the Ethernet connection is disconnected from the first MeshAP, its ARP table still retains the entry of IP to that MeshAP’s MAC address mapping of the first MeshAP. When the laptop or PC wants to connect to a different MeshAP but with the same IP address, the IP to MAC address mapping in ARP table will then be wrong and the connection will fail. Solution: Flush the ARP table of a Windows system by issuing “arp –d” command under “DOS Prompt” on laptop or PC . Ethernet (Wire)

192.168.1.8 192.168.1.8 Ethernet cable move

Station A Station B

192.168.1.8 192.168.1.8 Wireless connection move

Station A Station B

Wireless Connection
