1 July 2018 Fabless silicon photonics operation and design trends LETI INNOVATION DAYS 2018 CONFIDENTIAL Outline Vertical vs. Horizontal / fabless business model Fabless model in photonic integration Fabless silicon photonics


slide-1
SLIDE 1

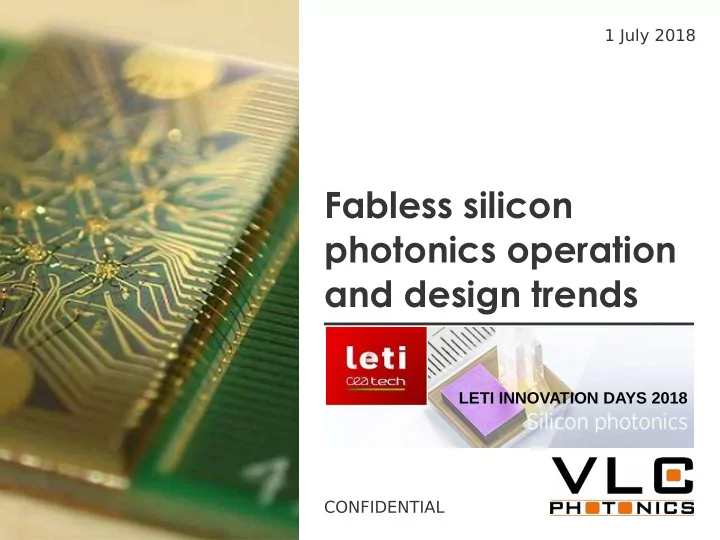

1 July 2018 CONFIDENTIAL

Fabless silicon photonics operation and design trends

LETI INNOVATION DAYS 2018

slide-2
SLIDE 2

CONFIDENTIAL 2/32

Outline

  • Vertical vs. Horizontal / fabless business model
  • Fabless model in photonic integration
  • Fabless silicon photonics operation
  • Design trends
slide-3
SLIDE 3

CONFIDENTIAL 3/32

Outline

  • Vertical vs. Horizontal / fabless business model
  • Fabless model in photonic integration
  • Fabless silicon photonics operation
  • Design trends
slide-4
SLIDE 4

CONFIDENTIAL 4/32

Understanding fabless integration

Vertical model

✔✔ State-of-the art device ✘✘ Huge investment Test Packaging Fabrication Design Definition Characterization

Traditional optical component manufacturers (lasers, PDs, splitters, AWGs, modulators, etc.)

slide-5
SLIDE 5

CONFIDENTIAL 5/32

Understanding fabless integration (II)

Vertical model

✔✔ State-of-the art device ✘✘ Huge investment

Horizontal model

Test Packaging Fabrication Design Definition Characterization Test Packaging Characterization Fabrication Design Definition ✔ Performing device ✔✔ Low Investment

slide-6
SLIDE 6

CONFIDENTIAL 6/32

Understanding fabless integration (II)

Vertical model

✔✔ State-of-the art device ✘✘ Huge investment

Horizontal model

Test Packaging Fabrication Design Definition Characterization Test Packaging Characterization Foundry Design Definition Fabrication

Fabless model

slide-7
SLIDE 7

CONFIDENTIAL 7/32

Understanding fabless integration (II)

Vertical model

✔✔ State-of-the art device ✘✘ Huge investment

Horizontal model

Test Packaging Fabrication Design Definition Characterization Test Packaging Characterization Foundry Design house Definition Fabrication Design

Fabless model

slide-8
SLIDE 8

CONFIDENTIAL 8/32

Understanding fabless integration (II)

Vertical model

✔✔ State-of-the art device ✘✘ Huge investment

Horizontal model

Test Packaging Fabrication Design Definition Characterization Test Outsourced Semiconductor assembly and test (OSAT) Foundry Design house Definition Fabrication Design Characterization Packaging

Fabless model

slide-9
SLIDE 9

CONFIDENTIAL 9/32

Horizontal business model

slide-10
SLIDE 10

CONFIDENTIAL 10/32

The growth of the fabless model

Source: Statista

In two decades...

  • Pure-play foundry

revenues have grown, becoming the predominant manufacturing model.

  • Wile IDM sales are still

larger given the large concentration in few players, fabless sales have been growing faster and at a more stable rate

  • ver the last two

decades.

slide-11
SLIDE 11

CONFIDENTIAL 11/32

Outline

  • Vertical vs. Horizontal / fabless business model
  • Fabless model in photonic integration
  • Fabless silicon photonics operation
  • Design trends
slide-12
SLIDE 12

CONFIDENTIAL 12/32

PIC technology evolution

1970 1980 1990 2000 2010 2020

EU fabless Investment 100 Gb/s TX/RX InP, 2004 40 Gb/s AOC SOI, 2007

Optical component Manufacturers

Lasers Photodiodes Passives Splitters AWGs VOAs

Beam combiner Si3N4, 2012

Global investment

FBG interrogator InP, 2015 OCT SOI, 2015

slide-13
SLIDE 13

CONFIDENTIAL 13/32

Silicon photonics technology take-up

PUBLICATIONS EACH YEAR

(Conferences not included)

Start of industrial interest

Courtesy Roel Baets, IMEC/UGhent

slide-14
SLIDE 14

CONFIDENTIAL 14/32

PIC market trends

$866M

slide-15
SLIDE 15

CONFIDENTIAL 15/32

Horizontal business model

Photonics lags 30 years behind!

slide-16
SLIDE 16

CONFIDENTIAL 16/32

Outline

  • Vertical vs. Horizontal / fabless business model
  • Fabless model in photonic integration
  • Fabless silicon photonics operation
  • Design trends
slide-17
SLIDE 17

CONFIDENTIAL 17/32

Photonic EDA tools

  • Traditional Electronic Design Automation (EDA) tool vendors are

heavily investing and partnering with smaller photonic design tool vendors.

slide-18
SLIDE 18

CONFIDENTIAL 18/32

Photonic EDA tools (II)

slide-19
SLIDE 19

CONFIDENTIAL 19/32

Fabless Si photonics manufacturing

  • All major CMOS foundries investing, specially in

Asia following IC trends.

  • Proprietary generic processes: passives,

actives (heaters, Ge PDs, Modulators, heterogeneous InP)

  • Extra FEOL modules (SiN, SSC, etc.)
  • BEOL options (Al/Cu, multilayer routing, TSV,

pillars, etc.)

  • Electronic-Photonic co-design

Source: IC Insights

slide-20
SLIDE 20

CONFIDENTIAL 20/32

Fabless Si photonics manufacturing (II)

  • Different software versions of Process Design Kits (PDKs) in

place at most foundries, compiling design libraries with many mature building blocks for several processes.

  • Multi-Project Wafer (MPW) runs available directly or through

brokers for low-cost prototyping.

  • R&D foundries setting up strategic agreements to transfer

process and allow to scale-up production.

VLC Photonics technical foundries report:

  • 35 silicon photonic

foundries, 6 brokers

  • Contact info,

capabilities, & PIC developments

  • 180 pages & +650

references

slide-21
SLIDE 21

CONFIDENTIAL 21/32

Challenges in fabrication

  • Lack of updated information & roadmaps
  • PDK availability & BB validation
  • Turn around (cycle) time & delays
  • Fabrication reporting
  • Performance and delivery guarantees
  • Wavelength range
slide-22
SLIDE 22

CONFIDENTIAL 22/32

Test and Packaging

Back-end (post fab) processes comprise:

  • Wafer metrology and probing
  • Wafer back grinding (thinning) and dicing/cleaving
  • Bare die characterization
  • Packaging into component
  • Component testing
  • Assembly into module

Challenges in photonics still remain:

  • High cost contribution at the back-end
  • On wafer electrical+optical testing
  • Package & assembly scalability
  • Lack or fragmentation of standards
  • DC+RF+optical package design & multiphysics
  • Small pool of expertise and providers
slide-23
SLIDE 23

CONFIDENTIAL 23/32

Outline

  • Vertical vs. Horizontal / fabless business model
  • Fabless model in photonic integration
  • Fabless silicon photonics operation
  • Design trends
slide-24
SLIDE 24

CONFIDENTIAL 24/32

PIC design challenges

  • IP on building blocks / PDKs
  • DRC validation & routing automatization
  • Workfmow standardization & tool interfacing
  • Software licensing models and incumbent pricing
  • Training & documentation
  • Skilled workforce
slide-25
SLIDE 25

CONFIDENTIAL 25/32

Design company trends

Company Type Characteristics Typical size ID design consultants 1-2 person operation focusing on consulting on particular specialties 0.2 to 0.5M € PIC design house Always fabless, 3-25 people, sometimes also brokers fabrication or

  • ther services

0.5 to 2M € IP / Technology licensing company Usually focused on one technology or product area, engineering oriented management 2 to 15M € Fabless chip firm Growing fast to a niche product or market; usually fabless, strong marketing, product development and distribution departments, 20-200 people < 200M €

slide-26
SLIDE 26

CONFIDENTIAL 26/32

IP approach in photonic integration

  • Design IP is a large business in

semiconductor markets.

  • IP owned by:

Foundries

Fabless fjrms

EDA vendors

Source: Semico research Source: IBS Source: Mentor

slide-27
SLIDE 27

CONFIDENTIAL 27/32

IP approach in photonic integration

  • Photonics still lacks such business model, mainly due to:

Lack of market volume and enough licensee base,

Low maturity of fabrication processes, risky and expensive IP development,

IP usually limited to building blocks, not circuits,

Diffjcult IP usage, checking and enforcing,

Expensive patent/semiconductor topography registration, maintenance and defence, specially for SMEs. Fabless firms Foundries EDA vendors

slide-28
SLIDE 28

CONFIDENTIAL 28/32

Summary and take-aways

  • Photonic integration is maturing very quickly due to growing

market demands, and silicon photonics is profjting from all experience of the CMOS world.

  • The fabless model is being successfully replicated in the

photonic integration fjeld.

  • Main technical and business challenges remain on the back-

end processes.

  • On the design side, the photonics EDA market is quickly

consolidating, while design IP will take longer to become a market reality.

slide-29
SLIDE 29

info@vlcphotonics.com

Contact details

www.vlcphotonics.com @vlcphotonics linkedin.com/company/vlc-photonics

Thank you for your attention!
