Exploit Generation for Information Flow Leaks in Object-Oriented Programs Reiner Hhnle (joint work with Richard Bubel and Quoc Huy Do) Dagstuhl Seminar 15381 Information from Deduction: Models and Proofs September 15, 2015 September 15,

slide-1
SLIDE 1

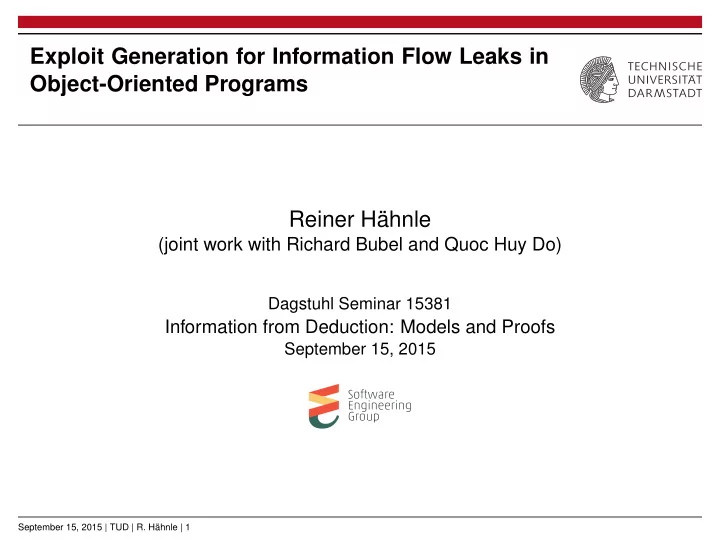

Exploit Generation for Information Flow Leaks in Object-Oriented Programs Reiner Hähnle

(joint work with Richard Bubel and Quoc Huy Do)

Dagstuhl Seminar 15381

Information from Deduction: Models and Proofs

September 15, 2015

September 15, 2015 | TUD | R. Hähnle | 1

slide-2
SLIDE 2

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program

September 15, 2015 | TUD | R. Hähnle | 2

slide-3
SLIDE 3

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

September 15, 2015 | TUD | R. Hähnle | 2

slide-4
SLIDE 4

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

SE as Proof Attempt Seamless interleaving of state simplification & infeasible path elimination

September 15, 2015 | TUD | R. Hähnle | 2

slide-5
SLIDE 5

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

SE as Proof Attempt Seamless interleaving of state simplification & infeasible path elimination

Construction of Insecurity Formula

September 15, 2015 | TUD | R. Hähnle | 2

slide-6
SLIDE 6

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

SE as Proof Attempt Seamless interleaving of state simplification & infeasible path elimination

Construction of Insecurity Formula Model Extraction From Insecurity Formula

September 15, 2015 | TUD | R. Hähnle | 2

slide-7
SLIDE 7

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

SE as Proof Attempt Seamless interleaving of state simplification & infeasible path elimination

Construction of Insecurity Formula Model Extraction From Insecurity Formula

Model Extraction by SMT solvers

September 15, 2015 | TUD | R. Hähnle | 2

slide-8
SLIDE 8

Approach

Goal: Exploit generation to demonstrate insecure information flow

IF Policy Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

SE as Proof Attempt Seamless interleaving of state simplification & infeasible path elimination

Construction of Insecurity Formula Model Extraction From Insecurity Formula

Model Extraction by SMT solvers

Exploit Generation As (xUnit) Tests

September 15, 2015 | TUD | R. Hähnle | 2

slide-9
SLIDE 9

Framework Regression of Behaviour, Fault Propagation, . . .

Goal: Witness generation to demonstrate violation of relational property

Relational Specification + Target Program Symbolic Execution (SE) with Loop & Method Specifications

SE as Proof Attempt Seamless interleaving of state simplification & infeasible path elimination

Construction of Witness Formulas Model Extraction From Witness Formulas

Model Extraction by SMT solvers

Witness Generation As (xUnit) Tests

September 15, 2015 | TUD | R. Hähnle | 3

slide-10
SLIDE 10

Information Flow

System Confidential input Public input Observable

  • utput

?

September 15, 2015 | TUD | R. Hähnle | 4

slide-11
SLIDE 11

Information Flow

System Confidential input Public input Observable

  • utput

?

Information flow security

◮ Ensure confidential information is not leaked ◮ Ensuring Information Flow Security:

◮ Static Analyses: Type-Based Systems, Deductive Verification ◮ Dynamic Analyses: Runtime Monitoring, Secure Multi-Execution September 15, 2015 | TUD | R. Hähnle | 4

slide-12
SLIDE 12

Noninterference

Program High variable (Secret input) Low variable (Public input) Low variable (Observable

  • utput)

Definition

◮ Policy NI = (Low, High) : Low, High ⊆ Var, Low ˙

∪ High = Var

with Var = set of all variables of program p

◮ Program p satisfies NI iff. for any two traces Tr1, Tr2 of p, it holds that:

init(Tr1) ≃Low init(Tr2) ⇒ final(Tr1) ≃Low final(Tr2) init(X), final(X): Initial state and final state of a trace X

September 15, 2015 | TUD | R. Hähnle | 5

slide-13
SLIDE 13

Noninterference

Program High variable (Secret input) Low variable (Public input) Low variable (Observable

  • utput)

Definition

◮ Policy NI = (Low, High) : Low, High ⊆ Var, Low ˙

∪ High = Var

with Var = set of all variables of program p

◮ Program p satisfies NI iff. for any two traces Tr1, Tr2 of p, it holds that:

init(Tr1) ≃Low init(Tr2) ⇒ final(Tr1) ≃Low final(Tr2) init(X), final(X): Initial state and final state of a trace X Noninterference is too strict: Many secure programs are classified as insecure

September 15, 2015 | TUD | R. Hähnle | 5

slide-14
SLIDE 14

Declassification

vote 1 vote 2 vote n

. . .

E-Voting System Aggregate result

A B

September 15, 2015 | TUD | R. Hähnle | 6

slide-15
SLIDE 15

Declassification

vote 1 vote 2 vote n

. . .

E-Voting System Aggregate result

A B

n

  • i=1

(votei = A?1; 0)

n

  • i=1

(votei = B?1; 0)

e

September 15, 2015 | TUD | R. Hähnle | 6

slide-16
SLIDE 16

Declassification

vote 1 vote 2 vote n

. . .

E-Voting System Aggregate result

A B

n

  • i=1

(votei = A?1; 0)

n

  • i=1

(votei = B?1; 0)

e Delimited Release

◮ Policy Decl = (Low, High, e):

◮ e: escape hatch expression

◮ Program p satisfies Decl iff for any two traces Tr1, Tr2 of p, it holds that:

[ [e] ]Init(Tr1) = [ [e] ]Init(Tr2) ∧ init(Tr1) ≃Low init(Tr2) ⇒ final(Tr1) ≃Low final(Tr2)

September 15, 2015 | TUD | R. Hähnle | 6

slide-17
SLIDE 17

Noninterference as Deductive Verification

The Hoare triple: {Pre} p {Post}

September 15, 2015 | TUD | R. Hähnle | 7

slide-18
SLIDE 18

Noninterference as Deductive Verification

The Hoare triple: {Pre} p {Post}

Self-composition [Darvas, Hähnle & Sands 2003/05]

◮ Program p(l, h) for simplicity with Low = {l}, High = {h} ◮ p(l′, h′) is obtained as a copy of p with fresh variables l for l′, h for h′ ◮ Formalization of noninterference policy NI = (Low, High):

{l .

= l′} p(l, h); p(l′, h′) {l . = l′} Drawback: Program p must be analysed twice Idea: Compute weakest precondition of p before self-composition

September 15, 2015 | TUD | R. Hähnle | 7

slide-19
SLIDE 19

Symbolic Execution

if (x >= 0) { y=y-1; } else { y=y+1; } y=2*y;

September 15, 2015 | TUD | R. Hähnle | 8

slide-20
SLIDE 20

Symbolic Execution

if (x >= 0) { y=y-1; } else { y=y+1; } y=2*y; (x := x0, y := y0)

September 15, 2015 | TUD | R. Hähnle | 8

slide-21
SLIDE 21

Symbolic Execution

if (x >= 0) { y=y-1; } else { y=y+1; } y=2*y; (x := x0, y := y0) (x0, y0) (x0, y0) (x0, y0) (x0, y0 − 1) (x0, y0 + 1) (x0, 2 ∗ (y0 − 1)) (x0, 2 ∗ (y0 + 1)) x0 ≥ 0 x0 < 0

September 15, 2015 | TUD | R. Hähnle | 8

slide-22
SLIDE 22

Symbolic Execution

if (x >= 0) { y=y-1; } else { y=y+1; } y=2*y; (x := x0, y := y0) (x0, y0) (x0, y0) (x0, y0) (x0, y0 − 1) (x0, y0 + 1) (x0, 2 ∗ (y0 − 1)) (x0, 2 ∗ (y0 + 1)) x0 ≥ 0 x0 < 0 path condition

September 15, 2015 | TUD | R. Hähnle | 8

slide-23
SLIDE 23

Symbolic Execution

if (x >= 0) { y=y-1; } else { y=y+1; } y=2*y; (x := x0, y := y0) (x0, y0) (x0, y0) (x0, y0) (x0, y0 − 1) (x0, y0 + 1) (x0, 2 ∗ (y0 − 1)) (x0, 2 ∗ (y0 + 1)) x0 ≥ 0 x0 < 0 path condition (x = x0, y = 2 ∗ (y0 − 1)) (x = x0, y = 2 ∗ (y0 + 1)) symbolic final state

September 15, 2015 | TUD | R. Hähnle | 8

slide-24
SLIDE 24

Self-composition by Symbolic Execution

1 2 ... i j ... ... n

p(l,h) p(l',h')

path condition: pci(l,h) symbolic output value: l = fi

l(l,h)

path condition: pcj(l',h') symbolic output value: l' = fj

l(l',h')

September 15, 2015 | TUD | R. Hähnle | 9

slide-25
SLIDE 25

Self-composition by Symbolic Execution

1 2 ... i j ... ... n

p(l,h) p(l',h')

path condition: pci(l,h) symbolic output value: l = fi

l(l,h)

path condition: pcj(l',h') symbolic output value: l' = fj

l(l',h')

Formalizing noninterference by self-composition:

{l .

= l′} p(l, h); p(l′, h′) {l . = l′}

September 15, 2015 | TUD | R. Hähnle | 9

slide-26
SLIDE 26

Self-composition by Symbolic Execution

1 2 ... i j ... ... n

p(l,h) p(l',h')

path condition: pci(l,h) symbolic output value: l = fi

l(l,h)

path condition: pcj(l',h') symbolic output value: l' = fj

l(l',h')

Formalizing noninterference by self-composition:

{l .

= l′} p(l, h); p(l′, h′) {l . = l′} Formalizing noninterference by symbolic execution:

  • 1≤i,j≤n

(l = l′ ∧ pci(l, h) ∧ pcj(l′, h′) ⇒ f l

i (l, h) = f l j (l′, h′))

September 15, 2015 | TUD | R. Hähnle | 9

slide-27
SLIDE 27

Self-composition by Symbolic Execution

1 2 ... i j ... ... n

p(l,h) p(l',h')

path condition: pci(l,h) symbolic output value: l = fi

l(l,h)

path condition: pcj(l',h') symbolic output value: l' = fj

l(l',h')

Program p is insecure iff insecurity formula is satisfiable:

  • 1≤i,j≤n

(l = l′ ∧ pci(l, h) ∧ pcj(l′, h′) ∧ f l

i (l, h) = f l j (l′, h′))

  • Leakij

September 15, 2015 | TUD | R. Hähnle | 10

slide-28
SLIDE 28

Running Example

public class Example { public int l; private int h; /*! l | h ; !*/ public void magic(){ if (h>0) l=0; else l=h; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=this.h; <return of magic> <end>

1 2

September 15, 2015 | TUD | R. Hähnle | 11

slide-29
SLIDE 29

Running Example

public class Example { public int l; private int h; /*! l | h ; !*/ public void magic(){ if (h>0) l=0; else l=h; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=this.h; <return of magic> <end>

1 2

Formula Model

Leak11

l = l′ ∧ h > 0 ∧ h′ > 0 ∧ 0 = 0

∅ Leak12

l = l′ ∧ h > 0 ∧ h′ < 1 ∧ 0 = h′ l = l′ = 0, h = 1, h′ = −1

Leak22

l = l′ ∧ h < 1 ∧ h′ < 1 ∧ h = h′ l = l′ = 0, h = 0, h′ = −1

September 15, 2015 | TUD | R. Hähnle | 11

slide-30
SLIDE 30

Declassification (Delimited Release)

public class Example { public int l; private int h; /*! l | h ; !*/ public void magic(){ if (h>0) l=0; else l=h; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=this.h; <return of magic> <end>

1 2

The sign of h, but its value is allowed to leak: Encode with escape hatch expression: e(h, l) ≡ h > 0

September 15, 2015 | TUD | R. Hähnle | 12

slide-31
SLIDE 31

Declassification (Delimited Release)

public class Example { public int l; private int h; /*! l | h ; !*/ /*@ escapes (h>0); @*/ public void magic(){ if (h>0) l=0; else l=h; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=this.h; <return of magic> <end>

1 2

Insecurity formula:

  • 1≤i,j≤n

(e(l, h) = e(l′, h′) ∧ l = l′ ∧ pci(l, h) ∧ pcj(l′, h′) ∧ f l

i (l, h) = f l j (l′, h′))

September 15, 2015 | TUD | R. Hähnle | 13

slide-32
SLIDE 32

Declassification (Delimited Release)

public class Example { public int l; private int h; /*! l | h ; !*/ /*@ escapes (h>0); @*/ public void magic(){ if (h>0) l=0; else l=h; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=this.h; <return of magic> <end>

1 2

Formula Model

Leak11

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h > 0 ∧ h′ > 0 ∧ 0 = 0

∅ Leak12

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h > 0 ∧ h′ < 1 ∧ 0 = h′

∅ Leak22

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h < 1 ∧ h′ < 1 ∧ h = h′ l = l′ = 0, h = 0, h′ = −1

September 15, 2015 | TUD | R. Hähnle | 14

slide-33
SLIDE 33

Declassification (Delimited Release)

public class Example { public int l; private int h; /*! l | h ; !*/ /*@ escapes (h>0); @*/ public void magic(){ if (h>0) l=0; else l=1; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=1; <return of magic> <end>

1 2

September 15, 2015 | TUD | R. Hähnle | 15

slide-34
SLIDE 34

Declassification (Delimited Release)

public class Example { public int l; private int h; /*! l | h ; !*/ /*@ escapes (h>0); @*/ public void magic(){ if (h>0) l=0; else l=1; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=1; <return of magic> <end>

1 2

Formula Model

Leak11

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h > 0 ∧ h′ > 0 ∧ 0 = 0

∅ Leak12

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h > 0 ∧ h′ < 1 ∧ 0 = 1

∅ Leak22

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h < 1 ∧ h′ < 1 ∧ 1 = 1

∅

September 15, 2015 | TUD | R. Hähnle | 15

slide-35
SLIDE 35

Declassification (Delimited Release)

public class Example { public int l; private int h; /*! l | h ; !*/ /*@ escapes (h>0); @*/ public void magic(){ if (h>0) l=0; else l=1; } }

<start> <call self.magic()> if (this.h>0) self.h > 0 this.l=0; <return of magic> <end> self.h < 1 this.l=1; <return of magic> <end>

1 2

Formula Model

Leak11

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h > 0 ∧ h′ > 0 ∧ 0 = 0

∅ Leak12

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h > 0 ∧ h′ < 1 ∧ 0 = 1

∅ Leak22

(h > 0) = (h′ > 0) ∧ l = l′ ∧ h < 1 ∧ h′ < 1 ∧ 1 = 1

∅

Program is secure

September 15, 2015 | TUD | R. Hähnle | 15

slide-36
SLIDE 36

Conditional Delimited Release to Specified Target Escape hatch expression with condition and target variables e, C, T

◮ escapes e \if C \to T ◮ Information may only be released through escape hatch expression e to a set

  • f variables T if condition C is satisfied, and no other information is leaked

Insecurity formula:

  • 1≤i,j≤n

(l = l′ ∧ pci(l, h) ∧ pcj(l′, h′)

∧ l ∈ T ∧ (C(l, h) ∧

  • C(l′, h′)) → e(l, h) = e(l′, h′)
  • ∧ f l

i (l, h) = f l j (l′, h′)

September 15, 2015 | TUD | R. Hähnle | 16

slide-37
SLIDE 37

Recursive Method Call — Example

public class MethodContract { public int l; private int h; /*! l | h ; !*/ public void magic(){ if (h<0) l=-1; else l = run(h); } private int run(int x){ if (x<=0) return 0; else return (x+run(x-1)); } }

September 15, 2015 | TUD | R. Hähnle | 17

slide-38
SLIDE 38

Recursive Method Call — Example

public class MethodContract { public int l; private int h; /*! l | h ; !*/ public void magic(){ if (h<0) l=-1; else l = run(h); } private int run(int x){ if (x<=0) return 0; else return (x+run(x-1)); } }

September 15, 2015 | TUD | R. Hähnle | 17

slide-39
SLIDE 39

Method Contract

◮ Method contract of called method m: Contractm = Prem, Postm, modm

◮ Prem: Precondition of method m ◮ Postm: Postcondition of method m ◮ modm: set of modifiable variables

◮ Method calls are treated as a black box

method contracts contribute to path conditions / symbolic output states

slide-40
SLIDE 40

Method Contract

◮ Method contract of called method m: Contractm = Prem, Postm, modm

◮ Prem: Precondition of method m ◮ Postm: Postcondition of method m ◮ modm: set of modifiable variables

◮ Method calls are treated as a black box

method contracts contribute to path conditions / symbolic output states void main(){ ... m(); next statement; ... }

September 15, 2015 | TUD | R. Hähnle | 18

slide-41
SLIDE 41

Method Contract

◮ Method contract of called method m: Contractm = Prem, Postm, modm

◮ Prem: Precondition of method m ◮ Postm: Postcondition of method m ◮ modm: set of modifiable variables

◮ Method calls are treated as a black box

method contracts contribute to path conditions / symbolic output states void main(){ ... m(); next statement; ... }

calling m inlining m next statement

September 15, 2015 | TUD | R. Hähnle | 18

slide-42
SLIDE 42

Method Contract

◮ Method contract of called method m: Contractm = Prem, Postm, modm

◮ Prem: Precondition of method m ◮ Postm: Postcondition of method m ◮ modm: set of modifiable variables

◮ Method calls are treated as a black box

method contracts contribute to path conditions / symbolic output states void main(){ ... m(); next statement; ... }

calling m inlining m next statement calling m next statement

Set of variables: Var Path condition: pc Set of variables: VS = Var  {vfresh| v  modm}  rm Path condition: pc  Prem

wp(VS)  Postm wp(VS) September 15, 2015 | TUD | R. Hähnle | 18

slide-43
SLIDE 43

Method Contract — Example

public class MethodContract { int l,h; /*! l | h ; !*/ public void magic(){ if (h<0) l=-1; else l = run(h); } /*@ requires true; @ ensures ((x<=0)==> \result == 0) && @ ((x>0) ==> \result*2 == x*(x+1)); @ assignable \nothing; @*/ private int run(int x){ if (x<=0) return 0; else return (x+run(x-1)); } }

September 15, 2015 | TUD | R. Hähnle | 19

slide-44
SLIDE 44

Method Contract — Example

public class MethodContract { int l,h; /*! l | h ; !*/ public void magic(){ if (h<0) l=-1; else l = run(h); } /*@ requires true; @ ensures ((x<=0)==> \result == 0) && @ ((x>0) ==> \result*2 == x*(x+1)); @ assignable \nothing; @*/ private int run(int x){ if (x<=0) return 0; else return (x+run(x-1)); } } pc1 : h < 0 pc2 : h ≥ 0 ∧ (h ≤ 0 ⇒ r = 0) ∧ (h > 0 ⇒ r ∗ 2 = h ∗ (h + 1))

September 15, 2015 | TUD | R. Hähnle | 19

slide-45
SLIDE 45

Method Contract — Example

public class MethodContract { int l,h; /*! l | h ; !*/ public void magic(){ if (h<0) l=-1; else l = run(h); } /*@ requires true; @ ensures ((x<=0)==> \result == 0) && @ ((x>0) ==> \result*2 == x*(x+1)); @ assignable \nothing; @*/ private int run(int x){ if (x<=0) return 0; else return (x+run(x-1)); } } pc1 : h < 0 pc2 : h ≥ 0 ∧ (h ≤ 0 ⇒ r = 0) ∧ (h > 0 ⇒ r ∗ 2 = h ∗ (h + 1))

Formula Model

Leak11 ∅ Leak12

l = l′ = 0, h = −1, h′ = 1

Leak22

l = l′ = 0, h = 1, h′ = 2

September 15, 2015 | TUD | R. Hähnle | 19

slide-46
SLIDE 46

The KEG Tool

KEG generates exploits for annotated sequential Java Programs (w/o floats, garbage collection and reflection)

◮ Based on the KeY verification system for Java ◮ Using SMT Solver Z3 for finding models ◮ Generated exploits are synthesized into JUnit tests

September 15, 2015 | TUD | R. Hähnle | 20

slide-47
SLIDE 47

Experiments

File #Loop/ Policy Secure/ Time #Generated Exploit/ name Method call (NI/D) Insecure (ms) False Positive Mul 0 / 0 D I 6266 1 / 0 Mul_StrongLI 1 / 0 D I 7274 1 / 0 Mul_WeakLI 1 / 0 D I 7463 2 / 1 Mul_WrongLI 1 / 0 D I 7285 0 / 0 Comp_StrongMC 0 / 1 NI I 7995 3 / 0 Comp_WeakMC 0 / 1 NI I 8065 3 / 3 Comp_WrongMC 0 / 1 NI I 7887 0 / 0 Company 1 / 1 NI I 8816 3 / 0 ExpList 0 / 0 NI I 8668 1 / 0 ExpLinkedList 0 / 4 NI I 15526 2 / 0 ExpArrayList 0 / 5 NI I 24752 3 / 0 ArrMax 1 / 0 NI I 8804 1 / 0 ArrSearch 1 / 0 D S 9568 0 / 0

September 15, 2015 | TUD | R. Hähnle | 21

slide-48
SLIDE 48

Conclusion & Future Work Deductive techniques used for

◮ Symbolic execution

◮ Path conditions ◮ Symbolic states

◮ Model Extraction for exploit generation

Insecurity Formula Construction

Approach implemented for sequential Java Programs: KEG Tool

September 15, 2015 | TUD | R. Hähnle | 22

slide-49
SLIDE 49

Conclusion & Future Work Deductive techniques used for

◮ Symbolic execution

◮ Path conditions ◮ Symbolic states

◮ Model Extraction for exploit generation

Insecurity Formula Construction

Approach implemented for sequential Java Programs: KEG Tool

Future Work

◮ Secret extraction from insecure programs ◮ Usage of information-flow contracts ◮ Improve the presentation and explanation of the generated exploits ◮ Instantiate framework to other relational properties

September 15, 2015 | TUD | R. Hähnle | 22
