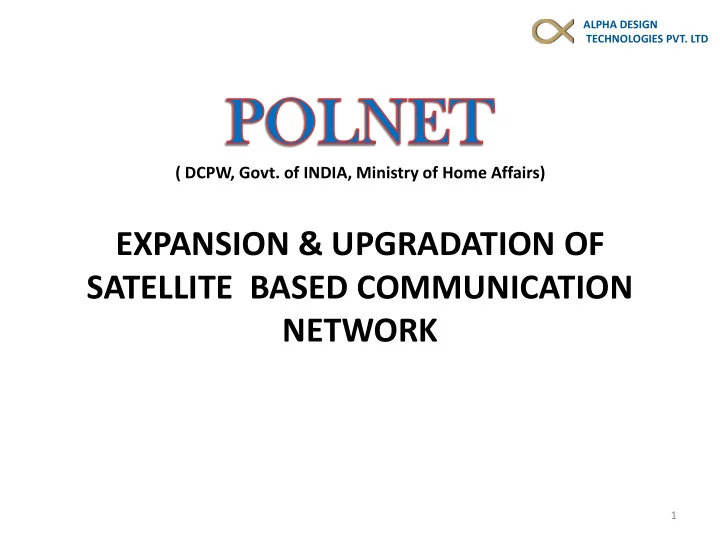

( DCPW, Govt. of INDIA, Ministry of Home Affairs)

EXPANSION & UPGRADATION OF SATELLITE BASED COMMUNICATION NETWORK

ALPHA DESIGN TECHNOLOGIES PVT. LTD 1

2

3

4

SATCOM GROUP IN ADTL

• ADTL is supporting ISRO for Assembly, Integration, Testing of the IRNS Satellite.
• ADTL has successfully delivered supply, Installation and Commissioning of MSS HUB

Baseband system at New Delhi from SAC/ISRO Ahmedabad in 2017.

• ADTL is entrusted by ISRO/NESAC, Shillong, for the commissioning of Satellite Hubs,

Teaching / Studio end Satellite Interactive Terminals at 350 remote sites of North Eastern States' Tele-Education Networks under the Edusat Project.

• ADTL is implementing TeleMedicine Network for SAC, ISRO
• ADTL received the Order for Installation of VSATs at all the SAARC countries.
• ADTL has received the Order from SAC, Ahmedabad for manufacturing Miniature

NavIC position tracking receivers for augmented GAGAN Navigation.

• ADTL has developed and Supplied S-Band Satellite MSS Terminal, Distress Alert

Transmitter integrated to NaVIC receivers as per ISRO requirements.

Introduction to Polnet

• The network is currently operating on GSAT-17 series Satellite using C Band

full transponder of 36 MHz Bandwidth.

• The network is operational since 2004 and is being considered for its

technology upgradation and expansion with latest technology. SOW For ADTL:

• The existing POLNET HUB located at Samanvay Sadan, New Delhi is to be

upgraded to DVBS-2 technology and MFTDMA for better efficiency and

• ptimal use of spectrum
• With the initial capacity for 1700 VSATS and expandable to 3000 VSATS.
• 110 VSATS at DCPW/ISPW locations are to be provided.
• The VSATS of CAPFs and state Police organizations are required to be added in

phased manner.

Network is to be configured with 1 out route configurable from 8 Mbps to 45 Mbps and 12 in routes each configurable up to 2 Mbps.

5

Polnet Technical Solution

GILAT, The SkyEdge II-c Technology of VSATs provides a high speed communication link supporting customer applications. SkyEdge II-c VSATs provide link layer connectivity (satellite modem) as well as embedded web acceleration, data encryption, and QoS supporting voice, video and data applications.

• CISCO Technology for audio and Video conferencing ensures high quality of

service at Star Terminals

The following Services to be provided from Polnet.  Voice @ 16 KBPS or suitable rate 150 concurrent users simultaneously with call setup time 03 seconds.  40 Simultaneous video conferencing call selectable from 512 Kbps to 2 Mbps.  Messaging services @ 16 KBPS or better at Lan Port.  Messaging application server.  FTP services from VSAT up to 2MBPs.

6

36 Consignee Locations PAN INDIA

7

Satellite Parameters

 Satellite / Orbital slot : GSAT 17/93.5 degree East  Band of operation : C Band  Uplink Frequency range/Polarisation : C Band, Lin Vertical  Down link Frequency Range : C Band, Lin Horizontal  Uplink/Downlink Polarization : Linear  Transponder Bandwidth : 36 MHz  Maximum Satellite Effective Isotropic : 39 dBw radiated power available in 36 MHz bandwidth for multiple carrier operation  Satellite operational saturation flux Density : -85dBW/m² ± 2dB  Satellite input/ Output back off with respect: 6/3 dB to saturation for multiple carriers operation

8

Implementation of project

 PO Number : D/21013/3265/22.11.2017/PW/951  A/T Date : 03/May/2019  P B G : 16 May 2019  Delivery Date : T+120 Days (31/Aug/2019)  JRI : T+130 days (10/Sep/2019)  Install & Comm. : T+165 Days (15/Oct/2019)  ATP : T+180 Days (30/Oct/2019)  Warranty : 3 Years from Date of commissioning  CAMC : 7 Years post warranty period  O & M of HUB : 1+2 Years

9

10

 Highly Secured Satellite Based Network.  All India Presence for Video/Audio Conferencing  Highly Reliable Network  One Time Investment – No Additional Operating Expenses  Centralized Operations  Guaranteed Spectrum Bandwidth  One Time Investment for Star Terminal site  Communication across the state Borders  Latest Technology for Network Security  Speech Security by Encryption  Easy to Implement Star Terminal sites and Expand  FlyAway Terminals for Emergencies

POLNET BENEFITS TO STATES POLICE DEPARTMENTS

CONNECTIVITY BETWEEN HUB AND REMOTES

11

Video Conference IP Phones PBX VoIP Switch

Satellite Network

Messaging Server Public Voice Network

UHP240 Satellite Routers Baseband System UHP100

Hub Site – Integrated Communication

PowerEdge R640 2Nos Load Balancer R230 2Nos Zimbra Mail

DELL CISCO CISCO

CISCO Business Edition BE7000M 1:1 CISCO Meeting Server CMS1000 1:1 CISCO L3 Switch WS C 3650

GILAT SkyEdge IIc Outbound: 1:1 DVBS2 Inbound 12 MF TDMA

Indoor 1:1 750Watts TWTA 5.85 to 6.65 GHz

11mt Antenna Refurbishment Control Unit: ACU Drive Unit: Az, EL Motors Cleaning, Painting NOCC Parameters Power Supply Network Operation Up Link: 5.925 to 6.425 GHz Down Link: 3.7 to 4.2 GHz

Hub Site – RF Part

IF Cable

OUTDOOR Units: WaveGuide 35 mts

SingCom UpConverter

High Power Amplifier Up Converter

Teledyne LNA Control Panel SingCom DownConverter

Indoor 1:1 C to L Converter SCM2000-C04 950-1525 MHz DownConverter

Teledyne LNA Plate LNA Teledyne RF3 Series

Gain: 60dB 3.7 to 4.2 GHz TRF

Out Door 1:1 RCP2-1100 Space Path STR2175

Indoor 1:1 L to C Converter SCM2000-C51 950-1525 MHz

Combiner Splitter

Combiner/Splitter From Baseband To Baseband SURT20KUXIIN by Schneider 1:1 30 mnts back up

20KW 3Ph UPS

IN DOOR Units:

Measuring Equipment KEYSIGHT Spectrum Analyzer – 2 Power Meter - 2

Hub Site RF Equipment

NJRC BUC NJRT 5762FM NJRC LNB NJS 8487H 10W 5.85 to 6.425 GHz LO: 4.9 GHz IF: 950 to 1525 HMz 3.625 to 4.2 GHz IF: 950 to 1525 HMz LO: 5.15GHz SUMERU 1.8 mts: 100 SUMERU 2.4 mts: 5 5.85 to 6.425 GHz 3.625 to 4.2 GHz

MODEM SkyEdgeIIc Gilat Gemini 4 RG 11, F Type, IF

Network Operation UpLink: 5.925 to 6.425 GHz DownLink: 3.7 to 4.2 GHz

CISCO IP Phone 8841 CISCO VC Room Kit P60 (+SX80 at 40 sites) LG 40” Display HP Printer MFP M126 DELL OptiPlex5050 RG11, F Type, IF+DC

2KVA UPS, APC Smart SRC2KUXI 12V, 26AH * 6 Nos INDOOR Units: OUTDOOR Units:

MW ELG

• 150

230 Volts AC

3Core Armoured Cable

Star Terminal site

GILAT SKYEDGE II-C MODEM

 Indoor Compact Design Light weight Equipment.  High Throughput VSAT Designed to Enable High Speed Broadband services.  Integrated , managed 4-Port GbE LAN Switch.  Enables High Quality VoIP and Video.  Fast Web browsing with web acceleration and compression.  Central monitoring and service management.

15

10 watt BUC Model No NJT5762FM

 High Efficiency and Low Distortion  Compact Size and Light weight : 3.2 Kg  Power from AC Adapter, 180 to 240 Volt AC  LED Indicator  Power consumption : 69 watt  Input Interface : F type female (75 Ohm)  Output Interface : Waveguide, CPR137  Temperature Range (ambient) : -40 to +55 °C

16

C Band PLL LNB Model No NJS8486H

 Low noise temperature : 15 K  DC Power : 24 Volt DC (12 volt to 24 volt DC)  DC Current drain : 350 mA  Input Interface : Waveguide, CPR229  Output Interface :F type female (75 Ohm)  Small Size and Light weight : 800 gms  Temperature Range (ambient) : -40 to +60 °C

17

Network Services – Single VC

Video conferencing: CISCO CS-KITP60-K9

• Cisco Webex Room Kit Plus for Videoconferencing.
• Video Resolution: 1080p 60fps, 1080p 30fps , 720p@30fps, H.323 and SIP, 6Mbps on IP
• Content Resolution: 4k content sharing

 An unmatched audio and video experience.  10x optical and 20x total zoom power.  Supports superior adaptability to light conditions  Suitable for large meeting rooms.  Display Unit is of 43 Inches.  Operation using touch 10”  Video Inputs: 3 x HD Input  Video Output: 2 x HD (Main monitor and 2nd Monitor)  IPV4 & IPV6 compatible

18

Network Services – Multi VC

Multi Conference Unit(MCU) - Cisco SX80 MCU  Delivers Unmatched audio and Video experience.  Capability to hold 1+4 Multisite video conference.  Ideal for team-based collaboration, boardrooms and meeting rooms.  Video Resolution: 1080p 60/30fps , 720p@30fps  Video Inputs: 4 x HD Inputs : Main Camera ,1x aux camera 1 x PC and 1x Document Camera  Video Output: 3 x HD (Main monitor and 2nd & 3rd Monitor)  Supplied with 1 Microphones  10x optical Camera zoom, total zoom 20x  10/100/1000 Mbps Ethernet port  HDMI audio input and output for digital audio connections  IPV4 & IPV6 compatible

19

Network Services – Voice Call

Voice Call: Cisco IP Phone 8841  Crystal clear voice communications, 800 x 480 widescreen VGA backlit color display  easy-to-use interface and provides a traditional telephony.  The handset is a standard wideband-capable audio handset  5 inches colour display provides scrollable access to calling features.  supports a built-in Gigabit Ethernet switch for your PC connection  full-duplex speakerphone gives you flexibility in placing and receiving calls with hands free. Hold/Resume, Transfer, and Conference keys Volume-control toggle key Speakerphone and mute keys Supplied with Power adaptor

20

Network Services - DTE

Data Terminal Equipments  Dell OptiPlex 5050/5060 tower.  Processor (CPU) Model: Intel Core i5.  RAM size: 4 GB.  HDD: 1 TB.  Operating System Windows 10.  Monitor 18.5”.

21

Network Services - Printer

Multi Function Printer  HP Laser Jet Pro MFP M126 NW  Print , Scan and Copy.  20(Black) PPM  Easy to connect using USB , Ethernet  Easily copy both sides of a two sided IDs.

22

Service Level Agreement and RMC’s

SLA 1. Hub Uptime 99.9% 2. Remote uptime 99% 3. Remote (North East, Andaman and Nicobar, Lakshdweep & Ladakh region) uptime 97% 4. Any repair with in India to be completed in 45 days 5. Any repair out side India to be completed in 90 days RMC’s The under mention locations will be RMC . ADTL Engineers will be available in RMC’s for fault rectification as per SLA . (a) New Delhi (b) Bangalore (c) Ahmedabad (d) Guwahati (e) Chandigarh (f) Port Blair

23

24

 ADTL policy is to deliver product and services to the fullest satisfaction of users with no disruption of services.  POLNET Project is for 3 Years Warranty + 7 Years CAMC from ADTL  Necessary training is provided to all stake holders (users) of the network in utilizing the centralized support services.  Dedicated center is setup to carry out support functions. The support center tracks all incidents (faults report, service requests etc) reported until they are resolved and corrective action taken. Ticketing System used for Tracking all Incidents.  The Support center meets ISO’s Service Management System (ISO 20000) standards  It is supported by 24x7 toll free telephone (1800-102-6980) for fault/service request reporting and escalation as per laid out norms.  The support center also has an Interactive Voice Recording System (IVRS) for fault/service request reporting after office-hours or on holidays.  In addition to preventing SLA violation by tracking & proactive escalation, resolved incidents are analyzed for preventing the incidents from happening again (corrective action) and customers given a factual report on resolution of the fault ticket.  Also, customer feedback survey is conducted periodically to explore further areas of improvement in the services offered.

ADTL Support Services
