WANSTEAD LEISURE CENTRE AND WANSTEAD HIGH SCHOOL PROPOSAL This public exhibition is for the redevelopment of part of the Wanstead School and Leisure site on Leisure Centre Entrance Redbridge Lane West. The proposal is to enhance public fjtness

SLIDE 1

Student Entrance Visitors Entrance Leisure Centre & School Vehicular Access Leisure Centre Entrance

BLOCK 1 BLOCK 2 BLOCK 3 B L O C K 5 B L O C K 6 BLOCK 4

Stanley Bragg

WANSTEAD LEISURE CENTRE AND WANSTEAD HIGH SCHOOL PROPOSAL

Existing Plans

Stanley Bragg

A R C H I T E C T S

This public exhibition is for the redevelopment of part of the Wanstead School and Leisure site on Redbridge Lane West. The proposal is to enhance public fjtness facilities and improve some of the educational buildings. Part of the existing school building is being removed due to poor condition and outdated teaching environments (Block 2). This provides opportunity to integrate the new pool in this location. To provide these facilities locations on the site have been reviewed and the proposed location was the most appropriate, meaning ‘Block 2’ is to be demolished and rebuilt.

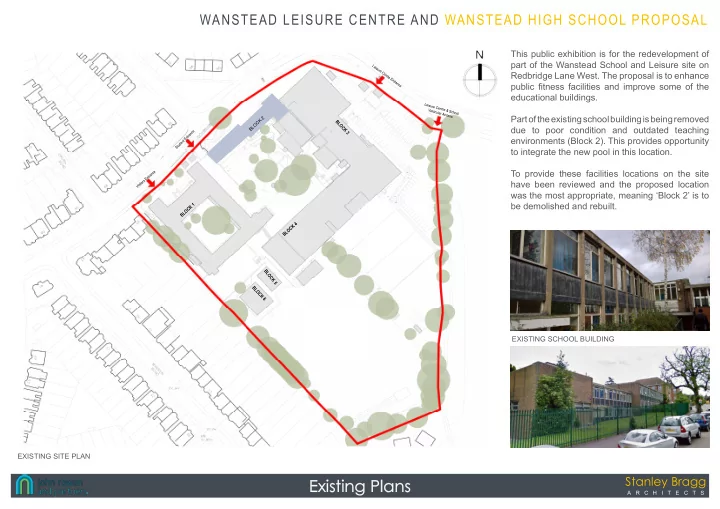

EXISTING SITE PLAN

BLOCK 2

EXISTING SCHOOL BUILDING

SLIDE 2

Proposed Plans

Stanley Bragg

A R C H I T E C T S

63 6 7 BM 22.82m 22.2m

WARREN ROAD

22.3m 24 12 2 2c 1 3 25 35

DRUMMOND ROAD

1 41 60 68 2b 2 a 4 3 51 66 3 7 7 1 82 1 24 84 90

New Hard play surface New Parking Spaces

2 . 4 x 3 4 m V i s i b i l i t y s p l a y 2.4x34m Visibility splay

CAR PARK ENTRANCE NEW LEISURE CENTRE ENTRANCE SCHOOL ENTRY RETAINED R E D B R I D G E L N W N E W P L A Z A A R E A D I S A B L E D P A R K I N G S P A C E S

Stanley Bragg

PROPOSED SITE PLAN

WANSTEAD LEISURE CENTRE AND WANSTEAD HIGH SCHOOL PROPOSAL

The relocation of the Leisure entrance will be closer to the existing pedestrian road crossing and residential areas. The new entrance will be more central for the facilities and act as a new hub space for the centre. New sporting facilities to include

25m leisure pool and changing village
Dance studio
New public entrance and foyer

Existing facilities retained include

Fitness gym,
Gymnasium studio
Squash courts,
Sports hall.

The school is not expanding but the need is to re- provide suitable and suffjcient up-to-date school

accommodation. These facilities include
Dining Hall and main kitchen,
History classroom,
Geography classroom,
RE classroom
Art classroom
The existing internal school courtyard will

also be improved to become a more usable space and disabled friendly. These changes will not effect the existing car parking for the site.

LEISURE FACILITIES SCHOOL FACILITIES

SLIDE 3

Proposed Plans

Stanley Bragg

A R C H I T E C T S

PROPOSED GROUND FLOOR PLAN

WANSTEAD LEISURE CENTRE AND WANSTEAD HIGH SCHOOL PROPOSAL

PROPOSED FIRST FLOOR PLAN

The new entrance and facilities, along with some internal remodelling will provide an improved layout and access arrangement for both the public using the sports centre and the school in its daily activities. Disabled access to all the facilities will also be improved.

SWIMMING POOL AND LEISURE CENTRE PERSPECTIVE

EXISTING MULTI-PURPOSE HALL (RETAINED) EXISTING HALL ROOF SWIMMING POOL ROOF

SLIDE 4

Proposed Elevations

Stanley Bragg

A R C H I T E C T S

Stanley Bragg

N-W ELEVATION (FRONT) - REDBRIDGE LANE WEST

WANSTEAD LEISURE CENTRE AND WANSTEAD HIGH SCHOOL PROPOSAL

PROPOSED STREET VIEW LOOKING SOUTH-WEST PROPOSED STREET VIEW LOOKING NORTH-EAST

SLIDE 5

Proposed Elevations

Stanley Bragg

A R C H I T E C T S

Stanley Bragg

WANSTEAD LEISURE CENTRE AND WANSTEAD HIGH SCHOOL PROPOSAL

N-E ELEVATION (SIDE) - SCHOOL COURTYARD SWIMMING POOL VIEW LEISURE CENTRE ENTRANCE LOBBY VIEW DANCE STUDIO VIEW
