EXISTING ELEVATIONS General Notes EXISTING WINDOW SCHEDULE - - PowerPoint PPT Presentation

701 8"" MO 361 2"" MO 641 4"" FS 741 2"" MO 297 8"" FS 297 8"" FS 601 4"" MO

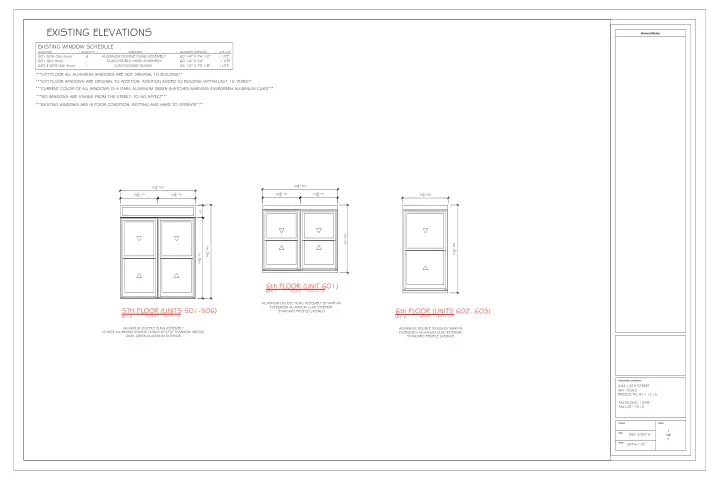

EXISTING ELEVATIONS

EXISTING WINDOW SCHEDULE

LOCATION / QUANTITY / WINDOWS / MASONRY OPENING / LITE CUT

501-506 (5th floor) 6 ALUMINUM DOUBLE HUNG ASSEMBLY 60 1/4" X 74 1/2" 1 LITE 601 (6th floor) 1 CLAD DOUBLE HUNG ASSEMBLY 60 1/4" X 54" 1 LITE 602 & 603 (6th floor) 1 CLAD DOUBLE HUNGS 36 1/2" X 70 1/8" I LITE

***5TH FLOOR ALL ALUMINUM WINDOWS ARE NOT ORIGINAL TO BUILDING** ***CURRENT COLOR OF ALL WINDOWS IS A DARK ALUMINUM GREEN (MATCHES MARVIN'S EVERGREEN ALUMINUM CLAD)*** ***NO WINDOWS ARE VISIBLE FROM THE STREET- TO NO AFFECT*** ***EXISTING WINDOWS ARE IN POOR CONDITION; ROTTING AND HARD TO OPERATE****

SCALE: "=1'-0"

5TH FLOOR (UNITS 501-506)

3/4 QTY: 6 ALUMINUM DOUBLE HUNG ASSEMBLY (2 WIDE ALUMINUM DOUBLE HUNGS W/ STAT TRANSOM ABOVE) DARK GREEN ALUMINUM EXTERIOR

54"" MO 297 8"" FS 297 8"" FS 601 4"" MO

SCALE: "=1'-0"

6th FLOOR (UNIT 601)

3/4 QTY: 1 ALUMINUM DOUBLE HUNG ASSEMBLY BY MARVIN EVERGREEN ALUMINUM CLAD EXTERIOR STANDARD PROFILE CASINGS SCALE: "=1'-0"

6th FLOOR (UNITS 602, 603)

3/4 QTY: 2 ALUMINUM DOUBLE HUNGS BY MARVIN EVERGREEN ALUMINUM CLAD EXTERIOR STANDARD PROFILE CASINGS

10"

***6TH FLOOR WINDOWS ARE ORIGINAL TO ADDITION. ADDITION ADDED TO BUILDING WITHIN LAST 15 YEARS**

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 3/4"=1'-0"

1 OF 7

31 2"

EXISTING ALUMINUM DOUBLE HUNGS EXISTING COLOR IS A DARK GREEN ALUMINUM EXTERIOR

SCALE: "=1'-0"

EXISTING VERTICAL DETAIL

6

SCALE: "=1'-0"

EXISTING HORIZONTAL DETAIL

6

EXISTING DETAILS- 5TH FLOOR

WINDOWS ARE NOT ORIGINAL

21 4" 13 4" 6" 15 8" 45 8" 37 8"

EXISTING ALUMINUM DOUBLE HUNGS EXISTING COLOR IS A DARK GREEN ALUMINUM EXTERIOR WINDOWS ARE NOT ORIGINAL

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 6"=1'-0"

2 OF 7

SCALE: "=1'-0"

EXISTING HORIZONTAL DETAIL

6

EXISTING DETAILS- 6TH FLOOR

EXISTING ALUMINUM DOUBLE HUNGS (BY MARVIN) EXISTING COLOR IS A MARVIN EVERGREEN ALUMINUM EXTERIOR

INSULATION

1" 31 4"

1" FRAME EXPANDER

3" 31 4"

3" FRAME EXPANDER

23 8" 3 7 16" 61 2"

THICK SILL

SCALE: "=1'-0"

EXISTING VERTICAL MULL DETAIL

6

EXISTING ALUMINUM DOUBLE HUNGS

61 2"

(SEEN ON UNIT #601 ONLY)

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 6"=1'-0"

3 OF 7

54"" MO 601 4"" MO 701 8"" MO 361 2"" MO

PROPOSED ELEVATIONS

PROPOSED WINDOW SCHEDULE

LOCATION / QUANTITY / WINDOWS / MASONRY OPENING / LITE CUT

501-506 (5th floor) 6 CLAD DOUBLE HUNG ASSEMBLY 60 1/4" X 74 1/2" 1 LITE 601 (6th floor) 1 CLAD ULTIMATE GLIDER 60 1/4" X 54" 1 LITE 602 & 603 (6th floor) 1 CLAD DOUBLE HUNGS 36 1/2" X 70 1/8" I LITE

SCALE: "=1'-0"

5TH FLOOR (UNITS 501-506)

3/4 QTY: 6 MARVIN CLAD ULTIMATE DOUBLE HUNG- NEXT GENERATION ASSEMBLY MARVIN EVERGREEN ALUMINUM CLAD EXTERIOR NO CASINGS, NO SUBSILL SCALE: "=1'-0"

6th FLOOR (UNIT 601)

3/4 QTY: 1 MARVIN ALUMINUM CLAD ULTIMATE GLIDER MARVIN EVERGREEN ALUMINUM CLAD EXTERIOR NO CASINGS, NO SUBSILL SCALE: "=1'-0"

6th FLOOR (UNITS 602, 603)

3/4 QTY: 2 MARVIN CLAD ULTIMATE DOUBLE HUNG- NEXT GENERATION MARVIN EVERGREEN ALUMINUM CLAD EXTERIOR NO CASINGS, NO SUBSILL

741 2"" MO 301 8"" FS 301 8"" FS 601 4"" MO

***ALL WINDOWS TO BE REPLACED TO THE BRICK WITH MARVIN ALUMINUM CLAD EXTERIOR/ WOOD INTERIOR WINDOWS*** ***ALL UNITS TO BE MADE WITH MARVIN EVERGREEN ALUMINUM CLAD- TO MATCH EXISTING ALUMINUM COLOR THROUGHOUT BUILDING*** ***ALL WINDOWS ON THIS APPLICATION ARE NOT VISIBLE FROM THE STREET- ALL ARE TO NO AFFECT*** ***ALL WINDOWS TO BE INSTALLED INTO EXISTING OPENINGS- NO CHANGES TO OPENING SIZES*** ***CHANGE IN CONFIGURATIONS APPROVED BY BUILDING MANAGMENT***

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 3/4"=1'-0"

4 OF 7

SCALE: "=1'-0"

PROPOSED HORIZONTAL DETAIL

6

PROPOSED DETAILS- 5TH AND 6TH FLOORS

SCALE: "=1'-0"

PROPOSED VERTICAL MULL DETAIL

6

MARVIN NEXT GENERATION DOUBLE HUNG- VERTICAL MULL

SONNEBORN SOF-ROD BACKER ROD AND NP-1 URETHANE SEALANT (1

4" CAULK JOINT)

31 4" 17 8" 31 4" 31 4" SONNEBORN SOF-ROD BACKER ROD AND NP-1 URETHANE SEALANT (1

4" CAULK JOINT)

61 2" 23 8" 1 9 16" 121 32"

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 6"=1'-0"

5 OF 7

SCALE: "=1'-0"

PROPOSED HORIZONTAL DETAIL

6

PROPOSED DETAILS- UNIT 601 ONLY

SONNEBORN SOF-ROD BACKER ROD AND NP-1 URETHANE SEALANT (1

4" CAULK JOINT)

31 4" 13 4" 31 4" 23 8" SONNEBORN SOF-ROD BACKER ROD AND NP-1 URETHANE SEALANT (1

4" CAULK JOINT)

125 32" 31 2" 13 4"

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 6"=1'-0"

6 OF 7

PHOTOGRAPH OF EAST ELEVATION- 5TH FLOOR WINDOWS VISIBLE PHOTOGRAPH OF EAST ELEVATION- 5TH FLOOR WINDOWS CLOSEUP PHOTOGRAPH OF 5TH FLOOR WINDOWS INTERIOR- SHOWING ALL ALUMINUM PHOTOGRAPH OF 6TH FLOOR DOUBLE HUNG- UNIT 603 PHOTOGRAPH OF 6TH FLOOR DOUBLE HUNGS- UNITS 602 AND 601 PHOTOGRAPH OF 6TH FLOOR DOUBLE HUNGS- INTERIOR VIEW OF MARVIN WINDOW- SHOWING CONDITION OF WOOD

Scale Project Date Sheet Project Name and Address

General Notes

444 12TH STREET

• Apt. 5C/6C

BROOKLYN, NY 11215 TAX BLOCK: 1098 TAX LOT: 7510 06/12/2016 NTS

7 OF 7

Window 506 Window 505 Window 504 Window 503 Window 502 Window 501

Window 601 Window 602 Window 603
