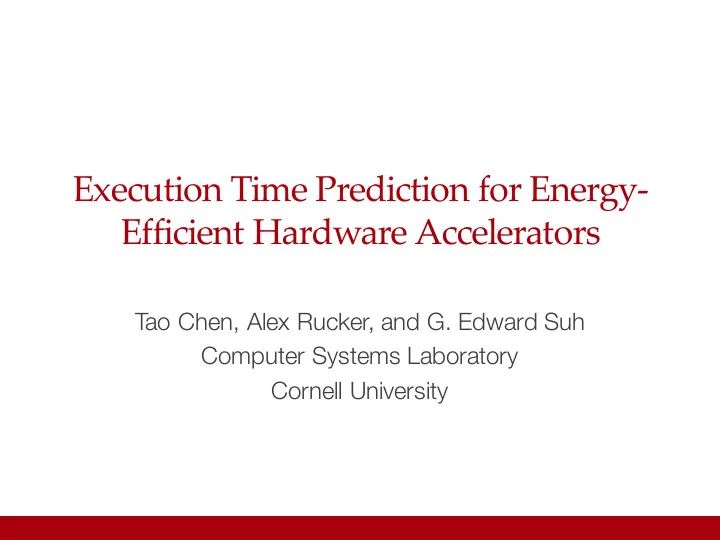

Execution Time Prediction for Energy- Efficient Hardware Accelerators

Tao Chen, Alex Rucker, and G. Edward Suh Computer Systems Laboratory Cornell University

Tao Chen

Accelerators in Interactive Computing Systems

• Interactive systems have response time requirements and
• ften use hardware accelerators
• Observation: Finishing earlier than the requirement is

usually not needed

• Goal: Perform DVFS for hardware accelerators to save

energy while meeting response time requirements

2

Cornell University

Tao Chen

DVFS for Interactive Computing Systems

Cornell University

3

• Save energy by running slower (lower frequency/voltage)
• Requirement
• Correctly predict each job’s execution time

Time deadline deadline Job 0 Job 1 Time deadline deadline Job 0 Job 1 Predict and Set DVFS Level

Tao Chen

Opportunity and Challenge

• Opportunity: Most jobs finish earlier than the deadline
• Challenge: Irregular variations in job execution time

Cornell University

4

Execution time of a video decoding accelerator deadline

Tao Chen

Conventional DVFS Controllers

• History-based execution time prediction
• Example: PID controller
• Problem of history-based prediction
• Reactive — decisions lag behind changes

Cornell University

5

Tao Chen

Predictive DVFS Framework for Accelerators

Cornell University

6

• Approach: Build a predictor hardware for each accelerator

that uses job input data to predict execution time

• Design Time: Build predictor and train prediction model
• Identify features related to execution time
• Generate a hardware slice that can calculate features quickly
• Train a prediction model that maps features to execution time
• Run Time: Run predictor to inform DVFS decisions

Hardware Slice Job Input Job Features Execution Time Model Job Execution Time DVFS Model DVFS Level

Tao Chen

Features to Capture Execution Time Variation

• Source of variation: input-dependent control decisions
• Feature: State Transition Count

Cornell University

7

initial state S1 S2 S3 S4

Time S3 S1 S2 S4 S1 S2 S4 S1 S1 S2 S4 S1 S4 S1

𝑇𝑈𝐷 = [𝑡𝑢(,* , 𝑡𝑢(,, , 𝑡𝑢*,- , 𝑡𝑢,,- , 𝑡𝑢-,(]

Job 1 Job 2

2 2 2 1 1 1 1 2

Job 1 Job 2

Tao Chen

Features to Capture Execution Time Variation

• Variable state latency

Cornell University

8 FSM Counter init done

done !done

initial state S1 S2 S3 S4

Time S3 S1 S3 S4 S1 S4 S1 Job 3 init 4 3 2 1 done 2 1 done init

• Feature: Counter Average Initial Value
• Other counter features in the paper

𝐵𝐽𝑊 = [𝑗𝑤3,]

Job 3

3

Tao Chen Hardware Slice Job Input Job Features Execution Time Model Job Execution Time DVFS Model DVFS Level

Identifying and Extracting Features

• Automated flow based on RTL analysis
• Identify FSM and counter features in RTL
• Instrument RTL to extract features
• More details in the paper

Cornell University

9

Tao Chen Cornell University

10

• Need to obtain features before running the accelerator
• Create a minimal version of the accelerator
• Program slicing on accelerator RTL code
• Optimize hardware slice to run fast

Control Unit Datapath

Accelerator Logic

Hardware slice

Hardware Slicing

Time S1 S4 S1 S4 S1 FSM init 4 3 2 1 done 1 done 2 init Counter S3 S3

Tao Chen Hardware Slice Job Input Job Features Execution Time Model Job Execution Time DVFS Model DVFS Level

Execution Time Prediction Model

• Train model using convex optimization
• Reduce the number of features
• Prioritize meeting deadlines over saving energy

Cornell University

11

features execution time model coefficients

Linear model: 𝑧

5 = 𝑌𝑐

Tao Chen

Evaluation Methodology

Cornell University

12

• Vertically integrated evaluation methodology
• Circuit-level simulation: obtain voltage-frequency relationship
• Gate-level modeling: obtain area, power and energy numbers
• Register-transfer-level simulation: obtain execution time
• Benchmark accelerators
• Deadline: 16.7 ms

Name Description h264 Video decoding cjpeg Image encoding djpeg Image decoding aes Cryptography sha Cryptography md Molecular dynamics stencil Image processing

Tao Chen

Results: Energy and Deadline Misses

Cornell University

13

• 36.7% energy savings on average
• 0.4% deadline misses

Tao Chen

Results: Overheads of Slice-Based Predictor

Cornell University

14

• 5.1% area overhead
• 1.5% energy overhead
• 3.5% execution time overhead

Tao Chen

More Evaluation Results in Paper

Cornell University

15

• More detailed experimental results
• Prediction Accuracy Analysis
• Results with Predictor Overheads Removed
• Sensitivity Study on Varying Deadlines
• Platform extensions
• DVFS with Voltage Boosting
• Results for FPGA-based Accelerators
• Results for Accelerators Generated by HLS

Tao Chen

Summary

Observation: Finishing faster than the deadline is not needed Goal: DVFS for accelerators with response time requirements Solution: Prediction-based DVFS

• Execution time depends on input-dependent control decisions
• Hardware features can be used to capture control decisions
• Proposed a framework to generate predictors automatically

Results: Highly accurate DVFS for accelerators

Cornell University

16

Questions?
