Exchange operations on noncrossing spanning trees Csaba D. T oth - PowerPoint PPT Presentation

Exchange operations on noncrossing spanning trees Csaba D. T oth Cal State Northridge, Los Angeles, CA and Tufts University, Medford, MA Spanning Trees Elementary Operations abstract spanning tree = connected graph on n vertices that

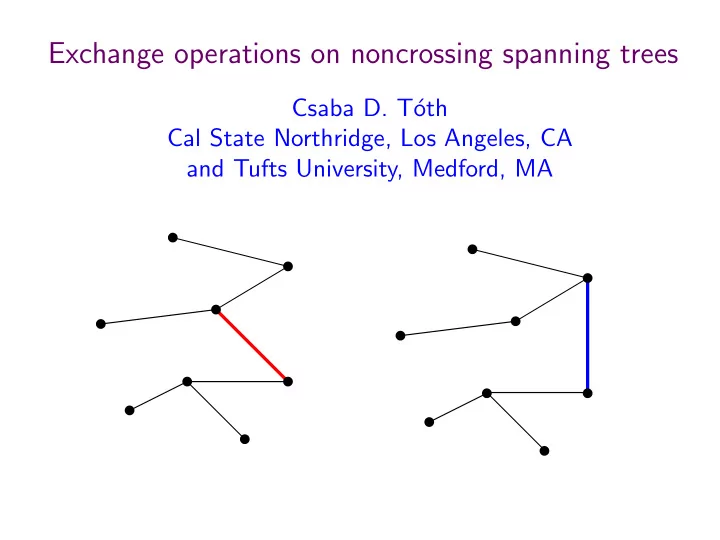

  1. Exchange operations on noncrossing spanning trees Csaba D. T´ oth Cal State Northridge, Los Angeles, CA and Tufts University, Medford, MA

  2. Spanning Trees — Elementary Operations abstract spanning tree = connected graph on n vertices that does not contain cycles. There are n n − 2 spanning trees on n labeled vertices [Cayley, 1889] Exchange property for graphic maroids: If T 1 = ( V, E 1 ) and T 2 = ( V, E 2 ) are spanning trees, ∀ e 1 ∈ E 1 ∃ e 2 ∈ E 2 : ( V, E 1 − e 1 + e 2 ) is a spanning tree. For n ≥ 4 , there exist two edge-disjoint spanning trees. So the diameter of the exchange graph equals n − 1 .

  3. Spanning Trees — Elementary Operations plane spanning tree = a straight-line spanning tree on n points in the plane, no two edges cross. S = set of n points in general position in R 2 , T ( S ) = set of plane spanning trees on S . For | S | = n , Ω(12 . 54 n ) ≤ max | S | = n |T ( S ) | ≤ O (141 . 07 n ) . [Huemer and de Mier, 2015; Hoffmann et al. 2013] • The matroid exchange may introduce crossings! • We restrict exchanges to plane spanning trees.

  4. Spanning Trees — Elementary Operations Let T 1 = ( S, E 1 ) and T 2 = ( S, E 2 ) be two trees in T ( S ) . The operation that replaces T 1 by T 2 is • an exchange if there are edges e 1 and e 2 such that E 1 \ E 2 = { e 1 } and E 2 \ E 1 = { e 2 } (i.e., delete an edge e 1 from E 1 and insert a new edge e 2 ). • A compatible exchange is an exchange such that the graph ( S, E 1 ∪ E 2 ) is a noncrossing straight-line graph (i.e., e 1 and e 2 do not cross). • A rotation is a compatible exchange such that e 1 and e 2 have a common endpoint p = e 1 ∩ e 2 . • An empty-triangle rotation is a rotation such that the edges of neither T 1 nor T 2 intersect the interior of the triangle ∆( pqr ) formed by the vertices of e 1 and e 2 . • An edge slide is an empty-triangle rotation such that qr ∈ E 1 ∩ E 2 .

  5. Spanning Trees — Elementary Operations Compatible Exchange Exchange Edge Slide Empty-Triangle Rotation Rotation

  6. Spanning Trees — Elementary Operations All five operations define connected transition graphs for every point set in general position. Operation Single Operation Single Operation Upper Bound Lower Bound ⌊ 3 n 2 ⌋ − 5 [HHM + 99] Exchange 2 n − 4 ⌊ 3 n Compatible Ex. 2 n − 4 2 ⌋ − 5 ⌊ 3 n Rotation 2 n − 4 [AF96] 2 ⌋ − 4 ⌊ 3 n Empty-Tri. Rot. O ( n log n ) 2 ⌋ − 4 O ( n 2 ) [AR07] Ω( n 2 ) [AR07] Edge Slide Current upper and lower bounds for the diameter

  7. Spanning Trees — Simultaneous Operations Upper and lower bounds for the diameter under simultaneous operations. Operation Simultaneous Simultaneous Upper Bound Lower Bound Exchange 1 1 log n log log n ) [BRU + 09] Compatible Ex. O (log n ) [AAH02] Ω( log n Rotation O (log n ) Ω( log log n ) Empty-Tri. Rot. 8 n Ω(log n ) O ( n 2 ) [AR07] Edge Slide Ω( n ) Convex Position Empty-Tri. Rot. 4 3 Edge Slide O (log n ) Ω(log n )

  8. Spanning Trees — Exchange Operation Lower bound construction: It takes ⌊ 3 n 2 ⌋ − 5 exchanges to transform T 1 to T 2 . [Hernando, Hurtado, M´ arquez, Mora, and Noy, 1999]

  9. Spanning Trees — Exchange Operation Lower bound construction: It takes ⌊ 3 n 2 ⌋ − 5 exchanges to transform T 1 to T 2 . [Hernando, Hurtado, M´ arquez, Mora, and Noy, 1999] The same consturction gives a lower bound of ⌊ 3 n 2 ⌋ − 4 for rotation operations.

  10. Spanning Trees — Exchange Operation n − 2 exchanges can transform any plane graph into a star centered at the convex hull. ⇒ Diameter ≤ 2 n − 4 [Avis & Fukuda, 1996]

  11. Spanning Trees — Exchange Operation n − 2 exchanges can transform any plane graph into a star centered at the convex hull. ⇒ Diameter ≤ 2 n − 4 v [Avis & Fukuda, 1996] Let v be a vertex on the convex hull. While T is not a star centered at v , • v sees an entire edge ab . • Rotate ab to av or bv .

  12. Spanning Trees — Exchange Operation n − 2 exchanges can transform any plane graph into a star a centered at the convex hull. ⇒ Diameter ≤ 2 n − 4 v [Avis & Fukuda, 1996] b Let v be a vertex on the convex hull. While T is not a star centered at v , • v sees an entire edge ab . • Rotate ab to av or bv .

  13. Spanning Trees — Exchange Operation n − 2 exchanges can transform any plane graph into a star a centered at the convex hull. ⇒ Diameter ≤ 2 n − 4 v [Avis & Fukuda, 1996] b Let v be a vertex on the convex hull. While T is not a star centered at v , • v sees an entire edge ab . • Rotate ab to av or bv .

  14. Spanning Trees — Exchange Operation n − 2 exchanges can transform any plane graph into a star a centered at the convex hull. ⇒ Diameter ≤ 2 n − 4 v [Avis & Fukuda, 1996] b Let v be a vertex on the convex hull. While T is not a star centered at v , • v sees an entire edge ab . • Rotate ab to av or bv .

  15. Spanning Trees — Exchange Operation n − 2 exchanges can transform any plane graph into a star a centered at the convex hull. ⇒ Diameter ≤ 2 n − 4 v [Avis & Fukuda, 1996] b Let v be a vertex on the convex hull. While T is not a star centered at v , • v sees an entire edge ab . • Rotate ab to av or bv . For n ≥ 3 points in convex position: diameter ≤ 23 n 12 − 5 . [Lonner & T., 2018]

  16. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ .

  17. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  18. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  19. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  20. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  21. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  22. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  23. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  24. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ

  25. Spanning Trees — Empty-Triangle Rotation At most 3 n empty-triangle rotations can remove all but one edges between the two halves. f ( n ) ≤ 3 n + 2 f ( n/ 2) ⇒ Diameter is O ( n log n ) Let ℓ be a halving line. Triangulate T . For every triangle ∆ along ℓ (in stabbing order), • If the first edge of ∆ crossed by ℓ is in T , then replace it with another edge of ∆ . ℓ
