Evidence based decision making in endurance Equine Limb Injury Prevention Program Professor Chris Whitton Summary Evidence based decision making Types of evidence Outcomes Modifiable risk factors Speed Mandatory

slide-1

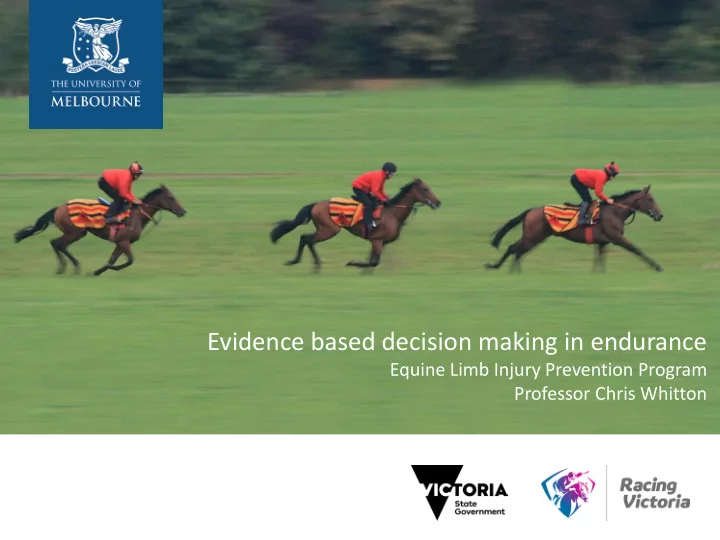

SLIDE 1

Evidence based decision making in endurance

Equine Limb Injury Prevention Program Professor Chris Whitton

slide-2
SLIDE 2

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Summary

Evidence based decision making

  • Types of evidence
  • Outcomes
  • Modifiable risk factors

− Speed − Mandatory rest periods

slide-3
SLIDE 3

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Introduction

Two key processes in catastrophic injuries

  • 1. The accumulation of damage
  • Bone material fatigue
  • 2. The response of bone
  • Bone adaptation
  • Bone repair

Most modifiable with regulation Trainer education

slide-4
SLIDE 4

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Evidence

  • 1. Epidemiology
  • Identification of risk factors
  • 2. Bone properties
  • Fatigue properties
  • Bone biology
  • 3. Data from other disciplines
  • TB racing
slide-5
SLIDE 5

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Evidence

Epidemiology

  • Excellent screening method
  • Identify risk factors

− Modifiable − Non-modifiable

  • May not be causative
slide-6
SLIDE 6

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Evidence

Bone injury and biological data

  • Often simplified
  • May not include full complexity of process
  • Can identify causative factors
slide-7
SLIDE 7

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

50 60 70 80 90 100 100 10'000 1'000'000

Cycles to failure Load MPa

Bone fatigue

  • Fatigue life

− No. of cycles to failure

Faster Fewer strides

slide-8
SLIDE 8

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Racehorse

Bone fatigue

  • High loads

− Failure with relatively few cycles of load − Short fatigue life

slide-9
SLIDE 9

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Racehorse

Bone fatigue

  • Damage may be
  • bserved as

microcracks

  • Commonly
  • bserved in highly

loaded areas 2mm

slide-10
SLIDE 10

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Racehorse

Bone fatigue

  • Microcracks

accumulate and grow into fractures

slide-11
SLIDE 11

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Racehorse

Bone fatigue

  • Microcracks

accumulate and grow into fractures

slide-12
SLIDE 12

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Racehorse

Bone fatigue

  • Fractures may progress

to catastrophic failure

slide-13
SLIDE 13

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Soft tissue

  • Similar process
  • Cyclic loading causes fibre damage
slide-14
SLIDE 14

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Outcomes

Elimination for lameness

  • Common – easier to get good data

Catastrophic injury

  • Rare – adequate data more challenging
slide-15
SLIDE 15

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Outcomes Cause Lame

Fatality

Cause Lame

Fatality

slide-16
SLIDE 16

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Outcomes

Cyclical loading

Lame

Fatality

Bone injury Soft tissue injury

slide-17
SLIDE 17

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Outcomes

Cyclical loading

Lame

Fatality

Bone injury Soft tissue injury

slide-18
SLIDE 18

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Outcomes

Cyclical loading

Lame

Fatality

Bone injury Soft tissue injury

slide-19
SLIDE 19

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Types of injury

Catastrophic fracture

  • Incomplete fractures propagate to complete

fractures

Non fatal bone injuries

  • Subchondral bone injuries
  • Chip fractures
  • Osteoarthritis

Soft tissue injuries

  • Suspensory ligament
  • Tendon injury

Cyclic loading

slide-20
SLIDE 20

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Suspensory ligament injury

  • May be ligament only
  • May be ligament and bone

− MC3 at origin − Sesamoids distally

slide-21
SLIDE 21

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Suspensory ligament injury

  • Sustains high loads at midstance

− 660kg at canter (27 km/h) − 1200kg at gallop (48 km/h)

From Harrison et al. 2010 Force N/kg

slide-22
SLIDE 22

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Suspensory ligament injury

  • Risk factors

− Older horses, longer careers (Reardon 2012; Perkins

2005; Lam 2007)

− Racing frequency – both too little and too many

(Perkins 2005, Reardon 2010, Hill 2001)

− Distance – increased in last month but lower cumulative distance over time − Pre-existing injury (Cohen 1999, Hill 2001, Lam 2007,

Reardon 2012)

slide-23
SLIDE 23

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Suspensory ligament injury

  • Risk factors

− Very similar to those identified for fractures − Biased towards older horses

slide-24
SLIDE 24

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Injury prevention

  • Reduce cyclic loading

− Epidemiology and bone biology indicate risk is not linear

Adaptation Damage accumulation

Risk Work load

slide-25
SLIDE 25

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Elimination for lameness

Risk factors

  • Interval between rides
  • Speed
slide-26
SLIDE 26

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Risk factors

Increasing intervals between rides (MRPs)

  • Reduces number of rides
  • Bone repair

‒ Allow more time ‒ Increases rate

slide-27
SLIDE 27

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Intervals between rides

  • Fewer rides – less fatigue

1 2 3 4 5 6 7 8

1 2 3 4 5 6

MRP 19 days MRP 26 days

6 months

slide-28
SLIDE 28

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Intervals between rides

  • Fewer rides – less fatigue

1 2 3 4 5

1 2 3 4

MRP 19 days MRP 26 days

6 months

slide-29
SLIDE 29

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Intervals between rides

  • Greater time for repair
  • Some increase in repair rates

20 40 60 80 100 120

Km/day

20 40 60 80 100 120

Km/day

slide-30
SLIDE 30

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Intervals between rides

Potential risks

  • Loss of bone adaptation

20 40 60 80 100 120

Km/day

20 40 60 80 100 120

Km/day

slide-31
SLIDE 31

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Intervals between rides

Potential risks

  • Loss of bone adaptation
slide-32
SLIDE 32

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Intervals between rides

Potential risks

  • Loss of bone adaptation
slide-33
SLIDE 33

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Risk factors

Speed

  • Direct relationship

between speed and loads in limb

From Witte et al. 2006

slide-34
SLIDE 34

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Risk factors

Speed

  • Direct relationship

between speed and loads in limb

Fetlock joint loads

Walk (4 km/h) 0.8 tonnes Trot (13 km/h) 2.3 tonnes Canter (27 km/h) 2.6 tonnes Gallop (48 km/h) 4.0 tonnes

slide-35
SLIDE 35

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

50 60 70 80 90 100 100 10'000 1'000'000

Cycles to failure Load MPa

Bone fatigue

  • Fatigue life

− No. of cycles to failure

Faster Fewer strides

slide-36
SLIDE 36

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Accumulated bone fatigue

Modelling of bone fatigue

  • Stride length v speed (Witte et al. 2006)

y = 0.10x + 1.27

  • Load v speed (Harrison et al. 2014, Harrison et al. unpublished)

y = 1.57x + 18.57

  • Load v fatigue life (Martig et al. 2014)

y = 134.2- log10x

Speed and distance Fatigue life

slide-37
SLIDE 37

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Accumulated bone fatigue

Loop speed 120km ride (all regions)

  • Slow – 11.0 km/h
  • Mean – 18.6 km/h
  • Fast – 26.2 km/h

0.5 1 1.5 2 2.5 3 3.5 4 4.5 Loop 1 Loop 2 Loop 3 Loop 4 Slow Mean Fast % fatigue life/loop

slide-38
SLIDE 38

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Accumulated bone fatigue

Mean speed

1 2 3 4 5 6 7 80 km 120 km 160 km All Group 7 % fatigue life/ride

slide-39
SLIDE 39

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Accumulated bone fatigue

Fastest 2.5% of horses

5 10 15 20 25 30 35 80 km 120 km 160 km All Group 7 % fatigue life/ride

slide-40
SLIDE 40

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Accumulated bone fatigue

Reduce speed of fastest horses in 120 km rides

  • (28.2-29.5 km/h)

5 10 15 20 25 30 35 no change minus 1 km/h minus 2 km/h % fatigue life/ride

20% reduction 37% reduction

slide-41
SLIDE 41

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Accumulated bone fatigue

  • Function of speed and distance

− 120 km rides accumulate most bone fatigue − Small reductions in speed have large effects for fast rides/horses

slide-42
SLIDE 42

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Conclusions

  • Injury prevention

− Endurance specific data for lameness − Most lameness due to cyclic loading − Interventions that reduce cyclic loading likely to reduce majority of injuries − Function of speed and distance accumulation − Pre-existing injury increases risk

slide-43
SLIDE 43

Equine Limb Injury Prevention Program Equine Limb Injury Prevention Program

Conclusions

  • Evidence based rule changes

‒ Increasing MRP

  • Effect may not be linear
  • Increase incrementally and monitor effect

− Decrease speeds − Maximise ability to detect pre-existing injury

slide-44
SLIDE 44

Equine Limb Injury Prevention Program

Professor Chris Whitton Head U-Vet Equine Centre 250 Princes Hwy, Werribee 03 97312268
