slide-1
SLIDE 1

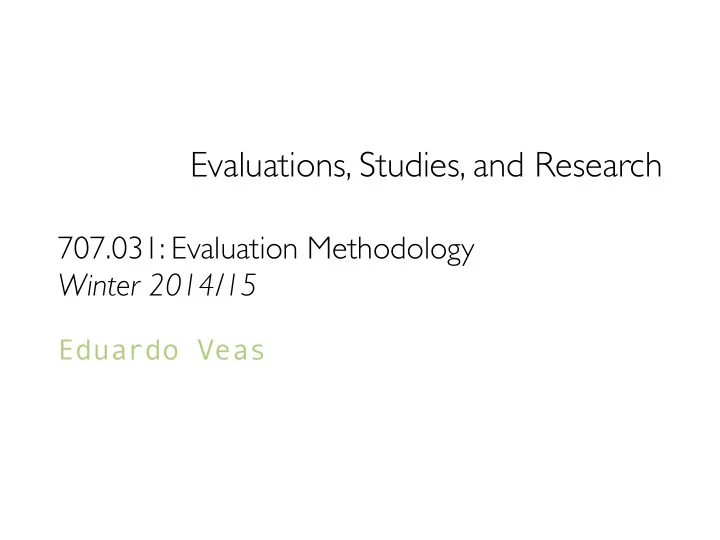

Evaluations, Studies, and Research

707.031: Evaluation Methodology Winter 2014/15

Eduardo Veas

slide-2
SLIDE 2

Research Projects @ KTI

  • Connected world
  • build connected coffee machine
  • build sensing and intelligence into appliances
  • Augmented Data
  • how can we augment the real world with data?
  • investigate different display devices
  • investigate different visual techniques
  • Augmented Knowledge Spaces
  • Use space to organize and interact with technology
  • Use natural mobility to interact with augmentations

2

slide-3
SLIDE 3

3

slide-4
SLIDE 4

4

slide-5
SLIDE 5

5

slide-6
SLIDE 6

Why do we evaluate?

6

Motivation

slide-7
SLIDE 7

What are evaluations? Why do we need them?

7

slide-8
SLIDE 8

Why do we evaluate?

  • to make a product more efficient
  • to know whether we are going in the right path
  • find out if people can do what they wanted to

do with the tool

  • to obtain new ideas
  • choose between options in the design
  • for comparing interfaces

8

slide-9
SLIDE 9

Continuous Evaluation

9

Methods for D & D

slide-10
SLIDE 10

Waterfall Model of Software Engineering

10

Application Description Requirement specification System Design Product

Initiation Analysis Design Implementation

slide-11
SLIDE 11

Design Build Test

11

Design Build Test

Fab. errors Design errors

Alice Agogino. NASA Jet Propulsion Lab

slide-12
SLIDE 12

UCD: ISO9241-210

12

Plan the Human Centered Design process Understand and specify the context

  • f use

Specify the user requiremets Produce design solutions to meet user requirements Evaluate the designs against requirements Designed solution meets requirements Iterate where appropriate

slide-13
SLIDE 13

THEOC, the scientific method

13

Theory Hypothesis Experiment Observation Conclusion

slide-14
SLIDE 14

Creative Problem Solving [Korberg and Bagnall ’71]

14

slide-15
SLIDE 15

Creative Problem Solving [Korberg and Bagnall ’71]

15

Accept Situation Analyze Define Ideate Select Implement Evaluate

slide-16
SLIDE 16

Design Thinking

16

slide-17
SLIDE 17

Design Thinking Principles

  • Heterogeneous teams
  • Cooperative work
  • Fail often and soon

17

slide-18
SLIDE 18

A Process of Iterative Design

18

Design Prototype Evaluate

slide-19
SLIDE 19

A Process of Iterative Design

19

Design Prototype Evaluate

slide-20
SLIDE 20

Continuous Evaluation

  • Iterative methods expose several stages
  • We evaluate at every stage
  • Different evaluation methods for different

purposes

20

slide-21
SLIDE 21

Why do we evaluate?

  • to make a product more efficient
  • to know whether we are going in the right path
  • find out if people can do what they wanted to

do with the tool

  • to obtain new ideas
  • choose between options in the design
  • for comparing interfaces

21

slide-22
SLIDE 22

We evaluate to understand a process and design

  • solutions. We evaluate to validate our designs.

22

Use evaluation to create and critique

slide-23
SLIDE 23

Evaluation Goals

23

Never stop exploring

slide-24
SLIDE 24

How do we evaluate?

  • stage defines goals and methods for evaluation
  • evaluation informs iteration or continuation to

next stage

24

slide-25
SLIDE 25

Goals

  • Find out about your users:
  • what do they do?
  • in which context?
  • how do they think about their task?
  • Evaluation goals:
  • users and persona definition
  • task environment
  • scenarios

25

slide-26
SLIDE 26

Goals

  • Select initial designs
  • use sketches, brainstorming exercises, paper

mockups

  • is the representation appropriate?
  • Evaluation goals:
  • elicit reaction to design
  • validate/invalidate ideas
  • conceptual problems/ new ideas

26

slide-27
SLIDE 27

Goals

  • Iterative refinement
  • evolve from low-> high fidelity prototypes
  • look for usability bugs
  • Evaluation goals
  • elicit reaction to design
  • find missing features
  • find bugs
  • validate idea

27

slide-28
SLIDE 28

Goals

  • Acceptance
  • did the product match the requirements
  • revisions: what needs to be changed
  • effects: changes in user workflow
  • Evaluation goals
  • usability metrics
  • end user reactions
  • validation and bug list

28

slide-29
SLIDE 29

Where do we use this knowledge?

  • Visualization
  • Social Computing
  • Human Computer Interaction
  • Big Data analytics
  • Virtual / Augmented Reality

29

slide-30
SLIDE 30

707.031: Evaluation Methodology

30

a research methodology

slide-31
SLIDE 31

707.031: Evaluation Methodology

This course is about learning from mistakes, knowing when to move to the next stage and when to go back to the drawing board.

31

slide-32
SLIDE 32

707.031: Evaluation Methodology

  • Scheduled annually since this year. Depending on

students.

  • First time as block lecture (2-week course)
  • This may be your only chance to take it
  • If you find this course valuable, you have to score

it, so other students will have the opportunity in the future. (Lehrveranstaltungsevaluierung)

32

slide-33
SLIDE 33

707.031: Evaluation Methodology

  • is not an intro to HCI, InfoVis, Visual Analytics,

Augmented Reality.

  • is not an Advanced Statistics, (Web) Usability,

Interface Design.

  • is appropriate for students (PhD. and Msc.) and

researchers investigating:

  • novel metaphors to interact with machines
  • user behaviour and how it is influenced by

technology

33

slide-34
SLIDE 34

707.031: Evaluation Methodology WYG

What you get:

  • organize your research problem
  • collect data about the problem and solutions
  • compare different evaluation methods
  • understand when which evaluation is

appropriate

  • properly report methodology and results

34

slide-35
SLIDE 35

§

  • D1: Model Human Processor
  • D2: Visual Processing
  • D3: Visual Processing 2
  • D4: Haptics ?
  • D5: Crowdsourced studies ?
  • D6: Descriptive and Correlational Research Methods
  • D7: Two-Sample Experimental Designs:
  • D8: Multi-Sample Experimental Designs
  • D9: Putting it all together
  • D10: Evaluation

35

slide-36
SLIDE 36

707.031: Evaluation Methodology Grading

  • 30% participation (in class)
  • 40% evaluator
  • 30% participant
  • (bonus 15% for each study you take part in)

36

slide-37
SLIDE 37

Project Topics

37

  • Glove Study
  • AR Study
  • Collection Study
  • Visualization Study
slide-38
SLIDE 38

Source of Variability

38

ensuring the vitality of species

slide-39
SLIDE 39

The Human Homunculus

39

slide-40
SLIDE 40

The Human Homunculus

40

slide-41
SLIDE 41

The Human Homunculus

41

slide-42
SLIDE 42

Measuring performance

42

slide-43
SLIDE 43

Comparing Human Responses

  • Humans can rarely repeat an action exactly even

when trying hard

  • People can differ a great deal from one another
  • How can we compare responses from different

adaptive systems?

43

slide-44
SLIDE 44

Model Human Processor

  • Is there a way to

approximate responses

  • f people?
  • Can we predict usability
  • f interface designs?
  • …without user

involvement?

44

slide-45
SLIDE 45

Model Human Processor

45

Source: Card et al 1983

slide-46
SLIDE 46

Model Human Processor(2): Processors

  • Processing typical value and window.
  • Window [a,b] defined by extremes
  • Typical value is not average. It conforms to studied

behavior

46

slide-47
SLIDE 47

Model Human Processor (4): Memory

  • Decay: how long memory lasts
  • Size: number of things
  • Encoding: type of things

47

slide-48
SLIDE 48
  • WM: percepts and active products of thinking in (7+/-2) chunks.
  • WM Decay ~ 7s / 3chunks. Competition / discrimination
  • LTM: Infinite mass of knowledge in connected chunks.

48

Model Human Processor (4): Memory

slide-49
SLIDE 49

BCSBMICRA

49

Read aloud

slide-50
SLIDE 50

CBSIBMRCA

50

Read aloud

slide-51
SLIDE 51

Model Human Processor: Read Aloud

  • Tool
  • Pen
  • Window
  • Coat
  • Cow
  • Paper

51

slide-52
SLIDE 52

Model Human Processor: Read Aloud

52

  • Orange
  • Black
  • Pink
  • Red
  • Green
  • Blue
slide-53
SLIDE 53

Model Human Processor (3): Perception

  • encodes input in a physical

representation

  • stored in temp. visual /

auditory memory

  • new frames in PM activate

frames in WM and possibly in LTM

  • Unit percept: input faster

than Tp combines

53

slide-54
SLIDE 54

Model Human Processor (3): Cognition

  • Recognize-act

cycle

  • Uncertainty

increases cycle time

  • Load decreases

cycle time

54

slide-55
SLIDE 55

Model Human Processor (3): Motor

  • controls movement of

body,

  • combining discrete

micromovements (70ms)

  • activates action patterns

from thought.

  • head-neck, arm-hand-

finger

55

slide-56
SLIDE 56

Model Human Processor: cycle time

  • A user sitting at the

computer must press a button when a symbol

  • appears. What is the time

between stimulus and response?

56

slide-57
SLIDE 57

Model Human Processor: cycle time

  • Red pill / blue pill. A user

sitting at the computer must press a button when a blue symbol

  • appears. What is the time

between stimulus and response?

57

slide-58
SLIDE 58

Hicks Law: Decision Time

  • Models cognitive capacity in choice-reaction

experiements

  • Time to make decision increases with uncertainty
  • H = log2(n + 1), for n equiprobable
  • H =

58

∑

=

+

1 2

) 1 / 1 ( log

i i i

p p

slide-59
SLIDE 59

Model Human Processor: Motor action

  • At stimulus
  • nset,

participant has to move the mouse to target and click. How long does it take?

59 5 9

S D

slide-60
SLIDE 60

Fitts Law

  • Motion as a sequence of motion-correction.
  • Each cycle covers remaining distance
  • Time T for arm-hand system to reach target of size S at

distance D: T = a + b * log2( D / S + 0.5 )

  • where a: y-intercept, b: slope

60

S D

slide-61
SLIDE 61

Model Human Processor: Summary

  • Top down analysis of response
  • Reasonable approximation of response and boundaries (Fastman,

Middleman, Slowman)

  • For each expected goal
  • analyze motor actions
  • analyze perceptual actions
  • analyze cognitive steps transferring from perception to action
  • BUT
  • missing parts: motor- memory, other senses (haptic /
  • lfactory), interference model, reasoning model

61

slide-62
SLIDE 62

Take Home

62

Summary

slide-63
SLIDE 63

…by now you should know

  • Why we evaluate.
  • Roles of evaluation in product development
  • Why we need statistics
  • Why we need to know humans
  • How to model human response

63

slide-64
SLIDE 64

Projects

64

Title Text

slide-65
SLIDE 65

AR displays and perception of ISO signs

  • Interference in AR displays
  • Recognize ISO sign

65

slide-66
SLIDE 66

Sensory augmentation

  • Recognize semantic

haptic patterns

66

slide-67
SLIDE 67

Interactive Topic Modelling

  • Analyze

bibliography

  • Build collections
  • f interesting
  • bjects

67

slide-68
SLIDE 68

Recommending Visualizations

  • Choose visualization

appropriate for data

  • Rate effectiveness of

visual display

68

Visual Patterns

Bar chart

Austria Visual Component: x-Axis Supported types: string, date Visual Component: y-Axis Supported types: number

Geo chart

Visual Component: region-location Supported types: location Visual Component: region-color- intensity Supported types: number

...

key: country type: string , location 8.474.000 key: population type: number

...

country: Austria population: 8.474.000 ...

...

Element ...

...

Data from HDS Preprocessed Data

IDENTIFIED DATATYPES

Element

Recommended Visualization Types Recommended Concrete Visualizations Other Supported Visualization

Submit Rating

User Feedback (Rating)

slide-69
SLIDE 69

Research Projects @ KTI

  • Connected world
  • build connected coffee machine
  • build sensing and intelligence into appliances
  • Augmented Data
  • how can we augment the real world with data?
  • investigate different display devices
  • investigate different visual techniques
  • Augmented Knowledge Spaces
  • Use space to organize and interact with technology
  • Use natural mobility to interact with augmentations

69

slide-70
SLIDE 70

Readings

  • User Centric Design and Human Factors. http://

link.springer.com/book/10.1007%2F978-1-4471-5134-0

  • [Card, Newell, Moran] Model Human Processor. http://

faculty.utpa.edu/fowler/csci6363/papers/Card-Moran- Newell_Model-Human-Processor_1986.pdf

  • Being Human. Microsoft Research

http://research.microsoft.com/en-us/um/cambridge/ projects/hci2020/

70
