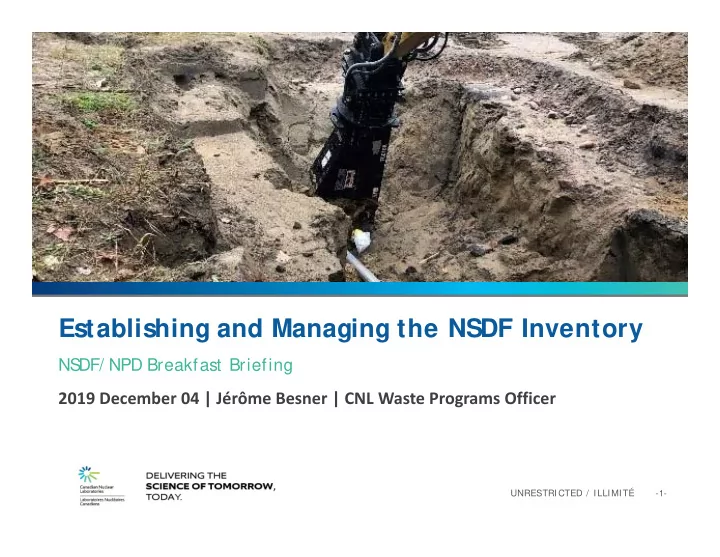

Establishing and Managing the NSDF Inventory

NS DF/ NPD Breakfast Briefing

2019 December 04 | Jérôme Besner | CNL Waste Programs Officer

• 2-

UNRESTRICTED / ILLIMITÉ

Outline

• Radioactive Waste Policy Framework
• Integrated Waste Strategy (IWS)
• Waste Forecast
• Waste Diversion
• Waste Acceptance Criteria (WAC)
• Waste Inventory

• 3-

UNRESTRICTED / ILLIMITÉ

Canada’s Radioactive Waste Policy Framework

In accordance with Canada’s Radioactive Waste Policy Framework the waste producers and owners of radioactive waste are responsible for the funding,

• rganization, management and operation of disposal and other facilities required

for their wastes. Responsible nuclear waste management includes full life cycle management from generation to disposal. CNL and AECL are working actively at strategic and operational levels to identify strategies and solutions for waste management of the entire life cycle of all radioactive waste classifications including low level waste, intermediate level waste and high level waste.

https://www.nrcan.gc.ca/energy/energy‐sources‐distribution/uranium‐nuclear‐energy/radioactive‐ waste/radioactive‐waste‐policy‐framework/7725

• 4-

UNRESTRICTED / ILLIMITÉ

CNL Integrated Waste Strategy (IWS)

IWS: https://www.cnl.ca/en/home/environmenta l‐stewardship/nsdf/november‐2018‐project‐ update/supporting‐documents.aspx

• 5-

UNRESTRICTED / ILLIMITÉ

200,000 400,000 600,000 800,000 1,000,000 1,200,000 1,400,000 2016 2026 2036 2046 2056 2066 2076

NSDF Waste Forecast Volumes (m3)

Optimistic Baseline Conservative

• 6-

UNRESTRICTED / ILLIMITÉ

CNL Environment Policy

CNL is committed to environmental protection and sustainable development.

We set sustainability objectives and targets for energy efficiency, clean energy utilization, waste management and conservation of resources to support continual improvement of

• ur performance.

• 7-

UNRESTRICTED / ILLIMITÉ

RE-USE

Waste Analysis Facility Building 408 Decontamination Lab

Bag Monitors

CNL Waste Diversion Practices

RECYCLE WASTE CLEARANCE

• 8-

UNRESTRICTED / ILLIMITÉ

Development of the NSDF Reference Inventory

Iterative Process

Initiation

• f project

2017: Draft EIS 2018 2019: Revised EIS

• 9-

UNRESTRICTED / ILLIMITÉ

NSDF Waste Acceptance Criteria (WAC)

How the WAC manages the inventory

Acceptable Waste

Physical

• Size
• Packaging

Chemical

• No untreated

hazardous waste as per Ont Reg 347

Radiological

• Concentration

Limits

• Dose Rate Limits

Administrative

• Required

Documentation

• Characterization

data

• 10-

UNRESTRICTED / ILLIMITÉ

NSDF Waste Acceptance Criteria (WAC)

Radionuclide concentrations Limits

• 1

Limits for Bulk Waste & Non‐Leachate Controlled Packaged Waste 100 Bq/g for α emitting radionuclides 1,000 Bq/g for long‐lived βϒ emitting radionuclides (t1/2 > Cs‐137) 10,000 Bq/g for short‐lived βϒ emitting radionuclides (t1/2 ≤ Cs‐137) 100,000 Bq/g for H‐3 Limits for Leachate Controlled Packaged Waste 400 Bq/g for α emitting radionuclides 10,000 Bq/g for long‐lived βϒ emitting radionuclides (t1/2 >Cs‐137) 10,000 Bq/g for Cs‐137 10,000 Bq/g for Sr‐90 10,000,000 Bq/g for H‐3

• 11-

UNRESTRICTED / ILLIMITÉ

Classification of radioactive waste

IAEA General Safety Guide (GSG)‐1, Section 2.27 … A limit of 400 Bq/g on average (and up to 4000 Bq/g for individual packages) for long lived alpha emitting radionuclides has been adopted in some States. For long lived beta and/or gamma emitting radionuclides … the allowable average activity concentrations may be considerably higher (up to tens of kilobecquerels per gram). Canadian Standards Association (CSA) N292.0‐19, A.5.1 …a limit of 400 Bq/g on the average (and up to 4000 Bq/g for individual waste packages) for long‐lived alpha emitting radionuclides can be considered in the classification process. For long‐lived beta and/or gamma emitting radionuclides … the allowable average activity concentrations can be considerably higher (up to tens of kBq/g).

NS DF Concentration limits compared to guidance

• 12-

UNRESTRICTED / ILLIMITÉ

200+ radionuclides recorded in CNL’s Waste Inventory Program 200+ radionuclides recorded in CNL’s Waste Inventory Program

SCREENING

Decays quickly? Very small quantity? Significant progeny? 30 most significant radionuclides. Starting point for safety analysis

Co‐60

C‐14 Ag‐ 108m Am‐ 241 Am‐ 243 Cl‐60 Cs‐135 Cs‐137 H‐3 I‐129 Mo‐93 Nb‐94 Ni‐59 Ni‐63 Np‐ 237

Pu‐ 239 Pu‐ 239

Se‐79 Pu‐ Pu‐ 241 Pu‐ 242 Ra‐ Ra‐ 226 Sn‐126 Tc‐99 Th‐230 Th‐232 U‐233 Mo‐93 U‐234 U‐235 U‐238 Zr‐93

Progeny and ingrowth from decay chain included

Cu‐29

Po‐ 210 Nb‐ 93m Pa‐231 Pb‐ Pb‐ 210 Ra‐ Ra‐ 228 Th‐228 Th‐229 Ac‐227

• 13-

UNRESTRICTED / ILLIMITÉ

NSDF Reference Inventory at Emplacement

1.00E+00 1.00E+01 1.00E+02 1.00E+03 1.00E+04 1.00E+05 1.00E+06 1.00E+07 1.00E+08 1.00E+09 1.00E+10 1.00E+11 1.00E+12 1.00E+13 1.00E+14 1.00E+15 1.00E+16 1.00E+17 Alpha (Bq) Long‐Lived Beta/Gamma (Bq) Short‐Lived Beta/Gamma (Bq)

• 14-

UNRESTRICTED / ILLIMITÉ

• 15-

UNRESTRICTED / ILLIMITÉ

• Historic waste information was used to populate the NSDF

Inventory.

• Nonetheless, the NSDF Reference Inventory does not qualify any

specific materials for disposal.

• All waste destined for NSDF will be evaluated against all of the

requirements of the licensed NSDF.

• Historic Waste
• Decommissioning Waste
• Ongoing Operational Waste

Waste Inventory Screening Criteria

• 16-

UNRESTRICTED / ILLIMITÉ

Waste Management Process

• Waste Assessment
• Waste Characterization
• Waste Profile
• Waste Management Plan

Planning

• Transportation

Generation

• Processing
• Storage
• Disposal

Disposition

• 17-

UNRESTRICTED / ILLIMITÉ

• Process

Knowledge

• Scoping Surveys

Waste Assessment

• Data Quality
• Sample Plan

Waste Characterization Plan

• Gamma & Alpha Specs
• Toxicity Characteristic

Leaching Procedure

• Liquid Scintillation

Execution of Waste Characterization

• Data Analysis
• Data Validation
• Waste Profile

Waste Characterization Report

Waste Characterization Process

• 18-

UNRESTRICTED / ILLIMITÉ

cnl.ca/nsdf cnl.ca/youtube communications@ cnl.ca

Thank you. Questions?
