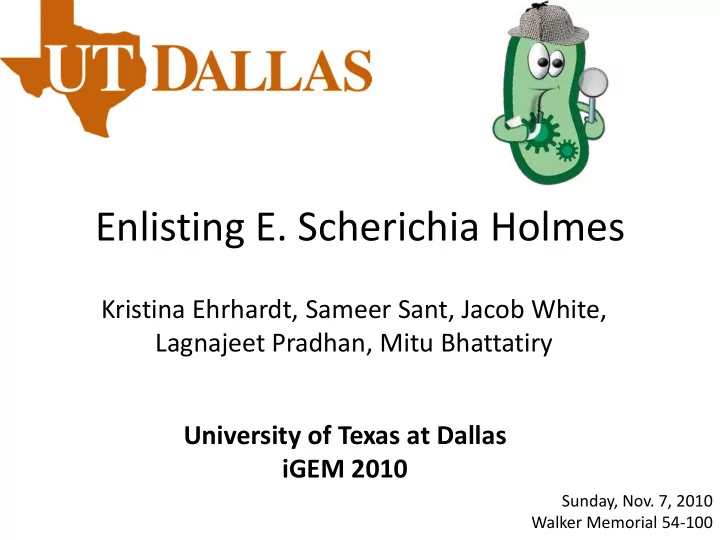

Enlisting E. Scherichia Holmes

Kristina Ehrhardt, Sameer Sant, Jacob White, Lagnajeet Pradhan, Mitu Bhattatiry University of Texas at Dallas iGEM 2010

Sunday, Nov. 7, 2010 Walker Memorial 54-100

University of Texas Dallas

• Established in 1969 with support from T.I.
• Located in major tech hub
• Fast-growing research institution
• Competitive School of Engineering

– New Bioengineering Department

Motivation

• Deepwater Horizon Spill released

206 million gallons of toxic crude into Gulf of Mexico

• Alkanes and Aromatics

– Two largest fractions of petroleum by percent composition

• Eutrophication: nitrate/nitrite

enrichment of water

– Algal blooms

• Circulate through environment and

are resistant to biotransformation

Whole-Cell Biosensors

• Visible spectrum reporters (Cambridge 2009)

– For cheap, on-site detection of pollutants

• E. coli chassis

– For well-studied gene expression and widespread use in Registry

Molecular Recognition

Signal Processor

Output Input

Action Plan

• Develop whole-cell biosensors to sense trace

levels of nitrate/nitrites, aromatics and alkanes

– Build new composite BioBricks from existing parts – Characterize existing BioBricks – Build a new BioBrick – Explore combinatorial logic functions

Goals

 Nitrate/Nitrite Biosensor  Aromatics Biosensor  Alkane Biosensor  DNA Logic Gate

Nitrate/Nitrite Sensor

• Edinburgh 2009

– BioBrick BBa_K216015: pYeaR + LuxAB

• University of Texas at Dallas 2010

– Fused pYeaR to GFP and RFP to make new BioBricks – Further expand characterization of pYeaR through titration and time-lapse experiments

Nitrate/Nitrite Sensor

Titration Experiment pYeaR + GFP

Time-lapse Experiment

Time-lapse Experiment PyeaR + GFP

Titration Experiments

Titration Experiment PyeaR + GFP

Titration Experiment PyeaR + RFP

The Checklist

 Nitrate/Nitrite Biosensor  Aromatics Biosensor  Alkane Biosensor  DNA Logic Gate

Aromatics Sensor

• Glasgow 2007

– BioBrick BBa_I723032 : pR + XylR

• Michigan 2009

– BioBrick BBa_K270003: Pu + GFP (uncharacterized)

• UT Dallas 2010

– Characterized BioBrick BBa_K270003: Pu + GFP

Titration Experiment pR + XylR and Pu + GFP

Aromatics Sensor

Titration Experiment pR + XylR and Pu + GFP

The Checklist

 Nitrate/Nitrite Biosensor  Aromatics Biosensor  Alkane Biosensor  DNA Logic Gate

Alkane Sensor

Progress

• Obtained oligonucleotides of PalkB promoter
• AlkS gene obtained from Prof. Van der Meer

(University of Lausanne)

– Planned to PCR the AlkS gene to build a new BioBrick

• Performed sticky and blunt-end ligations of

PalkB to iGEM backbone.

The Checklist

 Nitrate/Nitrite Biosensor  Aromatics Biosensor Alkane Biosensor  DNA Logic Gates

NOR Gate NAND Gate

Logic Table Inputs Output Nitrate/Nitrite Aromatic 1 1 1 1 1 1 1 Logic Table Inputs Output Nitrate/Nitrite Aromatic 1 1 1 1 1

Whole-Cell Biosensors

• Design signal processing mechanism

– Visual reporters (Cambridge 2009) – Sophisticated mechanism for controlling output

Molecular Recognition

Signal Processor

Output Input

BioBricks

• Developed new BioBricks

– BioBrick BBa_K412000: pYeaR + GFP – BioBrick BBa_K412001: pYeaR + RFP

• Characterized new and existing BioBricks

– BioBrick BBa_K412000: pYeaR + GFP – BioBrick BBa_K412001: pYeaR + RFP – BioBrick BBa_K270003: Pu + GFP (Michigan 2009)

• Pursued construction of novel BioBricks

– BioBrick BBa_412004: AlkS – BioBrick BBa_412005: PalkB – BioBrick BBa_412006: PalkB + GFP

Expand Edinburgh 2009’s characterization of pYeaR promoter

Acknowledgements

• Prof. Leonidas Bleris and Prof. Hyun-Joo Nam
• University of Texas at Dallas
• Dr. Jan Roelof van der Meer (University of

Laussanne)

• MIT and iGEM 2010

Thank you!
