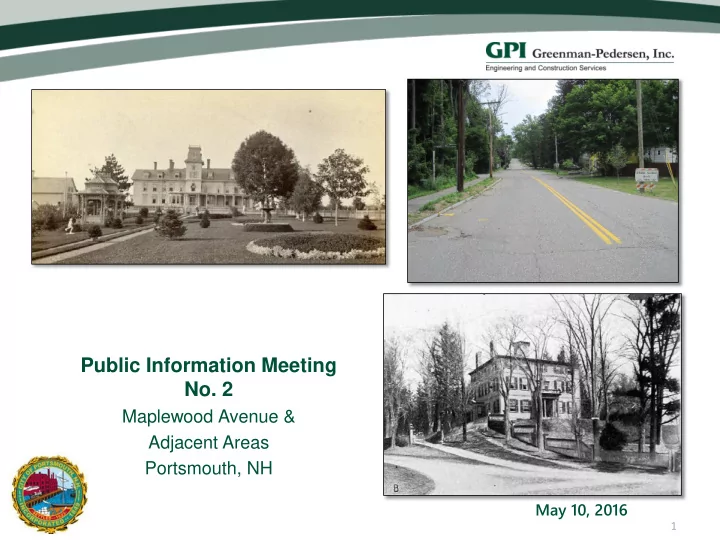

Public Information Meeting No. 2 Water Street Promenade Maplewood Avenue & Engineering and Design Services Adjacent Areas July 16,2014 Portsmouth, NH May 10, 2016 Education / Infrastructure / Innovation 1 Introductions City Staff

slide-1
SLIDE 1

Water Street Promenade Engineering and Design Services

July 16,2014

Education / Infrastructure / Innovation

May 10, 2016

Public Information Meeting

  • No. 2

Maplewood Avenue & Adjacent Areas Portsmouth, NH

1

slide-2
SLIDE 2

Introductions

  • City Staff
  • Planning Department
  • Department of Public Works
  • Highway Division
  • Water Division
  • Sewer Division
  • Public Safety
  • Police Department
  • Fire Department
  • Engineering Consultants
  • Greenman-Pedersen, Inc.
  • Weston & Sampson, Inc.
  • Sub-Consultants
  • Stakeholders
  • Residents
  • Business Owners

2

Maplewood Avenue & Adjacent Areas

slide-3
SLIDE 3

Project Need:

  • Primary Need: Water Main Replacement on Maplewood Avenue
  • Recommended in 2013 Water Master Plan
  • Identified Adjacent Areas in Need of Work
  • Added to Overall Project
  • Full Roadway and Utility Reconstruction Where Appropriate
  • Complete Street Type Design
  • City Council Policy
  • Implementation of 2014

Bicycle & Pedestrian Plan

3

Maplewood Avenue & Adjacent Areas

slide-4
SLIDE 4

Agenda/Meeting Purpose:

  • Project Limits for Design
  • Data Collection
  • Public Input Summary
  • Utility Improvements
  • Adjacent Area Improvements
  • Maplewood Avenue Concept
  • Intersection Concepts
  • Next Steps
  • Anticipated Project Schedule
  • Feedback

Maplewood Avenue & Adjacent Areas

4

slide-5
SLIDE 5

Project Limits for Design

Woodbury Avenue North Mill Pond Utilities & Complete Street Sewer Replacement Water, Sewer & Drainage Sewer & Drainage 5

Maplewood Avenue & Adjacent Areas

Market Street Leslie Drive

Cutts Street Central Avenue Fairview Drive

slide-6
SLIDE 6

Data Collection – Existing Conditions:

  • Speed Data
  • Traffic Volume Data
  • Parking Observations
  • Accident Reports

6

Maplewood Avenue & Adjacent Areas

slide-7
SLIDE 7

Data Collection – Speed and Traffic Volumes:

  • Posted Speed Limit – 25 mph
  • Location 1:
  • Average Daily Traffic – 8,800
  • Peak Hour – 700 (AM), 820 (PM)
  • Toward Downtown – 33 mph
  • Outbound – 35 mph

7

Maplewood Avenue & Adjacent Areas

  • Location 2:
  • Average Daily Traffic – 2,300
  • Peak Hour – 170 (AM), 230 (PM)
  • Toward Downtown – 36 mph
  • Outbound – 37 mph

1 2

slide-8
SLIDE 8

Data Collection – AM Peak Hour:

8

Maplewood Avenue & Adjacent Areas

502

slide-9
SLIDE 9

Data Collection – PM Peak Hour:

9

Maplewood Avenue & Adjacent Areas

502 490

slide-10
SLIDE 10

Data Collection – Observations

10

Maplewood Avenue & Adjacent Areas

slide-11
SLIDE 11

Data Collection – Parking Observations:

January 27, 2016

  • Wednesday 6am-8am
  • Wednesday 11am-1pm
  • Wednesday 6pm-8pm

January 30, 2016

  • Saturday 6am-8am
  • Saturday 11am-1pm
  • Saturday 6pm-8pm

11

Maplewood Avenue & Adjacent Areas

slide-12
SLIDE 12

12

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Parking Observations Weekday 6-8am

slide-13
SLIDE 13

13

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Parking Observations Weekday 11am-1pm

slide-14
SLIDE 14

14

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Parking Observations Weekday 6-8pm

slide-15
SLIDE 15

15

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Parking Observations Saturday 6-8am

4 Total Vehicles

  • n Cutts St
slide-16
SLIDE 16

16

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Parking Observations Saturday 11am-1pm

3 Total Vehicles

  • n Cutts St SB
slide-17
SLIDE 17

17

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Parking Observations Saturday 6-8pm

2 Total Vehicles

  • n Cutts St SB
slide-18
SLIDE 18

Data Collection – Parking Observations:

Maplewood Avenue:

  • Some demand
  • Sufficient supply on side streets

Cutts Street:

  • Saturday demand
  • Regulation recently revisited

18

Maplewood Avenue & Adjacent Areas

slide-19
SLIDE 19

19

Maplewood Avenue & Adjacent Areas

Leslie Drive

Cutts Street Central Avenue Fairview Drive

Data Collection: Accident Reports (2009-June 2013)

18 Accidents 5 Accidents 2 Accidents 5 Accidents 1 Accident

slide-20
SLIDE 20

Public Input Summary:

20

Maplewood Avenue & Adjacent Areas

slide-21
SLIDE 21

Public Input Summary:

21

Maplewood Avenue & Adjacent Areas

Public Input Summary:

slide-22
SLIDE 22

Public Input Summary:

22

Maplewood Avenue & Adjacent Areas

Public Input Summary:

slide-23
SLIDE 23

Public Input Summary:

23

Maplewood Avenue & Adjacent Areas

Maplewood Avenue:

  • Sidewalk Repairs/Replacement
  • Speed humps
  • Vehicles driving too fast
  • Bicycle accommodation
  • Drainage issues
  • Accommodate school children
  • Crosswalks
  • Neighborhood feel
  • Pavement conditions (neighborhoods)
slide-24
SLIDE 24

Conceptual Improvements:

24

Maplewood Avenue & Adjacent Areas

  • Utility Improvements
  • Adjacent Area Improvements
  • Maplewood Avenue Concept
  • Intersection Concepts
slide-25
SLIDE 25

Utility Improvements – Sewer/Drainage:

25

Maplewood Avenue & Adjacent Areas

Leslie Drive Central/Cutts Fairview Drive

slide-26
SLIDE 26

Utility Improvements - Water:

26

Maplewood Avenue & Adjacent Areas

Leslie Drive Central/Cutts Fairview Drive

slide-27
SLIDE 27

Adjacent Area Improvements:

27

Maplewood Avenue & Adjacent Areas

  • Fairview Drive
  • Sewer relocation
  • Trench repair and overlay
  • Central/Cutts/Beechwood/Ashland
  • Water
  • Drain/Partial Curbing
  • Road reconstruction
  • Sidewalk
  • Leslie Drive
  • Primary: Sewer spot repairs/Drainage
  • Primary: Selected roadway reconstruction
  • Secondary: Curbing
slide-28
SLIDE 28

Maplewood Avenue Concept:

28

Maplewood Avenue & Adjacent Areas

  • Traffic Calming
  • Sidewalk
  • Bicycle Accommodations
  • Grass Buffer (where possible)
  • Curbing/Drainage
  • Utility Coordination
  • Street Tree Plantings (where possible)
slide-29
SLIDE 29

Maplewood Avenue Concept:

29

Maplewood Avenue & Adjacent Areas

Woodbury Avenue to McGee Drive

Optional Sidewalk

slide-30
SLIDE 30

Maplewood Avenue Concept:

30

Maplewood Avenue & Adjacent Areas

McGee Drive to Edmond Avenue

Optional Sidewalk

slide-31
SLIDE 31

Maplewood Avenue Concept:

31

Maplewood Avenue & Adjacent Areas

Edmond Ave to Emery St/Central Ave

slide-32
SLIDE 32

Maplewood Avenue Concept:

32

Maplewood Avenue & Adjacent Areas

Emery St/Central Ave to Cutts St

slide-33
SLIDE 33

Maplewood Avenue Concept:

33

Maplewood Avenue & Adjacent Areas

Cutts Street to Prospect Street

Pinch Point

slide-34
SLIDE 34

Maplewood Avenue Concept:

34

Maplewood Avenue & Adjacent Areas

Prospect Street to Dennett Street

slide-35
SLIDE 35

Maplewood Avenue Concept:

35

Maplewood Avenue & Adjacent Areas

Dennett Street to North Mill Pond

slide-36
SLIDE 36

Intersection Concepts:

36

Maplewood Avenue & Adjacent Areas

Source: National Association of City Transportation Officials, “Urban Street Design Guide”

slide-37
SLIDE 37

Intersection Improvements: Dennett Street

37

Maplewood Avenue & Adjacent Areas

slide-38
SLIDE 38

Intersection Improvements: NB Bypass Ramps

38

Maplewood Avenue & Adjacent Areas

Mountable Apron

slide-39
SLIDE 39

Intersection Improvements: Central/Emery & Cutts

39

Maplewood Avenue & Adjacent Areas

slide-40
SLIDE 40

Intersection Improvements: Edmond Avenue

40

Maplewood Avenue & Adjacent Areas

Optional Sidewalk

slide-41
SLIDE 41

Maplewood Avenue at Woodbury Ave:

41

Maplewood Avenue & Adjacent Areas

  • Concerns
  • Woodbury Ave Travel Speed
  • Maplewood Ave Travel Speeds
  • Excessive Pavement
  • Gateway Treatment
  • Crosswalks Desired
slide-42
SLIDE 42

Intersection Improvements: Woodbury Avenue

42

Maplewood Avenue & Adjacent Areas

T-Configuration

  • Woodbury Ave Travel Speeds
  • Maplewood Ave Travel Speeds
  • Excessive Pavement
  • Gateway Treatment
  • Crosswalks Desired
slide-43
SLIDE 43

Intersection Improvements: Woodbury Avenue

43

Maplewood Avenue & Adjacent Areas

T-Configuration w/Left Turn Lane

  • Woodbury Ave Travel Speeds
  • Maplewood Ave Travel Speeds
  • Excessive Pavement
  • Gateway Treatment
  • Crosswalks Desired
slide-44
SLIDE 44

Intersection Improvements: Woodbury Avenue

44

Maplewood Avenue & Adjacent Areas

Roundabout

  • Woodbury Ave Travel Speeds
  • Maplewood Ave Travel Speeds
  • Excessive Pavement
  • Gateway Treatment
  • Crosswalks Desired
slide-45
SLIDE 45

Roundabouts:

45

Maplewood Avenue & Adjacent Areas

  • FHWA Proven Safety Countermeasure
  • Provides Horizontal Deflection
  • Speed Control – 24 Hour
  • 90% Reduction in Fatalities
  • Fewer Conflict Points
  • Efficient Operations
  • Gateway Treatment
slide-46
SLIDE 46

Next Steps

  • Written Comments
  • Tonight
  • …Or within 10 days
  • Final Concept Plans To Be

Provided On City Website

46

Maplewood Avenue & Adjacent Areas

slide-47
SLIDE 47

Anticipated Project Schedule:

  • Second Public Meeting……………………………May 2016
  • Complete Preliminary Design………………….July 2016
  • Third Public Meeting………………….……………September 2016
  • Complete Final Design…………………………....Fall 2016
  • Advertise for Bids……………………………………Winter 2017
  • Begin Construction.…………………………………Spring 2017

47

Maplewood Avenue & Adjacent Areas

slide-48
SLIDE 48

Keeping in Touch

  • Project Website:
  • http://cityofportsmouth.com/projects/maplewoodave.htm
  • City Staff Contact:
  • Raymond C. Pezzullo, P.E.
  • Phone: 603-766-1755
  • Email: rcpezzullo@cityofportsmouth.com
  • Email Distributions

48
