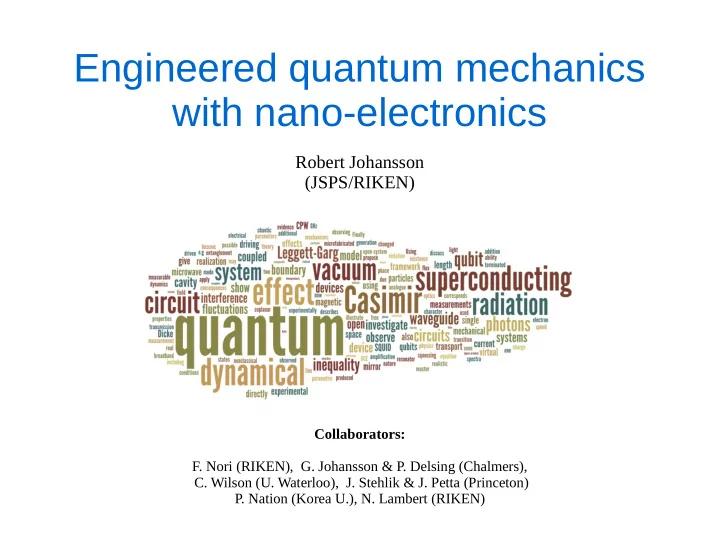

Engineered quantum mechanics with nano-electronics Robert Johansson (JSPS/RIKEN) Collaborators: F. Nori (RIKEN), G. Johansson & P. Delsing (Chalmers), C. Wilson (U. Waterloo), J. Stehlik & J. Petta (Princeton) P. Nation (Korea U.),


  1. Engineered quantum mechanics with nano-electronics Robert Johansson (JSPS/RIKEN) Collaborators: F. Nori (RIKEN), G. Johansson & P. Delsing (Chalmers), C. Wilson (U. Waterloo), J. Stehlik & J. Petta (Princeton) P. Nation (Korea U.), N. Lambert (RIKEN)

  2. Content Brief review to quantum electronics ● Overview of research ● Summary of selected research projects ● Dynamical Casimir effect ● – QFT/Quantum optics with superconducting circuits Landau-Zener-Stuckelberg interferometry ● – Atomic physics with semiconducting quantum dots QuTiP: Framework for computational quantum dynamics ● – Computational physics Conclusions ●

  3. Review of superconducting circuits from qubits to on-chip quantum optics resonator as coupling bus qubits qubit-qubit UCSB 2012 NIST 2007 UCSB 2009 NIST 2002 high level of control of resonators UCSB 2009 Yale 2011 Yale 2004 qubit-resonator Delft 2003 Saclay 1998 Yale 2008 ETH 2010 UCSB 2006 NEC 1999 Chalmers 2008 Saclay 2002 NEC 2003 ETH 2008 NEC 2007 2000 2005 2010

  4. Review of quantum electronics current status of the field Implementable using superconducting and semiconducting nanoelectrical devices: Few-level quantum systems (qubits, artificial atoms) ● Controllable by design and/or in-situ tunable ● Resonators (cavities) ● Linear and nonlinear ● Frequency tunable ● Flexible coupling (electric, magnetic, position) ● Strong and ultrastrong coupling regimes demonstrated ● Hybrid devices: quantum systems of different nature can be coupled ● Various readout schemes available ● With these building blocks, a wide range of quantum phenomena can be realized and simulated in engineered nanoelectronical devices.

  5. Overview of research

  6. Dynamical Casimir effect In collaboration with F. Nori (RIKEN), G. Johansson, P. Delsing (Chalmers), C. Wilson (Waterloo) PRL 2009 PRA 2010 Nature 2011 PRA 2013

  7. Quantum field theory: vacuum effects Examples of physical phenomena due to quantum vacuum fluctuations (with no classical counterparts). Casimir force (1948) Dynamical Casimir effect Experiment: Lamoreaux (1997) Hawking Radiation Unruh effect Lamb shift (Lamb & Retherford 1947) A review of quantum vacuum effects: Nation, Johansson, Blencowe and Nori, RMP (2012).

  8. The dynamical Casimir effect Moore (1970), Fulling (1976) A mirror undergoing nonuniform relativistic motion in vacuum emits radiation In general: Rapidly changing boundary conditions of a Dynamical Casimir effect cartoon quantum field can modify the mode structure of quantum field nonadiabatically, resulting in amplification of virtual photons to real detectable photons (radiation). Examples of possible realizations: Moving mirror in vacuum (mentioned above) ● Medium with time-dependent index of refraction ● (Yablanovitch PRL 1989, Segev PLA 2007) Semiconducting switchable mirror by laser irradiation ● (Braggio EPL 2005) Our proposal: ● Superconducting waveguide terminated by a SQUID (PRL 2009, PRA 2010, experiment Wilson Nature 2011, review Nation RMP 2012, PRA 2013) Reviews: Dodonov (2001, 2009), Dalvit et al. (2010)

  9. The problem with massive mirrors Examples of DCE photon production rates for some naive single mirror systems Case Frequency Amplitude Maximum Photon (Hz) (m) velocity (m/s) production rate (#photons/s) Moving a mirror 1 1 1 ~ 1e-18 by hand “handwaving” Mirror on a nano-mechanical 1e+9 1e-9 1 ~1e-9 oscillator Photon production rate: Lambrecht PRL 1996. The very low photon-production rate makes the DCE difficult to detect experimentally in systems with mechanical modulation of the boundary condition (BC). → need a system which does not require moving massive objects to the change BC.

  10. Frequency tunable resonators SQUID-terminated transmission line: Wallquest et al. PRB 74 224506 (2006) Castellanos-Beltran et al. , Sandberg et al. , Palacios-Laloy et al. , APL 2007 APL 2008 JLTP 2008 See also: Yamamoto et al. , APL 2008 Kubo et al., PRL 105 140502 (2010) Wilson et al., PRL 105 233907 (2010)

  11. Superconducting circuit for DCE PRL 2009 ... ... ... The boundary condition (BC) of the coplanar waveguide (at x= 0): ● is determined by the SQUID ● can be tuned by the applied magnetic flux though the SQUID ● is effectively equivalent to a “mirror” with tunable position (1-to-1 mapping of BC) No motion of massive objects is involved in this method of changing the boundary condition.

  12. Superconducting circuit for DCE Coplanar waveguide: ... ... ... Equivalent system: The “position of the effective mirror” is a function of the applied magnetic flux:

  13. Superconducting circuit for DCE Coplanar waveguide: ... ... ... Equivalent system: A perfectly reflective mirror at distance Harmonic modulation of the applied magnetic flux: ● BC identical to that of an oscillating mirror ● produces photons in the coplanar waveguide (dynamical Casimir effect)

  14. Circuit model → Boundary condition Circuit model: Hamiltonian: ● We assume that the SQUID is only weakly excited (large plasma frequency) ● The equation of motion for gives the boundary condition for the ● transmission line:

  15. Input-output result for oscillating BC Perturbation solution for sinusoidal modulation: Now, any expectation values and correlation functions for the output field can be calculated: For example, the photon flux in the output field for a thermal input field: Reflected thermal photons Reflected thermal photons Dynamical Casimir effect !

  16. Example of photon-flux density spectrum Predicted output photon-flux density vs. mode frequency: → broadband photon production below the driving frequency Red: thermal photons Blue: analytical results Green: numerical results Radiation due to the dynamical Casimir effect T emperature: - Solid: T = 50 mK - Dashed: T = 0 K thermal (plasma frequency) (driving frequency)

  17. Photon production rates Case Frequency Amplitude Maximum Photon (Hz) (m) velocity (m/s) production rate (# photons / s) moving a 1 1 1 ~1e-18 mirror by hand nano-mechani 1e+9 1e-9 1 ~1e-9 cal oscillator SQUID in 18e+9 ~1e-4 ~2e6 ~1e5 coplanar waveguide Photon production rate: Lambrecht et al. , PRL 1996.

  18. DCE in a cavity/resonator setup PRA 2010 ω 1 ω 2 Open waveguide case: single broad peak Symmetric double-peak structure when ω 1 + ω 2 = ω d Photons in the ω 1 and ω 2 modes are correlated .

  19. Example of two-mode squeezing spectrum DCE generates two-mode squeezed states (correlated photon pairs) ● Broadband quadrature squeezing ● Advantages: ● Can be measured with standard homodyne detection. ● Photon correlations at different frequencies is a signature of quantum generation process. Solid lines: Resonator setup Dashed lines: Open waveguide

  20. The experiment Schematic Experiment SQUID PRL 2009, PRA 2010 Wilson (Nature 2011) See also: Lähteenmäki et al., PNAS (2012)

  21. The experiment Schematic Experiment SQUID PRL 2009, PRA 2010 Wilson (Nature 2011) See also: Lähteenmäki et al., PNAS (2012)

  22. Measured reflected phase Testing the tunability of the effective length: Measurement of the phase acquired by an incoming signal that reflect off the SQUID as a function of the externally applied static magnetic field. (Nature 2011) The reflected phase is directly related to the effective “electrical length” of the SQUID.

  23. Measured photon-flux density Fix the pump frequency and vary the analysis frequency: We expect to see a symmetric spectrum around zero detuning from half the pump frequency. Measure in this range of frequencies Fix this parameter

  24. Measured photon-flux density Broadband photon production is observed, and the measured spectrum is clearly symmetric around the half the pump frequency (zero digitizer detuning in figure below).

  25. Measured photon-flux density Broadband photon production is observed, and the measured spectrum is clearly symmetric around the half the pump frequency (zero digitizer detuning in figure below). Averaged photon flux in the ranges indicated above

  26. Measured photon-flux density Broadband photon production is observed, and the measured spectrum is clearly symmetric around the half the pump frequency (zero digitizer detuning in figure below). Averaged photon flux in the ranges indicated above

  27. Measured photon-flux density Broadband photon production is observed, and the measured spectrum is clearly symmetric around the half the pump frequency (zero digitizer detuning in figure below). Photon flux vs pump power for the cut indicated above

  28. Measured two-mode correlations and squeezing Voltage quadratures: Symmetrically around half the driving frequency: Strong two mode squeezing is observed (only) if → strong indicator for photon-pair production. Also, single-mode squeezing is not observed, as expected from the dynamical Casimir effect theory (where only two-photon correlations are created).

  29. No correlations without pump signal The correlations vanish when: - the pump is turned off - the two analysis frequencies does not sum up to the pump frequency: Compare to ~25% → squeezing in the figure on the Previous page. The parasitic cross-correlations intrinsic to the amplifier are very small.
