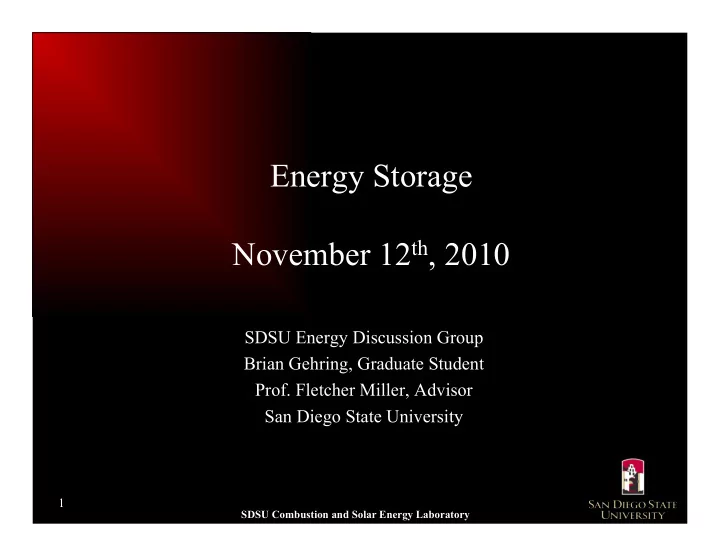

Energy Storage November 12th, 2010

SDSU Energy Discussion Group Brian Gehring, Graduate Student

• Prof. Fletcher Miller, Advisor

San Diego State University

1

SDSU Combustion and Solar Energy Laboratory

Overview

• Benefits of Storage
• Storage Technologies
• AB 2514
• Future Research and Projects

2

SDSU Combustion and Solar Energy Laboratory

Benefits of Storage

• Forecasting of electricity demand is difficult
• Makes the electricity grid more flexible, efficient and

reliable

• Production from renewables is sporadic and unpredictable
• Store energy at night when cost and demands are low
• Smarter grid with fewer new power plants
• Lowers capital costs for utilities by reducing annual

peaking requirement – fewer peaker plants available

3

SDSU Combustion and Solar Energy Laboratory

Energy Forecasting

• When forecasts are

low, peaker plants are put into operation to meet demand

• Peaker plants are less

efficient and smaller plants are excluded from controlling emissions

4

SDSU Combustion and Solar Energy Laboratory

Energy Storage vs Peaker Plant

5

SDSU Combustion and Solar Energy Laboratory

Energy Forecasting

• When forecasts are high, plants ramp down

their utilization rate

• Adjusting output lowers efficiency
• Stresses systems and decreases the lifespan
• f equipment

6

SDSU Combustion and Solar Energy Laboratory

Renewable Energy Storage

• Renewables produce intermittent output
• Renewable energy production time-shift to

peak demand

• Power becomes dispatchable and more

predictable

7

SDSU Combustion and Solar Energy Laboratory

Off peak storage

• Time shift of energy

production

• Increased efficiency

and utilization rate of baseload plants

8

SDSU Combustion and Solar Energy Laboratory

Storage Technologies

• Pumped Hydro
• Thermal
• Batteries
• Compressed Air
• Molten Salt
• Flywheels

9

www.storagealliance.org Current as of April 2010

SDSU Combustion and Solar Energy Laboratory

Pumped Hydro

• Water is pumped uphill to a reservoir when demand is low, and allowed to run

down through turbines when power is needed

• Most widely utilized energy storage technology
• 98% of total worldwide energy storage capacity
• Limited by existing reservoirs
• Recovers 75% of energy consumed
• High dispatchability, can come online in as little as 15 seconds

10

http://www.tva.gov/power/pumpstorart.htm

SDSU Combustion and Solar Energy Laboratory

Pumped Hydro

• SDG&E has contracted with

San Diego Water Authority to build a pumped hydro project

• Will take advantage of 770 ft

elevation difference between Olivenhain reservoir and Lake Hodges

• Will produce 40MW for 8-10

hours

11

SDSU Combustion and Solar Energy Laboratory

Thermal Storage

• Stored primarily as

cooled fluid or ice produced at night to

• ffset air conditioning

electricity demand

12

SDSU Combustion and Solar Energy Laboratory

Molten Salt

• De-couples the production of

solar energy from producing power

• 60 percent sodium nitrate and

40 percent potassium-nitrate

• Can store energy for up to a

week

• Insulated tanks keep salt from

freezing

• Studies by Sandia show that

two tank storage system could have annual efficiencies as high as 99%

13

SDSU Combustion and Solar Energy Laboratory

Molten Salt

• Andasol solar power station in

Spain consists of two 50 MW solar thermal trough plants utilizing molten salt storage

• Storage almost doubles
• perational hours per year
• Full thermal reservoir allows

7.5 hours of full load production

• Each plant has two tanks for

molten salt storage measuring 14m in height and 36m in diameter

14

SDSU Combustion and Solar Energy Laboratory

Plants with Molten Salt Storage and Capacities

• Solar II – Power tower in Barstow, CA
• Andasol – Trough in Granada, Spain
• Nevada Solar One – Trough in Nevada
• Exteresol I – Trough in Spain
• La Florida – Trough in Spain
• 10MW – 3hrs
• 2x50MW – 7.5hrs
• 64MW – 30mins
• 50MW – 7.5hrs
• 50WM – 7.5hrs

15

SDSU Combustion and Solar Energy Laboratory

Steam Accumulator

• PS 10 solar thermal power

tower in Spain

• Stores heated water in four

pressurized tanks at 50 bar and 285°C

• The water evaporates and

flashes back to steam when the pressure is lowered

• Storage capacity is 50% load
• peration for 50 minutes

16

SDSU Combustion and Solar Energy Laboratory

Batteries

• Electrical energy

stored in chemical form

• Several different types
• f large scale batteries

available

17

www.electricitystorage.org

SDSU Combustion and Solar Energy Laboratory

Sodium-Sulfur Batteries

• Operating temperatures of 300-350°C
• 89-92% efficient
• Liquid sodium serves as the negative electrode and liquid

sulfur serves as the positive electrode

• Currently 270 MW installed capacity in Japan, 9 MW in

USA

• 7.2 MW installed to support 11 MW wind power farm in

Minnesota

• Rubenius will install 1GW of NaS batteries in Mexicali,

Mexico from single manufacturer - NGK Insulators

18

SDSU Combustion and Solar Energy Laboratory

Compressed Air Energy Storage (CAES)

19 www.caliso.com

• Electricity is used to

compress air into large storage tanks or underground caverns

• Compressed air spins

turbines when energy is needed

SDSU Combustion and Solar Energy Laboratory

CAES

• Diabatic Storage
• Currently only one system in US -110 MW

system in McIntosh, Al

• Dissipates heat with intercoolers
• Achieves 53% thermal efficiency
• Requires fuel
• Caverns created by solution mining,

available in 85% of the United States

20

SDSU Combustion and Solar Energy Laboratory

Flywheels

• Convert electrical

energy into kinetic energy and back again

• Good for power

conditioning and short term storage

• Efficiency can be as

high as 90%

• Typical capacities run

from 3 kW to 133 kW

21

SDSU Combustion and Solar Energy Laboratory

Storage Costs

• CAES and Pumped Hydro $5/kWh

– Depends on availability of geology

• Molten Salt - $50/kWh
• Batteries - $100-200/kWh
• Flywheels - $200-500/kWh

22

SDSU Combustion and Solar Energy Laboratory

AB 2514

• Requires investor-owned and publicly owned utilities

to procure new grid connected energy storage systems or the services of such systems with a minimum capacity of:

– 2.25% of peak load by 2014 – 5% of peak load by 2020

• California has 1500 MW of storage or <1% of peak

load

23

SDSU Combustion and Solar Energy Laboratory

Future Research and Projects

• Vehicle-to-grid
• Phase Change Materials for Energy Storage
• Concentrating Solar Brayton CAES
• Advanced Adiabatic CAES
• Iowa Stored Energy Park

24

SDSU Combustion and Solar Energy Laboratory

Vehicle-to-Grid

• Uses plug in electric vehicles as an energy storage device
• Cars are parked 95% of the time
• Electricity could flow from the car to the power lines and back

25

SDSU Combustion and Solar Energy Laboratory

Phase Change Energy Storage

• Takes advantage of heat of fusion of

materials

• Less heat transfer fluid needed, smaller

storage tanks

• Smaller temperature change between

charges

• Capable of storing large amounts of energy

26

SDSU Combustion and Solar Energy Laboratory

Concentrating Solar Brayton CAES

• Air is compressed into a salt mine cavity during the night
• During the day, the compressed air is sent to parabolic dishes and heated
• Expanded air drives a turbo-alternator
• Each compressor storage system will serve 30 dishes

27

SDSU Combustion and Solar Energy Laboratory

Advanced Adiabatic CAES

– Retains heat produced by compression – Heat stored in a solid such as concrete or a liquid such as molten salt – No utility scale plans to date, efficiency expected to approach 70%

28

SDSU Combustion and Solar Energy Laboratory

Iowa Stored Energy Park

• Will use energy stored

from a large wind farm to compress air into an aquifer of sandstone capped by shale

• Storage will amount to a

20 week supply

• 270 MW of generating

capacity

• Anticipated completion

date of 2012
