EMPOWERING PEOPLE To make healthier and more sustainable choices in the renovation and construction of the places we live Over 30,000 educated 13,000 Greener Homes 501C3 Non Profit Greenhomeinstitute.org Program Building HERSindex.com 9

slide-1
SLIDE 1

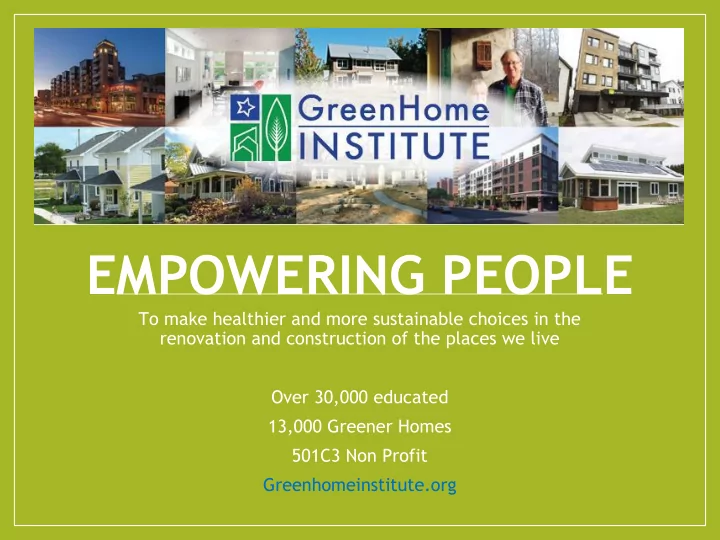

EMPOWERING PEOPLE

To make healthier and more sustainable choices in the renovation and construction of the places we live Over 30,000 educated 13,000 Greener Homes 501C3 Non Profit Greenhomeinstitute.org

slide-2
SLIDE 2
slide-3
SLIDE 3
slide-4
SLIDE 4
slide-5
SLIDE 5
slide-6
SLIDE 6
slide-7
SLIDE 7
slide-8
SLIDE 8

Program Building

slide-9
SLIDE 9

9

HERSindex.com

slide-10
SLIDE 10

HERSindex.com

slide-11
SLIDE 11
slide-12
SLIDE 12

Thermal Enclosure System:

  • Air Leakage
  • Insulation R-Value
  • Insulation Installation
  • Air Barriers
  • Thermal Bridging
  • High-Perf. Windows

Water Management System:

  • Roof Membranes
  • Flashing
  • WRB’s
  • Fabric Filters
  • Capillary Breaks
  • Drainage Layer

ENERGY STAR VERSION 3 HVAC Quality Installation System:

  • Efficient Equipment
  • Right-Sizing
  • Air Distribution
  • Refrigerant Charge
  • Duct Installation
  • Pressure Balancing
  • Ventilation
  • Filtration
slide-13
SLIDE 13
slide-14
SLIDE 14
slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18

https://www.energy.gov/sites/prod/files/2015/05/f22/PV-Ready%20Checklist.pdf

slide-19
SLIDE 19

https://www1.eere.energy.gov/buildings/residential/pdfs/doe_ch_case_studies/2016hiawinner_habitatkalamazoo_013017.pdf

slide-20
SLIDE 20

https://www.energy.gov/eere/buildings/doe-tour-zero-tree-ecovillage-aquazephyr

slide-21
SLIDE 21

Program Building

slide-22
SLIDE 22

http://www.phius.org/phius-certification-for-buildings-products/phius-2015-project-certification/phius-certific ation-overview

slide-23
SLIDE 23
slide-24
SLIDE 24
slide-25
SLIDE 25

http://www.phius.org/projects/1132?sort=%60BuildingFunctionTypes%60.%60BuildingFunctionType%60+ASC

slide-26
SLIDE 26

http://www.valdostadailytimes.com/news/business/largest-passive-house-office-building-in-us-to-be-built/article_ 23345003-f742-52df-8b20-8d083e4fb8cb.html

slide-27
SLIDE 27
slide-28
SLIDE 28

https://www.energy.gov/sites/prod/files/2017/02/f34/PHIUS%2B2015%20Passive%20Building%20Standard s.pdf

slide-29
SLIDE 29

http://www.phius.org/phius-2015-new-passive-building-standard-summary

slide-30
SLIDE 30
slide-31
SLIDE 31

http://www.phius.org/software-resources/wufi-passive-and-other-modeling-tools/wufi-passive-3-0

slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34

Air Tightness

CFM @ 50 / Square Feet Building Envelope

Use to be .6 ACH

Now .005 5+ Story buildings with no combustion can be .008

slide-35
SLIDE 35

Source Energy Limits per year

Residential 6200 kwh / per person Bedrooms +1 = Persons Protip - Keep spaces below 500 square feet to hit the target Variations on Mixed Use Buildings Going to 4200 in V2018 Commercial / Multifamily 38kbtu per interior conditioned floor area (iCFA) Process Load variations

slide-36
SLIDE 36

Other requirements

Reduced Thermal Bridge issues Intense Moisture & Humidity Management Efficient Ventilation capable of .3 air changes per hour at maximum ASHRAE 62.2 residential or 62.1 commercial 2010 Follow indoor air plus Follow zero energy ready Follow Energy Star High Rise Certification

slide-37
SLIDE 37

https://www.energy.gov/sites/prod/files/2017/02/f34/PHIUS%2B2015%20Passive%20Building%20Standard s.pdf

slide-38
SLIDE 38

WHO NEEDS TO BE INVOLVED?

slide-39
SLIDE 39

PHIUS+ QA/QC - required

  • PHIUS + Rater - Single Family / Lowrise Multifamily

○ Credentials ■ RESNET OR BPI ○ Experience ■ HERS rating, Energy Star and/or LEED for Homes ■ Building Construction / design / engineering ○ Training - 2 days + exam $500.00 ○ Maintain (Yearly) - Proof of HERS credential and (Rate

  • r attend trainings)
  • PHIUS + Verifier - Mid - high rise Multifamily / Commercial

○ Credentials ■ RESNET OR BPI ○ Experience ■ Midrise / Highrise energy or green programs ■ Building Construction / design / engineering ○ Training - 2 days + exam $625.00

○

Maintain (Yearly) - Rate or attend trainings

http://www.phius.org/become-a-professional/phius-quality-assurance-quality-control-professional-training /qa-qc-training-programs

slide-40
SLIDE 40

Certified Passive House Consultant (CPHC) - highly recommended

http://www.phius.org/become-a-professional/certified-passive-house-consultant-cphc-training/program-

  • verview
slide-41
SLIDE 41
slide-42
SLIDE 42

PHIUS Builders- highly recommended

http://www.phius.org/become-a-professional/phius-certified-builders-training/overview-and-registration

slide-43
SLIDE 43

What is the PROCESS?

slide-44
SLIDE 44

Steps

  • 1. Understand the program and/or high CPHC
  • 2. Sign PHIUS contract & Register Project
  • 3. Access drop box PHIUS folder
  • 4. Hire the PHIUS+ Rater
  • 5. Sub slab insulation inspection
  • 6. Predrywall inspection
  • 7. Final site testing
  • 8. Final documentation assembly
  • 9. Rater submits to PHIUS
  • 10. Adjustments or review if needed
  • 11. Certification notice
  • 12. Order plaque
  • 13. Celebrate success
slide-45
SLIDE 45

Documentation Heavy!

slide-46
SLIDE 46

How much is this going to cost?

$300 - $2,000 estimated for energy rater fees, inspections and certificates

slide-47
SLIDE 47
slide-48
SLIDE 48

Passive House Goes with LEED

31 points 31.5 points

https://www.usgbc.org/articles/use-passive-house-us-earn-credit-toward-leed-certification

slide-49
SLIDE 49

https://www.usgbc.org/education/sessions/all-about-phius-2015-climate-specific-passive- building-standard-10557043

slide-50
SLIDE 50

Thank you!

Questions? Brett.Little@greenhomeinstitute.org
