A Framework for Developing Synthetic Chemical and Biological Agent Release Data Sets George Bieberbach a , Paul E. Bieringer a , Andrzej Wyszogrodzki a , Jeffrey Weil a , Ryan Cabell a , Jonathan Hurst a , and John Hannan b a National Center for

slide-1
SLIDE 1

HARMO13-2010 31 May 2010 1

NCAR/RAL - National Security Applications Program

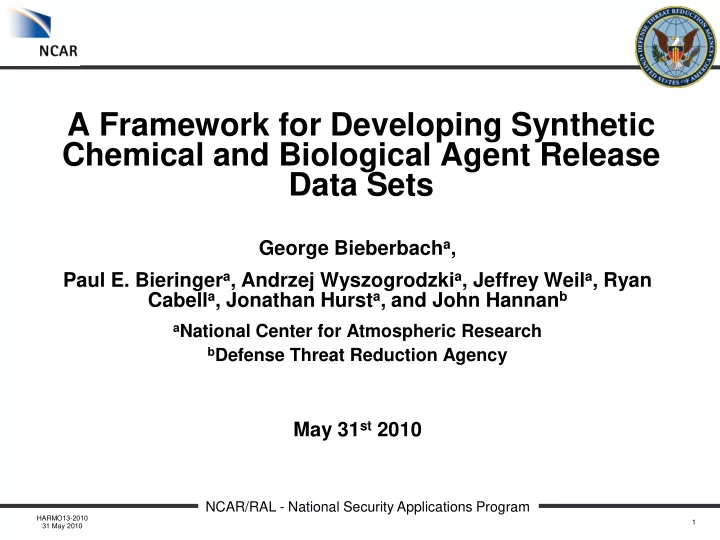

A Framework for Developing Synthetic Chemical and Biological Agent Release Data Sets

George Bieberbacha, Paul E. Bieringera, Andrzej Wyszogrodzkia, Jeffrey Weila, Ryan Cabella, Jonathan Hursta, and John Hannanb

aNational Center for Atmospheric Research bDefense Threat Reduction Agency

May 31st 2010

slide-2
SLIDE 2

HARMO13-2010 31 May 2010 2

NCAR/RAL - National Security Applications Program

Chemical and Biological (CB) Defense Systems Test and Evaluation (T&E)

  • Technology gap

– Insufficient field data for T&E – Economic and logistic limitations for chemical biological defense T&E

  • One solution

– Physically realistic virtual environments and synthetic

  • bservations

Best Solution Will be Derived from the use of Both Observations and Virtual Environment Data

slide-3
SLIDE 3

HARMO13-2010 31 May 2010 3

NCAR/RAL - National Security Applications Program

Virtual Testing Methodology

(Observation System Simulation Experiment)

Atmospheric Models Transport and Dispersion Models Models and Analysis Systems

Generation of Synthetic Environment Simulated Sensor Measurements Applications That Utilize Observations

slide-4
SLIDE 4

HARMO13-2010 31 May 2010 4

NCAR/RAL - National Security Applications Program

Real Sensor Data Characteristics

slide-5
SLIDE 5

HARMO13-2010 31 May 2010 5

NCAR/RAL - National Security Applications Program

Near-Field Dispersion Modeling

(Exterior CB Release and Atmospheric Environment)

  • Near-field dispersion characteristics

– Gaussian-based models capture the mean properties – Large-Eddy-Simulation (LES) based models are capable of capturing the near-instantaneous plume

From: Slade (1968)

slide-6
SLIDE 6

HARMO13-2010 31 May 2010 6

NCAR/RAL - National Security Applications Program

Diagnostic Met + Gaussian Puff

slide-7
SLIDE 7

HARMO13-2010 31 May 2010 7

NCAR/RAL - National Security Applications Program

Large Eddy Simulation + Lagrangian Particle Dispersion

slide-8
SLIDE 8

HARMO13-2010 31 May 2010 8

NCAR/RAL - National Security Applications Program

Outline

  • Motivation
  • Virtual Threat Response Emulation and Analysis Testbed

(VTHREAT)

– Overview – Synthetic Environment Generation Models – Evaluation

  • VTHREAT applications

– CB Field Test Design – CB Source Term Estimation (STE) Algorithm Development – CB Sensor Test and Evaluation

  • Future Work

– Aerosol Background Modeling

slide-9
SLIDE 9

HARMO13-2010 31 May 2010 9

NCAR/RAL - National Security Applications Program

VTHREAT Overview

CLIENT PC NCAR

Aerosol Background Model Atmospheric Aerosol Model EULAG/LPDM Simulations Synthetic Environment Repository EULAG/LPDM Synthetic Environment Generator Synthetic T&D Generator LPDM Chemical Sensors (ACADA) Synthetic CBR Sensor Emulators Synthetic Meteorology Sensor Emulators Radiosonde Windmill Anemometer Sonic Anemometer Doppler LIDAR Bio-Agent Sensor Radiological Current Capability Planned Capability

slide-10
SLIDE 10

HARMO13-2010 31 May 2010 10

NCAR/RAL - National Security Applications Program

Outline

  • Motivation
  • Virtual Threat Response Emulation and Analysis Testbed

(VTHREAT)

– Overview – Synthetic Environment Generation Models – Evaluation

  • VTHREAT applications

– CB Field Test Design – CB Source Term Estimation (STE) Algorithm Development – CB Sensor Test and Evaluation

  • Future Work

– Aerosol Background Modeling

slide-11
SLIDE 11

HARMO13-2010 31 May 2010 11

NCAR/RAL - National Security Applications Program Optional nonhydrostatic fluid equations: Anelastic or Compressible / incompressible Boussinesq, Optional modes for integrating fluid PDEs: Eulerian (flux form) or semi-Lagrangian (advective form) Applications: classical fluid dynamics, cloud turbulence, atmospheric flows from PBL to global and planetary scale, MHD, ocean flows, T&D aplications, flows over complex topography and buildings Numerical algorithms:

  • Nonoscillatory forward-in-time (NFT) advective transport (MPDATA)
  • Preconditioned non-symmetric Krylov-subspace elliptic solver GCR(k)
  • Generalized-coordinate formulation for grid adaptivity

Strategies of simulating turbulent dynamics:

  • Direct numerical simulation (DNS)
  • LES type turbulence closure (1 ½ order, prognostic tke), Smagorinsky or ILES model

T&D applications

  • Structured, time-dependent grids, “terrain-following” transformation (orographic flows) or

immersed boundary approach (urban flows)

  • Passive tracer to asses transport and dispersion of passive contaminants

EULAG

(EULerian/semi-LAGrangian Model for Fluid Flows)

slide-12
SLIDE 12

HARMO13-2010 31 May 2010 12

NCAR/RAL - National Security Applications Program

LPDM

(Lagrangian Particle Dispersion Model)

  • LPDM model driven by EULAG

meteorological solution

– Weil et al., 2004, J. Atmos. Sci.

– Provides a very detailed T&D solution – Flexible solution for producing synthetic T&D from numerous sources – Lower computational costs – Evaluated relative to laboratory and field data

v(x0,t) = uRES(xp,t) + uSGS(xp,t) uRES = resolved LES velocity uSGS = stochastic sub-grid-scale (SGS) velocity Thomson’s (1987) stochastic model for uSGS Concentrations: Cy = Q ∫p1(x - xs,z - zs,td) dtd td = t - tem

slide-13
SLIDE 13

HARMO13-2010 31 May 2010 13

NCAR/RAL - National Security Applications Program

Outline

  • Motivation
  • Virtual Threat Response Emulation and Analysis Testbed

(VTHREAT)

– Overview – Synthetic Environment Generation Models – Evaluation

  • VTHREAT applications

– CB Field Test Design – CB Source Term Estimation (STE) Algorithm Development – CB Sensor Test and Evaluation

  • Future Work

– Aerosol Background Modeling

slide-14
SLIDE 14

HARMO13-2010 31 May 2010 14

NCAR/RAL - National Security Applications Program

VTHREAT Validation

Crosswind-Integrated Concentration Mean Height

Scaled Downwind Distance Scaled Downwind Distance Scaled Mean Height Scaled Concentration Scaled Downwind Distance = w*x/(Uzi) Scaled Concentration = CyUzi/Q Scaled Mean Height = zp/zi

slide-15
SLIDE 15

HARMO13-2010 31 May 2010 15

NCAR/RAL - National Security Applications Program

VTHREAT Evaluation

(Assessing the Suitability for the CB T&E Application)

  • Virtual CB T&E tool requirements

– Realistic agent mean lateral/vertical and downwind dispersion – Realistic agent concentration and wind fluctuations – Realistic background interference signals

Scaled Downwind Distance Scaled Concentration

Crosswind-Integrated Concentration

VTHREAT Wind Observation

Surface Wind Fluctuations

U - Wind Speed (m/s) V - Wind Speed (m/s)

slide-16
SLIDE 16

HARMO13-2010 31 May 2010 16

NCAR/RAL - National Security Applications Program

Outline

  • Motivation
  • Virtual Threat Response Emulation and Analysis Testbed

(VTHREAT)

– Overview – Synthetic Environment Generation Models – Evaluation

  • VTHREAT applications

– CB Field Test Design – CB Source Term Estimation (STE) Algorithm Development – CB Sensor Test and Evaluation

  • Future Work

– Aerosol Background Modeling

slide-17
SLIDE 17

HARMO13-2010 31 May 2010 17

NCAR/RAL - National Security Applications Program

CB Field Test Design

Sensor Grid Detection Sensitivity Plume Coverage Detection Sensitivity to Release Concentration

slide-18
SLIDE 18

HARMO13-2010 31 May 2010 18

NCAR/RAL - National Security Applications Program

Outline

  • Motivation
  • Virtual Threat Response Emulation and Analysis Testbed

(VTHREAT)

– Overview – Synthetic Environment Generation Models – Evaluation

  • VTHREAT applications

– CB Field Test Design – CB Source Term Estimation (STE) Algorithm Development – CB Sensor Test and Evaluation

  • Future Work

– Aerosol Background Modeling

slide-19
SLIDE 19

HARMO13-2010 31 May 2010 19

NCAR/RAL - National Security Applications Program

Incorporation of Relevant Background Fields

  • Realistic background signals physically consistent with agent

release

– Aerosol background for biological sensors – Ambient chemical interference fields for chemical agent sensors

  • Implementation plans

– Utilize aerosol background information from PD TESS program – DTRA-JSTO funded DSTL aerosol background model – Couple aerosol concentration with the EULAG LES model

DSTL Aerosol Background Model VTHREAT LIDAR Emulation EULAG/LPDM Model

slide-20
SLIDE 20

HARMO13-2010 31 May 2010 20

NCAR/RAL - National Security Applications Program

CB Release and Relevant Background Fields

(Preliminary Demonstration)

slide-21
SLIDE 21

HARMO13-2010 31 May 2010 21

NCAR/RAL - National Security Applications Program

Summary

  • The problem

– A capability gap exists for evaluating CB sensors in a more robust way. – “Virtual” testing can be used to fill this gap

  • One solution

– Generation of synthetic test environments

  • Model validation

– Turbulent dispersion characteristics are being validated against a range of experimental and laboratory datasets

  • Applications

– Support field test design – Sensor data algorithm development – CB sensor test and evaluation.

  • Looking ahead

– Simulated chemical dispersion imbedded within a background interferent signals

slide-22
SLIDE 22

HARMO13-2010 31 May 2010 22

NCAR/RAL - National Security Applications Program

Questions?

slide-23
SLIDE 23

HARMO13-2010 31 May 2010 23

NCAR/RAL - National Security Applications Program

Incorporation of Relevant Background Fields

  • Realistic background signals physically consistent with agent

release

– Aerosol background for biological sensors – Ambient chemical interference fields for chemical agent sensors

  • Implementation plans

– Utilize aerosol background information from PD TESS program – DTRA-JSTO funded DSTL aerosol background model – Couple aerosol concentration with the EULAG LES model

DSTL Aerosol Background Model VTHREAT LIDAR Emulation EULAG/LPDM Model
