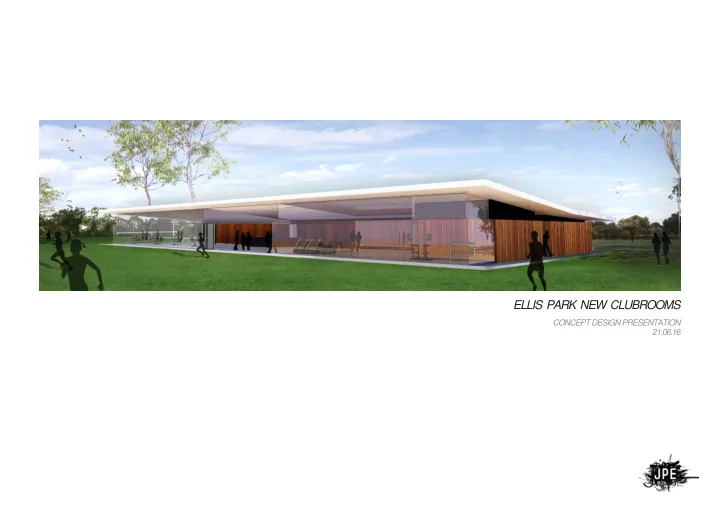

12. ELLIS PARK NEW CLUBROOMS CONCEPT DESIGN PRESENTATION 21.06.16

PROJECT BACKGROUND The Adelaide Comets Football Club and Western Districts Athletics Club have engaged JPE Design Studio to prepare a concept design for their new clubrooms in Ellis Park. The intent is that the new clubrooms replace their existing facilities and consolidate them into a combined facility. In addition to the two clubs, a wider user group for these facilities was recognised, ADELAIDE COMETS WESTERN DISTRICTS including Adelaide High School, St Marys FOOTBALL CLUB ATHLETICS CLUB College and Prince Alfred College. Daytime access to toilet facilities by the general public was also recognised as a project requirement. ADELAIDE HIGH ST MARYS PRINCE ALFRED GENERAL PUBLIC Photographs of the existing clubrooms are SCHOOL provided below for information. COLLEGE COLLEGE Aerial view of existing facilities View looking north of existing facilities Existing Adelaide Comets facilities 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

PRECINCT PLAN The following arial plan shows the extent of Tampawardli (Park 24) bounded by Glover Ave, West Tce, Sir Donald Bradman Dr and the Adelaide Rail Yard. It references the major stake holder precinct usage and locations. GLOVER AVE WEST TCE sports adelaide high school western district athletics adelaide comets sports adelaide railway events existing footpaths landscaping st mary’s college R M A N D sa athletics stadium R A D gateway to the city A L D B D O N S I R PRECINCT PLAN NTS 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

SITE ANALYSIS PLAN The following site plan shows the two proposed building orientations. Option 1 runs along the North South axis. Option 2 runs along the East West axis. 7 A site analysis has been undertaken to determine the building locations, and understand the relationship between existing 6 and proposed site users. E 9 C T WINTER T S 9AM 30% 5 E W 6 WIND 8 6 1 LEGEND: 2 2 existing western district athletics club 1 existing adelaide comets soccer club 2 soccer & athletics sports 3 proposed events space 3 4 1 10 adelaide high school 5 S U M M E R ahs courts 6 3 P M 5 0 % ahs sports shed 7 4 W I N D proposed bureau of meteorology 8 building location proposed ahs tennis courts & futsbal 9 pitches proposed landscape edge 10 sun path prevailing winds car access / circulation pedestrian / bicycle links parkland trails athletics training area view direction existing lighting S I R D O N A L D B R A D M A N D R site links site entry point SITE ANALYSIS PLAN 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

KEY ORIENTATION CONSIDERATIONS N facade protection treatment from the open space training western sun facility landscaped path edge facade protection treatment from the northern / western sun W E storage / services / undercover area with amentities direct access to all clubhouse spaces and pitches, protection from prevailing winds solid to western sun / away from pitches open gathering space undercover area with open space training open gathering space with views to pitches direct access to all facility with views to pitches clubhouse spaces and pitches S NORTH SOUTH CONCEPT DIAGRAM EAST WEST CONCEPT DIAGRAM 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

OPTION 1 - SITE PLAN adelaide high school courts proposed vehicular spine Existing clubrooms/training room to be removed when new clubrooms constructed LP LP potential future LP retain running track loacation carpacking proposed landscape edge retain gravel path new clubroom building footprint x4 existing trees to be removed new soccer pitch LEGEND: LP retain existing trees LP trees to be removed LP LP existing lighting pole 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

OPTION 1 - NORTH SOUTH ORIENTATION DESIGN COMMENTARY • public toilets located towards Adelaide High School for shared usage. • change room facilities have direct access to the outdoor facilities • change room facilities facilitate large team meeting to occur with adjoining wash facilities • change rooms are within close proximity to the western districts athletic club training room • training room provides direct access to the outdoor areas track • training room provides clear views to the athletics track • kitchen, bar and servery are combined and serve indoor and outdoor areas and canteen. • separate kitchen access for deliveries serviced via gravel path • the meeting / education room sits 150 people and is openable to the outdoor areas to increase the area • prominent south east views out from the meeting space to the pitches and parklands CLUBROOM FACILITIES - AREA SUMMARY • views are along the longest side of the pitch looking east, which is preferred viewing for spectators Canteen 50m2 • the central outdoor area is accessed from all areas, Meeting / Education Room 160m2 to create a hub / meeting area Kitchen / Bar 42m2 • internal operable partitions provide multi use spaces Boardroom / Offjce / Storage 53m2 and programming fmexibility Change Room x4 184m2 • large storage area with segregated areas for Toilets 36m2 different stakeholders to access Referee Room 13m2 • the building location does include the removal of Training Room 115m2 some non native trees however the two either side First Aid/ Massage Room 19m2 retained to anchor the building edge Public Toilets 40m2 • the overhanging roof and natural material selection Storage 63m2 are in accordance with the parklands design guidlines Total approximate gross area 775m2 • retractable screens provide security after hours (excluding undercover external area) FLOOR PLAN 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15 1:200

OPTION 1 - ELEVATIONS 4400 AFL 2800 AFL FOOTPRINT TRANSPARENCY 0.0 FFL 0.0 FFL NORTH ELEVATION SOUTH ELEVATION RHYTHM + PATTERN THRESHOLD EAST ELEVATION UNFOLDING THE HORIZON CONCEPT DIAGRAMS WEST ELEVATION 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

OPTION 1 - NORTH EAST PERSPECTIVE INDICATIVE PERSPECTIVE LOOKING SOUTH 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

OPTION 2 - SITE PLAN adelaide high school courts proposed vehicular spine Existing clubrooms/training room to be removed when new clubrooms constructed LP LP new clubroom 8000 building footprint retain running track loacation LP potential future carpacking proposed landscape edge 60000 retain gravel path 100000 new soccer pitch LEGEND: LP retain existing trees LP trees to be removed LP LP existing lighting pole 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

OPTION 2 - EAST - WEST ORIENTATION m/wc DESIGN COMMENTARY • public toilets located towards Adelaide High School for shared usage. • change room facilities have direct access to the outdoor facilities • change room facilities facilitate large team meeting to occur with adjoining wash facilities • change rooms are within close proximity to the western districts athletic club training room • training room provides clear views to the athletics track • kitchen, bar and servery are combined and serve indoor and outdoor areas • separate kitchen access for deliveries serviced via gravel path • the meeting / education room sits 150 people and is FLOOR PLAN openable to the outdoor areas to increase the area 1:200 • prominent south east views out from the meeting space to the pitches and parklands • views are along the shortest side of the pitch looking south, which is not optimal for spectators. CLUBROOM FACILITIES - AREA SUMMARY • the central outdoor area is accessed from all areas, to create a hub / meeting area Canteen 50m2 • internal operable partitions provide multi use spaces Meeting / Education Room 160m2 and programming fmexibility Kitchen / Bar 42m2 • large storage area with segregated areas for Boardroom / Offjce / Storage 53m2 different stakeholders to access Change Room x4 184m2 • the building location is anchored into the existing Toilets 36m2 tree line. Referee Room 13m2 • the overhanging roof and natural material selection Training Room 115m2 are in accordance with the parklands design First Aid/ Massage Room 19m2 guidlines Public Toilets 40m2 • this orientation was the preferred positioning as Storage 63m2 directed by the Adelaide City Council • retractable screens provided security after hours Total approximate gross area 775m2 (excluding undercover external area) 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15

OPTION 2 - ELEVATIONS FOOTPRINT TRANSPARENCY NORTH ELEVATION RHYTHM + PATTERN ARCHORED IN THE TREE LINE SOUTH ELEVATION 4400 AFL UNFOLDING THE HORIZON 2800 AFL 0.0 FFL 0.0 FFL EAST ELEVATION WEST ELEVATION 06414 - Ellis Park New Clubrooms - Concept Design Report - 21/07/15
