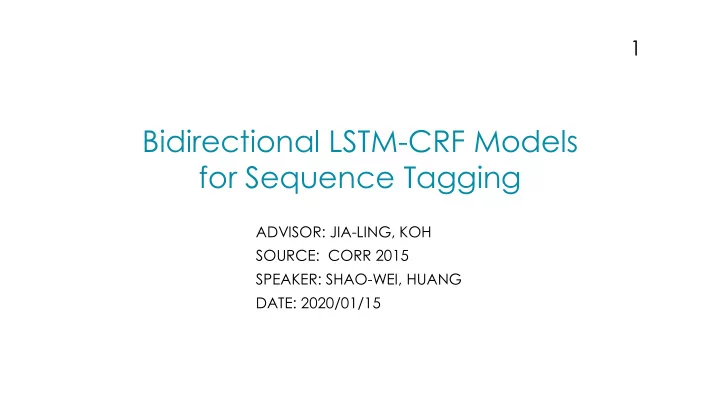

SLIDE 1
Bidirectional LSTM-CRF Models for Sequence Tagging
ADVISOR: JIA-LING, KOH SOURCE: CORR 2015 SPEAKER: SHAO-WEI, HUANG DATE: 2020/01/15
for Sequence Tagging ADVISOR: JIA-LING, KOH SOURCE: CORR 2015 - - PowerPoint PPT Presentation
for Sequence Tagging ADVISOR: JIA-LING, KOH SOURCE: CORR 2015 - - PowerPoint PPT Presentation
1 Bidirectional LSTM-CRF Models for Sequence Tagging ADVISOR: JIA-LING, KOH SOURCE: CORR 2015 SPEAKER: SHAO-WEI, HUANG DATE: 2020/01/15 2 OUTLINE Introduction Method Experiment Conclusion INTRODUCTION 3 Sequence
SLIDE 2
SLIDE 3
INTRODUCTION
➢ Sequence tagging：Tag each character(part)
in the sentence(sequence).
3
- POS tagging
(Ex): She lives in Taiwan. (PRO) (V) (Prep) (N)
- Chunking
(Ex): [Np He] [VP estimates] [Np the current account deficit] [VP will shrink] [PP to] [NP just 1.8 billion].
SLIDE 4
INTRODUCTION
➢ Sequence tagging：Tag each character in the
sentence(sequence).
4
- Name entity recognization：
(Ex): EU rejects German call to boycott British lamb .
(B-ORG) (O) (B-MISC) (O) (O) (O) (B-MISC) (O)
SLIDE 5
OUTLINE
Introduction Method Experiment Conclusion
5
SLIDE 6
6
METHOD
➢Simple RNN：
Simple RNN model
6
x(t) h(t-1) h(t) y(t)
SLIDE 7
Input
METHOD
7
LSTM model
𝑢
前一時間點 的hidden
➢LSTM： ⚫ Fo Forget rget gate gate：根據上 一時間點的輸出與本 時間點的輸入，選擇 需要在細胞中遺忘多 少。 ⚫In Input put ga gate te：根據 上一時間點的輸出 與本時間點的輸入， 選擇需要在細胞中 新記憶多少。
Note:
- σ is the sigmoid function.
- ⊙ =
is the element- wise product.
⚫ Ou Output tput gay gaye：根據 細胞狀態和本時間點 的輸入與上一時間點 的輸出，決定要輸出 的ℎ𝑢。
SLIDE 8
8
METHOD
➢LSTM：
https://www.itread01.com/content/1545027542.html 𝑢
LSTM model
7
SLIDE 9
9
METHOD
➢Bi-LSTM：
Bi-LSTM model
8
SLIDE 10
10
METHOD
➢CRF：Instead of modeling tagging decisions independently, CRF model them jointy.
CRF model
9 ➢ X = (𝑦1, 𝑦2, …, 𝑦𝑜) → an input sentence. y = (𝑧1, 𝑧2, …, 𝑧𝑜) → a sequence of predictions(tags). ➢ Score ：
The score of the 𝑧𝑗𝑢ℎ tag of the 𝑗𝑢ℎ word in a sentence(independently).
0.7 0.1 0.1 0.1 0.1 0.1 0.1 0.7 0.1 0.7 0.1 0.1
P：
W1 W2 W3
tag1 tag2 tag3 tag4
A matrix of transition scores,𝐵𝑧𝑗,𝑧𝑗+1 represents the score of a transition from the tag 𝑧𝑗 to tag 𝑧𝑗+1.
A：
tag1 tag2 tag3 tag4 tag1 tag2 tag3 tag4
0.6 0.2 0.1 0.1 0.1 0.1 0.1 0.7 0.1 0.7 0.1 0.1 0.5 0.1 0.1 0.3
SLIDE 11
11
METHOD CRF model
10 ➢Normalization ： ➢Loss function ： 𝑀𝑜𝑓𝑠 = -log(p(y|X))
Max
SLIDE 12
12
METHOD CRF model、LSTM-CRF model、Bi-LSTM-CRF model
11
SLIDE 13
13
METHOD BERT_Transformers
12 ➢Self Attention ：
Reference：Attention is all you need
https://blog.csdn.net/jiaowoshouzi/article/details/89 073944
SLIDE 14
14
METHOD BERT_Transformers
13 ➢Multi-Head Attention ：
Reference：Attention is all you need
* =
SLIDE 15
15
METHOD BERT model
14 ➢BERT model：
SLIDE 16
16
METHOD BERT-CRF model
15 ➢BERT-CRF model：Connect CRF layer behind BERT's hidden layer.
Reference：Transfer learning for scientific data chain extraction in small chemical corpus with BERT-CRF model
EU rejects German call B-ORG O B-MISC O
SLIDE 17
OUTLINE
Introduction Method Experiment Conclusion
16
SLIDE 18
17
EXPERIMENT
Dataset
➢ Penn TreeBank (PTB) ：POS tagging ➢ CoNLL 2000： chunking ➢ CoNLL 2003 ：named entity tagging
SLIDE 19
18
EXPERIMENT
Features
➢ Spelling features ➢ Context features：uni-gram、bi-gram、tri-gram ➢ Word embedding：Senna word enbedding（each word
corresponds to a 50-dimensional embedding vector.）
SLIDE 20
19
EXPERIMENT
➢ Comparison with other networks：
Accuracy F1 F1
SLIDE 21
20
EXPERIMENT
➢ Performance with only word feature：
Accuracy F1 F1
SLIDE 22
OUTLINE
Introduction Method Experiment Conclusion
21
SLIDE 23
22
CONCLUSION
➢ Systematically compare the performance of aforementioned
models.
➢ The first to apply a bidirectional LSTM CRF model to NLP
benchmark sequence tagging data sets.
➢ Show that BI-LSTMCRF model is robust and it has less
dependence on word embeddin.
➢ BERT+CRF model(proposed in another paper).
