Electric Current & DC Circuits www.njctl.org http://njc.tl/iq - - PowerPoint PPT Presentation

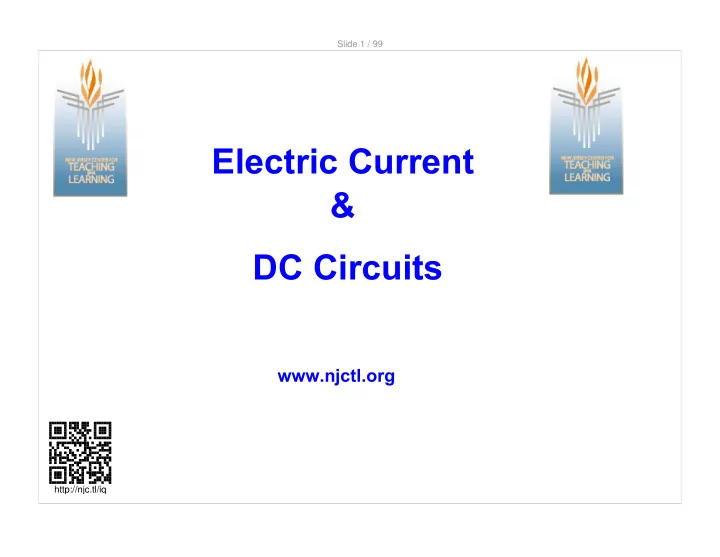

Slide 1 / 99

www.njctl.org

Electric Current & DC Circuits

http://njc.tl/iq

Slide 2 / 99

This material is made freely available at www.njctl.org and is intended for the non-commercial use of students and teachers. These materials may not be used for any commercial purpose without the written permission of the owners. NJCTL maintains its website for the convenience of teachers who wish to make their work available to other teachers, participate in a virtual professional learning community, and/or provide access to course materials to parents, students and others.

Click to go to website: www.njctl.org New Jersey Center for Teaching and Learning Progressive Science Initiative

Slide 3 / 99

How to Use this File

· Each topic is composed of brief direct instruction · There are formative assessment questions after every topic denoted by black text and a number in the upper left. > Students work in groups to solve these problems but use student responders to enter their own answers. > Designed for SMART Response PE student response systems. > Use only as many questions as necessary for a sufficient number of students to learn a topic. · Full information on how to teach with NJCTL courses can be found at njctl.org/courses/teaching methods

Slide 4 / 99

Click on the topic to go to that section

· Circuits · Conductors · Resistivity and Resistance · Circuit Diagrams

Electric Current & DC Circuits

· Measurement

http://njc.tl/n3

· EMF & Terminal Voltage · Kirchhoff's Rules

Slide 5 / 99

Return to Table of Contents

Circuits

http://njc.tl/n3

Slide 6 / 99

Electric Current

Electric Current is the rate of flow of electric charges (charge carriers) through space. More specifically, it is defined as the amount of charge that flows past a location in a material per unit

• time. The letter "I" is the symbol for current.

ΔQ is the amount of charge, and Δt is the time it flowed past the location. The current depends on the type of material and the Electric Potential difference (voltage) across it. ΔQ Δt I =

Slide 7 / 99

Electric Current

A good analogy to help understand Electric Current is to consider water flow. The flow of water molecules is similar to the flow of electrons (the charge carriers) in a wire. Water flow depends on the pressure exerted on the molecules either by a pump or by a height difference, such as water falling

• ff a cliff.

Electric current depends on the "pressure" exerted by the Electric Potential difference - the greater the Electric Potential difference, the greater the Electric Current.

Slide 8 / 99

The current, has the units Coulombs per second. The units can be rewritten as Amperes (A). 1 A = 1 C/s Amperes are often called "amps". ΔQ Δt I =

Electric Current

http://njc.tl/n3

Slide 9 / 99

Electric Current

We know that if an Electric Potential difference is applied to a wire, charges will flow from high to low potential - a current. However, due to a convention set by Benjamin Franklin, current in a wire is defined as the movement of positive charges (not the electrons which are really moving) and is called "conventional current." Ben didn't do this to confuse future generations of electrical engineers and students. It was already known that electrical phenomena came in two flavors - attractive and repulsive - Ben was the person who explained them as distinct positive and negative charges.

Slide 10 / 99

Electric Current

He arbitrarily assigned a positive charge to a glass rod that had been rubbed with silk. He could just as easily called it negative - 50/50 chance. The glass rod was later found to have a shortage of electrons (they were transferred to the silk). So if the glass rod is grounded, the electrons will flow from the ground to the rod. The problem comes in how Electric Potential is defined - charge carriers will be driven from high to low potential - from positive to

• negative. For this to occur in the glass rod - ground system, the

conventional current will flow from the rod to the ground - opposite the direction of the movement of electrons.

Slide 11 / 99

Electric Current

To summarize - conventional Electric Current is defined as the movement of positive charge. In wires, it is opposite to the direction of the electron movement. However - in the case of a particle accelerator, where electrons are stripped off of an atom, resulting in a positively charged ion, which is then accelerated to strike a target - the direction of the conventional current is the same as the direction of the positive ions!

Slide 12 / 99

Circuits

An electric circuit is an external path that charges can follow between two terminals using a conducting material. For charge to flow, the path must be complete and unbroken. An example of a conductor used to form a circuit is copper wire. Continuing the water analogy, one can think of a wire as a pipe for charge to move through.

http://njc.tl/n3

Slide 13 / 99

1 12 C of charge passes a location in a circuit in 10

• seconds. What is the current flowing past the point?

http://njc.tl/n4

Slide 14 / 99

2 A circuit has 3 A of current. How long does it take 45 C

• f charge to travel through the circuit?

http://njc.tl/n6

Slide 15 / 99

3 A circuit has 2.5 A of

• current. How much charge travels

through the circuit after 4s?

http://njc.tl/n8

Slide 16 / 99

Batteries

Positive Terminal Negative Terminal Each battery has two terminals which are conductors. The terminals are used to connect an external circuit allowing the movement of charge. Batteries convert chemical energy to electrical energy which maintains the potential difference. The chemical reaction acts like an escalator, carrying charge up to a higher voltage.

Click here for a Battery Voltage Simulation from PhET

http://njc.tl/n9

Slide 17 / 99

Reviewing Basic Circuits

The circuit cannot have gaps. The bulb had to be between the wire and the terminal. A voltage difference is needed to make the bulb light. The bulb still lights regardless of which side of the battery you place it on.

As you watch the video,observations and the answers to the questions below. What is going on in the circuit? What is the role of the battery? How are the circuits similar? different?

Click here for video using the circuit simulator from PhET

http://njc.tl/n9

Slide 18 / 99

The battery pushes current through the circuit. A battery acts like a pump, pushing charge through the circuit. It is the circuit's energy source. Charges do not experience an electrical force unless there is a difference in electrical potential (voltage). Therefore, batteries have a potential difference between their terminals. The positive terminal is at a higher voltage than the negative terminal.

Batteries and Current

How will voltage affect current?

click here for a video from Veritasium's Derek on current

http://njc.tl/n9

Slide 19 / 99

Return to Table of Contents

Conductors

http://njc.tl/na

Slide 20 / 99

Conductors

Some conductors "conduct" better or worse than others. Reminder: conducting means a material allows for the free flow of electrons. The flow of electrons is just another name for current. Another way to look at it is that some conductors resist current to a greater or lesser extent. We call this resistance, R. Resistance is measured in ohms which is noted by the Greek symbol omega (Ω)

Click here to run another PhET simulation

How will resistance affect current?

http://njc.tl/na

Slide 21 / 99

Current vs Resistance & Voltage

Raising resistance reduces current. Raising voltage increases current. We can combine these relationships in what we call "Ohm's Law". Another way to write this is that: OR V = IR

V R I =

V I R = You can see that one # = V A

click here for a Veritasium music video on electricity

http://njc.tl/na

Slide 22 / 99

4 A flashlight has a resistance of 25 # and is connected by a wire to a 120 V source of voltage. What is the current in the flashlight?

http://njc.tl/nb

Slide 23 / 99

5 How much voltage is needed in order to produce a 0.70 A current through a 490 # resistor?

http://njc.tl/ne

Slide 24 / 99

6 What is the resistance of a rheostat coil, if 0.05 A of current flows through it when 6 V is applied across it?

http://njc.tl/ng

Slide 25 / 99

Electrical Power

Power is defined as work per unit time if W = QV then substitute: if then substitute: P = W t P = QV t I = Q t P = IV What happens if the current is increased? What happens if the voltage is decreased?

http://njc.tl/ni

Slide 26 / 99

Electrical Power

Let's think about this another way... The water at the top has GPE & KE. As the water falls, it loses GPE and the wheel gets turned, doing work.When the water falls to the bottom it is now slower, having done work.

http://njc.tl/ni

Slide 27 / 99

Electrical Power

Electric circuits are similar. A charge falls from high voltage to low voltage. In the process of falling energy may be used (light bulb, run a motor, etc). What is the unit of Power?

http://njc.tl/ni

Slide 28 / 99

Electrical Power

How can we re-write electrical power by using Ohm's Law? P = IV

(electrical power)

I = V R (Ohm's Law) P = VV R P = V2 R

http://njc.tl/ni

Slide 29 / 99

Is there yet another way to rewrite this? P = IV

(electrical power)

V = I R (Ohm's Law) P = I(IR) P = I2R We can substitute this into Power I = V can be rewritten as V = IR. R

Electrical Power

http://njc.tl/ni

Slide 30 / 99

D C AAA AA 9 V 1.5 V D, C, AA, & AAA have the same voltage, however they differ in the amount of power they deliver. For instance, D batteries can deliver more current and therefore more power.

Batteries

http://njc.tl/ni

Slide 31 / 99

7 A toy car's electric motor has a resistance of 17 # ; find the power delivered to it by a 6-V battery.

http://njc.tl/nj

Slide 32 / 99

8 What is the power consumption of a flash light bulb that draws a current of 0.28 A when connected to a 6 V battery?

http://njc.tl/nl

Slide 33 / 99

9 A 30Ω toaster consumes 560 W of power: how much current is flowing through the toaster?

http://njc.tl/nn

Slide 34 / 99

10 When 30 V is applied across a resistor it generates 600 W of heat: what is the magnitude of its resistance?

http://njc.tl/np

Slide 35 / 99

Return to Table of Contents

Resistivity and Resistance

http://njc.tl/nr

Slide 36 / 99

"Pipe" size

How could the wire in the circuit affect the current? If wire is like a pipe, and current is like water that flows through the pipe... if there were pipes with water in them, what could we do to the pipes to change the speed of the water (the current)?

http://njc.tl/nr

Slide 37 / 99

Resistivity & Resisitance

Every conductor "conducts" electric charge to a greater or lesser extent. The last example also applies to conductors like copper wire. Decreasing the length (L) or increasing the cross-sectional area (A) would increase conductivity. Also, the measure of a conductor's resistance to conduct is called its resistivity. Each material has a different resistivity. Resistivity is abbreviated using the Greek letter rho ( #). Combining what we know about A, L, and ρ, we can find a conductor's total resistance. R = #L A

http://njc.tl/nr

Slide 38 / 99

Resistivity & Resisitance

Resistance, R, is measured in Ohms (Ω). Ω is the Greek letter Omega. Cross-sectional area, A, is measured in m2 Length, L, is measured in m Resistivity, ρ, is measured in Ωm R = #L A How can we define A for a wire?

http://njc.tl/nr

Slide 39 / 99

Resisitance

What is the resistance of a good conductor? Low; low resistance means that electric charges are free to move in a conductor. # = RA

L

Click here for a PhET simulation about Resistance

http://njc.tl/nr

Slide 40 / 99

Resistivities of Common Conductors Resistivity (10-8 Ωm) Material

Silver Copper Gold Aluminum Tungsten Iron Platinum Mercury Nichrome 1.59 1.68 2.44 2.65 5.60 9.71 10.6 98 100

Slide 41 / 99

11 Rank the following materials in order of best conductor to worst conductor.

A Iron, Copper, Platinum B Platinum, Iron, Copper C Copper, Iron, Platinum

Resistivity (10-8 Ωm) Material

Silver Copper Gold Aluminum Tungsten Iron Platinum Mercury Nichrome 1.59 1.68 2.44 2.65 5.60 9.71 10.6 98 100 http://njc.tl/nr

Slide 42 / 99

12 What is the resistance of a 2 m long copper wire whose cross-sectional area of 0.2 mm2?

http://njc.tl/ns

Slide 43 / 99

13 An aluminum wire with a length of 900 m and cross- sectional area of 10 mm 2 has a resistance of 2.5 # . What is the resistivity of the wire?

http://njc.tl/nt

Slide 44 / 99

14 What diameter of 100 m long copper wire would have a resistance of 0.10 # ?

http://njc.tl/nu

Slide 45 / 99

15 What is the length of a 10 Ω copper wire whose diameter is 3.2 mm?

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 46 / 99

16 The length of a copper wire is cut to half. By what factor does the resistance change?

pI4oFdjExZE+++TI/-Tmp-/njctl_a

A 1/4 B 1/2 C 2 D 4

Slide 47 / 99

17 The radius of a copper wire is doubled. By what factor does the resistivity change?

pI4oFdjExZE+++TI/-Tmp-/njctl_a

A 1/4 B 1/2 C 1 D 2

Slide 48 / 99

Return to Table of Contents

Circuit Diagrams

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 49 / 99

Circuit Diagrams

Drawing realistic pictures of circuits can be very difficult. For this reason, we have common symbols to represent each piece. Resistor Battery Wire *Note: Circuit diagrams do not show where each part is physically located.

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 50 / 99

Circuit Diagrams

Draw a simple circuit that has a 9 V battery with a 3 Ω resistor across its terminals. What is the magnitude and direction of the current? Conventional current flows from the positive terminal to the negative terminal.

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 51 / 99

There are two ways to add a second resistor to the circuit.

R1 R2

V

R1 R2 V

Series Parallel All charges must move through both resistors to get to the negative terminal. Charges pass through either R1 or R2 but not both.

Circuit Diagrams

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 52 / 99

Are the following sets of resistors in series or parallel? R1 R2 V R1 R2 V

Circuit Diagrams

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 53 / 99

Equivalent Resistance

Resistors and voltage from batteries determine the current. Circuits can be redrawn as if there were only a single resistor and battery. By reducing the circuit this way, the circuit becomes easier to study. The process of reducing the resistors in a circuit is called finding the equivalent resistance (R

eq).

R1 R2 V

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 54 / 99

Series Circuits: Equivalent Resistance

What happens to the current in the circuit to the right?

R1 R2 V

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 55 / 99

Series Circuits: Equivalent Resistance

What happens to the voltage as it moves around the circuit?

R1 R2 V

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 56 / 99

If V = V1 + V2 + V3 + ... IR = I1R1 + I2R2 + I3R3 IR = IR1 + IR2 + IR3 Req = R1 + R2 + R3 + ...

To find the equivalent resistance (R

eq) of a series circuit,

add the resistance of all the resistors.If you add more resistors to a series circuit, what happens to the resistance?

Series Circuits: Equivalent Resistance

substitute Ohm's Law solved for V is: V = IR but since current (I) is the same everywhere in a series circuit, I = I1 = I2 = I3

Now divide by I

pI4oFdjExZE+++TI/-Tmp-/njctl_a

Slide 57 / 99

18 What is the equivalent resistance in this circuit?

R1 = 5# R2 = 3# V = 9 V

http://njc.tl/nw

Slide 58 / 99

19 What is the total current at any spot in the circuit?

R1 = 5# R2 = 3# V = 9 V

http://njc.tl/nx

Slide 59 / 99

20 What is the voltage drop across R1?

R1 = 5# R2 = 3# V = 9 V

http://njc.tl/ny

Slide 60 / 99

hint: A good way to check your work is to see if the voltage drop across all resistors equals the total voltage in the circuit.

21 What is the voltage drop across R2?

R1 = 5# R2 = 3# V = 9 V

http://njc.tl/nz

Slide 61 / 99

22 How much power is used by R1?

R1 = 5# R2 = 3# V = 9 V

http://njc.tl/o0

Slide 62 / 99

Parallel Circuits: Equivalent Resistance

What happens to the current in the circuit to the right?

R1 R2

V

http://njc.tl/o5

Slide 63 / 99

Parallel Circuits: Equivalent Resistance

What happens to the voltage as it moves around the circuit?

R1 R2

V

http://njc.tl/o5

Slide 64 / 99

If I = I

1 + I2 + I3

V1 R1 V R V3 R3 V2 R2 + + = V R1 V R V R3 V R2 + + = 1 R1 V R 1 R3 1 R2 + + = V(

(

1 R1 1 Req 1 R3 1 R2 + + =

If you add more resistors in parallel, what will happen to the resistance of the circuit?

Rewrite Ohm's Law for I and substitute for each resistor

Also, since V = V1 = V2 = V3 so we can substitute V for any other voltage Voltage is a common factor, so factor it

• ut!

Divide by V to eliminate voltage from the equation.

Parallel Circuits: Equivalent Resistance

http://njc.tl/o5

Slide 65 / 99

23 What is the equivalent resistance in the circuit?

R1 = 3# R2 = 6# V = 18V

http://njc.tl/o6

Slide 66 / 99

24 What is the voltage at any spot in the circuit?

R1 = 3# R2 = 6# V = 18V

http://njc.tl/o7

Slide 67 / 99

25 What is the current through R1?

R1 = 3# R2 = 6# V = 18V

http://njc.tl/o8

Slide 68 / 99

26 What is the current through R2?

R1 = 3# R2 = 6# V = 18V

http://njc.tl/o9

Slide 69 / 99

27 What is the power used by R1?

R1 = 3# R2 = 6# V = 18V

http://njc.tl/oa

Slide 70 / 99

28 What is the power used by R2?

R1 = 3# R2 = 6# V = 18V

http://njc.tl/ob

Slide 71 / 99

29 What is the total current in this circuit ?

R1 = 3# R2 = 6# V = 18V R3 = 4#

http://njc.tl/ob

Slide 72 / 99

30 What is the voltage drop across the third resistor ?

R1 = 3# R2 = 6# V = 18V R3 = 4#

http://njc.tl/ob

Slide 73 / 99

31 What is the current though the first resistor ?

R1 = 3# R2 = 6# V = 18V R3 = 4#

http://njc.tl/ob

Slide 74 / 99

Return to Table of Contents

Measurement

http://njc.tl/oh

Slide 75 / 99

Voltmeter

Voltage is measured with a voltmeter. Voltmeters are connected in parallel and measure the difference in potential between two points.

Since circuits in parallel have the same voltage, and a voltmeter has very high resistance, very little current passes through it. This means that it has little effect on the circuit.

http://njc.tl/oh

Slide 76 / 99

Ammeter

Current is measured using an ammeter. Ammeters are placed in series with a circuit. In order to not interfere with the current, the ammeter has a very low resistance.

http://njc.tl/oh

Slide 77 / 99

Multimeter

Although there are separate items to measure current and voltage, there are devices that can measure both (one at a time). These devices are called multimeters.Multimeters can also measure resistance.

Click here for a PhET simulation on circuits

http://njc.tl/oh

Slide 78 / 99 L

32 A group of students prepare an experiment with electric

• circuits. Which of the following diagrams can be used to

measure both current and voltage?

A B C D E

http://njc.tl/oi

Slide 79 / 99

Return to Table of Contents

EMF & Terminal Voltage

http://njc.tl/oh

Slide 80 / 99

Electromotive Force

Req E

r

_ +

A battery is a source of voltage AND a resistor. Each battery has a source of electromotive force and internal resistance. Electromotive force (EMF) is the process that carries charge from low to high voltage. Another way to think about it is that EMF is the voltage you measure when no resistance is connected to the circuit.

http://njc.tl/oj

Slide 81 / 99

Req E

r

_ +

Terminal voltage (VT) is the voltage measured when a voltmeter is across its terminals. If there is no circuit attached, no current flows, and the measurement will equal the EMF.

Electromotive Force

If however a circuit is attached, the internal resistance will result in a voltage drop, and a smaller terminal voltage. (E - Ir)

http://njc.tl/oj

Slide 82 / 99

Req E

r

_ +

We say that the terminal voltage is: VT = E - Ir Maximum current will occur when there is zero external current. When solving for equivalent resistance in a circuit, the internal resistance of the battery is considered a series resistor. REQ = Rint + Rext

Terminal Voltage

http://njc.tl/oj

Slide 83 / 99

33 When the switch in the circuit below is open, the voltmeter reading is referred to as:

A EMF B Current C Power D Terminal Voltage E Restivity

http://njc.tl/ok

Slide 84 / 99

34 When the switch in the circuit below is closed, the voltmeter reading is referred to as:

A Terminal Voltage B EMF C Current D Resistance E Power

http://njc.tl/ol

Slide 85 / 99

35 A 6V battery, whose internal resistance 1.5 Ω is connected in series to a light bulb with a resistance

• f 6.8 Ω. What is the current in the circuit?

http://njc.tl/om

Slide 86 / 99

36 A 6V battery, whose internal resistance 1.5Ω is connected in series to a light bulb with a resistance

• f 6.8Ω. What is the terminal voltage of the battery?

http://njc.tl/on

Slide 87 / 99

37 A 25 Ω resistor is connected across the terminals

• f a battery whose internal resistance is 0.6 Ω.

What is the EMF of the battery if the current in the circuit is 0.75 A?

http://njc.tl/oo

Slide 88 / 99

Return to Table of Contents

Kirchhoff's Rules

http://njc.tl/oh

Slide 89 / 99

Up until this point we have been analyzing simple circuits by combining resistors in series and parallel and using Ohm's law. This works for simple circuits but in order analyze more complex circuits we need to use Kirchhoff's Rules which are based on the laws of conservation of charge and energy.

Kirchhoff's Rules

Slide 90 / 99

Kirchhoff's First rule, or junction rule is based on the law of conservation of charge. It states: At any junction point, the sum of all currents entering the junction point must equal the sum of all the currents exiting the junction. For example, I1 + I2 = I3

Kirchhoff's Rules

I1 I2 I3

Slide 91 / 99

Kirchhoff's Second rule , or loop rule is based on the law of conservation of energy. It states: The sum of all changes in potential around any closed path must equal zero. For example, The sum of the voltage drops is equal to the voltage across the battery. V - V1 - V2 =0 OR V = V 1 + V2

Kirchhoff's Rules

V V1 V2

Slide 92 / 99

• 1. Label + and - for each battery.
• 2. Label the current in each branch with a symbol and an
• arrow. (Don't worry about the direction of the arrow. It it's

incorrect the solution will be negative.)

• 3. Apply the junction rule to each junction. You need as many

equations as there are unknowns. (You can also use Ohm's Law to reduce the number of unknowns.)

• 4. Apply the loop rule for each loop. (Pay attention to signs.

For a resistor, the potential difference is negative. For a battery the potential difference is positive.)

• 5. Solve the equations algebraically.

Problem Solving with Kirchhoff's Rules

Slide 93 / 99

Find the unknowns in the following circuit:

Problem Solving with Kirchhoff's Rules

R1 = 5# R2 = 3#

V = 12 V

R3 = ? R4 = 2# V3 = 1.87 V I2 = 2.6 A

Slide 94 / 99

Problem Solving with Kirchhoff's Rules

R1 = 5# R2 = 3#

V = 12 V

R3 = ? R4 = 2# I2 = 2.6 A V3 = 1.87 V

+

_

First, label + and - for each battery.

Slide 95 / 99

Next, label the current in each branch with a symbol and an arrow.

Problem Solving with Kirchhoff's Rules

R1 = 5# R2 = 3#

V = 12 V

R3 = ? R4 = 2# I2 = 2.6 A V3 = 1.87 V

+

_

I3

I4

I I1

Slide 96 / 99

Next, apply the junction rule to each junction.

Problem Solving with Kirchhoff's Rules

R1 = 5# R2 = 3#

V = 12 V

R3 = ? R4 = 2# I2 = 2.6 A V3 = 1.87 V

+

_

I3

I4

I I1

Slide 97 / 99

Next, apply the loop rule to each loop.

Problem Solving with Kirchhoff's Rules

R1 = 5# R2 = 3#

V = 12 V

R3 = ? R4 = 2# I2 = 2.6 A V3 = 1.87 V

+

_

I3

I4 I1

I

I = I3 + I4 I = I2 I1 = I3

Slide 98 / 99

Problem Solving with Kirchhoff's Rules

V = V3 + V1 + V2 V = V4 + V2 V1 + V3 = V4 I = I3 + I4 I = I2 I1 = I3

Current (Amps) Voltage (Volts) Resistance (Ohms) R1 5 R2 2.6 3 R3 1.87 R4 2 Total 12

List the givens and use ohm's law to solve for the unknowns.

Answer

Slide 99 / 99

Find the unknowns in the following circuit:

Problem Solving with Kirchhoff's Rules

V = 120 V R1 = 10 # I1 = 7 A V1 = 70 V R3 = 2 # I3 = 10 A V3 = 20 V R4 = 3 # I4 = 10 A V4 = 30 V R2 = 23 # I2 = 3 A V2 = 70 V

? ? ? ? ? ? ?
