Edge-Adaptive Image Interpolation with Contour Stencils Pascal - PowerPoint PPT Presentation

Edge-Adaptive Image Interpolation with Contour Stencils Pascal Getreuer Dec 27, 2010 TV along Curves Let u be an image. For C a smooth simple curve, define T dt , u TV ( C ) = ( t ) : [0 , T ]

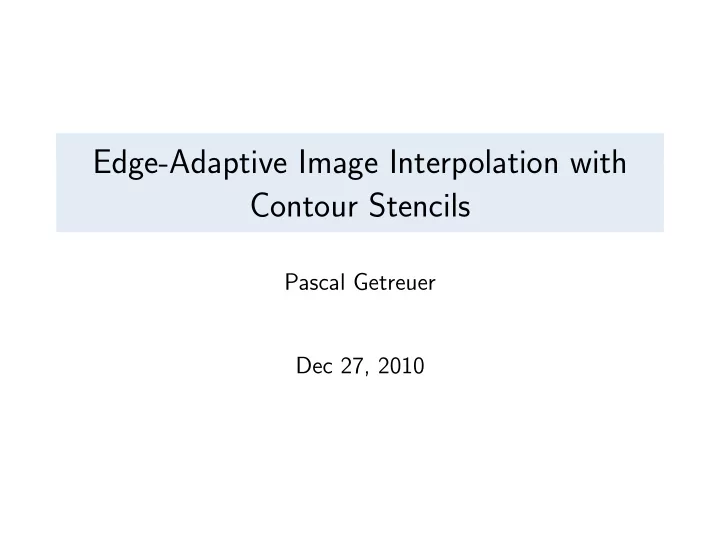

  1. Edge-Adaptive Image Interpolation with Contour Stencils Pascal Getreuer Dec 27, 2010

  2. TV along Curves Let u be an image. For C a smooth simple curve, define � T � dt , � � ∂ � �� � u � TV ( C ) = γ ( t ) γ : [0 , T ] → C . ∂ t u 0 Strategy: Find approximate con- γ ′ ( t ) tours of u by finding curves C such that � u � TV ( C ) is small. C

  3. Contour Stencils A contour stencil is a function S : Z 2 × Z 2 → R describing edges between pixels, and TV is estimated as � ( S ⋆ [ u ])( k ) := S ( m , n ) | u k + m − u k + n | ≈ � u � TV ( C ) m , n ∈ Z 2 where S describes edges that approximate C . + n 1 + n 2 � ( S ⋆ [ u ])( i , j ) = | u i , j − 1 − u i +1 , j | (0 , 0) + | u i − 1 , j − 1 − u i , j | + | u i , j − u i +1 , j +1 | � + | u i − 1 , j − u i , j +1 | .

  4. Contour Stencils Estimate the contours locally by finding a stencil with low TV, S ⋆ ( k ) = arg min S∈ Σ ( S ⋆ [ u ])( k ) where Σ is a set of candidate stencils. � Σ = �

  5. Contour Stencils Input Contour Stencils Sobel For each pixel, S ⋆ ( k ) is determined to estimate the local contour orientation.

  6. Why TV? Total variation is invariant under diffeomorphisms on space. Consider the change of variables � � u ( t ) ϕ ( s ) u t = ϕ ( s ) dt = ϕ ′ ( s ) ds and suppose that ϕ ′ ( s ) > 0, then � T � ϕ − 1 ( T ) | u ′ ( t ) | dt = � u ′ � � ϕ ′ ( s ) ds � �� ϕ ( s ) ϕ − 1 (0) 0 � ϕ − 1 ( T ) � ds . � � ∂ �� � = ∂ s u ϕ ( s ) ϕ − 1 (0)

  7. Interpolation Problem Given discrete image v and point spread function h ( x , y ), find function u ( x , y ) such that v i , j = ( h ∗ u )( i , j ) for all i , j . Input v Interpolation u

  8. Edge Directed Interpolation Theorem (Edge Directed Interpolation) Consider approximating u ( x ) by b a x u ( x ) = (1 − λ ) u ( a ) + λ u ( b ) ˆ C 2 C 1 and let C = C 1 ∪ C 2 be a curve passing through a, x, and b. Then the approximation error is bounded by � � | ˆ u ( x ) − u ( x ) | ≤ max | 1 − λ | , | λ | � u � TV ( C ) . Choosing the stencil with the smallest TV minimizes the estimated interpolation error: |S ⋆ | ( S ⋆ ⋆ [ u ])( k ) = min 1 1 | ˆ u ( x ) − u ( x ) | ≤ � u � TV ( C ) ≈ S ( S ⋆ [ u ])( k ) . S∈ Σ

  9. Contour Stencil Windowed Zooming Local reconstructions: if S = � c n ϕ n θ u k ( x ) = v k + S ⋆ ( k ) ( x − n ) , n ∈N k where k + N : k th pixel of input image v k N : neighborhood if S = ϕ n S ⋆ ( k ) : function oriented with the best-fitting stencil S ⋆ ( k ) k : coefficients such that c n ( h ∗ u k )( m ) = v k + m for m ∈ N k + N

  10. Contour Stencil Windowed Zooming Combine local reconstructions with overlapping windows � u ( x ) = w ( x − k ) u k ( x − k ) , k ∈ Z 2 where w satisfies � k w ( x − k ) ≡ 1 s.t. method reproduces constants w ( k ) = 0 for k �∈ N s.t. ↓ ( h ∗ u ) ≈ v w compact support for computational efficiency Example: Cubic B-spline w ( x ) = B ( x 1 ) B ( x 2 ) 6 | t | 3 − 1 � 3 � + � 1 − | t | + 1 � � � 1 − | t | B ( t ) = 3

  11. Original Image (332 × 300) Input Image (83 × 75) Estimated Orientations Proposed Interpolation (PSNR 25.97, 0.125 s)

  12. Cubic B-spline (PSNR 25.92, 0.011 s) Fourier (PSNR 25.34, 0.062 s) TV Minimization (PSNR 25.73, 0.784 s) Proposed Interpolation (PSNR 25.97, 0.125 s)

  13. AQua-2 (PSNR 24.72, 0.016 s) Fractal Zooming (PSNR 24.65) Roussos (PSNR 25.87, 2.518 s) Proposed Interpolation (PSNR 25.97, 0.125 s)

  14. Zooming Comparison Average PSNR on the Kodak Image Suite Zoom Factor 2 × 3 × 4 × AQua-2 25.06 22.48 21.35 Fractal Zooming 29.00 27.20 25.25 Contour Stencils 29.87 27.77 25.93 Roussos 30.56 27.97 26.19 Computation Time (s) vs. Output Image Size Image Size 128 × 128 256 × 256 512 × 512 AQua-2 0.0048 0.017 0.068 Contour Stencils 0.025 0.088 0.34 Roussos 0.23 2.22 8.64

  15. Analysis of Contour Stencils ˜ C C ˜ C ≈ C = ⇒ � u � TV (˜ C ) ≈ � u � TV ( C ) Curve Perturbation Let C and ˜ C be smooth curves parameterized by γ : [0 , T ] → ˜ γ : [0 , T ] → C and ˜ C . Then if u is twice continuously differentiable, � � � � u � TV (˜ C ) − � u � TV ( C ) � γ ′ − γ ′ | � � � � ≤ � |∇ u | � | ˜ � � ∞ 1 � | ˜ γ ′ − γ ′ | C | + | C | + �∇ 2 u � ∞ + 1 � � �� � � | ˜ � | ˜ γ − γ | ∞ . � � 2 4 1

  16. Analysis of Contour Stencils u ∈ C 2 ⇒ = discrete TV is first-order accurate TV Discretization Suppose u ∈ C 2 [0 , T ] and 0 = t 0 < t 1 < · · · < t N = T , and define h i = t i − t i − 1 . Then N 3 T h 2 h avg � u ′′ � ∞ ≤ � � u � TV − 1 | u ( t i ) − u ( t i − 1 ) | ≤ � u � TV . max i =1

  17. Analysis of Contour Stencils Let S ⋆ 2 ( k ) denote the second best-fitting stencil and define the separation sep v ( k ) between the first and second best, S ⋆ 2 ( k ) := arg min ( S ⋆ [ v ])( k ) , S∈ Σ \S ⋆ ( k ) S ⋆ 2 ( k ) ⋆ [ v ] S ⋆ ( k ) ⋆ [ v ] � � � � sep v ( k ) := ( k ) − ( k ) . Stability of the Best-Fitting Stencil Suppose that for two images v and ˜ v sep v ( k ) > 2 M � v − ˜ v � 2 , � 2 � 1 / 2 �� �� � � � S ( m , n ) + S ( n , m ) M = max . � S∈ Σ m ∈ Z n ∈ Z Then they have the same best-fitting stencil at k .

  18. Contour Stencil Design Let { f 1 , . . . , f J } , f j : Z 2 → R , be a set of image features. f j ( x ) = x 1 sin π 8 j − x 2 cos π Example: 8 j , j = 0 , . . . , 7 We want to design stencils S 1 , . . . , S J that distinguish between these features.

  19. Contour Stencil Design We want stencil S j to be the best-fitting stencil on f j , |S j | ( S j ⋆ [ f j ])(0) < |S i | ( S i ⋆ [ f j ])(0) 1 1 for all i � = j . Want: 1 Ignoring the |S| normalizations, this condition becomes ( S j ⋆ [ f j ])(0) < ( S i ⋆ [ f j ])(0) ( S j − S i ) ⋆ [ f j ] � � = ⇒ (0) < 0 . We can try to satisfy this condition by minimizing J J J ( S j − S i ) ⋆ [ f j ] � � � �S j � 1 � � min (0) + γ S 1 ,..., S J i =1 j =1 j =1 s.t. 0 ≤ S j ( m , n ) ≤ 1

  20. Contour Stencil Design J J J ( S j − S i ) ⋆ [ f j ] � � � � � �S j � 1 min (0) + γ S 1 ,..., S J i =1 j =1 j =1 s.t. 0 ≤ S j ( m , n ) ≤ 1 The minimization has closed-form solution � � J n | − γ if | f j m − f j n | < 1 i =1 | f i m − f i 1 J , S j ( m , n ) = J � J n | > 1 n | − γ if | f j m − f j i =1 | f i m − f i 0 J . J

  21. Corner-Shaped Stencils Example: Corner-shaped stencils designed from the features f j ( x ) = max { x 1 cos π 4 j − x 2 sin π 4 j , x 1 sin π 4 j + x 2 cos π 4 j } .

  22. 3D Stencils In d dimensions, a stencil S : Z d × Z d → R is applied at voxel k ∈ Z d as � ( S ⋆ [ u ])( k ) := S ( m , n ) | u k + m − u k + n | . m , n ∈ Z d Small TV detects isosurfaces . Some 3D stencils:

  23. 3D Stencils i 2 + j 2 + k 2 � Example: Stencils applied to u i , j , k = The results are visualized by assigning a color to the region of space having a particular best-fitting stencil.

  24. 3D Stencils Example: Stencils applied to an MRI brain volume

  25. Demosaicing Original Mosaiced Demosaiced Bayer Grid

  26. Demosaicing Stencils Centered on a green pixel: Axially-oriented Diagonally-oriented π 8 -oriented Centered on a red or blue pixel: Axially-oriented Diagonally-oriented π 8 -oriented

  27. Demosaicing Stencils Stencil orientation estimation on mosaiced data:

  28. Demosaicing Stencils Stencil orientation estimation on mosaiced data:

  29. Preliminary Demosaicing Method Let f be the given mosaiced image. We consider demosaicing by the minimization of � � � � u ( k ) m − u ( k ) � � arg min w m , n � n u n ∈ Ω k ∈{ Y , C b , C r } m ∈N ( n ) + λ � � ( f n − u ( k ) n ) 2 2 k ∈{ R , G , B } n ∈ Ω ( k ) where w m , n : weights choosen according the best-fitting stencils N ( n ) : neighbors of pixel n λ : fidelity parameter Ω ( k ) : subset of Ω where k th channel is given

  30. Exact Exact Exact Demosaiced Demosaiced Demosaiced

  31. Zhang-Wu Exact Malvar et al. Gunturk et al. Proposed Bilinear Hamilton-Adams Li

  32. Zhang-Wu Exact Malvar et al. Gunturk et al. Proposed Bilinear Hamilton-Adams Li

  33. Zhang-Wu Exact Malvar et al. Gunturk et al. Proposed Bilinear Hamilton-Adams Li

  34. Thanks! Webpage http://www.math.ucla.edu/ ∼ getreuer/contours Contact getreuer@gmail.com
