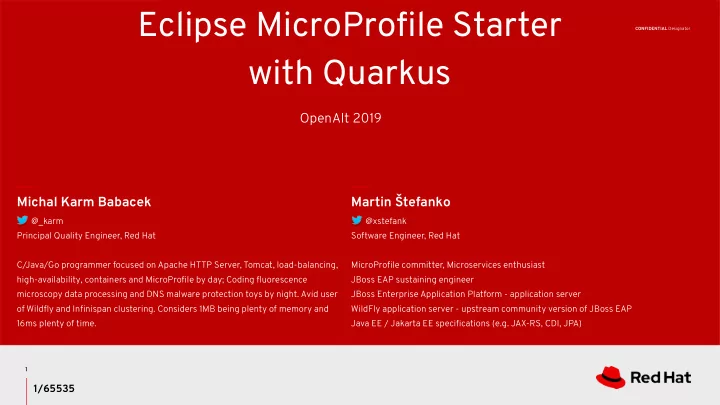

Eclipse MicroProfile Starter CONFIDENTIAL Designator with Quarkus - - PowerPoint PPT Presentation

OpenAlt 2019

Eclipse MicroProfile Starter with Quarkus

Martin Štefanko

@xstefank Software Engineer, Red Hat MicroProfile committer, Microservices enthusiast JBoss EAP sustaining engineer JBoss Enterprise Application Platform - application server WildFly application server - upstream community version of JBoss EAP Java EE / Jakarta EE specifications (e.g. JAX-RS, CDI, JPA)

Michal Karm Babacek

@_karm Principal Quality Engineer, Red Hat C/Java/Go programmer focused on Apache HTTP Server, Tomcat, load-balancing, high-availability, containers and MicroProfile by day; Coding fluorescence microscopy data processing and DNS malware protection toys by night. Avid user

• f Wildfly and Infinispan clustering. Considers 1MB being plenty of memory and

16ms plenty of time.

1/65535

Agenda

• High-level intro to MicroProfile (15 minutes)

(Martin)

• High-level intro to Quarkus (5 minutes)

(Karm)

• Demo of MP Starter: (15 minutes)

(Karm)

• Demo of MP Starter REST API (5 minutes)

(Karm)

• More MicroProfile specs and Q&A

(Martin, Karm)

Enterprise Java in past 20 years

• Java EE (currently Jakarta EE)

○ Java EE 5 - May 11, 2006 ○ Java EE 6 - December 10, 2009 ○ Java EE 7 - June 12, 2013 ○ Java EE 8 - August 31, 2017

3

MicroProfile

• Eclipse MicroProfile is an open-source community specification for Enterprise

Java microservices

• A community of individuals, organizations, and vendors collaborating within an
• pen source (Eclipse) project to bring microservices to the Enterprise Java

community

4

MicroProfile

5

+Under discussion

• Long Running Actions (LRA)
• Service mesh
• GraphQL
• Logging
• ...

6

Community - individuals, organizations, vendors

7

Current MicroProfile implementations

8

And some are In Progress: Quarkus, WildFly...

Differences from Java EE

• pen source and open community
• code first approach
• release cadence

○ MP 1.0

• Sep 2016

○ MP 1.1

• Aug 2017

○ MP 1.2

• Sep 2017

○ MP 1.3

• Jan 2018

○ MP 1.4 / MP 2.0 - Jun 2018 ○ MP 2.1

• Oct 2018

9

Differences from Java EE

• 3 releases per year (Feb, Jun, Oct)

○ MP 2.2 - Feb 2019 ○ MP 3.0 - Jun 2019 ○ MP 3.1

• Oct 2019

○ ...

10

11

MicroProfile 3.2

12

microprofile.io

What is MicroProfile Starter

• MicroProfile Starter generates working sample code for MicroProfile specifications:

○ To lower the learning curve for using MicroProfile specifications ○ To increase developer productivity ○ To deliver solutions faster to the business

• A starter/generator had been discussed by the community many times before

○ Earliest whisper by James Strachan back at Devoxx BE 2016

• An independent community member, Rudy De Busscher, on Aug 21, 2018, attended the

bi-weekly MicroProfile community Hangout call and demoed a prototype that he had developed

• (Rudy was hired by Payara subsequently)
• Starter team was assembled soon after. Starter Beta released on Feb 6, 2019.
• Current team members are from many organizations and communities: Rudy, Karm, YK, Ryan,

etc.

• If you’d like to participate and help us develop the Starter, please post your desire to help us at

microprofile@googlegroups.com to get you looped in ○ Need help developing extensions for IntelliJ IDEA, Eclipse IDE, Netbeans, Eclipse Che

13

start.microprofile.io

14

• Examples generator for a

variety of runtimes

• This is NOT just a pom.xml

generator

• Sports REST API for easier

integration

• Best for your first contact

with MicroProfile, using your favourite runtime you are used to

❤ How to contribute ❤

15

• Runtimes implementations

○ Adding your MP implementation - ensure it passes the MP TCKs for the umbrella release and is added to the MP implementations page ○ Improving current runtimes implementations. Are you a Launcher or KumuluzEE fan? Helidon expert? Take a look...

• Contribute to develop more code examples for MP specs

○ Follow these instructions ○ Do a Pull Request on the Starter project ○ Add your implementation or new code examples ○ Test your additions to the MicroProfile starter project ○ Community review, requires 2 acks ○ Merge

What is Quarkus?

• A Kubernetes Native Java stack tailored for GraalVM & OpenJDK HotSpot,

crafted from the best of breed Java libraries and standards

• Great interoperability with containers, small memory footprint
• Toolchain for building Java applications with a lot of heavy lifting done at build

time instead of runtime

16

17

Eclipse Vert.x Hibernate RESTEasy Apache Camel Eclipse MicroProfile Netty Kubernetes OpenShift Jaeger Prometheus Apache Kafka Infinispan

Best of breed frameworks and standards

For a complete list of supported extensions: https://github.com/quarkusio/quarkus/tree/master/extensions

18

A cohesive platform for optimized developer joy:

• Based on standards, but not limited
• Unified configuration
• Zero config, live reload in the blink of an eye
• Streamlined code for the 80% common

usages, flexible for the 20%

• No hassle native executable generation

Developer joy

19

RSS (Resident Set Size)

Quarkus + GraalVM

13 MB

Quarkus + OpenJDK

74 MB

Traditional Cloud-Native Stack

140 MB

REST

Supersonic Subatomic Java - Memory footprint

20

Boot + First Response Time (in seconds)

Quarkus + GraalVM 0.014 Seconds

REST REST + CRUD

Quarkus + OpenJDK 0.75 Seconds Quarkus + GraalVM 0.055 Seconds Quarkus + OpenJDK 2.5 Seconds Traditional Cloud-Native Stack 9.5 Seconds Traditional Cloud-Native Stack 4.3 Seconds

Time to first response

Supersonic Subatomic Java: Startup time

21

Supersonic Subatomic Java JVM mode and Native executable trade-offs

Startup Time

...puts Java in FaaS field alongside Go and JS...

Throughput Packaging Size Memory Footprint

saves $ with cloud providers...

22

Build / Dev / Native modes

• You can use Quarkus to build a small uberjar

○ https://quarkus.io/guides/maven-tooling.html#uber-jar-maven ○ Use HotSpot or GraalVM to to run it

• You can work in Dev mode

○ where Quarkus monitors your changed files, quickly recompiles ○ enables hot deployment with background compilation ○ https://quarkus.io/guides/maven-tooling.html#development-mode

• You can use Quarkus to easily create a single statically linked executable

○ Leverages SubstrateVM and Native image from GraalVM toolchain ○ Single executable for particular architecture ○ https://quarkus.io/guides/building-native-image-guide

And now, on to the demos!

23

• 1. Starter web page, examples

https://starter.karms.biz/

• 2. Downloading Quarkus
• 3. Your generated examples
• 4. Other runtimes, Payara, Helidon…
• 5. REST API

MicroProfile YouTube Channel Twitter @MicroProfileIO LinkedIn MicroProfile.IO FB MicroProfile Quarkus YouTube Channel Twitter @QuarkusIO LinkedIn Quarkusio FB Quarkusio

To get the instructions for the demos you have seen today, go to:

bit.ly/MPOpenAlt

MicroProfile - get involved!

26

Video Hangouts Bi-Weekly & Quarterly General community Meetings MicroProfile Projects Google Groups YouTube Channel

Known implementations

27

In Progress to pass TCK:

Eclipse MicroProfile 3.1 Oct 2019

<dependency> <groupId>org.eclipse.microprofile</groupId> <artifactId>microprofile</artifactId> <version>${microProfile.version}</version> <type>pom</type> </dependency>

28

…or select specs as needed…

What?! This is the takeaway:

29

• Eclipse MicroProfile, Optimizing Enterprise Java for a Microservices Architecture

https://microprofile.io/

• Starter to generate your examples projects for selected APIs

https://start.microprofile.io/

https://starter.karms.biz/ (with Quarkus)

• Quarkus runtime for your next Java application

https://quarkus.io/

Questions?

30

Thank you
