East Asia Observatory James Clerk Maxwell Telescope and VLBI Per Friberg EAO/JCMT EAVW 2018 Yong Pyong Korea JCMT Location Maunakea, Hawaii Altitude 4100 m 15 m dish Surface accuracy 25 m Operating up to 800 GHz EAVW 2018 Yong Pyong

SLIDE 1

EAVW 2018 Yong Pyong Korea

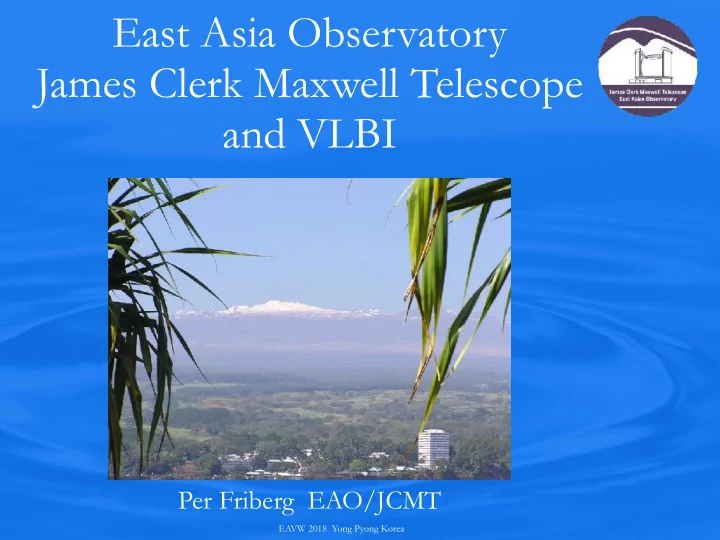

East Asia Observatory James Clerk Maxwell Telescope and VLBI

Per Friberg EAO/JCMT

SLIDE 2

EAVW 2018 Yong Pyong Korea

JCMT

Location Maunakea, Hawaii Altitude 4100 m 15 m dish Surface accuracy 25 µm Operating up to 800 GHz

SLIDE 3

EAVW 2018 Yong Pyong Korea

Opacity

SLIDE 4

EAVW 2018 Yong Pyong Korea

Observing Conditions

SLIDE 5

EAVW 2018 Yong Pyong Korea

SCUBA-2

10000 pixels 2 focal planes 850 & 450 µm TES Detectors cold to ~70 mK

SLIDE 6

EAVW 2018 Yong Pyong Korea

Cosmology Legacy Survey Galactic Plane Survey

SLIDE 7

EAVW 2018 Yong Pyong Korea

POL-2 Large scale mapping

Pilars of creation Eagle Nebula Pattle & Bistro team Model Observations SgrA* magnetic field (Pei-Ying Hsieh et.al.)

SLIDE 8

EAVW 2018 Yong Pyong Korea

HARP 16 pixel heterodyne array 325 - 375 GHz OMC1 CO 3-2 (346 GHz) Galactic Plane Survy

SLIDE 9

EAVW 2018 Yong Pyong Korea

Interferometry at the JCMT

VLBI attempt January 1992 Short Baseline Interferometer JCMT & CSO eSMA - extended SMA with JCMT & CSO eSMA made it possible to do VLBI with the JCMT using the hydrogen maser and recoding equipment at the SMA

SLIDE 10

EAVW 2018 Yong Pyong Korea

2007 First detection of structure on the event horizon size scale in SgrA* Stations JCMT (SMA), SMT & CARMA Solid line - Gaussian model Dotted line “shadow” model

SLIDE 11

EAVW 2018 Yong Pyong Korea

Development

GLT receiver testing at JCMT

86, 230 and 345 GHz 230 GHz ALMA band 6 mixers (2Pol,2SB) 345 GHz ALMA band 7 mixers (2Pol,2SB) 86 GHz band 3 (2Pol) Aiming to be ready for EHT VLBI run in 2019 Copy of the GLT receiver under construction at ASIAA.

SLIDE 12

EAVW 2018 Yong Pyong Korea

Development Recording System

By April 2019 we expect to have 2 BDC, 4 r2dbe and 4 Mark-6 recorders supporting 64 Gpbs/s Mark6 R2DBE

SLIDE 13

EAVW 2018 Yong Pyong Korea

VLBI Development Work
