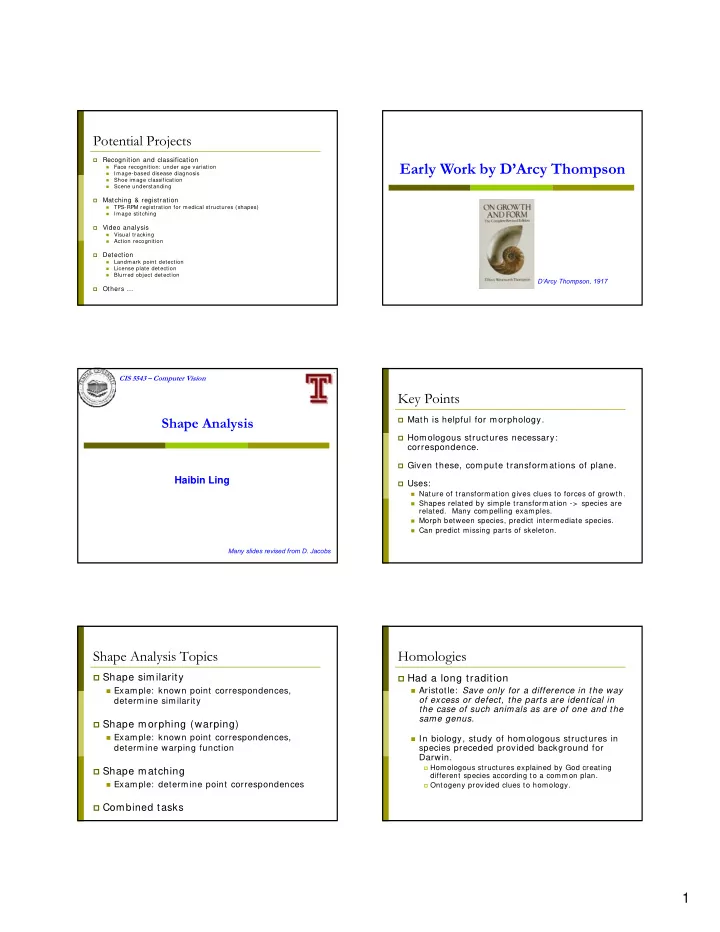

SLIDE 1

1 Potential Projects



Recognition and classification



Face recognition: under age variation



Image-based disease diagnosis



Shoe image classification



Scene understanding 

Matching & registration



TPS-RPM registration for medical structures (shapes)



Image stitching 

Video analysis



Visual tracking



Action recognition 

Detection



Landmark point detection



License plate detection



Blurred object detection 

Others …

CIS 5543 – Computer Vision

Shape Analysis

Haibin Ling

Many slides revised from D. Jacobs

Shape Analysis Topics

 Shape similarity

 Example: known point correspondences,

determine similarity

 Shape morphing (warping)

 Example: known point correspondences,

determine warping function

 Shape matching

 Example: determine point correspondences

 Combined tasks

Early Work by D’Arcy Thompson

D’Arcy Thompson, 1917

Key Points

 Math is helpful for morphology.  Homologous structures necessary:

correspondence.

 Given these, compute transformations of plane.  Uses:

 Nature of transformation gives clues to forces of growth.  Shapes related by simple transformation -> species are

• related. Many compelling examples.

 Morph between species, predict intermediate species.  Can predict missing parts of skeleton.

Homologies

 Had a long tradition

 Aristotle: Save only for a difference in the way

• f excess or defect, the parts are identical in

the case of such animals as are of one and the same genus.

 In biology, study of homologous structures in

species preceded provided background for Darwin.

 Homologous structures explained by God creating

different species according to a common plan.

 Ontogeny provided clues to homology.

SLIDE 2

2 Transformations

 Given matching points in two images, we

find a transformation of plane.

 Homeomorphism (continuous, one-to-one)  This is underconstrained problem

 Implicitly, seeks simple transformation.  Not well defined here, will be subject of much

future research.

 Intuitively pretty clear in examples considered.

Simplest, subset of affine

Cannon-bone of ox, sheep, giraffe

Piecewise affine Logarithmically varying: eg., tapir’s toes Smooth: amphipods (a kind of crustacean).

Descriptions of shape: Clues to Growth

 Somewhat different topic, shape

descriptions relevant even without comparison.

 Fourier descriptors  Shape context

 Equal growth in all directions leads to

circle (or sphere).

SLIDE 3

3

No growth in one direction (as in a leaf on a stem), growth increases in directions away from this so r = sin(. Asymmetric amounts of growth on two sides.

Related Species Invention of Morphing?

 Given transformation between species,

linearly interpolate intermediate transformations.

 Intermediate morphs predict intermediate

species.

Pages 1070-71 Figure 537

SLIDE 4

4 Conclusions

 Stress on homologies.  Shape comparison through non-trivial

transformations.

 Simplicity of transformation -> similarity

• f shape.

 What is the simplest transformation?

How do we find it?

 Transformation may leave some

deviations, how are these handled?

Shape Spaces – Procrustes Analysis

Matching Sets of Point Features

1.

Find best transformation.

• Similarity transformation, thin-plate splines.

2.

Measure how good it is.



Chamfer distance, Haussdorf distance, Euclidean distance, procrustean distance, deformation energy.

Assumptions

 Two sets of 2D points.  Mostly we assume there exists a correct

• ne-to-one correspondence

 And this correspondence is given.

 This is very natural in morphometrics, where

points are measured and labeled.

 In vision we must solve for correspondence.

Shape Space



What is shape?

“all the geometrical information that remains when location, scale and rotational effects are filtered out from an object.” – D. G. Kendall (1984)



So describe points independent of similarity transformation.



Remove translation



Simplest way: translate so point 1 is at origin, then remove it.



More elegant, translate center of mass to origin, remove a point.



Remove scale



Scale so that sum| | Xi| | ^ 2 = 1.



Resulting set of points is called pre-shape.



Pre because we haven’t removed rotation yet.

Pre-shape

 Notation: U and X denote sets of normalized

• points. Points called Xi and Ui, with coordinates

(xi,yi), (ui, vi).

 If we started with n points, we now have n-1 so

that: sum i= 1..n-1 xi^ 2 + yi^ 2 = 1.

 So we can think of these coordinates as lying on

a unit hypersphere in 2(n-1)-dimensional space.

SLIDE 5

5 Shape

 If we consider all possible rotations of a set of

normalized points, these trace out a closed, 1D curve in pre-shape space.

 Manifold

 Distances between shapes can be thought of as

distances between these curves.

 Note: to compute distance, without loss of generality,

we can assume that one set of points (U) does not rotate, since rotating both point sets by the same amount doesn’t change distances.

Procrustes Distances

 Full Procrustes Distance. DF

min(s,) U – sXR

 Find a scaling and rotation of X that minimizes the

Euclidean distance to U.

 R() means rotate by .

 Partial Procrustes Distance. DP

minU – XR

 Rotate X to minimize the Euclidean distance to U.

 Procrustes Distance. 

 Rotate X to minimize the geodesic distance on the

sphere from X to U.

Linear Pose Solving

 We can linearly find optimal similarity

transformation that matches X to U. (ie., minimize sum | | AXi-Ui| | ^ 2, where A is a similarity transformation.

 This is asymmetric between X and U.

 In same way we can linearly compute Full

Procrustes Distance.

 This is symmetric.  Leads immediately to other procrustes distances.

Linear Pose: 2D rotation, translation & scale

      sin , cos with 1 1 1 . . . 1 1 1 . . . cos sin sin cos . . .

2 1 2 1 2 1 2 1 2 1 2 1

s b s a y y y x x x t a b t b a y y y x x x t t s v v v u u u

n n y x n n y x n n

                                              

• Notice a and b can take on any values.
• Equations linear in a, b, translation.
• Solve exactly with 2 points, or
• verconstrained system with more.

s a b a s     cos

2 2

Similarity Matching

 Given point sets X and U, compare by

finding similarity transformation A that minimizes | | AX-U| | .

 X = points X1, …

, Xn

 U = points U1, …

, Un.

 Find A to minimize sum | | AXi – Ui| | ^ 2  A straightforward, linear problem.

 Taking derivatives with respect to four unknowns of A

gives four linear equations in four unknowns.

 Note that we now also know how to calculate the

Full Procrustes Distance. This is just a least- squares solution to the over-constrained problem:

                                           

n n n n n n

y y y x x x a b b a y y y x x x s v v v u u u

2 1 2 1 2 1 2 1 2 1 2 1

. . . . . . cos sin sin cos . . .    

SLIDE 6

6

Given two points on the hypersphere, we can draw the plane containing these points and the origin. DF  DP  Procrustes Distances is  DP = 2 sin ( / 2) DF = sin 

• These are all monotonic in . So

the same choice of rotation minimizes all three.

• DF is easy to compute, others are

easy to compute from DF.

Why Procrustes Distance?

 Procrustes distance is most natural.  Intuition: given two objects, we can produce a

sequence of intermediate objects on a ‘straight line’ between them, so the distance between the two objects is the sum of the distances between intermediate objects.

 This requires a geodesic.

Tangent Space

 Can compute a hyperplane tangent to the

hypersphere at a point in preshape space.

 Project all points onto that plane.  All distances Euclidean. Average shape

easy to find.

 This is reasonable when all shapes similar.  In this case, all distances are similar too.

 Note that when is small, , 2sin( / 2), sin()

are all similar.

Warping

Thin-Plate Splines

A function, f, R2 -> R2 is a thin-plate spline if:

• Constraint: Given corresponding points: X1…

Xn and U1… Un, f(Xi)= Ui.

• Energy: f minimizes the following bending energy:

dxdy y f y x f x f

R



                                        

2

2 2 2 2 2 2 2 2 If we think of this as the amount of bending produced by f. Allows arbitrary affine transformation.  Solution: The function f can be computed

using straightforward linear algebra.

 See Principal Warps: Thin-Plate Splines and the

Decomposition of Deformations, Bookstein

 Statistical Shape Analysis, Dryden and Mardia

 Extension: Can penalize mismatch of points

(using function of | | Ui – f(Xi)| | ).

 Results: Much like D’Arcy Thompson.

Thin-Plate Splines

SLIDE 7

7

Chamfer Matching

Chamfer Matching



i

d

For every edge point pi in the transformed object, compute the distance to the nearest image edge point. Sum distances.

||) , || ||, , || ||, , min(||

2 1 1 m i i n i i

q p q p q p 



 i

p

Main Feature

• Every model point matches an image point.
• An image point can match 0, 1, or more

model points.

Chamfer Matching Then, minimize this distance over pose.

 Example: minimum Chamfer distance

• ver all translations t.

        





||) , || ||, , || ||, , min(|| min

2 1 1 m i i n i i

q t p q t p q t p t 

Chamfer Matching Variations

 Sum a different distance

 f(d) = d2  or Manhattan distance.  f(d) = 1 if d < threshold, 0 otherwise.

• This is called bounded error.

 Use maximum distance instead of sum.

 This is called: directed Hausdorff distance.  Use median distance.

 Use other features



Corners.

 Lines. Then position and angles of lines must be similar.

 Model line may be subset of image line.

Shape Context

Slides revised from J. Malik

• S. Belongie, J. Malik and J. Puzicha

PAMI 2002

SLIDE 8

8 Matching Framework

• Find correspondences between points on shape
• Fast pruning
• Estimate transformation & measure similarity

model target ...

Comparing Pointsets Shape Context

• Count the number of

points inside each bin, e.g.:

Count = 4 Count = 10 ... F Compact representation of distribution of points relative to each point

Shape Context Shape Contexts

 Invariant under translation and scale  Can be made invariant to rotation by

using local tangent orientation frame

 Tolerant to small affine distortion

 Log-polar bins make spatial blur proportional

to r

• Cf. Spin Images (Johnson & Hebert) - range

image registration

Comparing Shape Contexts

Compute matching costs using Chi Squared distance: Recover correspondences by solving linear assignment problem with costs Cij [ Jonker & Volgenant 1987]

SLIDE 9

9

Articulation Invariant Shape Matching

PAMI’07, Ling & Jacobs I nner-distance Length of the shortest path between landmark points. Articulation I nsensitivity Theorem: The change of inner- distances during articulation is up bounded by a small value. Com putation Shortest path Fast marching

Inner-Distance, Articulation Insensitivity

Computation:

Step 1: Build graph

Points  Nodes Visible point pairs  Edges

Step 2: Shortest path

E.g., Bellman-Ford 3 9 5 3 13

1 1 0 0

5 10 4 12 15

Shape Context (SC) [Belongie et al 02] Inner-Distance Shape Context (IDSC)

q θ

Inner-Distance Shape Context (IDSC)

p θ: inner-angle

IDSC Examples

Three objects from the MPEG7 database. Two points p, q on each shape and the shape context (SC) and inner- distance shape context (IDSC) at p and q. A B C
