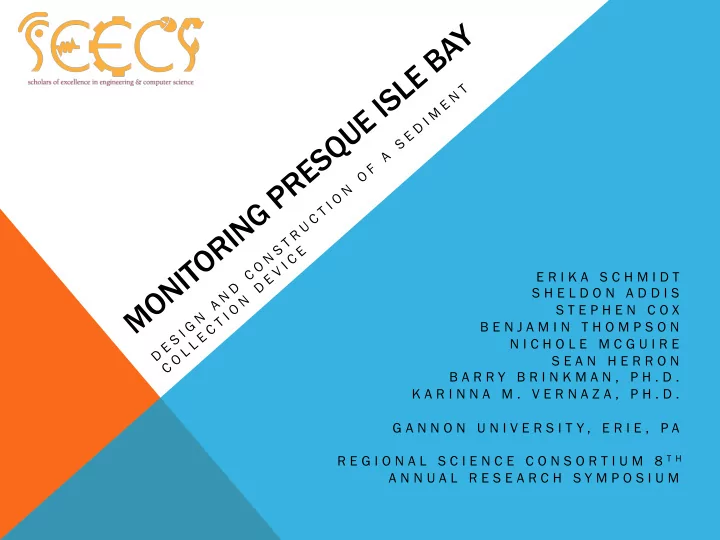

E R I K A S C H M I D T S H E L D O N A D D I S S T E P H E N C O X B E N J A M I N T H O M P S O N N I C H O L E M C G U I R E S E A N H E R R O N B A R R Y B R I N K M A N , P H . D . K A R I N N A M . V E R N A Z A , P H . D .

SLIDE 1

E R I K A S C H M I D T S H E L D O N A D D I S S T E P H E N C O X B E N J A M I N T H O M P S O N N I C H O L E M C G U I R E S E A N H E R R O N B A R R Y B R I N K M A N , P H . D . K A R I N N A M . V E R N A Z A , P H . D . G A N N O N U N I V E R S I T Y , E R I E , P A R E G I O N A L S C I E N C E C O N S O R T I U M 8 T H A N N U A L R E S E A R C H S Y M P O S I U M

SLIDE 2

HISTORY OF THE SCHOLARSHIP

Scholars of Excellence in Engineering and Computer Science (SEECS)
NSF, Directorate of Undergraduate Education

§ Scholarships in Science, Technology, Engineering and Mathematics (S-STEM)

Grant of $600,000 awarded in July 2008
11 graduates of the program, to date
26 current SEECS scholars: five seniors, six juniors, seven sophomores,

and eight freshmen

Renewal awarded in May 2012 for $600,000

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 3

BACKGROUND

Creeks are becoming polluted

Debris, Toxic contaminants, etc.

Pennsylvania Sea Grant (Non-profit Organization)
“Promotes the ecological and economic sustainability of

Pennsylvania's coastal resources through research and outreach … focusing on the Lake Erie and Delaware River drainages of Pennsylvania”

Partnered with Gannon University SEECS program
Tasked with building a sedime

ment nt c colle llection d n device

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 4

DESIGN CONSTRAINTS

The he d device t to b be p prototyp yped a and nd c cons nstructed s sho hould ld me meet t the he follo llowing ng c cons nstraint nts: :

Collect two (2) liters of wet sediment
Environmentally friendly
Movable by one person
Under SEECS budget
Anchored in place
Durable and reusable
Collect sediment of different sizes

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 5

OUTLINE: DESIGN AND BUILDING PROCESS (‘10-’12)

Toured Cascade Creek
Researched methods of sediment collection
Designed, built and tested two prototypes
Combined and optimized initial designs
Constructed final product
Implemented sediment collection device

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 6

RESEARCH

Ini Initial i l ideas

Pump water out of creek to a filter
Modified downstream defender
Use bedload sampler

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 7

SEDIMENT COLLECTION DEVICE:

Two designs were prototyped and tested

De Design 1 n 1 De Design 2 n 2

SLIDE 8

RESULTS OF WEIR TANK TESTING

D E S I G N 1 D E S I G N 2

Confetti was employed to simulate sediment. Results were positive.

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 9

SEDIMENT COLLECTION DEVICE:

Designs were consolidated and collector built

Front Box

Back Box

Frame

SLIDE 10

FRAME DIMENSIONS

4 feet long by 2.5 feet wide
13 inches tall
8 inch platforms on sides
Lid with latches
Concrete blocks set on sides

§ Held in place by L brackets

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 11

BOX DIMENSIONS

Two b boxes 18” long 12” tall and wide 8” wide by 5” deep opening Screen at front and back openings First B Box Four baffles Second nd B Box Three baffles Elbow joint at exit

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 12

BUILDING

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 13

FINISH PROJECT CONT.

A S S E M B L E D 13

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 14

IMPLEMENTATION PICTURES

SLIDE 15

INITIAL RESULTS

After t two w weeks ks i in t n the he C Cascade C Creek, s , sedime ment nt w was c colle llected. . Boxes w were no not lo locked d during ng t the he f first d deplo loyme yment nt. .

8TH ANNUAL RESEARCH SYMPOSIUM

SLIDE 16

QUESTIONS?
