Honesty Devotion Innovation E-Lins Technology Co.,Ltd Contact: Evan Zou Mobile: +86-13798257916 Email: evan@e-lins.com evan.elins@e-lins.com Msn: zouyanbing@hotmail.com Skype: zouyanbing Web: www.e-lins.com or www.e-lins.cn Add:

slide-1

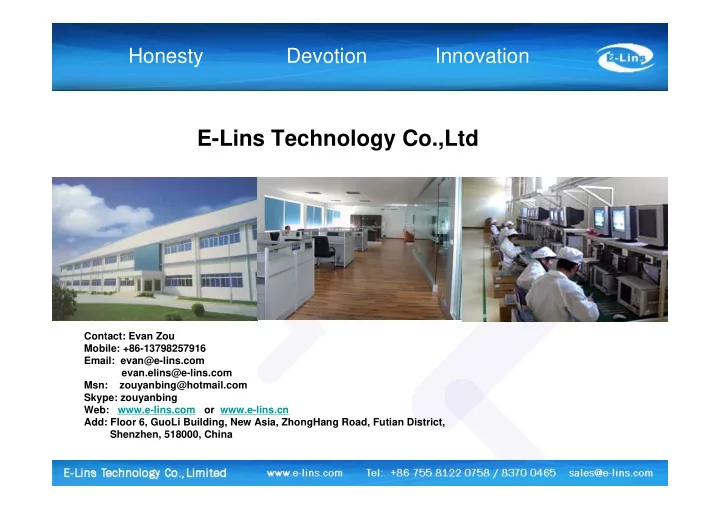

SLIDE 1

E-Lins Technology Co.,Ltd

Innovation Devotion Honesty

Contact: Evan Zou Mobile: +86-13798257916 Email: evan@e-lins.com evan.elins@e-lins.com Msn: zouyanbing@hotmail.com Skype: zouyanbing Web: www.e-lins.com

  • r www.e-lins.cn

Add: Floor 6, GuoLi Building, New Asia, ZhongHang Road, Futian District, Shenzhen, 518000, China

slide-2
SLIDE 2

Factory Inside & Factory Office Corner

Innovation Devotion Honesty

slide-3
SLIDE 3

Products profile

Wireless modem

HSUPA/HSDPA/UMTS modem EDGE/GPRS modem EVDO modem CDMA1x Modem Price and payment

Pricelist and payment Quality Accreditations

slide-4
SLIDE 4

HSUPA / HSDPA / UMTS Modem

  • 1. WCDMA UMTS/HSDPA 850/1900/2100MHz

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

  • 2. Up to 7.2 Mbps DL and 384 Kbps UL for EDGE
  • 3. Support Data, SMS, voice, Email
  • 4. SMS and Data service simultaneously

Operation

  • 5. Zero-CDROM, driver auto-installation
  • 6. USB2.0 interface
  • 7. High performance internal antenna
  • 8. Supported OS: Windows 2000/XP/2003/Vista
  • 9. Support SIM/USIM Card

10.Dimension (mm): 74mm*46mm*11.2mm, thinnest model 11.With Micro SD(T-Flash card) slot, support U-disk up to 4GB

6200u 6380u

  • 1. WCDMA UMTS/HSDPA 850/1900/2100MHz

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

  • 2. Up to 7.2 Mbps DL for HSDPA and 2Mbps UL

for HSUPA

  • 3. Support Data, Two Way SMS, Email
  • 4. Two Way SMS and Data service
  • 5. Zero-CDROM for drivers
  • 6. USB2.0 interface
  • 7. High performance internal antenna
  • 8. OS: Windows 2000/XP/2003/Vista, Linux
  • 9. Support SIM/USIM Card; Support Lock SIM

10.Dimension : 13mm*28mm*92mm 11.With Micro SD(T-Flash card) slot, support U-disk up to 32GB

6390u

  • 1. WCDMA UMTS/HSDPA/HSUPA 2100Mhz
  • r 850/1900/2100MHz (World Wide Use);

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

  • 2. Up to 7.2 Mbps DL for HSDPA;

2Mbps UL for HSUPA

  • 3. Support Data, Two Way SMS, Email
  • 4. Two Way SMS and

Data service simultaneously Operation

  • 5. Zero-CDROM for drivers
  • 6. USB2.0 interface
  • 7. High performance internal antenna
  • 8. Supported OS: Windows 2000/XP/2003/

Vista, Linux

  • 9. Support SIM/USIM Card; Support Lock SIM

10.Dimension (mm): 94*29*13 mm 11.With Micro SD(T-Flash card) slot, support U-disk up to 32GB

slide-5
SLIDE 5

HSUPA / HSDPA / UMTS Modem

6280u

  • 1. WCDMA UMTS/HSDPA 2100Mhz
  • r 850/1900/2100MHz (World Wide Use);

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

  • 2. Up to 3.6 Mbps DL for HSDPA and 384Mbps UL
  • 3. Support Data, Two Way SMS, Email
  • 4. Two Way SMS and Data service

simultaneously Operation

  • 5. Zero-CDROM for drivers
  • 6. USB2.0 interface
  • 7. High performance internal antenna
  • 8. Supported OS:

Windows 2000/XP/2003/Vista, Linux

  • 9. Support SIM/USIM Card; Support Lock SIM

10.Dimension (mm): 13mm*28mm*92mm 11.With Micro SD(T-Flash card) slot, support U-disk up to 32GB

6600E

  • 1. WCDMA UMTS/HSDPA: 2100Mhz or

850/2100Mhz or 850/1900Mhz GSM/GPRS/EDGE: 850/900/1800/1900 MHz

  • 2. Up to 7.2 Mbps DL and 384 Kbps UL
  • 3. Support Data, SMS, voice, Email
  • 4. SMS and Data service simultaneously Operation
  • 5. Zero-CDROM, Plug and Play, driver auto-installation
  • 6. Express & USB interface, with USB Adaptor
  • 7. LED Signal: 3 colors LED indication
  • 8. External antenna
  • 9. Supported OS: Windows 2000/XP/Vista, Mac, Linux
  • 10. Support SIM/USIM Card

11.Dimension (mm): 75(D)*34(W)*5(H) 12.USB interface adaptor:Full speed

slide-6
SLIDE 6

EDGE / GPRS Data Card Modem

  • 1. EDGE: Tri-Band 900/1800/1900MHz
  • r Quad Band 850/900/1800/1900MHz
  • 2. EDGE, GPRS, and GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, SMS, voice,Email
  • 4. Mini USB 2.0 interface
  • 5. Zero-CDROM, driver auto-installation(Optional)
  • 6. High performance internal antenna
  • 7. Supported OS: Windows 2000/XP/VISTA
  • 8. Support SIM/USIM Card
  • 9. Dimension (mm): 81(D)*40(W)*10(H)

6110u 6118u

  • 1. Band 900/1800/1900MHz
  • 2. EDGE, GPRS, and GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps (maximum) GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, Two Way SMS, voice,Email
  • 4. Mini USB 2.0 interface
  • 6. High performance internal antenna
  • 7. Supported OS: Windows 2000/XP/VISTA
  • 8. Support SIM/USIM Card
  • 9. Dimension: 81*24*11mm

6180u

  • 1. GSM/GPRS/EDGE: 850/900/1800/1900 MHz
  • 2. EDGE Speed rate: 230.6Kbps~460.8Kbps
  • 3. Support Data, Two Way SMS, Email
  • 4. Two Way SMS and Data service
  • 5. Zero-CDROM for drivers
  • 6. USB2.0 interface
  • 7. High performance internal antenna
  • 8. Supported OS: Windows 2000/XP/2003/Vista
  • 9. Support SIM/USIM Card; Support Lock SIM

10.Dimension (mm): 92mm*28mm*13mm 11.With Micro SD(T-Flash card) slot, support U-disk up to 4GB

slide-7
SLIDE 7

EDGE / GPRS Data Card Modem

  • 1. EDGE: Tri-Band 900/1800/1900MHz
  • r Quad Band 850/900/1800/1900MHz optional
  • 2. EDGE, GPRS, and GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, SMS, voice,Email
  • 4. USB2.0 interface
  • 5. Zero-CDROM, driver auto-installation(Optional)
  • 6. High performance internal antenna
  • 7. Supported OS: Windows 2000/2003/XP/Vista
  • 8. Support SIM/USIM Card
  • 9. Dimension (mm): 86(D)*27(W)*11(H)
  • 1. EDGE: Tri-Band 900/1800/1900MHz
  • r Quad Band 850/900/1800/1900MHz optional
  • 2. EDGE, GPRS, and GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, SMS, voice,Email
  • 4. USB2.0 interface
  • 5. Zero-CDROM, driver auto-installation(Optional)
  • 6. High performance internal antenna
  • 7. Supported OS: Windows 2000/2003/XP/Vista
  • 8. Support SIM/USIM Card
  • 9. Dimension (mm): 87(D)*28(W)*11.6(H)

6130u 6138u 7280u

  • 1. EDGE: Tri-Band 900/1800/1900MHz
  • r Quad Band 850/900/1800/1900MHz
  • 2. EDGE, GPRS, and GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, Two Way SMS, voice,Email
  • 4. Mini USB 2.0 interface
  • 5. Zero-CDROM, driver auto-installation(Optional)
  • 6. High performance internal antenna
  • 7. Supported OS: Windows 2000/XP/VISTA
  • 8. Support SIM/USIM Card
  • 9. Dimension (mm): 81(D)*40(W)*10(H)
slide-8
SLIDE 8

EDGE / GPRS Data Card Modem

2061P 2061E

  • 1. EDGE: Quad Band 850/900/1800/1900MHz
  • 2. EDGE, GPRS, and GSM circuit switched

Data EDGE Speed rate: 230.6Kbps~460.8Kbps (maximum) GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, SMS, voice,Email
  • 4. PCMCIA type II Interface
  • 5. External antenna
  • 6. Supported OS: Windows 2000/XP/VISTA
  • 7. Support SIM/USIM Card
  • 8. 75(D)*34(W)*5(H)
  • 1. EDGE: 900/1800Mhz dual band or Quad Band

850/900/1800/1900MHz optional

  • 2. EDGE, GPRS, and GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, SMS, voice,Email
  • 4. Express interface
  • 5. Zero-CDROM, driver auto-installation(Optional)
  • 6. External antenna
  • 7. Supported OS: Windows 2000/XP/VISTA
  • 8. Support SIM/USIM Card
  • 9. Dimension (mm): 85.6(D)*54(W)*5(H)

2188P

  • 1. Band 900/1800/1900MHz
  • 2. EDGE, GPRS, GSM circuit switched Data

EDGE Speed rate: 230.6Kbps~460.8Kbps GPRS/GSM speed rate:115.2 kbps

  • 3. Support Data, Two Way SMS, voice,Email
  • 4. Mini USB 2.0 interface
  • 5. High performance internal antenna
  • 6. Supported OS: Windows 2000/XP/VISTA
  • 7. Support SIM/USIM Card
slide-9
SLIDE 9

EV-DO Modem with USB 2.0 interface

  • 1. EV-DO: 800MHz
  • 2. EV-DO Speed rate:

up to 2.4Mbps for DL (maximum), 153.6kbps for UL (maximum)

  • 3. Support Data, SMS, voice,Email
  • 4. USB 2.0 interface
  • 5. High performance internal antenna
  • 6. Supported OS: Windows 2000/XP/VISTA
  • 7. Support RUIM Card
  • 8. Dimension (mm): 94(D)*31(W)*12(H)

550EV

1.EV-DO: 800MHz

  • 2. EV-DO Speed rate:

up to 2.4Mbps for DL (maximum), 153.6kbps for UL (maximum)

  • 3. Support Data, Two Way SMS, voice,Email
  • 4. USB 2.0 interface
  • 5. High performance internal antenna
  • 6. Supported OS: Windows 2000/XP/VISTA
  • 7. Support RUIM Card
  • 8. Dimension (mm): 88(D)*54(W)*5(H)

Weight: 38g

EV8680U EV6800U

  • 1. EV-DO: 800MHz & 1900Mhz, or 450Mhz

GPS L1 band(1575.42MHz)

  • 2. EV-DO Speed rate:

up to 3.1Mbps for DL (maximum), 1.8Mbps for UL (maximum)

  • 3. Support Data, Two Way SMS, voice,Email
  • 4. USB 2.0 interface, 2 state LED
  • 5. High performance internal antenna,

Extended Antenna available

  • 6. Supported OS: Windows 2000/XP/VISTA
  • 7. Support RUIM Card
  • 8. Dimension (mm): 33 * 79 * 9.5mm

Weight: 29g
