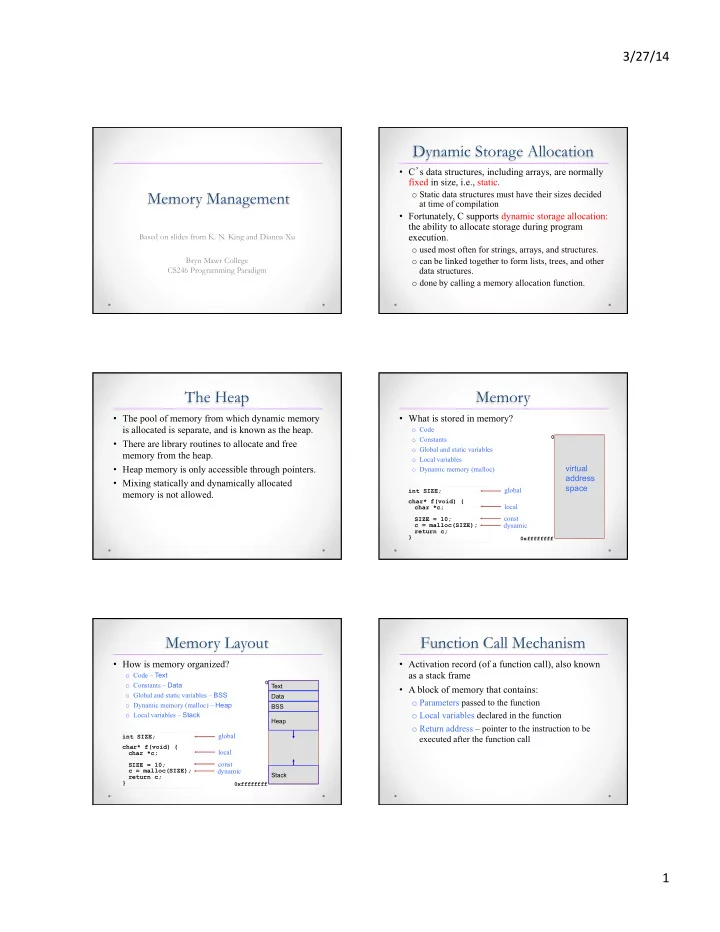

Memory Management

Based on slides from K. N. King and Dianna Xu Bryn Mawr College CS246 Programming Paradigm

Dynamic Storage Allocation

• C’s data structures, including arrays, are normally

fixed in size, i.e., static.

• Static data structures must have their sizes decided

at time of compilation

• Fortunately, C supports dynamic storage allocation:

the ability to allocate storage during program execution.

• used most often for strings, arrays, and structures.
• can be linked together to form lists, trees, and other

data structures.

• done by calling a memory allocation function.

The Heap

• The pool of memory from which dynamic memory

is allocated is separate, and is known as the heap.

• There are library routines to allocate and free

memory from the heap.

• Heap memory is only accessible through pointers.
• Mixing statically and dynamically allocated

memory is not allowed.

Memory

• What is stored in memory?
• Code
• Constants
• Global and static variables
• Local variables
• Dynamic memory (malloc)

int SIZE; char* f(void) { char *c; SIZE = 10; c = malloc(SIZE); return c; }

global local const dynamic

0xffffffff

virtual address space

Memory Layout

• How is memory organized?
• Code – Text
• Constants – Data
• Global and static variables – BSS
• Dynamic memory (malloc) – Heap
• Local variables – Stack

int SIZE; char* f(void) { char *c; SIZE = 10; c = malloc(SIZE); return c; }

global local const dynamic

0xffffffff

Text Data BSS Heap Stack

Function Call Mechanism

• Activation record (of a function call), also known

as a stack frame

• A block of memory that contains:
• Parameters passed to the function
• Local variables declared in the function
• Return address – pointer to the instruction to be

executed after the function call

3/27/14 ¡ 2 ¡

Call Stack

• A call stack is a region of memory that manages

activation records

• The call stack is initialized with the activation

record of main

• Activation record of a function is
• Pushed onto the stack at the function call
• Popped off the stack on return from the call
• The reason why local variables are only present

during the function call

A Typical Stack Frame

• int foo(int arg1, int arg2);
• Two local vars
• Stack grows upwards
• ESP and EBP:

registers used to point to the top

• f the stack

and the base

Callee saved registers (as needed) temporary storage Caller’s EBP Stack local var1 local var2 Return address arg1 arg2

EBP-8 EBP-4 EBP+8 EBP+12

Caller saved registers (as needed)

ESP-->

Memory Allocation Functions

• The <stdlib.h> header declares three memory

allocation functions:

malloc—Allocates a block of memory but doesn’t initialize it.

• void *malloc (size_t size);
• Allocates a block of size bytes from the heap
• Returns a pointer to the block allocated
• size_t is an unsigned integer type used for very large

integers.

• type void * is a “generic” pointer.

calloc—Allocates a block of memory and clears it. realloc—Resizes a previously allocated block of memory.

• void free (void *ptr);

Null Pointers

• If a memory allocation function can’t locate a memory

block of the requested size, it returns a null pointer. p = malloc(10000);

if (p == NULL) { //same as: if (!p) /* allocation failed; take appropriate action */ }

• A null pointer is a special value that can be

distinguished from all valid pointers.

• After we’ve stored the function’s return value in a

pointer variable, we must test to see if it’s a null pointer.

Dynamic Memory Layout

0xffffffff 0 Text

Data BSS Heap Stack char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

Dynamic Memory Layout

0xffffffff 0 Text

Data BSS Heap Stack char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5); p1

3/27/14 ¡ 3 ¡

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2 p3

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p3 p2

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2 p3 p4

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2 p3 p4

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2,p5 p3 p4

3/27/14 ¡ 4 ¡

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2,p5 p3 p4

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2,p5 p3 p4

Dynamic Memory Layout

char *p1 = malloc(3); char *p2 = malloc(4); char *p3 = malloc(1); free(p2); char *p4 = malloc(6); free(p3); char *p5 = malloc(2); free(p1); free(p4); free(p5);

0xffffffff 0 Text

Data BSS Heap Stack p1 p2,p5 p3 p4

Example: String Allocation

• Allocate memory for a string of n characters:

char * p; p = malloc(n + 1);//adding 1 for ‘\0’

By default void* will be casted to char*.

char *concat(const char *s1, const char *s2){ char *result; result = malloc(strlen(s1) + strlen(s2) + 1); if (result == NULL) { printf("Error: malloc failed in concat\n"); exit(EXIT_FAILURE); } strcpy(result, s1); strcat(result, s2); return result; }

Example: int Array Allocation

• Suppose a program needs an array of n integers,

where n is computed during program execution.

int *a; a = (int *) malloc(sizeof(int)*n); for (i = 0; i < n; i++) a[i] = 0; …… free(a);

The calloc Function

• The calloc function is an alternative to malloc.

void *calloc(size_t nmemb, size_t size);

• Allocates space for an array with nmemb elements,

each of which is size bytes long.

• Returns a null pointer if the requested space isn’t

available.

• Initializes allocated memory by setting all bits to 0.
• a = calloc(n, sizeof(int));

//array of n integers.

• struct point { int x, y; } *p;

p = calloc(1, sizeof(struct point));

3/27/14 ¡ 5 ¡

The realloc Function

• The realloc function can resize a dynamically

allocated array.

void *realloc(void *ptr, size_t size);

• ptr must point to a memory block obtained by a

previous call of malloc, calloc, or realloc to the new size specified by size.

• Returns a NULL if expansion attempt fails.
• If called with NULL as 1st argument ptr,

behaves like malloc.

• If called with 0 as 2nd argument, behaves like

free.

Deallocating Storage

• Example:

p = malloc(…); q = malloc(…); p = q;

• After q is assigned to p,

both variables now point to the second memory block: Garbage

• A program that leaves garbage behind has a memory leak.
• Calling the free function to release unneeded memory.

The “Dangling Pointer” Problem

• Using free leads to a new problem: dangling pointers.
• free(p) deallocates the memory block that p points to,

but doesn’t change p itself.

• If we forget that p no longer points to a valid memory

block, chaos may ensue:

char *p = malloc(4); … free(p); … strcpy(p, "abc"); /*** WRONG ***/

• Always assign your pointers to malloced memory or by &
• f a variable.
• Stack variables (i.e. locals in functions) are deallocated as

soon as a function returns. Therefore, avoid assigning pointers to addresses of such variables.

Working with Memory Blocks

• Generic pointers can not be dereferenced.
• string.h functions to work with typeless memory

blocks pointed to by void *.

• void *memcpy(void *des,void *src,size_t l);
• void *memmove(void *des,const void *src,size_t l);
• int memcmp(const void *p,cost void *q,size_t l);
• void *memchr(const void *p, int val, size_t l);
• These are generic versions of the corresponding string

functions (strcpy, strcmp and strchr).

• memmove is used instead of memcpy if the two blocks
• verlap.

File I/O on Memory Blocks:Binary Files

• Binary files do not have a line-oriented structure.
• They consist of blocks of objects, and the format of these
• bjects are application as well as machine dependent.
• When opening a binary file, always append a 'b' to the

second argument, i.e.

• fopen("test.exe", "wb");
• fopen("test.exe", "rb");

Current File Position

• long ftell(FILE *fp);
• Returns the current file position, or –1L.
• fseek is used to set the file position:

fseek(fp, -sizeof(double), SEEK_CUR);

• ftell’s return value is often used by fseek:

long file_pos; … file_pos = ftell(fp); /* saves current position */ … fseek(fp, file_pos, SEEK_SET); /* returns to old position */

3/27/14 ¡ 6 ¡

File Positioning

• fgetpos(fp, &file_pos) stores the file

position associated with fp in the file_pos variable.

• fsetpos(fp, &file_pos) sets the file position

for fp to be the value stored in file_pos. fpos_t file_pos; … fgetpos(fp, &file_pos); /* saves current position */ … fsetpos(fp, &file_pos); /* returns to old position */

Read/Write a Binary File

• The fread and fwrite functions allow a

program to read and write large blocks of data in a single step.

• size_t fread(void *buf, size_t s,

size_t ne, FILE *in);

• Reads up to ne elements, each of size s in bytes

and stores them in buf

• size_t fwrite(const void *buf,

size_t s, sizt_t ne, FILE *out);

• Similarly, writes from buf up to ne blocks, each
• f size s
• Number of elements (not bytes!) successfully read/

written is returned

Read/Write a Binary File

• A call of fread that reads the contents of a file

into the array a:

n = fread(a, sizeof(a[0]), sizeof(a) / sizeof(a[0]), fp);

• A call of fwrite that writes a structure variable s

to a file:

fwrite(&s, sizeof(s), 1, fp);

• fwrite is convenient for a program that needs to

store data in a file before terminating.

• Later, the program (or another program) can use

fread to read the data back into memory.
