SLIDE 1

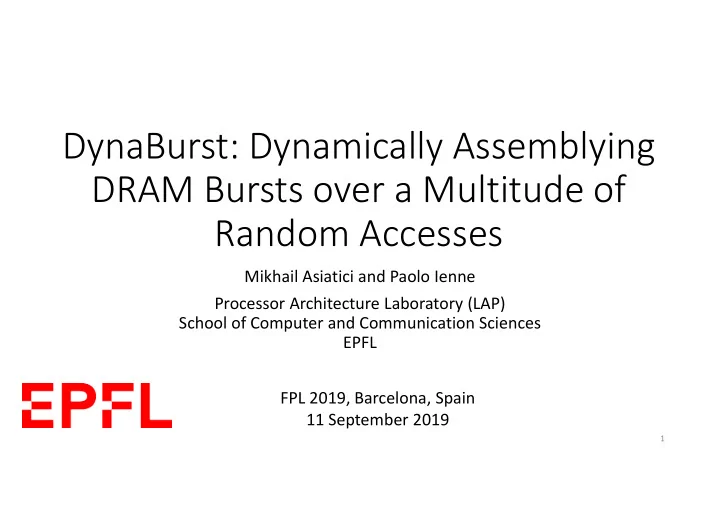

DynaBurst: Dynamically Assemblying DRAM Bursts over a Multitude of Random Accesses

Mikhail Asiatici and Paolo Ienne Processor Architecture Laboratory (LAP) School of Computer and Communication Sciences EPFL FPL 2019, Barcelona, Spain 11 September 2019

1

SLIDE 2

Motivation

DDRx Memory Memory Controller Accelerator Accelerator Accelerator Accelerator Local Memory Local Memory Local Memory Local Memory

2

Read accesses: regular, predictable local reuse

SLIDE 3

Motivation

DDRx Memory Memory Controller Accelerator Accelerator Accelerator Accelerator 8 beats 64 bits Miss-Optimized Memory System (Nonblocking Cache)

?

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019

512 bits

3

Read accesses: irregular, short, pattern unknown at compile time

SLIDE 4

Limitations of Prior Work

DDRx Memory Accelerator Accelerator Accelerator Accelerator

(1) Useless with multiple, narrow ports

Reuse opportunities are rare
Most of DDR burst content is wasted

4

Memory Controller Miss-Optimized Memory System (Nonblocking Cache)

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019

SLIDE 5

Accelerator Accelerator Accelerator Accelerator

Limitations of Prior Work

DDRx Memory Memory Controller 1 kB row buffer banks Row conflict

Request reordering
…but limited view of

future requests (10s) The access pattern sent to the memory controller matters!

5

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019

SLIDE 6

Accelerator Accelerator Accelerator Accelerator

Limitations of Prior Work

DDRx Memory Memory Controller 1 kB row buffer banks Row conflict

6

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019
Request reordering
…but limited view of

future requests (10s) The access pattern sent to the memory controller matters!

SLIDE 7

Limitations of Prior Work

DDRx Memory Memory Controller Accelerator Accelerator Accelerator Accelerator

(2) No care given to access pattern (2) to the memory controller → Up to 60% of bandwidth lost to row conflicts (1) Useless with multiple, narrow ports

7

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019

Miss-Optimized Memory System (Nonblocking Cache)

SLIDE 8

(1) Useless with multiple, narrow ports Bursts increase reuse opportunities and use larger portions of DDR bursts

Key Idea: Bursts of Memory Requests

DDRx Memory Memory Controller Accelerator Accelerator Accelerator Accelerator

(2) No care given to access pattern (2) to the memory controller Access pattern becomes locally sequential and we make use of larger portions of DDR rows, increasing available bandwidth (1) Useless with multiple, narrow ports

8

row buffer

DynaBurst

SLIDE 9

Outline

Nonblocking Caches and Miss-Optimized Memory Systems
Top-Level Architecture
Handling Bursts
Experimental Setup
Results
Conclusion

9

SLIDE 10

1 MSHR ↔ 1 memory request = 1 cache line 1 subentry ↔ 1 incoming request MSHR array

tag subentries

Nonblocking Caches

0x1004

External memory

0x100 0x100C

10

miss

0x100 4 C

Cache array

tag data 0x123 0xCA8 0x1F2D5D08706718799CD58F2F566 0xE9C0F7A7697CBA7CDC1A7934E34 0x100: 0x36C2156B751D4EBB940316495CB 0x156B 0xEBB9

Primary miss

allocate MSHR
allocate subentry
send memory request

Secondary miss

allocate subentry

MSHR = Miss Status Holding Register

0x1000x36C2156B751D4EBB940316495CB

MSHRs provide reuse without having to store

the cache line → same result, smaller area

More MSHRs can be better than a larger cache

SLIDE 11

Scaling Up Miss Handling

11

= = = = = = = =

h0 hd-1

Fully-associative array Cuckoo hash tables in BRAMs Subentry slots statically assigned to MSHRs Dynamic subentry allocation

Subentry buffer MSHR buffer

→ efficient storage and lookup of 10,000s MSHRs and subentries

Traditional nonblocking caches Miss-Optimized Memory System [1]

SLIDE 12

Outline

Nonblocking Caches and Miss-Optimized Memory System
Top-Level Architecture
Handling Bursts
Experimental Setup
Results
Conclusion

12

SLIDE 13

56 0x1004

Top-Level Architecture

13

56 0x1004 ID Address Accelerator Accelerator Crossbar Cache MSHR buffer Subentry buffer Data buffer Multi-ported memory interface External memory controller miss 0x100 0x100 56 0x100: 0x36C2156B751D4EBB940316495CB Tag Data Cache MSHR buffer Subentry buffer Data buffer

… … …

hit

SLIDE 14

What’s New in DynaBurst

14

Accelerator Accelerator Crossbar Cache MSHR buffer Subentry buffer Data buffer Multi-ported memory interface External memory controller Cache MSHR buffer Subentry buffer Data buffer

… … …

Flip-flops → LUTRAM, BRAM Multi-ported Variable-length bursts

SLIDE 15

Outline

Nonblocking Caches and Miss-Optimized Memory System
Top-Level Architecture
Handling Bursts
Experimental Setup
Results
Conclusion

15

SLIDE 16

From Single Requests to Bursts

16

Memory space

1 cache line = 1 memory request

MSHR

1 MSHR: 1 memory request 1 subentry: 1 incoming request

SLIDE 17

From Single Requests to Bursts

17

Memory space

1 cache line

MSHR

1 MSHR: 1 burst = N memory requests 1 subentry: 1 incoming request

Problem: Data wastage

SLIDE 18

From Single Requests to Bursts

18

Memory space MSHR

1 MSHR: 1 burst = 1–N memory requests 1 subentry: 1 incoming request 1 cache line

Grouping region Actual burst

SLIDE 19

1 cache line

From Single Requests to Bursts

19

Memory space MSHR DDR Memory Output request queue

On a new request: 1) MSHR exists? 2) If yes: request covered by current burst bounds? 3) If not: burst still in the

utput queue?

On a new request: 1) MSHR exists? 2a) If yes: request covered 2a) by current burst 0 2a) bounds? 3a) If not: burst 0 still in the 3a) output queue? 2b) Is burst 1 valid? 3b) If yes: request covered 3b) by current burst 1 3b) bounds? 4b) If not: burst 1 still in 4b) the output queue? 2c) Is burst 2 valid? 3c) If yes: request covered 3c) by current burst 2 3c) bounds? 4c) If not: burst 2 still in the 4c) output queue? …

1 MSHR: 1 burst = 1–N memory requests 1 subentry: 1 incoming request

→ Large area and delay

verheads

SLIDE 20

Burst Invalidations

20

Memory space MSHR DDR Memory Output request queue

I

NQ

Burst updatable during

f its lifetime

1 MSHR: 1 burst = 1–N memory requests 1 subentry: 1 incoming request Invalidated burst pending: ignore first response Capacities: Queue: ≈ 1,000 – 10,000 Memory pipeline: ≈ 10 – 100

(see paper)

Nmem

SLIDE 21

Outline

Nonblocking Caches and Miss-Optimized Memory System
Top-Level Architecture
Handling Bursts
Experimental Setup
Results
Conclusion

21

SLIDE 22

Board: Xilinx ZC706

XC7Z045 Zynq-7000 FPGA
1 GB of DDR3 on processing system (PS) side
3.9 GB/s through four 64-bit ports at 150 MHz
1 GB of DDR3 on programmable logic (PL) side
12.0 GB/s through one 512-bit port at 200 MHz

22

SLIDE 23

Accelerators: Compressed Sparse Row SpMV

This work is not about optimized

SpMV!

We aim for a generic architectural

solution

Why SpMV?
Representative of latency-tolerant,

bandwidth-bound applications with various degrees of locality

Important kernel in many

applications

Several sparse graph algorithms

can be mapped to it

23

A. Ashari et al. “Fast Sparse Matrix-Vector Multiplication on GPUs for graph applications” SC 2014
J. Kepner and J. Gilbert “Graph Algorithms in the Language of Linear Algebra” SIAM 2011
15 benchmarks from SuiteSparse
Include web, social, road

networks, and linear programming

Single-precision floating point

values

Vector size: 1.7–91 MB

(BRAM size: 2.39 MB) https://sparse.tamu.edu/

SLIDE 24

PL and PS Systems

PL DDR PS DDR High bandwidth, single wide port Low bandwidth, 4 narrow ports PL system

Same as in our

previous work

4 accelerators and

banks

200 MHz

PS system

8 accelerators and

banks

150 MHz

24

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019

SLIDE 25

Design Space Exploration

Baselines: other generic memory systems for irregular access pattern
Our prior work (single-request)
Each design point compared to same cache and miss handling configuration
Traditional nonblocking cache with associative MSHRs
16 MSHRs + 8 subentries each, per bank
Each design point compared to traditional cache with closest BRAM utilization

PL systems (4 banks) PS systems (8 banks) Total cache size (KB) 0, 128, 256, 512, 1024 0, 64, 128, 256, 512 Maximum burst length 2, 4, 8, 16 Miss handling (6 subentries/row)

Small

2k MSHR, 12k subentries 4k MSHR, 24k subentries

Medium

6k MSHR, 48k subentries 8k MSHR, 48k subentries

Large

16k MSHR, 96k subentries 16k MSHR, 96k subentries

25

M. Asiatici and P. Ienne, “Stop Crying Over Your Cache Miss Rate: Handling Efficiently Thousands of Outstanding Misses in FPGAs” ISFPGA 2019

SLIDE 26

Outline

Nonblocking Caches and Miss-Optimized Memory System
Top-Level Architecture
Handling Bursts
Experimental Setup
Results
Conclusion

26

SLIDE 27

Impact of Maximum Burst Length and of Burst Trimming

27

Bursts much more useful

n PS system

We’ll now consider only best max burst lengths Some benefit

n specific

design points

n PL system

Variable-length always better than fixed-length Short bursts: minimize data wastage Long bursts: maximize reuse opportunities, DDR burst, and DDR row usage Optimum is somewhere in the middle

SLIDE 28

Cache and Miss Handling Size Exploration

28

Bursts required to make miss-optimized memory systems cost-effective Bursts further improve performance on most of the design points We’ll now look into these points

SLIDE 29

Speedup on Individual Benchmarks

29

Most effective where traditional cache performance was lower Up to 3.4x speedup at similar area cost where caches are ineffective Bursts further improve most of single-request results

SLIDE 30

Resource Utilization

30

BRAM Slices PS system 0 – 15 % 30 – 40 % PL system 2 – 15 % 10 – 15 % Overhead vs single-request

SLIDE 31

Conclusion

Caches are not effective when read accesses are irregular and short
Single-request miss-optimized memory systems
Reuse same memory request among multiple incoming requests
Useful only when memory controllers have wide ports
DynaBurst
Merges incoming requests into bursts of memory requests
Controller with narrow ports: up to 3.4x speedup compared to cache with

similar area

Controller with wide port: up to 2.4x speedup with < 15% area overhead

compared to prior work

31

SLIDE 32

Thank you!

https://github.com/m-asiatici/dynaburst

32

SLIDE 33

Backup

33

SLIDE 34

34

Memory bound → in > memory

Filling the Output Queue

MSHRs:

Allocated on primary miss
Deallocated on memory response

Memory response rate = memory request rate

SLIDE 35

35

Slope = primary - memory Slope = in - memory t

Filling the Output Queue

NMSHR NQ NMSHR,eq NQ,eq= NMSHR,eq - Nmem Nmem NMSHR,eq > NMSHR,max

Stalls decrease incoming rate

until NMSHR,eq = NMSHR,max

NQ,eq= NMSHR,max - Nmem

Probability that a burst can be updated: 𝑂 𝑂 + 𝑂 = 𝑂, − 𝑂 𝑂, ≈ 1 (𝑂, ≫ 𝑂) NMSHR,eq < NMSHR,max memory is not a bottleneck any more

SLIDE 36

Invalidations and Burst Usage

36
