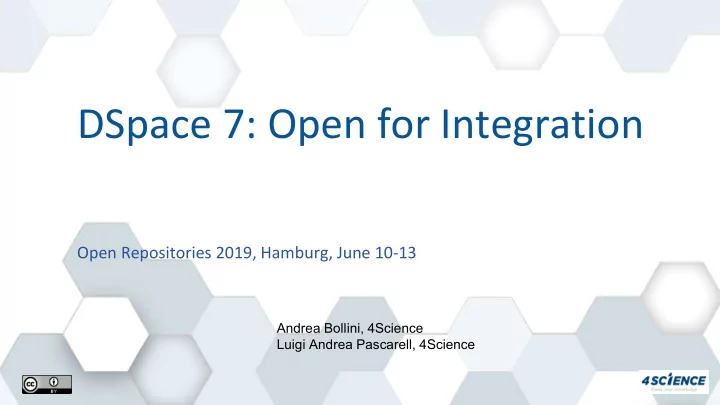

SLIDE 1
DSpace 7: Open for Integration
Andrea Bollini, 4Science Luigi Andrea Pascarell, 4Science
Open Repositories 2019, Hamburg, June 10-13
DSpace 7: Open for Integration Open Repositories 2019, Hamburg, June - - PowerPoint PPT Presentation
DSpace 7: Open for Integration Open Repositories 2019, Hamburg, June - - PowerPoint PPT Presentation
DSpace 7: Open for Integration Open Repositories 2019, Hamburg, June 10-13 Andrea Bollini, 4Science Luigi Andrea Pascarell, 4Science About To adopt a Repository-as-a-Service model, support different users and communities, it is crucial to be
SLIDE 2
SLIDE 3
Why a new REST API?
Covers only a subset of DSpace functionality Not based on current REST best practices
- r standards
Handcrafted in Jersey, while most DSpace code uses Spring technologies
4.x - 6.x
No search No submit / workflows Limited admin operations Limited write / delete (4.x was read only)
SLIDE 4
All features MUST be in REST API (for Angular UI) Defined REST Contract. HATEOAS, ALPS, HAL format Built using Spring technologies (Spring Boot, MVC, HATEOAS) Bonus: better third-party app integration!
7.x
{ REST }
Why a new REST API?
SLIDE 5
REST Maturity Level
Image from: https://martinfowler.com/articles/richardsonMaturityModel.html
{ REST }
HATEOAS = Hypertext As The Engine Of Application State Allow the client to discover the “next step” HAL = Hypertext Application Language (JSON or XML) Talk a simple standard language ALPS = Application Level Profile Semantics Be specific about your expectation and promise
SLIDE 6
You can use the command line…
curl "https://dspace7.4science.cloud/dspace-spring-rest/api"
But, there are better ways… using a REST client
Interacting with a REST API
SLIDE 7
- The Official REST Demo public instance (provided by 4Science)
–
https://dspace7.4science.it/dspace-spring-rest/
- Navigate to the link above to explore
HAL Browser
SLIDE 8
SLIDE 9
Request + Headers
SLIDE 10
Response Headers
HTTP Status code
SLIDE 11
Response Body
RAW JSON Response The HAL Browser will parse the key elements: _links _embedded Everything else
SLIDE 12
HAL Document
SLIDE 13
Response Properties
SLIDE 14
Links: All endpoints are available from the Entry Point
SLIDE 15
Communities Endpoint Response
Communities endpoint Pagination properties
SLIDE 16
Links - A generic approach to paginated results
SLIDE 17
Embedded Community Properties
SLIDE 18
Embedded Community Links
SLIDE 19
On a COLLECTION Endpoint (“set of all” items, communities, etc.)
- POST Adds a new element to the collection
- GET Returns the first page of the resources in the collection
On a single RESOURCE Endpoint (specific item, collection, etc)
- GET Returns a single entity
- HEAD Returns whether the item resource is available
- PUT Replaces the state
- PATCH Similar to PUT but partially updating the resources state
- DELETE Deletes the resource exposed
Right use of the HTTP Verbs
SLIDE 20
- uniform, consistent and self-documented behaviour
- full functional coverage, both for anonymous user and privileged
users
- stable, well documented and fully tested solution so that
integration will not easily break from one version to another ○ Test-Driven Development ○ Contract first approach
Reliable, stable and automatically tested
76% Test Coverage, mainly Integration Test
{ REST }
SLIDE 21
Supported Integration Scenarios
SLIDE 22
Reuse of the information
{ REST }
Embedding Javascript code “Badge” in personal websites List of departments and research group publications Complete backend integration with search, browse, editing capabilities
SLIDE 23
Data acquisition
{ REST }
SLIDE 24
Data acquisition
{ REST }
raw
SLIDE 25
Wide Institutional Process - Theses
Fill form to request Thesis assignation in the Student Management System
{ REST }
Student completes the submission uploading the Thesis in the repository
{ REST }
An external Anti-Plagiarism system will analyze the Thesis Advisor approves
{ REST }
Graduation recorded in the Student Management System
SLIDE 26
- 1. quick prototyping end users functionalities
- a. notification services of pending tasks, unfinished submissions, …
- b. reporting tools: usage, content and workflow statistics
- 2. extraction and external batch processing of the data in the
developer preferred programming language
- 3. data crawling and enrichment
More and more
… there are indeed no limits to the integrations that can be implemented
SLIDE 27
«Alexa, ask DSpace demo for the number of items»
Do you want to talks with DSpace?
«Alexa, ask DSpace demo to search for molecular »
«Alexa, ask DSpace demo for information about John Smith»
SLIDE 28
SLIDE 29
