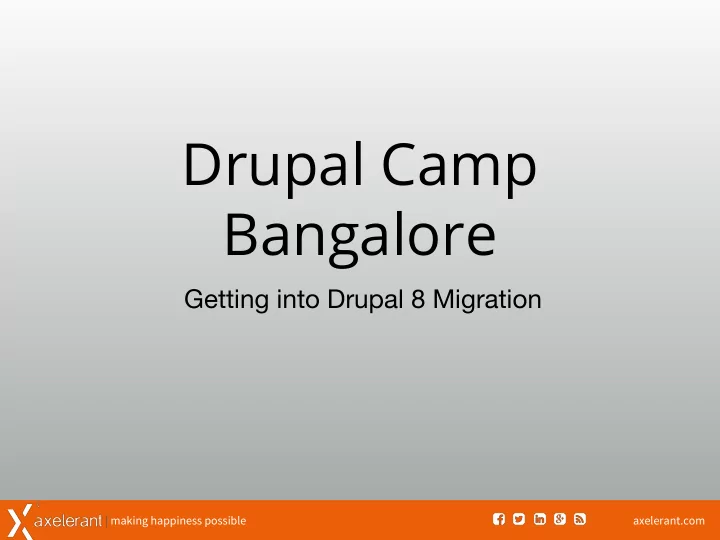

Drupal Camp Bangalore

Getting into Drupal 8 Migration

| making happiness possible axelerant.com

Mohit Aghera Drupal Developer @Axelerant Drupal : mohit_aghera Twitter: mohit_rocks

About Me

| making happiness possible axelerant.com

D8 Migrate in core

• The Migrate and Drupal-to-Drupal Data Migration

modules have been rewritten.

• Moved into Drupal 8 core.
• Their scope has been expanded.

| making happiness possible axelerant.com

D8 Migrate Background

• core/modules/migrate
• core/modules/migrate_drupal

| making happiness possible axelerant.com

D8 Migrate in Core

• Most of the D6->D8 migration work is done - some

bugs remain.

• D7->D8 migration work is in progres !!
• Migration UI doesn’t comes in D8 Core {Separate

module}

• Advanced feature like rollback, reset are not yet in

core.

| making happiness possible axelerant.com

Migrations are Plugins !!

• Yaayy… D8 Migration API is extensible using plugin.
• It leverages standard D8 Plugins.
• Now we are able to provide migration support to any

content and configuration data of any contrib or custom module.

| making happiness possible axelerant.com

Type of Migrations !!

• Content migration
• Node migration
• User migration
• Config migrations
• Variable migrations
• Field migrations
• Entity type migrations

| making happiness possible axelerant.com

The anatomy of migration

• Migrate source
• Migrate process
• Migrate destination

| making happiness possible axelerant.com

Content of migration_template file

• File “migrate.migration.

migrate_example_user_role. yml”

• id : same as last part of file

name

• source : configure source

data; usually source plugin

• destination: destination entity
• process : list of processors

plugins applied to destination field.

| making happiness possible axelerant.com

Migrate Source

• Migration configuration entity contains source key
• Value is an associative array
• {name} => {Configuration of plugin}

| making happiness possible axelerant.com

Migrate Process

• The Shorthands
• Simple copying
• Created by one plugin

process: uid: plugin: migration id: users source: author

| making happiness possible axelerant.com

Migrate Process

• The full pipeline
• Source value may be

passed to multiple plugins.

process: format:

• plugin: machine_name

source: name

• plugin: dedupe_entity

entity_type: filter_format field: format

| making happiness possible axelerant.com

Migrate Process

• Nested values
• For:
• $destination['display_settings']['label']['format']
• $source['display_settings']['label']['format']
• display_settings/label/format

| making happiness possible axelerant.com

Process Plugin : get

• Typically, “get” plugin is start
• f each pipeline
• Simply copies “Source” value

to “Destination”

process: bar: plugin: get source: foo process: bar: foo process: foo: plugin: machine_name source: baz bar: plugin: get source: “@foo"

| making happiness possible axelerant.com

Process plugin: callback

• Allows source values to be

passed to a callable

• Prefered to use only one

argument to avoid very complex YAML

process: destination_field:

• plugin: callback

callable:

• '\Drupal\Component\Utility\Unicode'
• strtolower

source: source_field

| making happiness possible axelerant.com

Process Plugin: Concat

• Allows to concatenate source

values for relevant D8 destination values

process: new_text_field: plugin: concat source:

• foo
• bar

process: new_text_field: plugin: concat source:

• foo
• bar

delimiter: /

| making happiness possible axelerant.com

Process Plugin: dedupe_entity

• dedupe_entity is used to

prevent duplication.

• Usually used with entity types

and fields.

process: format:

• plugin: machine_name

source: name

• plugin: dedupe_entity

entity_type: filter_format field: format

| making happiness possible axelerant.com

Process Plugin: dedupebase

• Avoids duplication at the

destination

• We can also specify a postfix

delimiter, a start position, and a length

process: new_text_field: plugin: dedupebase source: some_text_field postfix: _ start: 2 length: 6

| making happiness possible axelerant.com

Process Plugin : default_value

• Provides ability to set fixed

default value

• sets the pipeline to the default

value if the pipeline has no value (NULL, zero or empty string)

process: uid:

• plugin: migration

id: users source: author

• plugin: default_value

default_value: 44

| making happiness possible axelerant.com

Process Plugin : extract

• Pulls data from potentially

multi-level arrays in the source

• Ex: Used for Drupal 7 fields

process: new_text_field: plugin: extract source: some_text_field index:

• und
• value

| making happiness possible axelerant.com

Process plugin : flatten

• Takes multi-dimensional arrays and flattens it.
• Source : array(array(1, 2, array(3, 4)), array(5), 6)
• Destination: array(1, 2, 3, 4, 5, 6).

| making happiness possible axelerant.com

Process Plugin: Machine name

• Prepares source string like

machine name

process: bar: plugin: machine_name source: foo Source: áéíK! Destination: aeik_

| making happiness possible axelerant.com

Process plugin: Migration

• Maintains relationship among

source and destination content in map tables.

process: uid: plugin: migration migration: users source:

• author

| making happiness possible axelerant.com

Process plugin : skip_process_on_empty

• Checks whether current

pipeline is empty.

• If so, skip processing. assign

value to destination.

process: parent:

• plugin: skip_process_on_empty

source: parent

• plugin: migration

migration: d6_taxonomy_term

| making happiness possible axelerant.com

Process plugin: skip_row_if_not_set

• Checks if value isset.
• If set, returns value otherwise

“MigrateSkipRowException” exception

process: settings: plugin: skip_row_if_not_set index: contact source: data

| making happiness possible axelerant.com

Process Plugin : skip_row_on_empty

• Entire row is skipped if value is

empty

process: field_type_exists:

• plugin: migration

migration: d6_field source:

• field_name
• plugin: extract

index:

• 1
• plugin: skip_row_on_empty

| making happiness possible axelerant.com

Process Plugin : Static Map

• Allows looking up a value

based on a map specified in the configuration.

process: bar: plugin: static_map source: foo map: from: to this: that

axelerant.com | making happiness possible

Static map real example

process: id: plugin: static_map source:

• module
• delta

map: filter: 0: filter_html_escape 1: filter_autop 2: filter_url 3: filter_htmlcorrector 4: filter_html_escape php: 0: php_code

| making happiness possible axelerant.com

Migrate Destination

• Destination has mandatory

plugin key like entity: entity_type

• URL aliases are also

exportable

destination: plugin: config config_name: book.settings

| making happiness possible axelerant.com

Migrate destination

• Migrate destination: component_entity_display
• Migrate destination: component_entity_form_display
• Migrate destination: entity:user

| making happiness possible axelerant.com

Migrate Example

• We will migrate users and roles from non-drupal

database to drupal 8

| making happiness possible axelerant.com

Questions ??

| making happiness possible axelerant.com

Thank you !!
