LASER COMMUNICATIONS FOR SATELLITE MEGA-CONSTELLATIONS NEWSPACE-STYLE April 2016 Dr. Markus Knapek Dr. Markus Knapek Laser Communication at ViaLight Optical Network above the Clouds Data rates up to 10Gbps Inter-Sat Low SWaP,

slide-1
SLIDE 1
  • Dr. Markus Knapek

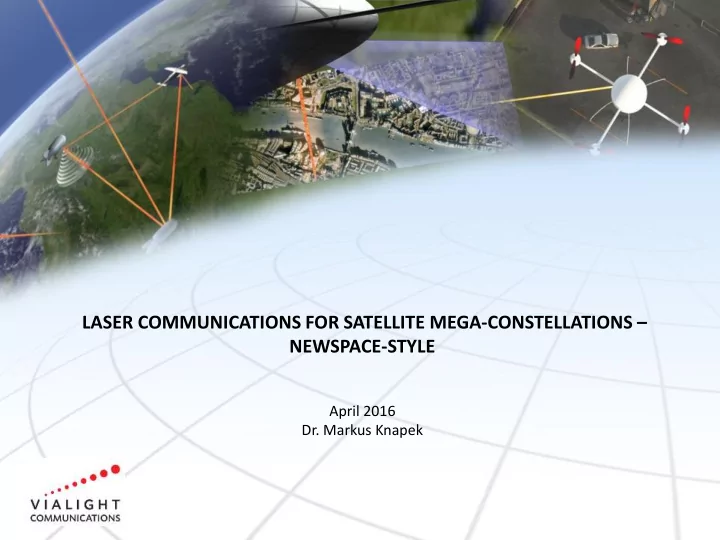

LASER COMMUNICATIONS FOR SATELLITE MEGA-CONSTELLATIONS – NEWSPACE-STYLE

April 2016

  • Dr. Markus Knapek
slide-2
SLIDE 2
  • Dr. Markus Knapek

2

Laser Communication at ViaLight

Optical Network above the Clouds

  • Data rates up to 10Gbps
  • Low SWaP, <10kg
  • Competitive price for terminals in LEO

Today’s Business at ViaLight

  • Stratospheric inter-platform links

with large commercial customers

  • Industrial manufacturing approach

for larger series

  • Path towards large constellations of small

satellites

Inter-HAP Inter-Sat LEO-Ground

slide-3
SLIDE 3
  • Dr. Markus Knapek

Stratospheric Communciation Players

March 2014 April 2014

slide-4
SLIDE 4
  • Dr. Markus Knapek

4

Laser Communication for the New Space Market

Communication:

  • SpaceX
  • OneWeb
  • LeoSat

Earth Observation

  • SkyBox Imaging
  • PlanetLabs
  • BlackSky
  • UrtheCast
  • Need for inexpensive solutions to make ambitious business models work
  • Rather industrial than traditional space manufacturing approach
slide-5
SLIDE 5
  • Dr. Markus Knapek

5

MLT-20 - Short-Distance Links

ViaLight’s Flight Terminals and Ground Stations

Application Scenarios

  • Inter-aircraft, Inter-High

Altitude Platforms (HAP), flight platform to satellite Characteristics

  • 70/100mm aperture
  • Up to 10Gbps on one

channel Application Scenarios

  • Platform to ground links
  • Inter-UAV at short distances

Characteristics

  • Link distance up to 50km
  • 20mm terminal
  • Weight 5-10kg
  • 1-10Gbps

MLT-70/100 - Long-Range Inter- Platform GS-200 Ground Station Air-to-Ground Application Scenarios

  • Fast adhoc setup

Characteristics

  • 200mm station aperture
  • Weight <45kg
  • Bi-directional or asymmetric

communication at up to 10Gbps GS-400/600/800 Ground Station Satellite-to-Ground Application Scenarios

  • Satellite-to-ground links

Characteristics

  • 400/600/800mm Cassegrain

telescopes

  • Bi-directional or asymmetric

communication at up to 10Gbps

slide-6
SLIDE 6
  • Dr. Markus Knapek

6

Proof of Concept under Extreme Test Conditions

ViaLight MLT-20 on a Jet-Fighter Platform Secure link despite:

  • Poor weather conditions
  • 750km/h, 7km altitude, 60km range
  • Extreme shocks with afterburner

Foto: J. Gietl 2013 @ Cassidian

slide-7
SLIDE 7
  • Dr. Markus Knapek

7

Inter-Platform Link Laser Terminal

slide-8
SLIDE 8
  • Dr. Markus Knapek

8

Design and Quality Process

Thermal Management Structural Design Quality & Testing

Heat-flow simulation Implementation of thermal management Structural FEA simulations with Eigen-frequencies Investigation of design alternatives for low weight Manufacturing documentation Life-time testing Thermo-vacuum and vibration tests

slide-9
SLIDE 9
  • Dr. Markus Knapek

9

Modular Concept for Effective Series Production

slide-10
SLIDE 10
  • Dr. Markus Knapek

10

Space Demonstration of MLT-70 on MUSES

  • Partnership with various

space companies and experts

  • Near-term demonstration
  • f a low-cost laser

terminal on MUSES on the ISS

  • Laser terminal based on

the already existing stratospheric MLT-70

  • Prototype for small

satellite laser terminals (Sat2Ground, Inter-Sat)

slide-11
SLIDE 11
  • Dr. Markus Knapek

11
