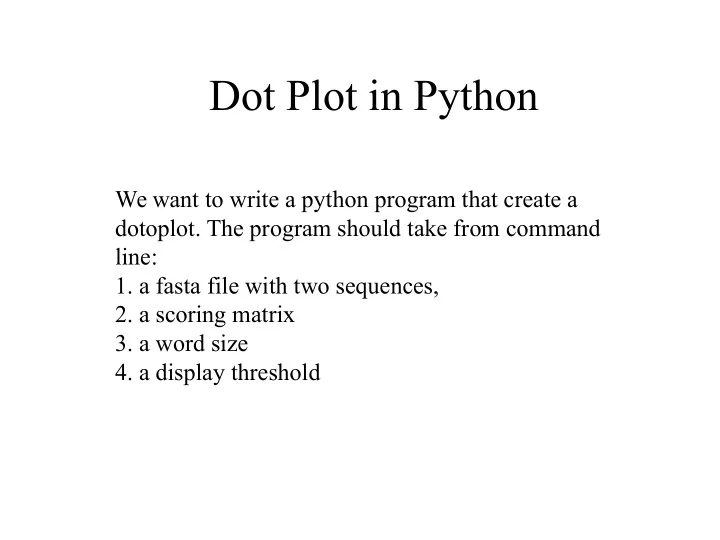

Dot Plot in Python

We want to write a python program that create a

• dotoplot. The program should take from command

line:

• 1. a fasta file with two sequences,
• 2. a scoring matrix
• 3. a word size
• 4. a display threshold

Text example Id matrix, wordsize=3, threshold=1

\ S A A A S S A A T T T T A * * * A * * * * * A * * * T * T T

matplotlib example Id matrix, wordsize=3, threshold=1

Building an internal description of the dotplot

def computeDP(s1,s2,sm,ws,th): ''' s1,s2= sequences, sm= score matrix (as dict), ws=word size, th= cutoff threshold ''' dp=set() for i in range(len(s1)-ws+1): for j in range(len(s2)-ws+1): sc=0.0 for k in range(ws): sc=sc+sm.get((s1[i+k],s2[j+k]), 0.0) if scoreij >= th: dp.add((i,j)) return dp

Printing in in text format

def printDP(s1,s2,dp,shift=0): ''' s1,s2=sequences, dp=dotplot, shif=shifting print positions''' print "\\", for j in range(len(s2)): print s2[j], print for i in range(len(s1)): print s1[i], for j in range(len(s2)): pc=" " if (i-shift,j-shift) in dp : pc="*" print pc, print

Printing using matplotlib

def printMDP(s1,s2,dp,shift=0): import matplotlib.pyplot as plt L1=len(s1) L2=len(s2) plt.axis([0, L1+1, 0, L2+1]) x,y=[],[] for i,j in dp: x.append(i+shift+1) y.append(j+shift+1) plt.plot(x, y, 'ro') plt.show()

Computational complexity is quadratic: O(|s1|*|s2|*ws)

def computeDP(s1,s2,sm,ws,th): ''' s1,s2= sequences, sm= score matrix (as dict), ws=word size, th= cutoff threshold ''' dp=set() for i in range(len(s1)-ws+1): for j in range(len(s2)-ws+1): sc=0.0 for k in range(ws): sc=sc+sm.get((s1[i+k],s2[j+k]), 0.0) if scoreij >= th: dp.add((i,j)) return dp

Computational complexity is quadratic: O(|s1|*|s2|*ws)

Is it possible to improve the computational complexity?

Idea: pre-process one sequence in order to know in advance the possible matches, then scan the

• ther sequence.

Example: assume you have a function getSimpos

>>> s1="TTTAAATTT" >>> s2="SAAASSAAT" >>> al,sm=readScoreMatrix('id.mat') >>> getSimpos(s1,al,sm,ws=1,th=0) {'A': [3, 4, 5], 'T': [0, 1, 2, 6, 7, 8]} >>> getSimpos(s1,al,sm,ws=3,th=3) {'AAA': [3], 'TTT': [0, 6], 'AAT': [4], 'ATT': [5], 'TAA': [2], 'TTA': [1]} >>>

With the preprocess given by getSimpos, it is possible to know for each word in the second sequence if there is match with the first and directly in which positions!

>>> s1="TTTAAATTT" >>> s2="SAAASSAAT" >>> ws,th = 3,2 >>> simpos=getSimpos(s1,al,sm,ws,th) >>> simpos {'AAA': [3], 'TTT': [0, 6], 'AAT': [4], 'ATT': [5], 'TAA': [2], 'TTA': [1]} >>> for j in range(len(s2)-ws+1): ... word=s2[j:j+ws] ... for i in simpos.get(word,[]): ... print i,j,s1[i:i+ws],s2[j:j+ws] ... 3 1 AAA AAA 4 6 AAT AAT >>>

getSimpos: simplified version

def getSimpos_simple(s1,sm,ws,th): ''' s1=sequence, ws=score matrix, ws=word size, th=threshold ''' simpos={} for i in range(len(query)-ws+1): word=query[i:i+ws] simpos[word]=simpos.get(word,[]) simpos[word].append(i) return simpos It works only for identity matrix! Why??

Blosum62 has more possible matches!

>>> al,sm=readScoreMatrix('id.mat') >>> s1 'TTTAAATTT' >>> getSimpos(s1,al,sm,ws=1,th=1) {'A': [3, 4, 5], 'T': [0, 1, 2, 6, 7, 8]} >>> al,sm=readScoreMatrix('blosum62.mat') >>> getSimpos(s1,al,sm,ws=1,th=1) {'A': [3, 4, 5], 'S': [0, 1, 2, 3, 4, 5, 6, 7, 8], 'T': [0, 1, 2, 6, 7, 8]} >>>

Blosum62

A R N D C Q E G H I L K M F P S T W Y V A 4 -1 -2 -2 0 -1 -1 0 -2 -1 -1 -1 -1 -2 -1 1 0 -3 -2 0 R -1 5 0 -2 -3 1 0 -2 0 -3 -2 2 -1 -3 -2 -1 -1 -3 -2 -3 N -2 0 6 1 -3 0 0 0 1 -3 -3 0 -2 -3 -2 1 0 -4 -2 -3 D -2 -2 1 6 -3 0 2 -1 -1 -3 -4 -1 -3 -3 -1 0 -1 -4 -3 -3 C 0 -3 -3 -3 9 -3 -4 -3 -3 -1 -1 -3 -1 -2 -3 -1 -1 -2 -2 -1 Q -1 1 0 0 -3 5 2 -2 0 -3 -2 1 0 -3 -1 0 -1 -2 -1 -2 E -1 0 0 2 -4 2 5 -2 0 -3 -3 1 -2 -3 -1 0 -1 -3 -2 -2 G 0 -2 0 -1 -3 -2 -2 6 -2 -4 -4 -2 -3 -3 -2 0 -2 -2 -3 -3 H -2 0 1 -1 -3 0 0 -2 8 -3 -3 -1 -2 -1 -2 -1 -2 -2 2 -3 I -1 -3 -3 -3 -1 -3 -3 -4 -3 4 2 -3 1 0 -3 -2 -1 -3 -1 3 L -1 -2 -3 -4 -1 -2 -3 -4 -3 2 4 -2 2 0 -3 -2 -1 -2 -1 1 K -1 2 0 -1 -3 1 1 -2 -1 -3 -2 5 -1 -3 -1 0 -1 -3 -2 -2 M -1 -1 -2 -3 -1 0 -2 -3 -2 1 2 -1 5 0 -2 -1 -1 -1 -1 1 F -2 -3 -3 -3 -2 -3 -3 -3 -1 0 0 -3 0 6 -4 -2 -2 1 3 -1 P -1 -2 -2 -1 -3 -1 -1 -2 -2 -3 -3 -1 -2 -4 7 -1 -1 -4 -3 -2 S 1 -1 1 0 -1 0 0 0 -1 -2 -2 0 -1 -2 -1 4 1 -3 -2 -2 T 0 -1 0 -1 -1 -1 -1 -2 -2 -1 -1 -1 -1 -2 -1 1 5 -2 -2 0 W -3 -3 -4 -4 -2 -2 -3 -2 -2 -3 -2 -3 -1 1 -4 -3 -2 11 2 -3 Y -2 -2 -2 -3 -2 -1 -2 -3 2 -1 -1 -2 -1 3 -3 -2 -2 2 7 -1 V 0 -3 -3 -3 -1 -2 -2 -3 -3 3 1 -2 1 -1 -2 -2 0 -3 -1 4

Idea: add a dictionary that takes care of all the words that we can predict will have a score higher than a threshold for a given matrix and a given word in our sequence.

Given a word: find all high scoring similar words: itertools.product

>>> import itertools >>> alphabet='AB' >>> ws=3 >>> for e in itertools.product(alphabet,repeat=ws): ... print "".join(e), e ... AAA ('A', 'A', 'A') AAB ('A', 'A', 'B') ABA ('A', 'B', 'A') ABB ('A', 'B', 'B') BAA ('B', 'A', 'A') BAB ('B', 'A', 'B') BBA ('B', 'B', 'A') BBB ('B', 'B', 'B')

Given a word: find all high scoring similar words:

def findSumWords(word,alphabet,sm,th): ''' findSumWords(word,alphabet,sm,th) ''' Similar=[] # list of similar words for w in itertools.product(alphabet,repeat=len(word)): cscore=0.0 for i in range(len(word)): cscore+=sm[word[i],w[i]] if cscore >= th: similar.append("".join(w)) return similar

GetSimpos

def getSimpos(query,alphabet,sm,ws,th): simpos={} # stores positions of a given matching word simwords={} # for each used word, store similar words for i in range(len(query)-ws+1): word=query[i:i+ws] # create word # test if we searched for similar words if not simwords.has_key(word): simwords[word]=findSumWords(word,alphabet,sm,th) for k in simwords[word]: simpos[k]=simpos.get(k,[]) simpos[k].append(i) return simpos

Finally: find all the dotplot matches!

def lcomputeDP(s1,s2,alphabet,sm,ws,th): ''' s1,s2=sequences, sm=score matrix ws=word size, th=threshold ''' dp=set() # initialize dotplot # process first sequence simpos=getSimpos(s1,alphabet,sm,ws,th) for j in range(len(s2)-ws+1): word=s2[j:j+ws] for i in simpos.get(word,[]): dp.add((i+hw,j+hw)) return dp

Computational complexity ??? Blue + Red

def lcomputeDP(s1,s2,alphabet,sm,ws,th): ''' s1,s2=sequences, sm=score matrix ws=word size, th=threshold ''' dp=set() # initialize dotplot # process first sequence simpos=getSimpos(s1,alphabet,sm,ws,th) for j in range(len(s2)-ws+1): # loop 1 word=s2[j:j+ws] for i in simpos.get(word,[]): # loop 2 dp.add((i+hw,j+hw)) return dp

Computational complexity:Blue

def getSimpos(query,alphabet,sm,ws,th): simpos={} # stores positions of a given matching word simwords={} # for each used word, store similar words for i in range(len(query)-ws+1): word=query[i:i+ws] # create word # test if we searched for similar words if not simwords.has_key(word): simwords[word]=findSumWords(word,alphabet,sm,th) for k in simwords[word]: simpos[k]=simpos.get(k,[]) simpos[k].append(i) return simpos

O(|s1|*dictionary) = O(c*n) ~ O(n) with a big constant c!

Computational complexity:Red

for j in range(len(s2)-ws+1): # loop 1 word=s2[j:j+ws] for i in simpos.get(word,[]): # loop 2 dp.add((i+hw,j+hw))

O(|s2|*simpos) => worst case O(n2) !!! But In the average case with reasonable threshold end score The number of positions that matches can be considered constant on average, so for average case: O(n) !

Computational complexity ??? Blue + Red

def lcomputeDP(s1,s2,alphabet,sm,ws,th): ''' s1,s2=sequences, sm=score matrix ws=word size, th=threshold ''' dp=set() # initialize dotplot # process first sequence simpos=getSimpos(s1,alphabet,sm,ws,th) for j in range(len(s2)-ws+1): # loop 1 word=s2[j:j+ws] for i in simpos.get(word,[]): # loop 2 dp.add((i+hw,j+hw)) return dp

O(n)+O(n) = O(n) !

Experimental time performace of the two implementations

* dotplot ^ lindotplot

Exercise:

Use the lin_dotplot idea to find local ungapped alignments:

• 1. use the dotplot pairs and link them together in a single

alignment if the pairs are on diagonals ( eg. (i-1,j-1), (i,j), (i+1,j+1), …)

• 2. extend the idea to process a sequence and search similar

local alignments in a set of sequences.
