Dometic MT 4 B Robust Transport box / system according ADR & - - PDF document

Dometic MT 4 B Robust Transport box / system according ADR & RID (2008/68/EC), IMDG (2002/84/EC) and ICAO-TI / IATA-DGR Cooling: Passive Transport system Storage capacity: 4 Blood Bags at 450 ml 6 Blood Bags at 270 ml Lockable &


slide-1
SLIDE 1

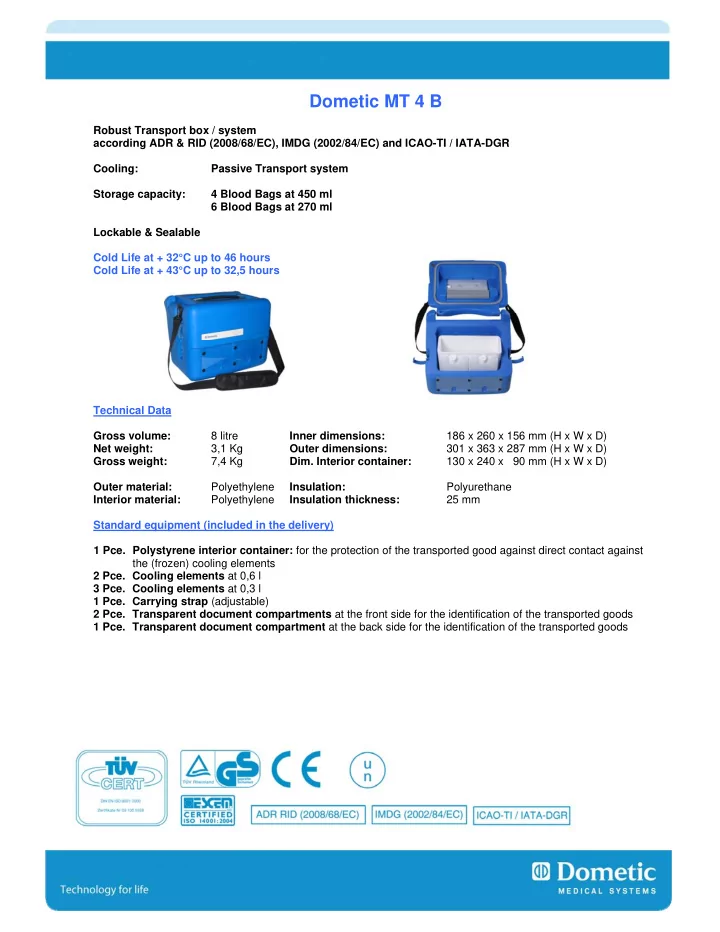

Dometic MT 4 B

Robust Transport box / system according ADR & RID (2008/68/EC), IMDG (2002/84/EC) and ICAO-TI / IATA-DGR Cooling: Passive Transport system Storage capacity: 4 Blood Bags at 450 ml 6 Blood Bags at 270 ml Lockable & Sealable Cold Life at + 32°C up to 46 hours Cold Life at + 43°C up to 32,5 hours Technical Data Gross volume: 8 litre Inner dimensions: 186 x 260 x 156 mm (H x W x D) Net weight: 3,1 Kg Outer dimensions: 301 x 363 x 287 mm (H x W x D) Gross weight: 7,4 Kg

  • Dim. Interior container:

130 x 240 x 90 mm (H x W x D) Outer material: Polyethylene Insulation: Polyurethane Interior material: Polyethylene Insulation thickness: 25 mm Standard equipment (included in the delivery) 1 Pce. Polystyrene interior container: for the protection of the transported good against direct contact against the (frozen) cooling elements 2 Pce. Cooling elements at 0,6 l 3 Pce. Cooling elements at 0,3 l 1 Pce. Carrying strap (adjustable) 2 Pce. Transparent document compartments at the front side for the identification of the transported goods 1 Pce. Transparent document compartment at the back side for the identification of the transported goods

slide-2
SLIDE 2

Optional accessories Cooling elements at 0,3 l – Set consists of 40 units Cooling elements at 0,6 l – Set consists of 24 units Polystyrene interior container Outside:186 x 265 x 110 mm (H x W x D) Inside: 135 x 235,5 x 80,5 mm (H x W x D) Mini temperature data logger Available documentation for the Dometic MT 4 B: Declaration of conformity (in accordance with ADR & RID, IMDG and ICAO-TI / IATA-DGR)

  • European agreement concerning the international carriage of dangerous goods by road (ADR) and by

railway (RID), Directive 2008/68/EC

  • European agreement concerning the international carriage of dangerous goody by sea transport (IMDG),

Directive 2002/84/EC

  • International agreement for air transport (ICAO-TI / IATA-DGR)

„MT 4 B has been approved for goods of the packaging group I, II and III.“ Closing cap Ice Pack Ice Pack Closing cap
