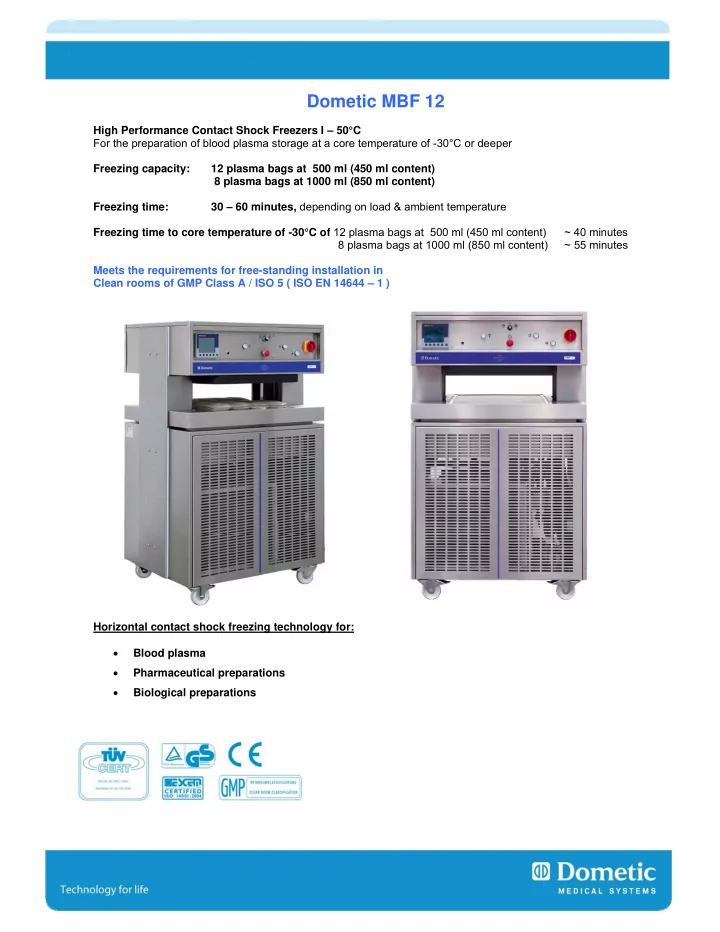

Dometic MBF 12

High Performance Contact Shock Freezers I – 50°C For the preparation of blood plasma storage at a core temperature of -30°C or deeper Freezing capacity: 12 plasma bags at 500 ml (450 ml content) 8 plasma bags at 1000 ml (850 ml content) Freezing time: 30 – 60 minutes, depending on load & ambient temperature Freezing time to core temperature of -30°C of 12 plasma bags at 500 ml (450 ml content) ~ 40 minutes 8 plasma bags at 1000 ml (850 ml content) ~ 55 minutes Meets the requirements for free-standing installation in Clean rooms of GMP Class A / ISO 5 ( ISO EN 14644 – 1 ) Horizontal contact shock freezing technology for:

• Blood plasma
• Pharmaceutical preparations
• Biological preparations

Advantages of the horizontal contact shock freezing technology

• Fast freezing to core temperature of – 30°C
• Automated and transparent freezing process inclusive documentation
• Simple & intuitive operation
• Evenly shaped bags for
• Optimum utilization of storage capacity
• Improved readability of labels and barcodes
• Improved further mechanical processing in automated systems
• Shock freezing of several successive batches without intermediate defrosting
• State-of-the-art compressor technology with optimized cooling system
• Air-cooled condenser
• Ergonomic design
• Quick and easy loading / removal of preparations
• Separate freezing of the fixed cover plate ( upper freezing plate ) and the electrically adjustable

working surface ( lower freezing plate )

• The preset operating temperature of -50°C minimizes the risk of bag rupturing
• Horizontal contact shock freezer for fast and even freezing times at core temperature
• Automatic process of the freezing process
• Low cost of ownership through the „Stand-By“-Modus
• High-grade Stainless steel housing
• Mobility by means of heavy castors with brakes
• Compact, service- and maintenance friendly construction, easy cleaning and disinfection, as

accessible from all 4 sides

• Low surface area needed
• Delivered ready to use ( 3ph 400 V / 50 Hz, 16 A )

Arrangement possibilities 8 plasma bags at 1000 ml

• r

12 plasma bags at 500 ml

Control elements Technical Data Exterior dimensions: 1600 x 970 x 770 mm (H x Wx D) Contact plates dimensions: 490 x 640 mm (W x D) Net weight: 300 Kg Defrosting: Hot gas (manuel over „Operating mode“ switch) Defrosting time: 8 min (as preset safety factor) Material outer casing: Stainless steel (V2A – 1.4301) Compressor: Bitzer Refrigerant type: R507 Climate class: N Ambient temperature: +16°C to +32°C Relative humidity: ≤ 70% at +32°C ambient temperature Energy consumption: 4,0 kWh / freezing cycle Power: 1800 W Voltage (3ph): 3 ~ 400 V / 50Hz (16A) Safety class: I GMP Clean room classification: Class A / ISO 5 ( ISO EN 14644-1) Control & operating element: Jumo Imago 500 Temperature sensors: PT 1000, in each contact plate

Supply inclusive: Temperature recorder ( Screenrecorder ) 4 – Channel Over multi-channel process und program controller with brilliant 5“-color display with 27 colors With the temperature recorder function, the temperatures

• f the upper cover plate and the lower work plate can be

recorded, as well as reference measurements for the freezing process over the dummy connection. Channel 1: Temperature „upper cover plate“ Channel 2: Temperature „lower work plate“ Channel 3: Temperature „Dummy bag“ Channel 4: „Reserve“ Dummy bag connection With the dummy connection, reference measurements at core temperature – accompanying to the freezing procedure – can be recorded. DMN Module – with B & B converter Optional Accessories: Dummy bags Reference measurements or validation processes can be done with the dummy bags during the freezing process. Either with internal measurements ( 1 x Sensor / PT100 4-adrig, Class B ), or with external measurements. Sensor for dummy bag
