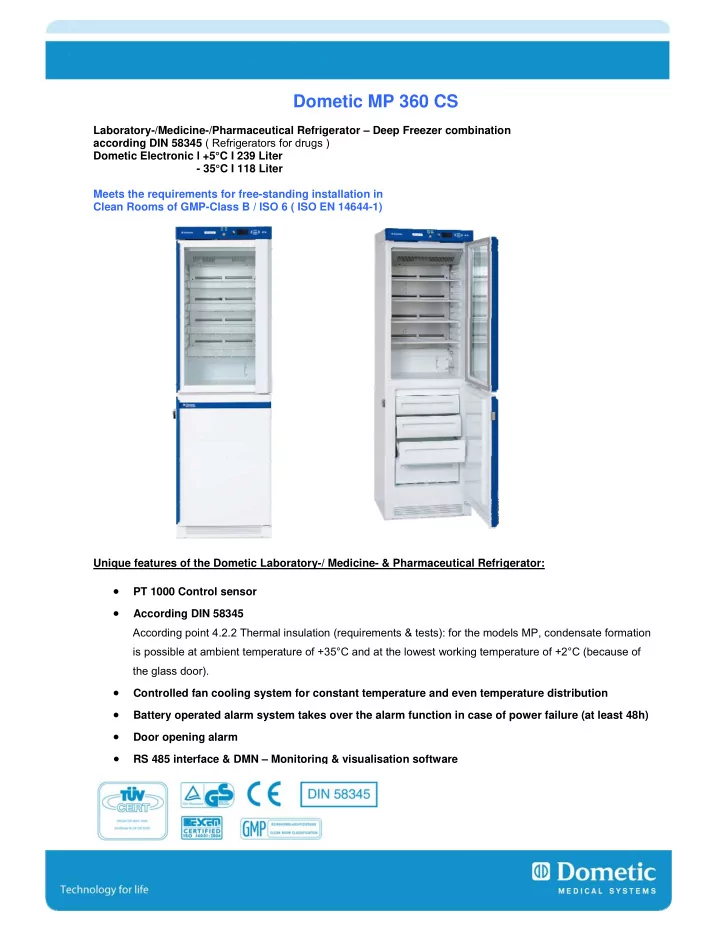

Dometic MP 360 CS

Laboratory-/Medicine-/Pharmaceutical Refrigerator – Deep Freezer combination according DIN 58345 ( Refrigerators for drugs ) Dometic Electronic l +5°C I 239 Liter

• 35°C I 118 Liter

Meets the requirements for free-standing installation in Clean Rooms of GMP-Class B / ISO 6 ( ISO EN 14644-1) Unique features of the Dometic Laboratory-/ Medicine- & Pharmaceutical Refrigerator:

• PT 1000 Control sensor
• According DIN 58345

According point 4.2.2 Thermal insulation (requirements & tests): for the models MP, condensate formation is possible at ambient temperature of +35°C and at the lowest working temperature of +2°C (because of the glass door).

• Controlled fan cooling system for constant temperature and even temperature distribution
• Battery operated alarm system takes over the alarm function in case of power failure (at least 48h)
• Door opening alarm
• RS 485 interface & DMN – Monitoring & visualisation software

Dometic Electronic All relevant data of temperature alarm and power failure are stored in the alarm history, such as: date and time of start and end, minimum, maximum and average temperature. Alarm function test: Simulation of a temperature rise or drop in order to test the alarm system functionality. Door opening alarm: Alarm after a long door opening. Test of the electronic through the self-diagnostic system. Safety standards of the MP – Range

• According DIN 58345

According point 4.2.2 Thermal insulation (requirements & tests): for the models MP, condensate formation is possible at ambient temperature of +35°C and at the lowest working temperature of +2°C (because of the glass door).

• GMP Clean Room Class B / ISO 6 (ISO EN 14644-1)
• Glass door with insulating glazing
• Key operated power switch (Power ON/OFF) with 2 keys
• Safety door lock with 2 keys
• Digital temperature indicator (Display: 0,1 Digits)
• Controlled fan cooling system for constant temperature and even temperature across the entire

refrigerating chamber. Automatic fan switch off when the front door opens.

• Safety thermostat avoids the dropping of the stored product’s temperature below +2°C
• Self contained alarm system with integrated battery (6V – 4,2 Ah) takes over the alarm function and

temperature value measurements in case of power failure for at least 48 hours

• Acoustic and visual alarm in case of temperature alarm and power
• The alarm history of the electronic stores all relevant values during a temperature alarm, such as:

Min., Max. and average temperature, and also the duration of the alarm

• Remote transmission alarm signal (over potential-free contact) in case of temperature and power

failure alarm (change over contact).

• Control via self-diagnostic system
• Door opening alarm
• RS 485 interface for the display of all operating and control functions (hardware and software settings) via

the DMN Monitoring software on a peripheral device (computer), through the optional DCU

Temperatures & Sensors Refrigerator Temperature set range: +5°C to +15°C Alarm set range: +1°C to +20°C Set temperature (Set point): +5°C (preset at the factory) Alarm settings: Factory preset cold alarm limit +2°C Factory preset warm alarm limit +8°C Freezer Temperature set range:

• 20°C to - 35°C

Alarm set range:

• 15°C to - 50°C

Set temperature (Set point):

• 35°C (preset at the factory)

Alarm settings: Factory preset cold alarm limit

• 40°C

Factory preset warm alarm limit

• 30°C

Tested at ambient temperature up to +32°C ! The set temperature (Set point) can be adjusted in Steps of 0,5°C. The chosen alarm limits (setting range) must at least be around ± 3 K around the set temperature. The electronic temperature control at the set temperature and the temperature measures are made by autonomously working Sensors. 1 Control sensor Type: PT 1000 2-Wire 1/3 DIN CL.B Accuracy: +/- 0,2°C (from -80°C to +180°C) 1 Display sensor, as option Type: PT 1000 2-Wire 1/3 DIN CL.B Accuracy: +/- 0,2°C (from -80°C to +180°C) Interior equipment Refrigerator 4 Wire shelves, Wire DIN 172 – 2, white PA11 coated (similar to RAL 9010) Freezer 4 Drawers, Styrol (SAN), white (similar to RAL 9010)

Technical Data Refrigerator Gross volume: 239 Liter Interior dimensions: 934 x 525 x 482 mm (H x W x D) Net volume: 218 Liter External dimensions: 2030 x 595 x 605 mm (H x W x D) Net weight: 109 Kg

• Dim. with temperature recorder:

2190 x 595 x 605 mm (H x W x D) Material interior body: Styrene (SAN), white similar to RAL 9010 Material outer casing: Galvanized sheet steel STO2Z-AZ150 Color: Outer casing white coated (similar to RAL 9010) Color contrast in blue (similar to RAL 5002) Refrigerant type: R134a Insulation: Casing 30 – 68 mm PU / Polyurethane Door double insulating glazing Climate class: SN Ambient temperature range: +10°C to +32°C Relative humidity: ≤ 70% at +32°C ambient temperature Defrost: Natural Noise level: 40 dB(A) measured at 1m height and 1m distance Compressor running time: 35% / 24h at +25°C ambient temperature and without load Energy consumption: 1,38 kWh / 24h at +25°C ambient temperature and without load Heat ejection: 95 kcal / h at +25°C ambient temperature and without load Hold Over time (from +5°C to +10°C): 30 min at +25°C ambient temperature and without load Voltage: 220 – 240 V, 50Hz (10A) Power: 130 W Safety class: I Door hinge: Right side (standard)
