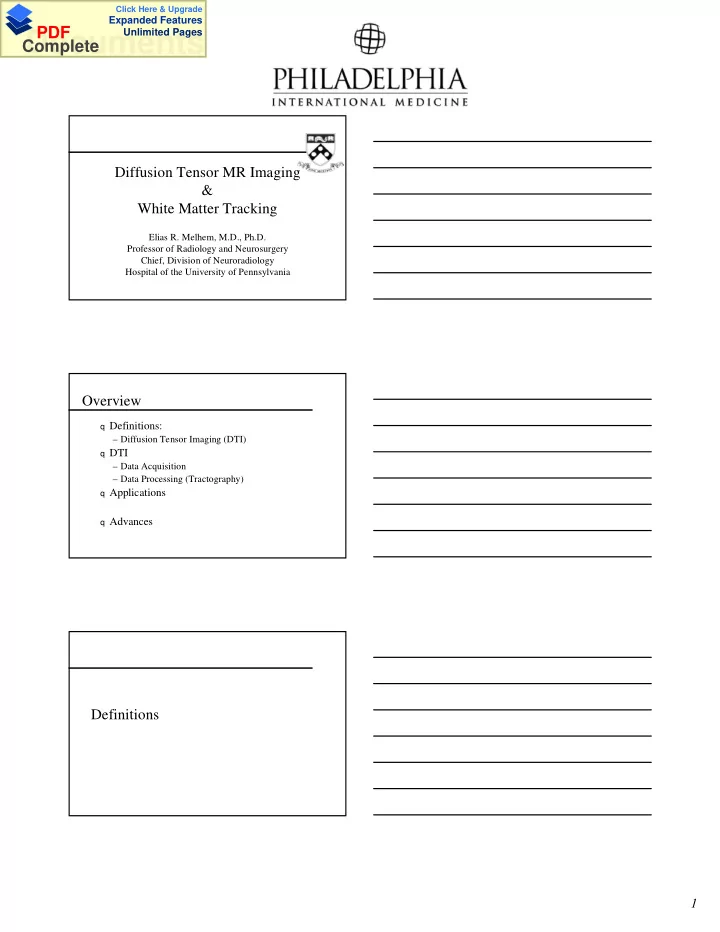

Diffusion Tensor MR Imaging & White Matter Tracking
Elias R. Melhem, M.D., Ph.D. Professor of Radiology and Neurosurgery Chief, Division of Neuroradiology Hospital of the University of Pennsylvania
Overview
q Definitions:
– Diffusion Tensor Imaging (DTI)
q DTI
– Data Acquisition – Data Processing (Tractography)
q Applications q Advances
Definitions
Click Here & Upgrade
Expanded Features Unlimited Pages
2
Diffusion Principle
Ln(S/S0) = -bD
diffusion coefficient dependent on sensitizing gradients
Tissue differences in the diffusivity of water molecules (slow incoherent motion) can be brought
to the MR sequence
Pulsed Diffusion Gradients
RF SS / FE / PE Pulsed Gradients G δ ∆ echo
b = γ 2G2δ2 (∆ - δ /3)
G δ 90ο 180ο Pulsed Gradients SI SI SI time G
rephasing
X
G
dephasing
The Effect of Bipolar Gradients on the Mxy of Tissues with Random Motion (Brownian)
Click Here & Upgrade
Expanded Features Unlimited Pages
3
G
dephasing
Pulsed Gradients SI SI SI SI time T2 - decay G
rephasing
The Effect of Bipolar Gradients on the Mxy of Tissues with Reduced Random Motion
Isotropic vs. Anisotropic Diffusion
Isotropic Anisotropic Direction of diffusion-sensitizing gradients
b = 560 b = 560
Diffusion Anisotropy: Orientation of Fiber Tracts in White Matter
Click Here & Upgrade
Expanded Features Unlimited Pages
4
Diffusion Tensor Imaging Diffusion Tensor
q In anisotropic media (WM) diffusion can be
characterized by a Tensor
q When the Tensor is determined for every voxel:
Diffusion Tensor Imaging
Basser et al. 1994 J Magn Reson
Diffusion Tensor
Mxx Mxy Mxz Myx Myy Myz Mzx Mzy Mzz
λxx 0 0 λyy 0 0 λzz Diagonalize
Click Here & Upgrade
Expanded Features Unlimited Pages
5
q Eigenvalues: shape of the ellipsoid q Trace (λxx + λyy + λzz): volume of the ellipsoid q Euler angles: direction of the ellipsoid
Diffusion Tensor Diffusion Ellipsoid Map Data Acquisition
Click Here & Upgrade
Expanded Features Unlimited Pages
6
Data Acquisition
DTI: 2D multi-shot or single-shot SE-EPI – Cardiac-gated – Navigator-echo-corrected – TR/TE:5000 – 6000 / 92 – Number of Averages: ~ 4 – FOV:24 x 24 cm2 - Slice thickness: 3mm (no gap) – Matrix:64 x 64 (zero-filled 128) – Diffusion: 6 to 40 directions – Two b-values (0 and 800 s/mm2)
D-WI Using 6 Different Directions
x y z xy xz yz i b=0
Data Processing
Step 1: DTI images realigned using the AIR program Step 2: Elements of the Tensor obtained with multi-variant linear square fitting Step 3: Eigenvalues maps determined by diagnolizing the Tensor Step 4: Principal eigenvectors used for vector maps Step 5: Fractional anisotropy (FA) and Trace calculation Step 6: Tracking Algorithm and Color Maps
Click Here & Upgrade
Expanded Features Unlimited Pages
7
Diffusion Tensor Imaging: Eigen Maps
λxx λyy λzz
Diffusion Tensor MR Imaging
Trace FA Σ (λi – D)2 (λi )2 Σ =
Fractional Anisotropy & Vector Maps
Click Here & Upgrade
Expanded Features Unlimited Pages
8
White Matter Tractography
A C B
* *
Thresholds: FA > 0.6 Angle < 40o
White Matter Tractography: DTI
uncinate fasciculus corpus callosum corticospinal tract anterior thalamic radiation inferior occipitofrontal fasciculus inferior longtudinal fasciculus superior longitudinal fasciculus cingulum
Brain Stem Tractography: DTI
Click Here & Upgrade
Expanded Features Unlimited Pages
9
Applications Stroke Transient Left Sided Weakness:: Relationship of Infarct to Corticospinal Tract
Click Here & Upgrade
Expanded Features Unlimited Pages
10
White Matter Diseases
q Biophysical basis for Diffusion Anisotropy in WM q Biophysical basis for Reduced Diffusivity in
Demyelinating Diseases
Adrenoleukodystrophy (ALD)
q X-linked disorder that affects brain white matter q Most severe phenotype: Cerebral Form q Cerebral form has 3 distinct pathologic:
I- Vasogenic edema and active demyelination II- Inflammatory reaction and disruption of BBB III- Axonal destruction and cavitation
Diffusion Anisotropy: ALD
FA T2-W ADC
Itoh et al. Neurology
Click Here & Upgrade
Expanded Features Unlimited Pages
11
Diffusion Anisotropy: ALD
FA
Average ADCi (SD) FA (SD) NAWM 0.66 (0.12) 0.52 (0.16) Area I 0.84 (0.16) 0.31 (0.12) Area II 1.36 (0.19) 0.22 (0.07) Area III 1.73 (0.15) 0.13 (0.05) Itoh et al. ISMRM 2000
DTI and MR Spectroscopic Imaging
Eichler et al. Radiology in-press
ALD: MR Tractography Using DTI
200 400 600 800 1000 1200 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39
Volume
genu Splenium
Fractional Anisotropy ( ) Volume (mm
3) ( )Slice position ( colonal ) Anterior Posterior
ALD Normal Mori et al. ISMRM 2000
Click Here & Upgrade
Expanded Features Unlimited Pages
12
Decreased ADC??
q Cytotoxic Edema + Demyelination q Irreversible axonal damage q Predictor of Activity q Predictor of Progression
Acute Demyelination: Multiple Sclerosis Chronic Demyelination: Multiple Sclerosis
Click Here & Upgrade
Expanded Features Unlimited Pages
13
Acute Disseminated Encephalomyelitis
T2 D-WI ADC
Central Pontine Myelinolysis
T2-W SE D-WI ADC
Asphyxia in Premature Infants
Click Here & Upgrade
Expanded Features Unlimited Pages
14
Periventricular Leukomalacia
q Selective vulnerability of the periventricular
white matter in the premature neonate to ischemic, infectious, or metabolic insults
q Volume of lateral ventricles is strongly
related to severity of spastic cerebral palsy
Melhem et al. Radiology
Periventricular WM Restricted Diffusion
Acute Follow up ADC MPRAGE
Periventricular Leukomalacia
Normal PVL
Click Here & Upgrade
Expanded Features Unlimited Pages
15
Periventricular Leukomalacia
Normal PVL
Hoon et al. Neurology
Developmental Brain Anomalies Holoprosencephaly
q Spectrum of complex congenital brain and facial
malformations resulting from defective cleavage of the developing forebrain during the first five weeks of embryonic development
q HPE is divided into four major categories
Alobar Semilobar Lobar Middle hemispheric variant
Click Here & Upgrade
Expanded Features Unlimited Pages
16
Holoprosencephaly
Present Present Present Present Present Lobar (n=2) Present Present Present Present Absent Semilobar (n=5) Present Present Present Fused Absent Alobar (n=2) ICP MCP SCP MLF CPST
Melhem et al. Radiology
Alobar Holoprosencephaly Semilobar Holoprosencephaly
Normal
Click Here & Upgrade
Expanded Features Unlimited Pages
17
Syntelencephaly
FA FA
Focal Cortical Dysplasia Band Heterotopia
Click Here & Upgrade
Expanded Features Unlimited Pages
18
Tumors MR Tractography in Brain Tumors MR Tractography in Brain Tumors
Tumor B more infiltrative than Tumor A
Mori et al. MRM 2002
Click Here & Upgrade
Expanded Features Unlimited Pages
19
Amytrophic Lateral Sclerosis (ALS) ALS
Disease of Lower and often Upper Motor Neurons
q Pre-clinical markers of disease q Markers of disease progression q Ability to identify and quantify upper motor neuron
involvement
ALS
Control ALS with UMN involvement
Click Here & Upgrade
Expanded Features Unlimited Pages
20
Advances
q Faster Acquisitions
– Parallel Imaging (SENSE-SMASH)
q Number and Orientation of Diffusion Gradients q Greater SNR
– High field Scanner – Better receiver coils
q Improvement in Tracking Methods q Spatial Normalization
Faster Acquisitions DTI with SENSE
256x256x60/ SENSE: 2
1.8 minutes per average!
Click Here & Upgrade
Expanded Features Unlimited Pages
21
Number of Direction of Diffusion Gradients
30 Diffusion Directions
Jones 30: 2 averages / direction; 256x256x40 / SENSE: 2
4 minutes per average!
3D Isotropic DTI
Click Here & Upgrade
Expanded Features Unlimited Pages
22
High Resolution Isotropic 3D DTI
Anisotropy Map Vector Map FA
Voxel: 0.8 mm3
Fiber Tracking
Fiber Tracking: Diffusion Spectrum Technique
A B C A B C
Higher Spatial Resolution
kissing fibers
A B C D
Higher Spatial Resolution
A B C D
intertwining fibers
Wiegell et al. Radiology 2000
Click Here & Upgrade
Expanded Features Unlimited Pages
23
Connectivity of Corticospianl Tracts Using Probabilistic Approach Callosal Connectivity Using Probabilistic Approach Spatial Normalization of WM Tracts
Click Here & Upgrade
Expanded Features Unlimited Pages
24
Population Maps of WM Tracts
10 subjects after elastic warping
