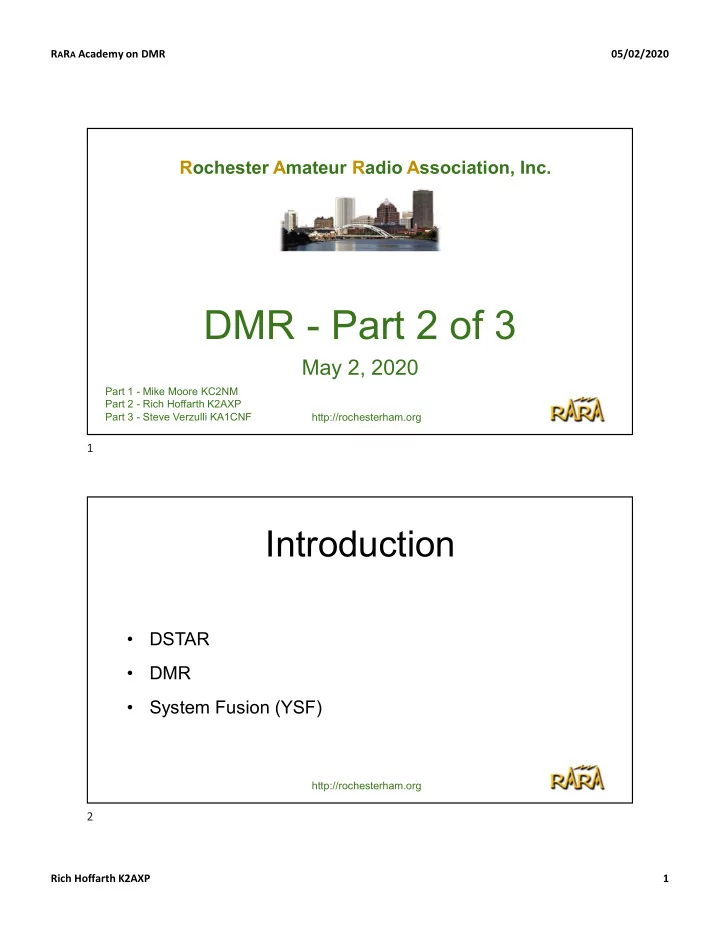

R A R A Academy on DMR 05/02/2020 Rochester Amateur Radio Association, Inc. DMR - Part 2 of 3 May 2, 2020 Part 1 - Mike Moore KC2NM Part 2 - Rich Hoffarth K2AXP Part 3 - Steve Verzulli KA1CNF http://rochesterham.org 1 Introduction


slide-1
SLIDE 1

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 1

http://rochesterham.org

Rochester Amateur Radio Association, Inc.

DMR - Part 2 of 3

May 2, 2020

Part 1 - Mike Moore KC2NM Part 2 - Rich Hoffarth K2AXP Part 3 - Steve Verzulli KA1CNF http://rochesterham.org

Introduction

  • DSTAR
  • DMR
  • System Fusion (YSF)

1 2

slide-2
SLIDE 2

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 2

http://rochesterham.org

Rich K2AXP

 Sep 2018 Tech, Nov 2018 Gen  Anytone AT-D868UV  Clarkson University – ECE  Computer Programmer

Heathkit EK-2 Zenith

http://rochesterham.org

DMR

 Network – Structure, Talkgroups, Brandmeister site  Link – Repeaters & Hotspots  Radios = Hardware + Firmware + Codeplug  Operations

3 4

slide-3
SLIDE 3

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 3

http://rochesterham.org

DMR History

 Digital Mobile Radio - 2005  Commercial Background  12.5 Khz  2 time slots TDMA  DMR-MARC - Brandmeister

http://rochesterham.org

Network

Link

Repeaters Hotspots

Network

Servers

Radios

Primary Parameters Radio Id, Talkgroup Id, Tx, Rx, Color Code, Time Slot Channel, Zone, Scan Lists Receive Group

5 6

slide-4
SLIDE 4

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 4

http://rochesterham.org

DMR Networks

 Brandmeister  DMR-MARC, DMR-Plus  Rocky Mountain Ham Radio - CO  DMR of Anarchy - NoCal  Papa - SoCal

http://rochesterham.org

DMR-MARC vs Brandmeister

 First in US 2009  Use C-Bridge  Repeaters set TGs  DMR+ connects

hotspots

 Network Hierarchy

 2015  More popular  Master Server  All* TG available  More open (hotspots)  Passes all traffic

7 8

slide-5
SLIDE 5

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 5

http://rochesterham.org

Connections

http://rochesterham.org

BM Talkgroups

What is a Talkgroup??? Country, state, regional talkgroups Topic talkgroups Language talkgroups US Regional talkgroups are all assigned.

9 10

slide-6
SLIDE 6

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 6

http://rochesterham.org

BM Talkgroup Structure

1 – Test networks 2 – Europe 3 – North America 4 – Asia and Middle East 5 – Oceania 6 – Africa 7 – South/Central America 9 – World-wide 3 Digit Country Code

208 – France 235 – UK 262 – Germany 310-319 – US 440 – Japan 602 – Egypt 724 – Brazil

api.brandmeister.network/v1.0/groups

http://rochesterham.org

DMR Identifiers

# Digits Identifier Range 1 Very Special Talkgroups 9 2 Special Talkgroups 90 3 Country Talkgroups 900 4 State Talkgroups 99 for US 5 Region Talkgroups 10 per state for US 6 Repeater Ids 900,000 7 Radio Ids 9,000,000

11 12

slide-7
SLIDE 7

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 7

http://rochesterham.org

Radio IDs by Country

Country IDs

United States 72,682 Canada 4,426 China 3,272 Australia 2,727 Brazil 2,440 Chile 1,319 Japan 1,281

Total Countries: 99 Total Ids used: 97,148

http://rochesterham.org

Radio IDs by State

State IDs

California 7,643 Florida 4,838 Texas 4,664 Ohio 3,559 New York 3,205 North Carolina 3,088 Colorado 2,542

13 14

slide-8
SLIDE 8

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 8

http://rochesterham.org

Brandmeister Websites

 Dashboard - brandmeister.network  Hoseline  News - news.brandmeister.network  Wiki - wiki.brandmeister.network

http://rochesterham.org

Link Overview

 Repeaters  Hotspots  Phone Apps  Simplex

15 16

slide-9
SLIDE 9

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 9

http://rochesterham.org

Link - Repeaters

 Static vs Dynamic Talkgroups  Local Talkgroups  Use TG10-90  Use Repeater Id  Owner sets TS rules for TGs  BM Dashboard Repeaters

Analog Digital Rx, Tx Rx, Tx CTCSS Color Code Time Slot Talkgroup

http://rochesterham.org

Link - Hotspots

 Time slot – Use TS1, TS2 or both!  No color code – use CC:1  Talkgroups static and dynamic  Only one static talkgroup

17 18

slide-10
SLIDE 10

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 10

http://rochesterham.org

Link – Phone Apps

Search on Brandmeister DMR BrandMeister repeaters DMR BrandMeister Device Manager DMR BrandMeister Tool

http://rochesterham.org

Link – Digital Simplex

 Promiscuous Mode  CC:1, TS1, Talkgroup 99 –

DIRECT (DMR_MARC)

 ALL CALL (16777215)

VHF UHF 145.790 441.000 145.510 443.450 446.500 446.075

19 20

slide-11
SLIDE 11

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 11

http://rochesterham.org

Radios

DMR Radio = Hardware + Firmware + Codeplug

http://rochesterham.org

DMR Radio Manufacturers

 Anytone – AT-D868UV, AT-D878UV PLUS  Hytera  Tytera - MD-380  Alinco  Motorola  Baofeng

21 22

slide-12
SLIDE 12

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 12

http://rochesterham.org

Programming Tools

 CPS  Contact Manager – N0GSG  Edit CP  CPS Programmer by DL5MCC

http://rochesterham.org

CPS - DMR Programer

 Demo  Read codeplug  Export csv files

23 24

slide-13
SLIDE 13

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 13

http://rochesterham.org

DMR Terms

Radio CPS Csv Files Channel Channels Channels.csv Zone Zones Zones.csv Scanning Scan Lists ScanList.csv Receive Groups ReceiveGroupCallList.csv FM Broadcast FM Stations FM.csv Menu - Settings Options Menu - Talkgroups Talkgroup Talkgroups.csv Digital Contacts DigitalContactList.csv

http://rochesterham.org

Other Radio Features

 VFO  Dual Band  Promiscuous mode  Auto Power Off  GPS  Digital APRS  Roaming  Bluetooth

25 26

slide-14
SLIDE 14

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 14

http://rochesterham.org

Codeplugs

 Radio configuration  Websites provide codeplugs  Analyzer – reads csv files  Analyzer output

http://rochesterham.org

Codeplug Analyzer

 Analog Repeaters  Analog Simplex Freq  Digital Repeaters  Digital Hotspots  Digital Simplex Freq

27 28

slide-15
SLIDE 15

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 15

http://rochesterham.org

Entity Relationships

http://rochesterham.org

CPS Lookup

 Radio Id – https://www.radioid.net/  Talkgroups – https://api.brandmeister.network/v1.0/groups/  Digital Contacts – https://www.radioid.net/  Repeaters – https://www.rochesterham.org/learn_links.htm

29 30

slide-16
SLIDE 16

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 16

http://rochesterham.org

Call Types

 Group Call  Private Call – not really used  All Call – Special talkgroup 16777215

http://rochesterham.org

Programming Order

1) Create Talkgroups 2) Create a Channel 3) Create Scan lists, add one channel 4) Create Receive group, add channel 5) Create channels, add TG, scan list, receive group 6) Create zone, add channels 7) Update Scan lists 8) Update Receive groups

31 32

slide-17
SLIDE 17

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 17

http://rochesterham.org

CPS Programming

 Options  Talkgroups  Channels  Zones  Scan Lists  Receive Groups

http://rochesterham.org

CPS Strategy

 Zones  Channels  Digital Contacts  Scan Lists  Receive Groups  Talkgroups

33 34

slide-18
SLIDE 18

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 18

http://rochesterham.org

Rochester Repeaters

Call Rx, -Offset CC TS1 TS2 W2RIT 442.075, +5 1 310582 KD2FRD 443.600, +5 1 Monroe County only No TAC or WW TG’s N2MKT 442.250, +5 1

http://rochesterham.org

Parrot - Echo Test

 9990 – Private Call  310997 – Private Call  31000 – Group Call  Some hotspots provide other features (9998)

35 36

slide-19
SLIDE 19

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 19

http://rochesterham.org

Operations

 Parrot  Repeater  Hotspot  Simplex  Announce

talkgroup

 Reflectors  Local Talkgroups

 Monroe County 31369  WNYFLDMR - 310799

http://rochesterham.org

Digital Nets

 Friday 9:30 PM ET Colorado HD net - 31088  Sunday 7:30 PM ET Monroe County – 31369 (after

RocCity analog)

 Sunday 8:00 PM ET WNYFLDMR – 310799  http://www.k6bkd.org/dmr-nets/  http://hamnetlist.blogspot.com/2017/04/dmr-nets.html

37 38

slide-20
SLIDE 20

RARA Academy on DMR 05/02/2020 Rich Hoffarth K2AXP 20

http://rochesterham.org

Useful Links 1
