Patient/Anatomy Selection to Optimize MitraClip Success in FMR and DMR Paul A. Grayburn, MD Baylor University Medical Center Dallas, TX Disclosure Statement of Financial Interest Within the past 12 months, I or my spouse/partner have had a

SLIDE 1

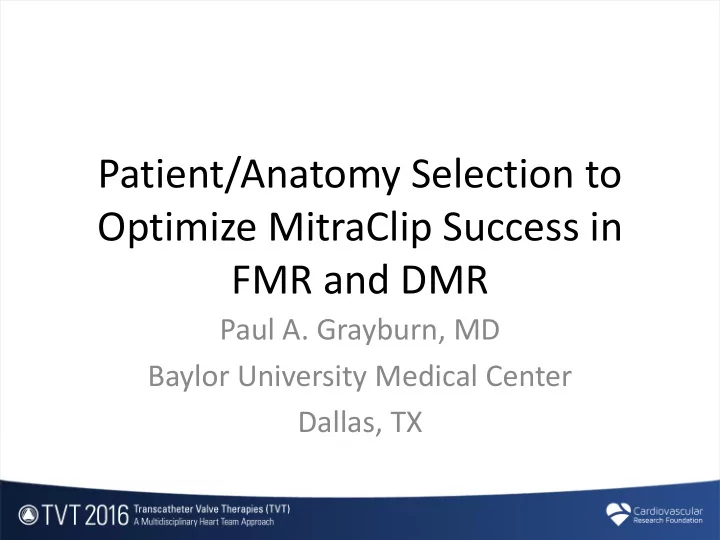

Paul A. Grayburn, MD Baylor University Medical Center Dallas, TX

Patient/Anatomy Selection to Optimize MitraClip Success in FMR and DMR

SLIDE 2

Disclosure Statement of Financial Interest

Within the past 12 months, I or my spouse/partner have had a financial interest/arrangement or affiliation with the

rganization(s) listed below.

Affiliation/Financial Relationship

inancial Relationship

All Fellows Course 2016 faculty disclosures are listed on the CRF Events App.

Grant/Research Support: Abbott Vascular, Tendyne, Medtronic, Boston Scientific, Edwardsl Lifesciences, Teva Consulting Fees/Honoraria: Abbott Vascular Tendyne, ValTech, Neochord Major Stock Shareholder/Equity:None Royalty Income: None Ownership/Founder: None Intellectual Property Rights: None Other Financial Benefit: Echo Core Lab – NeoChord, Valtech

SLIDE 3

MitraClip Clip Delivery System FDA Approved October 24, 2013

Indication for Use: “The MitraClip Clip Delivery System is indicated for the percutaneous reduction of significant symptomatic mitral regurgitation (MR ≥ 3+) due to primary abnormality of the mitral apparatus [degenerative MR] in patients who have been determined to be at prohibitive risk for mitral valve surgery by a heart team, which includes a cardiac surgeon experienced in mitral valve surgery and a cardiologist experienced in mitral valve disease, and in whom existing comorbidities would not preclude the expected benefit from reduction of the mitral regurgitation.”

SLIDE 4

Primary vs Secondary MR

Primary (organic) MR

– Abnormal leaflets, most commonly MVP – “Valve makes the heart sick” – Surgical valve repair is gold standard

Secondary (functional)

– Leaflets are normal or nearly so – MR is caused by LV dilation/dysfunction – It is not clear if MR repair is beneficial or not – Surgery is Class IIB LOE C (except during CABG)

SLIDE 5

MitraClip Therapy

Worldwide Commercial Implant Experience Etiology Implant Rate: 97% > 30,000 Patients

FMR 64% DMR 22% Mixed 14%

SLIDE 6

European Number of MitraClips Implanted and Implant Rate

4% 4% 5% 32% 38% 35% 60% 53% 53% 4% 5% 7% 4% 34% 58% 4%

0% 20% 40% 60% 80% 100% All Patients FMR DMR Mixed Etiology Patients

0 MitraClip 1 MitraClip 2 MitraClips ≥ 3 MitraClips (N=8,951) (N=6,000) (N=1,950) (N=976)

95.9% Implant Rate

(N=8,951)

Note: Unknown etiology (N=25), not shown

R. S. von Bardeleben at TCT 2013. Data as of 09/30/2013.

SLIDE 7

U.S. vs. Other Registries

STS/ACC TVT (US)...…….
SENTINEL (EU)….………..
ACCESS (EU)….……...….
TRAMI (DE)………..………
MitraSwiss (CH)................
France (FR)……................
GRASP (IT)……..….…….…
Netherlands (NL)…………
MARS (Asia)………………

93% 95% 91% 95% 85% 88% 100% 93% 94% MR ≤2 DMR In-hospital death 2.3% 2.9% 2.9% 4.0% 3.3% 4.2% Age (yrs) 83 74 74 75 77 73 72 73 71 86% 28% 23% 29% 38% 23% 24% 18% 46%

EVEREST I………………..
EVEREST II RCT…...….…
EVEREST II HRS……......

71 67 76 74% 77% 86% 0.9% 1.1% 2.6% 79% 51% 30%

SLIDE 8

Change in Mitral Regurgitation Clip implantation occurred in 94%

0% 20% 40% 60% 80% 100% Baseline Post-implant

Grade 4 Grade 3 Grade 2 Grade 1

Mitral Regurgitation Grade 93% MR ≤2 63.7% MR≤1 p<0.001

SLIDE 9

Anatomic Eligibility

Leaflet mal-coaptation resulting in MR

Sufficient leaflet tissue for

mechanical coaptation

Non-rheumatic/endocarditic

valve morphology

Protocol anatomic exclusions

– Flail gap >10mm – Flail width >15mm – LVIDs > 55mm (now 60 mm) – Coaptation depth >11mm – Coaptation length < 2mm

<2mm >11mm >10mm >15mm

SLIDE 10

Early Anatomic Exclusions for MitraClip

Grayburn et al, Am J Cardiol 2011

SLIDE 11

Multivariate Analysis of Demographic and Clinical Predictors of 3-4 + MR after MitraClip

4 + MR at Baseline

SLIDE 12

SLIDE 13

SLIDE 14

SLIDE 15

Lack of Secondary Chordal Support

SLIDE 16

Severe Mitral Annular Calcification

SLIDE 17

Not Enough Room for MitraClip

3D Area 2.90 cm2

SLIDE 18

Post-Inflammatory MR

SLIDE 19

Non-Anatomic Imaging Considerations

Severe TR and right heart failure
Severely depressed LVEF (≤20%)
Infective endocarditis
Life-threatening conditions that preclude

longevity/QOL

SLIDE 20

Summary

MitraClip is a robust technology
High success rate and good safety profile in a

wide range of pathology (DMR and FMR)

Main issue is who NOT to do
