DataCamp Python for MATLAB Users PYTHON FOR MATLAB USERS Diving into NumPy arrays Justin Kiggins Product Manager DataCamp Python for MATLAB Users Calculations on NumPy arrays print(radius) Operation Operator [[1, 2, 3]] Addition +

slide-1

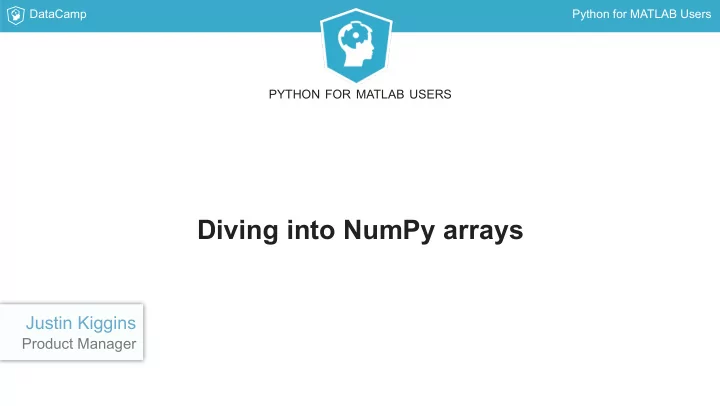

SLIDE 1

DataCamp Python for MATLAB Users

Diving into NumPy arrays

PYTHON FOR MATLAB USERS

Justin Kiggins

Product Manager

slide-2
SLIDE 2

DataCamp Python for MATLAB Users

Calculations on NumPy arrays

Operation Operator Addition

+

Subtraction

  • Multiplication

*

Division

/

Exponentiation

** print(radius) [[1, 2, 3]] type(radius)) <class 'numpy.ndarray'> area = np.pi * (radius ** 2) print(area) [3.14159265 12.56637061 28.27433388]

slide-3
SLIDE 3

DataCamp Python for MATLAB Users

Math between NumPy arrays

type(revenue) <class 'numpy.ndarray'> print(revenue) [[100, 114, 96, 120]] type(cost) <class 'numpy.ndarray'> print(cost) [102. 104. 101. 102.] profit = revenue - cost print(profit) [-2. 10. -5. 18.]

slide-4
SLIDE 4

DataCamp Python for MATLAB Users

Summarizing data in NumPy arrays

Some useful NumPy functions:

np.min() returns smallest value in array np.max() returns largest value in array np.sum() returns sum of all values in array

import numpy as np np.mean(revenue) 107.5

slide-5
SLIDE 5

DataCamp Python for MATLAB Users

Let's practice!

PYTHON FOR MATLAB USERS

slide-6
SLIDE 6

DataCamp Python for MATLAB Users

Indexing NumPy arrays

PYTHON FOR MATLAB USERS

Justin Kiggins

Product Manager

slide-7
SLIDE 7

DataCamp Python for MATLAB Users

Indexing with ranges

arr.shape (100,) slice = arr[10:15] slice.shape (5,)

slide-8
SLIDE 8

DataCamp Python for MATLAB Users

Indexing multidimensional arrays

image.shape (1920, 1200) window = image[100:150,1000:1100] window.shape (50,100)

slide-9
SLIDE 9

DataCamp Python for MATLAB Users

Indexing with Boolean arrays

data.shape (10000,) is_valid.dtype <np.bool> np.sum(is_valid) 8732 valid_data = data[is_valid] valid_data.shape (8732,)

slide-10
SLIDE 10

DataCamp Python for MATLAB Users

Let's practice!

PYTHON FOR MATLAB USERS

slide-11
SLIDE 11

DataCamp Python for MATLAB Users

Lists

PYTHON FOR MATLAB USERS

Justin Kiggins

Product Manager

slide-12
SLIDE 12

DataCamp Python for MATLAB Users

What is a list?

Simple Python structure for storing data Lists can hold anything Similar to MATLAB's cell array But only one-dimensional Indexing like NumPy arrays

slide-13
SLIDE 13

DataCamp Python for MATLAB Users

Making lists

my_list = [8, 6, 7, 5, 3, 0 ,9] print(my_list[2]) 7 print(my_list[-3:]) [3, 0, 9]

slide-14
SLIDE 14

DataCamp Python for MATLAB Users

Making NumPy arrays from lists

my_list = [8, 6, 7, 5, 3, 0 ,9] import numpy as np my_array = np.array(my_list) type(my_array) numpy.ndarray

slide-15
SLIDE 15

DataCamp Python for MATLAB Users

Multidimensional NumPy arrays from lists of lists

list_of_lists = [[2, 3], [9, 0], [1, 4]] import numpy as np arr = np.array(list_of_lists) print(arr) [[2, 3] [9, 0] [1, 4]] arr.shape (3, 2)

slide-16
SLIDE 16

DataCamp Python for MATLAB Users

Differences between lists and NumPy arrays

NumPy Arrays Lists All elements must be same type Can mix types

(+) does element-wise addition (+) concatenates lists

Multidimensional Single dimension Range & Boolean indexing Only Range indexing

slide-17
SLIDE 17

DataCamp Python for MATLAB Users

When to use each

Need to do math? NumPy array Storing complex structures? list Multidimensional data? NumPy array

slide-18
SLIDE 18

DataCamp Python for MATLAB Users

Let's practice!

PYTHON FOR MATLAB USERS

slide-19
SLIDE 19

DataCamp Python for MATLAB Users

Customizing plots

PYTHON FOR MATLAB USERS

Justin Kiggins

Product Manager

slide-20
SLIDE 20

DataCamp Python for MATLAB Users

Custom colors

import numpy as np import matplotlib.pyplot as plt # Generate data x = np.arange(0,2*np.pi,0.01) y = np.sin(x) # Plot data plt.plot(x,y,color='violet') plt.show()

slide-21
SLIDE 21

DataCamp Python for MATLAB Users

Custom line styles

import numpy as np import matplotlib.pyplot as plt # Generate data x = np.arange(0,2*np.pi,0.01) y = np.sin(x) y2 = np.cos(x) # Plot data plt.plot(x, y, color='violet') plt.plot(x, y2, color='indigo', linestyle=':') plt.show()

slide-22
SLIDE 22

DataCamp Python for MATLAB Users

Adding a legend

import numpy as np import matplotlib.pyplot as plt # Generate data x = np.arange(0,2*np.pi,0.01) y = np.sin(x) y2 = np.cos(x) # Plot data plt.plot(x, y, color='violet', label='sin(x)') plt.plot(x, y2, color='indigo', linestyle=':', label='cos(x)') # Add a legend plt.legend() plt.show()

slide-23
SLIDE 23

DataCamp Python for MATLAB Users

Encoding data in marker color

import numpy as np import matplotlib.pyplot as plt # Generate data x = np.random.randn(1000) y = np.random.randn(1000) z = x * y # Plot the data plt.scatter(x,y,c=z) plt.show()

slide-24
SLIDE 24

DataCamp Python for MATLAB Users

Custom tick labels

# Create the plot plt.plot(months,revenue) # Customize the ticks plt.yticks( [1,2,3], ['$1M','$2M','$3M']) plt.xticks( [0,1,2,3,4,5,6,7,8,9,10,11], list('JFMAMJJASOND'))

slide-25
SLIDE 25

DataCamp Python for MATLAB Users

Let's plot some data!

PYTHON FOR MATLAB USERS
