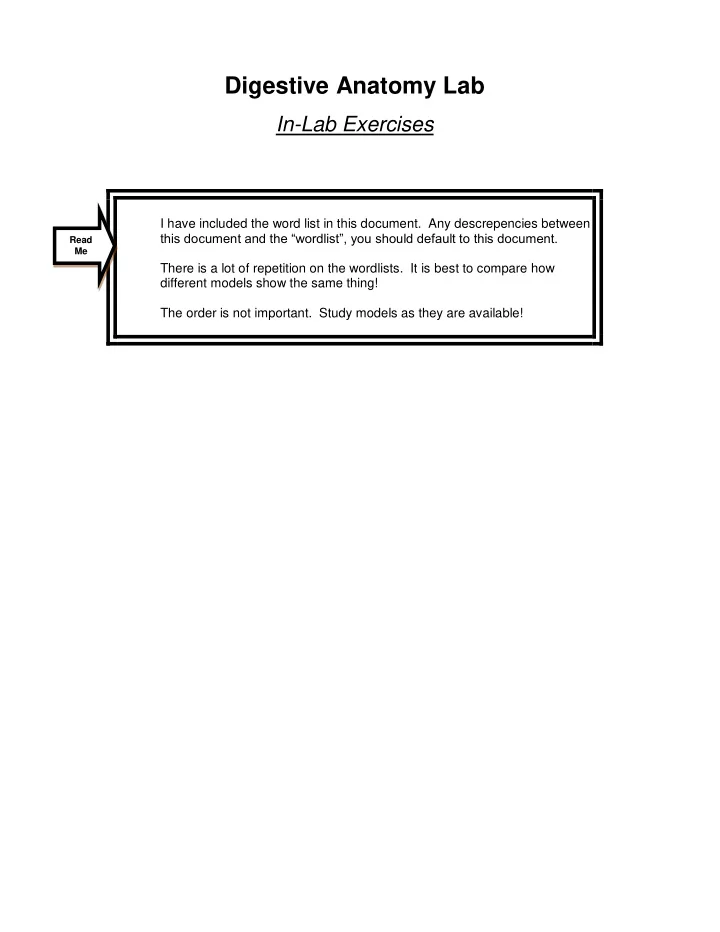

Digestive Anatomy Lab

In-Lab Exercises

I have included the word list in this document. Any descrepencies between this document and the “wordlist”, you should default to this document. There is a lot of repetition on the wordlists. It is best to compare how different models show the same thing! The order is not important. Study models as they are available!

Read Me

#1

Step 3. Study the Oral Cavity and Neck Region on Sagittal head models, the Torso, and images of the oral cavity

We will compare two models: “Sagittal section of head” (Image A and B) and “Torso Model” (Image C). Notice that the sagittal section is giving you a medial view, while the torso is

giving you a lateral view.

Cavities: Oral cavity Oropharynx Pharynx vestibule Hard palate Soft palate Uvula Esophagus (look near the stomach on the torso) Gingivae Incisor Neck Enamel Crown Lingual & buccal surface Tongue Salivary glands: Parotid, submandibular and sublingual NOTE: Regarding the “sagittal head”, model: Parotid and submandibular can

• nly be seen on the sagittal head that is on a stand! Look at “lateral side” of the

model. All 3 tonsils

Compare these structures on both models, or indicate where they would be (many are not visible on the torso model, depending on which torso model is in the room). Find all of them on the torso model.

Read Me

Image C Image A Image B

#2 #3 #4 #5

On Image B, ID the oral cavity, vestibule, oropharynx, vestibule, and the lingual & buccal surfaces of the teeth. Identify all the tooth types, & the gingiva. Note the occlusal

• surface. Notice the cusps.

Look in your partner’s mouth. Using Image C, ID the raphe, which I will test off an image. Now, have them raise their tongue. ID the Lingual frenulum and

• penings of the ducts of the submandibular gland (green arrows
• n Image D)

Also, off Image E, be able to ID the 3 papillae marked with red

• arrows. Then, label the tongue drawing below.

Notice you cannot see the sulcus, circumvallate papillae and lingual tonsil without a tongue depressor. Compare the structures labeled on image A to the photo in image B and the sagittal head model. Label them on the photo. Sometimes this image, or a similar one, is on the exam.

Image A Image B Image C Image D Image E

Step 4. Study the Jaw and Teeth models

Notice that the jaw opens to reveal the roots!

Gingivae Incisor Canine Premolar (bicuspid) Molars Neck Crown Root Enamel Dentin Pulp Root canal Apical foramen Pulp cavity Occlusal surface Cusp Periodontal ligament If not visible on jaw model, know from image! Be able to ID all teeth individually!

Read Me

Step 5. Study the stomach, pancreas, duodenum and spleen models

Sometimes the stomach models have the pancreas and

• ther organs attached (image A), sometimes not (all other

images). Looking at the “outside of the stomach model”, know all the regions and curvatures, the layers (visceral peritoneum, circular muscle, oblique muscle, and the mucosa, which you can see best at the pyloric sphincter). You cannot see the horizontal muscle layer easily. The big nerve is the vagus nerve. Then, open up the stomach model. This is a frontal section. Notice that the part you removed is not in correct anatomical position; be careful during the exam! Make sure you say these organs on the torso model. Use the word list for all the rest:

Spleen Splenic artery & vein Stomach Body Fundus Cardiac region Greater& lesser curvatures Cardiac valve/junction Pyloric Pyloric sphincter valve Rugae Duodenum Plicae circulares Pancreas Head & tail Pancreatic duct Major pancreatic papillae & the hepatopancreatic ampullae Common bile duct

Read Me

Image A

Step 6. Study the liver model

Study both the large model, and a liver from the torso model. Everything on the wordlist can be found on the large model. Determine which direction is “posterior” or “caudal”. This will help you find the caudal lobe, which is easier to define on the torso’s liver. Study the accompanying image to understand the three ligaments. Use this when studying the model.

Caudate lobe Right lobe Left lobe Quadrate lobe Gall bladder Cystic duct

• R. Hepatic duct
• L. Hepatic duct

Common hepatic duct Bile duct Inferior vena cava Hepatic portal vein Hepatic artery Hepatic veins dumping into vena cava Ligamentum teres: (round ligament) – HINT: it is on the inferior view! See accompanying image. This is where the umbilical cord entered the vena cava as a fetus! Falciform ligament

Read Me

Step 7. Study the intestinal villus model

Warning! We have 2 intestinal villus models. One shows Peyer’s patches (shown), the other does not! Know both models, just in case!

Lumen Villus Goblet cell Lacteal Mucosa Muscularis mucosa Submucosa Muscularis (both layers) Serosa Capillaries in mucosa Arteries and Veins in Submucosa Intestinal crypt Plexus – both submucosal and myenteric Duodenal glands (if visible) Peyer’s patches (if visible)

Read Me

Serosa not in image

#1

Step 8. Study the slides!

Slide of Fungiform or Circumvallate papillae/Taste Bud at low power, or holding slide up to

• light. A= papillae, B = Taste bud.

Follow these steps:

At low power: Either Fungiform or circumvallate papillae (A) Taste bud (B) At higher power: Taste bud Gustatory cell Gustatory pore Gustatory hair

Read Me A B B A B B

Taste bud slide

Read Me

#2

First study the accompanying image of the mucosa of the stomach (Image A). Look at the slide at low power, noting the mucosa and submucosa. Notice that the mucosal lining has a “table-top” look, flat on the top, indicating that you are looking at stomach glands, as opposed to villi in the small intestines (insert image). Now zoom in (Image C). Notice the pit and glands. Know where Mucous neck cells, Chief cells and Enteroendocrine reside on the slide Mucosa Submucosa Gastric pit Gastric glands Know where Mucous neck cells, Chief cells and Enteroendocrine reside on the slide

A

Frog Stomach slide

Read Me B

• f duodenum

C

#3

First study the accompanying image of the tissue layers of the duodenum at low power (Image A). Find the lumen. Notice the villi in the mucosa and duodenal glands (Brunner glands) in the submucosa. Can you pick out the 2 muscle layers in the muscularis externa? Then study the higher power slide (Image B). Find the lumen. See the villa? Simple columnar epithium? Goblet cells? How about the crypts? OK..how about the muscularis mucosa?

Now look back at Image A. See the muscularis mucosa?

Then study the Ileum slide at low or medium power (Image C). Find the lumen. Noticed I have zoomed in on the mucosa. See the villa? Simple columnar epithelium, with a pretty obvious brush border? Goblet cells? Do you see the obvious Peyer’s patches (lymph nodes) in the submucosa and mucosa? Then know on slide: Duodenum/Ileum slide – low power or high power Lumen Mucosae Submucosa Muscularis mucosa Muscularis externa Serosa Columnar cells Goblet cell Villi Microvilli Duodenal glands in Duodenum Intestinal crypts Peyer’s Patches in Ileum

Image A Small Intestines: Duodenum and Ileum

Read Me

Image B

zoom

Image C
