DEVICES and more...

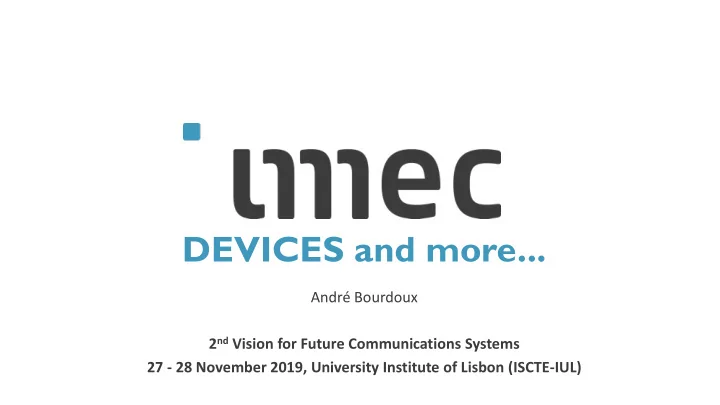

André Bourdoux 2nd Vision for Future Communications Systems 27 - 28 November 2019, University Institute of Lisbon (ISCTE-IUL)

slide-2
SLIDE 2

Technologies for Communications above 100GHz

slide-3
SLIDE 3

B5G/6G high capacity applications

Close proximity applications

Kiosk, automotive data, D2D

Multi-user AR/VR and holographic display Fixed wireless Access Wireless Backhaul/Fronthaul

Fixed point-to-point links for cellular networks

3

Towards Terabit-Per-second wireless connectivity

1m 10m 100m >100m

slide-4
SLIDE 4

New radio spectrum to meet the 6G capacity Demand

▪ Wide bandwidths available at higher frequencies

▪ W-band: >17GHz ▪ D-band: > 30GHz ▪ 802.15.3d: > 50GHz

4

Towards THz frequencies for Tbps wireless connectivity

6L/6U

100 10 20 30 40 50 60 70 80 90

11 13 15 18 23 26 38 71GHz - 86GHz 7/8 40 - 43 52 55 57 - 71 (TDD) 28 32

200 110 120 130 140 150 160 170 180 190 300 210 220 230 240 250 260 270 280 290 252GHz - 325GHz 92 GHz – 114.5 GHz 130 GHz – 174.8 GHz 310 320

5G mmWave V-band 802.11ad/ay E-band W-band D-band 802.15.3d

slide-5
SLIDE 5

Challenges from the antenna down to baseband

5

Dj Dj Dj

upconversion

PLL

Dj Dj Dj

down conversion

PLL DSP ADC

Complex high- speed DSP CMOS power too small High spectral purity Sample rate of tens of GHz Losses of on- chip passive components Package, interconnect

slide-6
SLIDE 6

For THz range and high power, CMOS is saturating. The champions are the III-V/III-N devices`

6

GaN is the power champion

GHz

III-V/III-N SiGe CMOS

slide-7
SLIDE 7

Current landscape in foundry technologies

7

CMOS beats any other technology in integration level

InP/InGaAs GaAs GaN

speed

  • max. power

silicon III-V III-V technologies use very few metals (gold), extrinsic parasitics not optimized #transistors (log scale)

slide-8
SLIDE 8

The 3D interconnect technology landscape

8

Package stacking Multi-die Packaging Interposer “2.5D” Embedded Die Die Stacking µbump Wafer-to-Wafer bonding Wafer-to-Wafer Sequential Processing

3D-SIP 3D-SIC 3D-SOC 3D-IC

Transistor Stacking 100 10 104 1000 105 107 108 1 106

Interconnect density (#/mm²)

100 µm 400µm 10 µm 1µm 100nm 1mm

Interconnect Pitch scaling

slide-9
SLIDE 9

ADC and DSP

▪ Baseband bandwidths grow to tens of GHz

▪ ADCs in the tens of Gsps range are needed ▪ Initially low spectral efficiency is required ▪ But eventually move to ~64QAM or so → ~7 to 9 bits

▪ DSP speed must follow

▪ Very high speed ▪ Heavy parallelization ▪ Multi-path is less frequent but can happen ▪ Equalizer schemes must be revisited to cope with tens of Gbauds equalization

▪ Digital vs analog ▪ Pre- vs post equalization to bring complexity where it can be afforded (AP, BS)

9

slide-10
SLIDE 10

Chip-antenna co-design above 100GHz

10

EM and thermal challenges

Silicon IC III-V IC

(PA/LNA and antenna)

Silicon IC Silicon IC III-V IC

(PA/LNA) Antenna on interposer/package

  • r separate die

Antenna on Silicon die

140 GHz FMCW radar, 10GHz BW, with antenna on chip, in standard 28 nm CMOS (3 dB gain, 11dBm EIRP, 1 mm2 area)

Challenge: On-chip antenna design in CMOS Challenge: On-chip antenna design & low-parasitics IC/IC interconnect Challenge: On-interposer antenna design & low-parasitics IC/IC interconnect

slide-11
SLIDE 11

Radar-Communications convergence

▪ Observation:

▪ Radar and communications hardware, DSP and antennas are very similar ▪ Radar and communications use more and more multiple antennas/MIMO concepts ▪ Mm-wave comm (e.g. WiGig, 11ay at 60GHz) and mm-wave radar (automotive 77/79GHz) are well mastered technologies ▪ Some wireless communications functionality have much in common with radar

▪ Radar range profile vs channel estimation ▪ MIMO radar vs MIMO channel estimation (channel between all possible TX-RX pairs)

▪ Some developments and standardization already bridge the gap

▪ Wi-Fi based people detection, fall detection ▪ Some products, software stack appear (Origin Wireless, Cognitive Systems, Aura, ...) ▪ Wi-Fi sensing (IEEE 802.11 SENS TIG/SG)

11

slide-12
SLIDE 12

Radar-Communications convergence

▪ But much more is possible ▪ Massive MIMO/large phased array systems can enable high angle resolution radar for target tracking and environment mapping ▪ Distributed massive MIMO can be turned into bistatic or multi-view radars ▪ Mm-wave/THz systems, with multi-GHz bandwidth, can have cm-scale range resolution ▪ Both functionalities can support each other for

▪ Improved performance ▪ Yet-to-discover new joint modes of operation

12

Green field for THz

slide-13
SLIDE 13

nLOS problem at mm-wave/THz

▪ Using phased array based relays/re-routers to create alternate LOS path while maintaining low latency

▪ Angle of incidence ≠ Angle of reflection

▪ Advantages

▪ Overcomes blockage/shadowing ▪ No Synchronization, handoff, and latency issues ▪ Low cost and lower power alternative

▪ Challenges

▪ Self-interference problem ➔ full duplex design techniques ▪ Multi-user

13

Robust coverage with Phased Array Mirror

Source: Dina Katabi’s MIT

AP

Connected to PC and wall plug HMD Mirror Mirror Mirror Mirror

slide-14
SLIDE 14

Extreme Edge Processor

slide-15
SLIDE 15

Yesterday

15

Cloud AI with extreme edge data

Extreme Edge Edge Cloud

DATA

Decisions

Learning & Inference

ISSUES:

  • Data growing faster

than connectivity

  • Privacy
  • Robustness
  • Latency
  • Power
slide-16
SLIDE 16

Today

16

Decentralized AI

Extreme Edge Edge Cloud

DATA

Decisions

Centralized learning Distributed learning Edge inference

DATA

Model updates Decisions

ISSUES:

  • Data growing faster

than connectivity

  • Privacy
  • Robustness
  • Latency
  • Power
slide-17
SLIDE 17

Tomorrow

17

Moving AI to the extreme edge

Extreme Edge Edge Cloud Centralized learning Distributed learning Edge inference

DATA

Extreme edge AI

(fast, low power, safe, autonomous) Analog vs digital trade-off

DATA

Model updates Slowest decisions Model updates Slow decisions

ISSUES:

  • Data growing faster

than connectivity

  • Privacy even better
  • Robustness
  • Latency
  • Power
slide-18
SLIDE 18

PUBLIC

Neuromorphic Processor

Dimensions along which compute technologies can be neuromorphic

  • Sequential vs. massively parallel
  • Clocked vs. asynchronous
  • Event-based processing
  • Spiking NN
  • Analog vs. digital
  • Von-Neumann vs. non-Von Neumann

(compute-in-memory)

  • High-bit to Low-bit precision
  • Learning from much labeled data vs.

learning from little unlabeled data This is NOT a traditional CPU/GPU/TPU/FPGA/ARM/...

slide-19
SLIDE 19

Conclusions

slide-20
SLIDE 20

Conclusions

▪ Communications above 100 GHz at tens of Gbit/s call for:

▪ Better devices for the RF part: III/V, III/N or GaN on CMOS ▪ Faster ADCs, tens of Gsps, 7+ bits ▪ Rethinking equalization schemes ▪ Intelligent non-specular mirror might help in some cases ▪ Chip-antenna co-design (antennas on chip become feasible) ▪ Exploiting the third dimension for bonding/stacking

▪ Joint radar and communications

▪ Leveraging massive arrays and mm-wave/THz bandwidth for high througput and high resolution ▪ New joint modes of operation

▪ Extreme edge computing is a new paradigm calling for

▪ A new breed of processor ▪ New learning modes (mostly unsupervised) ▪ Analog vs digital for extreme low power ▪ Computing-connectivity tarde-off

20

Key research areas

slide-21
SLIDE 21

CONFIDENTIAL

slide-22
SLIDE 22

Back-up slides

slide-23
SLIDE 23

CMOS cannot do it alone anymore

23

III-V (InP or GaN)

  • r Si

bipolar

Dj Dj Dj

finFET to be investigated splitter upconversion

PLL

Dj Dj Dj

finFET down conversion

PLL III-V (InP or GaN)

  • r Si

bipolar IC technologies DSP ADC

slide-24
SLIDE 24

Marrying III-V with silicon?

▪ Several attempts to improve yield and economics of III-V

▪ GaN on 300 mm Si wafers instead of GaN on SiC

▪ High-mobility III-V combined with CMOS

▪ Monolithic, see ▪ Challenge: overcome lattice mismatch, mismatch in thermal coefficients

▪ Alternative: 3D combination of CMOS with III-V

▪ Wafer-level hybrid bonding ▪ Die-to-wafer, wafer-to-wafer, die-to-die ▪ Sequential 3D

24

Combine best of both worlds

III-V

slide-25
SLIDE 25

Which IC technology for > 100 GHz ?

III-V devices outperform Si(Ge) & GaN devices in speed, output power and efficiency > 100GHz

https://gems.ece.gatech.edu/PA_survey.html

InGaAs mHEMT InGaAs HBT

Intel, IEDM 2019 GaN Device-level, VD=2.5V, L=50nm

HRL, L=20nm 130nm InP-HBT
