Determination of the Siberian Carbon Balance by Top-Down and Bottom-Up Approaches - I. The Global Context: The Carbon Cycle in the Climate System 1. Overview of the carbon cycle 2. Fundamental scientific questions 3. Prognostic


slide-1
SLIDE 1

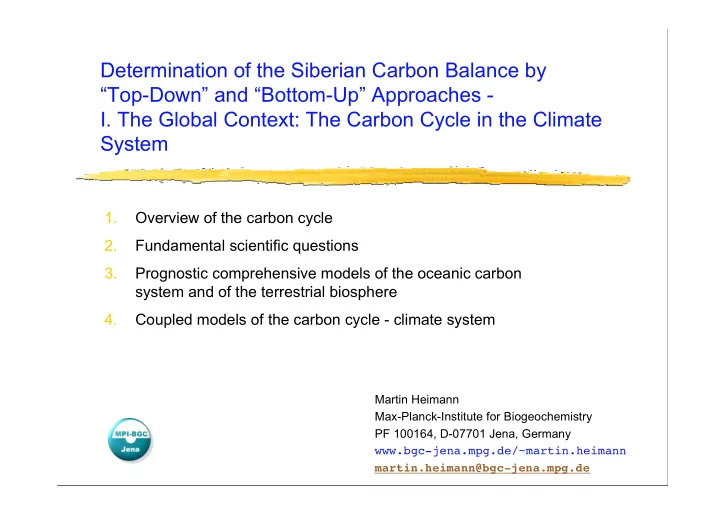

Determination of the Siberian Carbon Balance by “Top-Down” and “Bottom-Up” Approaches -

  • I. The Global Context: The Carbon Cycle in the Climate

System

Martin Heimann Max-Planck-Institute for Biogeochemistry PF 100164, D-07701 Jena, Germany www.bgc-jena.mpg.de/~martin.heimann martin.heimann@bgc-jena.mpg.de

1. Overview of the carbon cycle 2. Fundamental scientific questions 3. Prognostic comprehensive models of the oceanic carbon system and of the terrestrial biosphere 4. Coupled models of the carbon cycle - climate system

slide-2
SLIDE 2

History of the Atmospheric CO2 Concentration

slide-3
SLIDE 3

The Global Carbon Cycle in the Climate System

slide-4
SLIDE 4

Global CO2 Budget [PgC a-1]

1980s 1990s

  • 1. IPCC TAR [Prentice et al., 2001]

Atmospheric increase +3.3 ± 0.1 +3.2 ± 0.1 Fossil fuel and cement production +5.4 ± 0.3 +6.3 ± 0.4 Ocean –1.9 ± 0.6 –1.7 ± 0.5 Land (Net) –0.2 ± 0.7 –1.4 ± 0.7 Changes in landuse +1.7 (+0.6 to +2.5)

  • Residual (Land)

–1.9 (–3.8 to +0.3)

  • 2. Ocean correction [LeQueré et al., 2003]

Ocean –1.8 ± 0.8 –1.9 ± 0.7 Land (Net) –0.3 ± 0.9 –1.2 ± 0.8

  • 3. FAO Statistics + Model [Houghton, 2002]

Changes in landuse +2.0 (+0.9 to +2.8) +2.2 (+1.4 to +3.0) Residual (Land)

  • 2.3 (–4.0 to –0.3)
  • 3.4 (–5.0 to –1.8)
  • 4. Remote sensing + Model [De Fries et al., 2002]

Changes in landuse +0.6 (+0.3 to +0.8) +0.9 (+0.5 to +1.4) Residual (Land)

  • 0.9 (-3.0 to 0)
  • 2.1 (-3.4 to -0.9)

Units: PgC a-1, positive: flux into atmosphere

slide-5
SLIDE 5

Basic Questions on Terrestrial and Oceanic Sinks

z Mechanisms - which process is responsible for the CO2 uptake? z Stability - how stable are these sinks? z Permanence - how permanently is the carbon stacked away? z Vulnerability - how vulnerable are the sink processes, e.g. with respect to climate feedbacks or anthropogenic impacts? z Attribution - can we uniquely attribute the sinks to a particular driver? z Spatio-temporal quantification - can we accurately quantify the sinks in time and space?

slide-6
SLIDE 6

Tools

z Observation network (eddy covariance flux towers, atmospheric measurements, tracer measurements, inventories, remote sensing, etc.) z Process studies (in situ, manipulative, etc.) z Top-down methods z Bottom-up methods (process models, statistical extrapolations) z Data assimilation z Prognostic coupled carbon cycle - climate system models

slide-7
SLIDE 7
slide-8
SLIDE 8

Carbon Flows in Terrestrial Biosphere

slide-9
SLIDE 9

Modelled Processes in a Terrestrial Dynamical Vegetation Model (DGVM)

slide-10
SLIDE 10

Characteristics of Terrestrial Dynamical Vegetation/Carbon Cycle Models

z State variables: Biomass in different pools (above-ground, below-ground, woody, herbaceous, soil pools), leaf area, fractional vegetation cover by different functional vegetation types, nutrients (N, P), temperature and water in different vertical levels in canopy and soil z Plant physiology (e.g. photosynthesis) z Land surface water and energy balance z Biology (e.g. growth, allocation, phenology, senescence, diversity, nutrient interactions): based on empirical relations and optimization principles z Current developments: inclusion of age structure z System of non-linear ordinary first order differential equations z Grid-based (typical 0.5° lat-lon) with no interaction between grid cells

Example: LPJ Model: Sitch et al., GCB, 2003

slide-11
SLIDE 11

Coupled Carbon Cycle - Climate Model Simulations

Emissions CO2 Atmosphere Vegetation Soils Ocean Carbon Atmosphere GCM Ocean GCM

Radiative forcing Land surface parameters Climate

Carbon Cycle Model Climate Model

slide-12
SLIDE 12

Climate Change Scenarios with Coupled Climate- Carbon Cycle Models

Emissions [PgC a-1] CO2 Concentration Globally averaged near surface temperature Cox et al. 2001, Dufrene et al., 2001

Hadley IPSL

+5°C +3°C 1000ppm 750ppm

slide-13
SLIDE 13

Simulated CO2 - Uptake by Land and Ocean

Cox et al. 2001, Dufresne et al., 2001 Friedlingstein et al., in press, 2003

slide-14
SLIDE 14

Simulated Changes in Terrestrial Carbon Pools 1860-2100 in Hadley Model

Cox et al. 2001

slide-15
SLIDE 15

Feedback Analysis

Hadley Model

slide-16
SLIDE 16

Quantitative Feedback Analysis

Friedlingstein et al., 2003

slide-17
SLIDE 17

Conclusions I

z Global carbon cycle behaves up to now almost like a linear system in response to the anthropogenic perturbation z First coupled climate model simulations demonstrate drastically different, but potentially significant positive feedbacks between carbon cycle and physical climate system z Non-linear effects become apparent during early 21st century - reduce CO2 sinks on land and ocean z Need for the development of comprehensive monitoring strategy for: y Early detection significant carbon cycle modifications (e.g. permafrost decline) y Model evaluation y Political motivation: corroboration of Kyoto target compliance

slide-18
SLIDE 18
slide-19
SLIDE 19
  • 1. Methodologies
  • 2. Top-down
  • 3. Bottom-up
  • 4. Outlook

Determination of the Siberian Carbon Balance by “Top-Down” and “Bottom-Up” Approaches -

  • II. Estimating Regional Carbon Balances
slide-20
SLIDE 20

Terrestrial Carbon Observing System - Siberia (TCOS-Siberia, EVK2-CT 2001-00131) 2002-2004

Principal Investigators: z MPI BGC Jena, Germany (Heimann, coordination) z LSCE, Saclay, France (Ciais) z IUP, University of Heidelberg, Germany (Levin) z RUG, Groningen, Netherlands (Meijer) z UNITUS, Viterbo, Italy (Valentini) z University of Amsterdam, The Netherlands (Dolman) z IPEE-RAS, Moscow, Russia (Varlagin) z IFOR-RAS, Krasnojarsk, Russia (Shibistova) z IBPC-RAS, Yakutsk, Russia (Maximov) z PIG-RAS, Cherskii, Russia (Zimov) z UNI.BIAL, Bialystok, Poland (Chilmonczyk) z UNI.FB.FBS, Ceske Budejovice, Czech Republic (Santruckova)

slide-21
SLIDE 21

Methodology of CarboEurope Project (IP FP6)

slide-22
SLIDE 22

Top-Down Approach: Inverse Modeling of Atmospheric CO2

Ingredients: z Observations at atmospheric station network + observation errors z 3d atmospheric transport model z A priori source/sink distribution + error covariances z Additional constraints z Inversion method

slide-23
SLIDE 23

Global Atmospheric Background Station Network (2001)

Globalview (95) AEROCARB (20) TCOS-Siberia (8)

slide-24
SLIDE 24

Near Surface Annual Mean CO2 Concentration Induced by Fossil Fuel CO2 Emissions (5.4 PgC a-1) [GFDL Model Simulation]

90 180 270 360 60 30

  • 30
  • 60

lon lat 2 4 6 8 10 12 ppmv

slide-25
SLIDE 25

Continental Monitoring Locations of TCOS-Siberia

AEROCARB EUROSIBERIAN CARBONFLUX TCOS Siberia NOAA-CMDL (flasks) NOAA, MISU (continuous)

Aircraft profiles Surface sampling Tall Towers

Zotino/Bor (60N, 90E)

slide-26
SLIDE 26

Continental Measurements: Terrestrial Carbon Observing System - Siberia

Profiling and sampling of lower troposphere (up to 3000m) by light aircraft Direct CO2 flux measurements in key ecosystems by means of eddy covariance technique

slide-27
SLIDE 27

Typical Daytime Summer Profiles Zotino, 60°N, 90°E

slide-28
SLIDE 28

Observed Seasonal Cycle of CO2 in Lower Troposphere above Zotino, 60°N, 90°E

Year ppm

slide-29
SLIDE 29

Seasonal Cycle of CO2 at Zotino (60°N,90°E)

Zotino, PBL Zotino, free Troposphere (>~3km) North Atlantic Surface, 60°N (ICE, STM, NOAA-CMDL) ppm

slide-30
SLIDE 30

Atmospheric Model Nesting

Meteorology CO2 Transport model CO2 Source Global Mesoscale 1/2° Mesoscale 1/6° local ECMWF TM3 TURC Canopy-CBL Model REMO 0.5° REMO 1/6° TURC

B,I B,I

slide-31
SLIDE 31

Concentration of CO2 in PBL (~300m) REMO 0.5° Regional Model Simulation

slide-32
SLIDE 32

Main monitoring sites

Footprint Analysis TCOS - Siberia Sites ( dC/dQ, relative units)

Z=500m Z=2500m

slide-33
SLIDE 33

Monthly Mean W-E Composite Concentration Gradient at 60°N, July 1998

REMO (0.5°x0.5°x19L), TM3 (4°x5°x19L)

  • 20

20 40 60 80 100 120 Longitude

  • 4
  • 2

2 4 m p p Composite Gradients at 60N, TM3, REMO, July

3000m 250m

slide-34
SLIDE 34

Top-Down Approach: Inverse Modeling of Atmospheric CO2

Ingredients: z Observations at atmospheric station network + observation errors z 3d atmospheric transport model z A priori source/sink distribution + error covariances z Additional constraints z Inversion method

slide-35
SLIDE 35

Inverse Modeling Strategy - Bayesian Approach

slide-36
SLIDE 36

Transport Model T Space of Concentrations C(x,t) Space of Sources Q(x,t) Null Space A Priori Source A Priori Source Uncertainty “Optimal” Solution Concentration Uncertainty Solutions Compatible with Observations+Uncertainty Observations

Atmospheric Inversion Problem is Ill-Defined

slide-37
SLIDE 37

Computational Aspects: Efficient Computation of Sensitivities dCi/dQj

  • Use of Adjoint Atmospheric Transport Model

Example: global, 10-year inversion of surface sources: z Number of monthly observations: ~ 10yr x 12 months x 100 stations =~ 12’000 data points z Number of unknown monthly source values (4°x5° global grid): ~ 72 x 48 x 12 months x 10 yr =~ 400’000 source values z Dimension of transport matrix: 12’000 x 400’000

slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40

Net CO2 Sources (Average 1995-2000)

Long-term observation stations NOAA/CMDL gC m-2 a-1

Fossil+Ocean+Land Ocean+Land

Rödenbeck et al., ACP, 2003

slide-41
SLIDE 41

Net CO2 Sources (Average 1995- 2000)

Long-term observation stations NOAA/CMDL gC m-2 a-1

Fossil+Ocean+Land Ocean+Land

Rödenbeck et al., ACP, 2003

slide-42
SLIDE 42

Temporal Variability of Natural CO2 Sources Estimated from Atmospheric Measurements by Inverse Modeling

Results of different set-ups (No. of observation stations, a priori sources, etc.)

Rödenbeck et al., ACPD, 2003

slide-43
SLIDE 43

Regional Estimates Less Certain Due to Poor Density of Observation Network

Rödenbeck et al., ACPD

PgC a-1 PgC a-1

slide-44
SLIDE 44

Anomalous Non-Fossil Fuel CO2 Sources 1995-2000

gC m-2 a-1

slide-45
SLIDE 45

Drivers of Interannual Variability: Precipitation? El Niño 1997/8

Rödenbeck et al., ACPD, 2003

slide-46
SLIDE 46

CO2 Sources and Biomass Burning

CO2 Source Flux (2 setups, Units: PgC a-1) Firecounts (arbitrary scale)

Rödenbeck et al., ACPD, 2003

slide-47
SLIDE 47

Preliminary Inversion for Siberia Including First Measurements from TCOS-Siberia

slide-48
SLIDE 48

B F/T S Z T/H Y C K

1-spost/sprior

slide-49
SLIDE 49

Tools for the Bottom-Up Approach

z Process-based ecosystem models (DGVMs) z Process-based ocean carbon cycle models (OCCMs) z Extrapolation techniques from point measurements (i.e. artificial neural networks) z GIS information (i.e. anthropogenic emissions, land use, vegetation type) z Remote sensing of surface properties from space (i.e. vegetation index, above ground biomass)

slide-50
SLIDE 50

PAR, T2m, FCO2 Zotino (90°E, 60°N)

[Pinus Silvestris, age: 200yr, 7-day running means]

10 20 30 40 50 60

  • 40
  • 30
  • 20
  • 10

10 20 30

  • 0.4
  • 0.3
  • 0.2
  • 0.1

0.1 0.2

1998 1999 2000

PAR T2m FCO2

Wm-2 °C mol m-2 d-1

slide-51
SLIDE 51

Evaluation of LPJ-DGVM with Eddy Covariance CO2 Flux Observations (Process- Based Model)

Sitch et al. 2003

slide-52
SLIDE 52
slide-53
SLIDE 53

Artificial Neural Network for Gapfilling and Upscaling - Validation (“Data Driven Model”)

Drivers: NDVI Temperature Landcover Fuzzy variables (seasons)

Papale and Valentini. 2003

Weekly NEE Diurnal Cycles Bordeaux

slide-54
SLIDE 54

Estimated Terrestrial Carbon Flux, July

NEE-ANN NEP-LPJ NET- Inversion

gC m-2 month-1 gC m-2 month-1 gC m-2 day-1

slide-55
SLIDE 55

Consistency? Top-Down and Bottom-up Estimates of CO2 Fluxes

gC m-2 a-1

Mean annual total flux 1995-2000 based on inversion of NOAA-CMDL data [Rödenbeck et al., 2003] Ocean flux [Takahashi, 1998] + Fossil fuel emissions 1990 [EDGAR] + LPJ Model 1980-89 [McGuire et al., 2001]

slide-56
SLIDE 56

gC m-2 a-1

Top-down and Bottom-up Estimates of Total CO2 Flux (Fossil + Land + Ocean) over Northern Eurasia

slide-57
SLIDE 57

Carbon Balance of Siberia in the Global Context

Ciais et al.. 2003 in press

slide-58
SLIDE 58

Conclusions II

z Top-down approach: y Provides large-scale constraints y Ill-posed mathematical problem y Atmospheric model error difficult to quantify y Requires high-quality multi-year concentration measurements z Bottom-up approach: y Direct flux observations representative only for a very small region y Errors of up-scaling techniques (GIS, remote sensing data, process models, neural networks) difficult to quantify

slide-59
SLIDE 59

Conclusions III - the Way Forward

z “Data assimilation”: consistent merging of top-down and bottom-up method y Combined surface-atmosphere (regional-) model with included ecosystem process model y Optimization of model parameters y Problems: x Nonlinearity of surface ecosystem processes x Possible unknown biological processes, drivers x Appropriate time-space scale representation of observations and model output z Remote sensing of CO2 concentration from space using passive (e.g. near-infrared) or active sensors (lidar techniques) y Advantage: high temporal and spatial coverage of entire globe y Problems x Accuracy (<<1%) x Key terrestrial concentration signals in PBL

slide-60
SLIDE 60

Elements of a Global Observing System

High-precision

  • bservations of

atmospheric biogeochemical trace species (concentration and fluxes)
