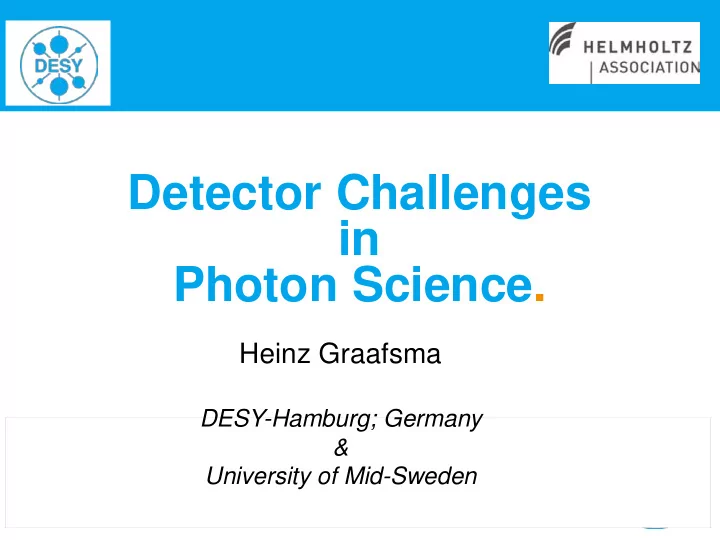

Detector Challenges in Photon Science.

Heinz Graafsma

DESY-Hamburg; Germany & University of Mid-Sweden

slide-2
SLIDE 2 Heinz Graafsma | Page 2

Outline

> Photon Science and the detector challenge > Synchrotron storage rings

§ The LAMBDA system

> X-ray Free Electron Lasers

§ The DSSC system § The AGIPD system

> XUV Free Electron Lasers

§ The PERCIVAL system

> Future directions

slide-3
SLIDE 3 Heinz Graafsma | Page 3

From fundamental to applied science

Study of extremely charged ions Structure of viruses Authentication of paintings

slide-4
SLIDE 4 Heinz Graafsma | Page 4

Photon-Science at large scale X-ray facilities

PETRA III FLASH I + II European XFEL

slide-5
SLIDE 5 Heinz Graafsma | Page 7

The Detector Challenge:

1900 1960 1980 2000 PETRA-3 Second generation First generation X-ray tubes ESRF (2000) ESRF (1994) 1

2

1

1

1

1

1

1

1

1

1

1

1

8

1

2

1

2

1

2

1

1

1

1

1

1

1

1

1

1

1

9

1

7

1

6

Storage Ring Sources

brilliance

FEL Sources

slide-6
SLIDE 6 Heinz Graafsma | Page 8

Outline

> Photon Science and the detector challenge > Synchrotron storage rings

§ The LAMBDA system

> X-ray Free Electron Lasers

§ The DSSC system § The AGIPD system

> XUV Free Electron Lasers

§ The PERCIVAL system

> Future directions

slide-7
SLIDE 7 Heinz Graafsma | Page 9
  • Pulsed X-ray source
  • ~ Giga Hz rep-rate
  • Treated as a continuous,

random source

  • Main photon range: 5-30

keV

  • Few stations <1 keV
  • Few stations > 100 keV
  • 30 large synchrotrons

world-wide

  • ~ 800 end-stations

PETRA III

Storage Ring Sources: general observations

slide-8
SLIDE 8 Heinz Graafsma | Page 10

Particle / X-ray Signal Charge Electr. Amplifier Readout Digital Data

Pixelated Particle Sensor Amplifier & Readout Chip CMOS

Indium Solder Bumpbonds

Data Outputs

Power

Clock Inputs

Connection wire pads Power Inputs Outputs

Particle / X-ray Qsignal

Hybrid Pixel Array Detectors (HPADs)

slide-9
SLIDE 9 Heinz Graafsma | Page 13

55µ

Medipix-3: Communicating pixels

slide-10
SLIDE 10 Heinz Graafsma | Page 14

55µ

The winner takes all principle

  • The incoming

quantum is assigned as a single hit

Medipix-3: Communicating pixels

slide-11
SLIDE 11 Heinz Graafsma | Page 15

Communicating pixels Ł better energy resolution

slide-12
SLIDE 12 Heinz Graafsma | Page 16

Medipix3 readout chip

> Collaboration of ~20 groups led by CERN > Flexible pixel design

§ 2 counters and thresholds per 55µm pixel, plus interpixel communication

> Applications:

§ Fast, deadtime-free frame readout

  • 2000 fps @ 12 bit depth

§ Energy binning with charge summing § Pump / probe…

slide-13
SLIDE 13 Heinz Graafsma | Page 19

Large Area Medipix3 Based Detector Array (LAMBDA)

slide-14
SLIDE 14 Heinz Graafsma | Page 22

High-Z pixel detectors

> Aim: Increase efficiency at 50 keV by factor of 10

§ Replace silicon sensor in LAMBDA with high-Z semiconductor § Combine high QE with hard X-rays, high frame rate, high signal-to-noise

> Investigating different materials in collaboration with other institutes and industry

§ Cadmium telluride § Gallium arsenide § Germanium

slide-15
SLIDE 15 Heinz Graafsma | Page 23

High-Z sensors

> CdTe, GaAs and Ge can be used for experiments > Each material has strengths and weaknesses

§ CdTe – most well-established, still some problems with uniformity and stability § GaAs – widespread but correctable non-uniformity – very limited supply § Germanium technology now works – but high cooling power for large systems Ge GaAs CdTe

slide-16
SLIDE 16 Heinz Graafsma | Page 25

Outline

> Photon Science and the detector challenge > Synchrotron storage rings

§ The LAMBDA system

> X-ray Free Electron Lasers

§ The DSSC system § The AGIPD system

> XUV Free Electron Lasers

§ The PERCIVAL system

> Future directions

slide-17
SLIDE 17 Heinz Graafsma | Page 26
  • 17.5 GeV linear electron accelerator (3.4 km)
  • producing 5-25 keV x-rays (tunable) through

FEL process

  • unprecedented peak brilliance
  • user facility: common infrastructure shared by

many experiments

DESY

Switch Building (Osdorfer Born) Experimental Hall (Schenefeld)

The European X-ray Free Electron Laser

slide-18
SLIDE 18 Heinz Graafsma | Page 27
  • Completely new

science

  • Fast science 100 fsec
  • “Single shot” science

x109

The XFEL-Challenge: Different Science

slide-19
SLIDE 19 Heinz Graafsma | Page 28
  • K. J. Gaffney and H. N. Chapman, Science
8 June 2007

The Holy Grail ?

slide-20
SLIDE 20 Heinz Graafsma | Page 29
  • av. Rate:

27kHz XFEL 120Hz LCLS 60Hz SCSS

600µs 99.4 ms 100 ms 100 ms 220 ns FEL process

X- ray photons <100 f s

Elect r on bunch t r ains; up t o 2700 bunches in 600 µsec, r epeat ed 10 t imes per second. Pr oducing 100 f sec X-r ay pulses (up t o 27 000 bunches per second).

27 000 bunches/ s with

  • 4. 5 MHz

repitition rate

European XFEL Linac: Time Structure Challenge

slide-21
SLIDE 21 Heinz Graafsma | Page 30

4.5 MHz

What are the challenges ?

slide-22
SLIDE 22 Heinz Graafsma | Page 31

How to meet the challenge ?

Three dedicated Projects:

  • Depfet Sensor with Signal Compression

Non-linear gain, digital storage

  • Adaptive Gain Integrating Pixel Detector

Automatic adaptive gain, analogue storage

  • Large Pixel Detector

Three parallel gains, analogue storage

slide-23
SLIDE 23 Heinz Graafsma | Page 32

DSSC - DEPMOS Sensor with Signal Compression

> MPI-HLL, Munich > Universität Heidelberg > Universität Siegen > Politecnico di Milano > Università di Bergamo > DESY, Hamburg > Hexagonal pixels 200µm pitch

  • combines DEPFET
  • with small area

drift detector (scaleable)

> DEPFET per pixel > Very low noise (good for soft X-rays) > non linear gain (good for dynamic range) > per pixel ADC > digital storage pipeline

slide-24
SLIDE 24 Heinz Graafsma | Page 33 Output voltage as function of charge injected charge

DEPFET: Electrons are collected in a storage well ⇒Influence current from source to drain

source drain gate Fully depleted silicon e- Storage well

injected charge

DSSC - DEPFET Sensor with Signal Compression

slide-25
SLIDE 25

The Adaptive Gain Integrating Pixel Detector (AGIPD)

slide-26
SLIDE 26 Heinz Graafsma | Page 37 C1

Leakage comp.

C2 C3

Discr. Control logic Trim DAC

Vthr ≅ VADCmax

Analogue encoding

Normal Charge sensitive amplifier High dynamic range: Dynamically gain switching system Extremely fast readout (200ns): Analogue pipeline storage

0,0 0,2 0,4 0,6 0,8 1,0 1,2 1,4 1,6 1,8 5000 10000 15000 Number of 12.4 KeV - Photons Output Voltage [V] Cf=100fF Cf=1500fF Cf=4800fF

Adaptive Gain principle

slide-27
SLIDE 27 Heinz Graafsma | Page 38

Sensor Electronics per pixel

ASIC periphery

Chip

  • utput

driver

Mux

HV

+

  • THR

DAC SW CTRL Analog Mem Analog Mem CDS RO Amp

Calibration circuitry Adaptive gain amplifier 352 analog memory cells

… …

Read Out bus Pixel matrix

AGIPD readout principle

slide-28
SLIDE 28 Heinz Graafsma | Page 39
  • 200 x 200 micron2 pixels
  • 352 storage cells + veto

possibilities.

  • M inumum signal ~ 300 e- =

0.1 photon of 12.4keV

  • M aximum signal ~ 33 106 e- =

104 photons of 12.4keV

  • 4.5 M Hz frame rate
  • 64 x 64 pixels per ASIC
  • 2 x 8 ASICs per module

(128x512 pixels, no dead area)

  • 4 modules per quadrant

AGIPD Pixel Electronics

slide-29
SLIDE 29 Heinz Graafsma | Page 45

Special Radiation hard design Special design to minimize dead area AGIPD 1.0

AGIPD modules

slide-30
SLIDE 30 Heinz Graafsma | Page 46
  • Protruding out of detector

vessel to minimize sample to detector distance

  • Independently movable

quadrants

  • Angled electronics to minimize

footprint along beam axis

A 1M pixel camera with a variable hole

slide-31
SLIDE 31 Heinz Graafsma | Page 47

The Real thing

slide-32
SLIDE 32 Heinz Graafsma | Page 48

Single bunch imaging – a challenge to find processes fast enough

Experimental setup

  • Drilled equidistant holes into a DVD
  • DVD covered with zinc paint to

increase absorption

  • Mounted DVD on a fast electric motor
  • Measurement of hole to hole frequency
  • with diode and oscilloscope:

1.208kHz

Experiments: AGIPD module @APS

slide-33
SLIDE 33 Heinz Graafsma | Page 49

Calculation for burst imaging Vdisc, AGIPD = 29.51m/s Vdisc, Laser = 29.83m/s

  • APS bunch spacing: t = 154ns
  • Number of pixels crossed during

burst of 352 images: ~ 8

  • Pixel size:

200µm Result from laser measurement

͌

Single bunch imaging is possible even at a repetition rate of 6.5MHz!!

Experiments: AGIPD module @APS

slide-34
SLIDE 34 Heinz Graafsma | Page 50

Outline

> Photon Science and the detector challenge > Synchrotron storage rings

§ The LAMBDA system

> X-ray Free Electron Lasers

§ The DSSC system § The AGIPD system

> XUV Free Electron Lasers

§ The PERCIVAL system

> Future directions

slide-35
SLIDE 35

(Pixelated Energy Resolving CMOS Imager, Versatile And Large)

Soft X-ray imaging MAPS for (X)FELs and synchrotrons

slide-36
SLIDE 36 Heinz Graafsma | Page 52

PERCIVAL in a nutshell

> Aim: develop X-ray imager for FELs’ and Storage Rings > 250eV-1keV, 2Mpixel & 13Mpixel, 27 micron pixels, 120Hz frame rate, 1-105 photons/pixel. Fully functional below 250 eV and above 1 keV. > Partners: DESY, RAL/STFC, Elettra, Diamond (DLS) & Pohang Light Source (PAL)

§ Sensor developed at RAL, § System developed DESY, Elettra, DLS and PAL

§ Only digital information coming off the chip § Readout development build upon / re-use XFEL and AGIPD developments

> Project timeline

§ TS1.2 to be tested this summer § First full 2M system 2016

slide-37
SLIDE 37 Heinz Graafsma | Page 53

Sensor

pixel area sampling ADC (12+1 bit ) address bias

  • dig. out (120 f ps)

“standard” 3T pixel added capacitors and switches for 4 gains anti- blooming

slide-38
SLIDE 38 Heinz Graafsma | Page 56

Outline

> Photon Science and the detector challenge > Synchrotron storage rings

§ The LAMBDA system

> X-ray Free Electron Lasers

§ The DSSC system § The AGIPD system

> XUV Free Electron Lasers

§ The PERCIVAL system

> Future directions

slide-39
SLIDE 39 Heinz Graafsma | Page 57

Silicon pixel sensor

GRs GRs

ASIC chip Chip carrier and routing board ASIC chip Electrical IO

Current hybrid pixel technology

PAGE 57

dead space dead space

Hybrid pixel detectors for future experiments

slide-40
SLIDE 40 Heinz Graafsma | Page 58 PAGE 58

Edgeless pixel sensor TSV ASIC Chip carrier and routing board TSV ASIC Electrical IO

Future hybrid pixel technology

Highly sensitive, rad-hard sensors Modules with no dead area Finer interconnect

  • > smaller pixels

Smarter ASICs carrier board with MC-cooling Better materials with integrated cooling Optical IO TB/s optical readout

  • > higher frame/event rate

Data reduction Local intelligence

ASIC-1 ASIC-2 ASIC-1 ASIC-2

3D ASICs

Hybrid pixel detectors for future experiments

slide-41
SLIDE 41 Heinz Graafsma | Page 59
  • Profit from Moore’s law: increased functionality per unit area

Ł smaller pixels or smarter pixels or both.

  • Profit from increased radiation hardness for deep sub-micron CMOS

Example: Detectors for the European XFEL: 4.5 MHz, 2700 images, tens of MGy

Sensor Electronics per pixel ASIC periphery Chip
  • utput
driver M ux Calibration circuitry Adaptive gain amplifier 352 analog memory cells

… …

RO bus (per column) +
  • THR
DAC SW CTRL Analog Mem Analog Mem CDS RO Amp HV Pixel matrix

200 micron

ASIC developments

slide-42
SLIDE 42 Heinz Graafsma | Page 60

bottom tier top tier test in progress ... digital circ analog circ

Scientific goal: most efficient Serial Femto-second Crystallography (SFX), Single Particle Imaging, etc Technical goal: record as many images as possible during bunch train. Ł Design a two-layer ASIC with more storage cells in second layer First results: achieved connectivity between two layers!!

bump bond pad to sensor amplification & double sampling storage on 2 tiers (544 images)

  • ut

3D Evolution of the AGIPD ASIC

slide-43
SLIDE 43 Heinz Graafsma | Page 62

PAGE 62

C

Hillerkuss et al., Nature Photonics 5, 364–371 (2011)

Frequency comb source: 325 channels, 12.5 GBd, 16 QAM, PolMUX => 32.5 Tbit/s

frep = 12.5 GHz

The vision: Chip-scale multi-Terabit/s transceivers Chip-scale frequency comb sources Transmitter: Silicon photonics and hybrid integration Photonic wire bonds

Terabit communications: Proof-of-principle

slide-44
SLIDE 44 Heinz Graafsma | Page 63

PAGE 63

Passive optical waveguides Electro-optic modulators Interface electronics To data center

  • Intimate co-integration of

photonics and electronics for terabit communications

  • Fast readout of full

detector: Get raw data out for “offline processing” in data center

  • Less electronics and more

detectors in detector volume

  • Less mass in detector for

higher accuracy

The Vision: Terabit/s I/O in particle detectors

slide-45
SLIDE 45 Heinz Graafsma | Page 64

Diffraction limited storage rings

ESRF “orange book”; phase-II upgrade.

slide-46
SLIDE 46 Heinz Graafsma | Page 65

Diffraction limited storage rings (ESRF)

Small AND parallel beam

slide-47
SLIDE 47 Heinz Graafsma | Page 66

LCLS-II: a CW X-ray Free Electron Laser

slide-48
SLIDE 48 Heinz Graafsma | Page 67

LCLS-II

The conceptual design:

  • Adds a new, 4 GeV superconducting linac in an existing SLAC tunnel,

avoiding the need for excavation.

  • Increases the repetition rate from 120 pulses per second to 1 million per
  • second. It will be the world’s only X-ray free-electron laser capable of

supplying a uniformly-spaced train of pulses with programmable repetition rate.

  • Provides a tunable source of X-rays, by replacing the existing undulator

(used to generate X-ray laser pulses) with two new ones. This ability to tune the X-ray energy on demand will enable scientists to scan across a wide spectrum – opening up new experimental techniques and making efficient use of the valuable beam time.

  • Provides access to an intermediate X-ray energy range that is currently

inaccessible with LCLS, but which is likely critical for studies of new materials, chemical catalysis and biology.

  • Extends the operating range of the facility from its current limit of ~11 keV

x-rays to ~25 keV.

  • Supports the latest seeding technologies to provide fully coherent X-rays

(at the spatial diffraction limit and at the temporal transform limit)

  • Maintains the existing copper-based warm linac and upgrades parts of

the existing research infrastructure to take advantage of the new configuration

slide-49
SLIDE 49 Heinz Graafsma | Page 68

Summary

> New detectors have and will enable new photon-science > Dedicated detector developments are needed to profit from source developments > Detector developments for photon-science are at the forefront > The next 5 years will see a continued development detectors at photon sources > The new photon sources will require new detector concepts

  • The End -

PAGE 68
