Detection and Diagnosis of Plant-wide Oscillations using the Spectral Envelope Method Hailei Jiang , M.A.A. Shoukat Choudhury, and Sirish L. Shah Computer and Process Control group Department of Chemical and Materials Engineering University

slide-1
SLIDE 1

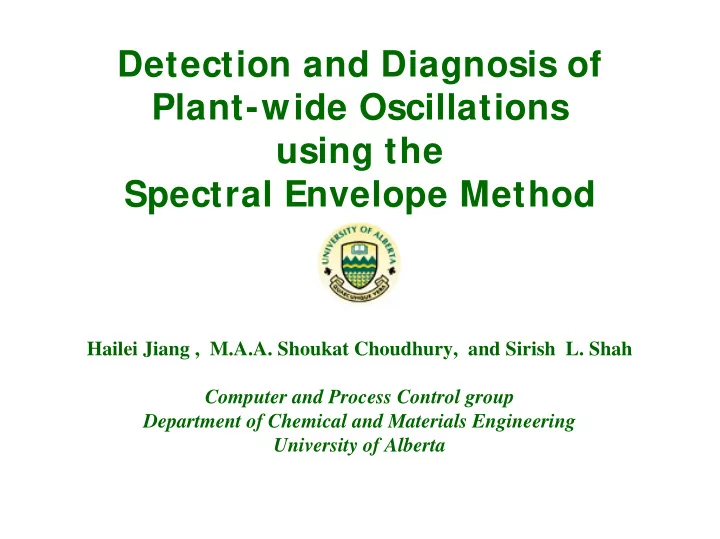

Detection and Diagnosis of Plant-wide Oscillations using the Spectral Envelope Method

Hailei Jiang , M.A.A. Shoukat Choudhury, and Sirish L. Shah Computer and Process Control group Department of Chemical and Materials Engineering University of Alberta

slide-2
SLIDE 2

CSChE-2005, CPC Group, U of A 2

Outline

Motivation Spectral Envelop Method and its use in

Oscillation Detection & Variable Categorization

Application to industrial data Conclusion Acknowledgement

slide-3
SLIDE 3

CSChE-2005, CPC Group, U of A 3

Motivation

slide-4
SLIDE 4

CSChE-2005, CPC Group, U of A 4

Motivation

Oscillations are common in many processes,

whose effects propagate to many units and thus may impact the overall process performance.

For reasons of Safety and Profitability, it is

important to detect and diagnose the plant- wide oscillation.

slide-5
SLIDE 5

CSChE-2005, CPC Group, U of A 5

Industrial Example

slide-6
SLIDE 6

CSChE-2005, CPC Group, U of A 6

Objective

Detect oscillations in the process variables. Categorize the variables that have similar

  • scillations.

Deliver useful information on the potential

root-cause(s)

slide-7
SLIDE 7

CSChE-2005, CPC Group, U of A 7

Spectral Envelop Method and its use in Oscillation Detection & Variable Categorization

slide-8
SLIDE 8

CSChE-2005, CPC Group, U of A 8

Preliminaries

Assume is an dimensional,

vector-valued time series, for .

Denote as a linear combination of the variables of

:

slide-9
SLIDE 9

CSChE-2005, CPC Group, U of A 9

Preliminaries (con’t)

Denote the covariance of as: The variance of can be expressed as:

slide-10
SLIDE 10

CSChE-2005, CPC Group, U of A 10

What is a Spectral Envelope?

With the constraint that

, then is unit-variance.

Power spectra Spectral Envelope ) , ( β ω

g

P

ω π

slide-11
SLIDE 11

CSChE-2005, CPC Group, U of A 11

Definition of Spectral Envelop

The Spectral Envelope of is defined to be

) (t X

The quantity represents the largest power

(variance) that can be obtained at frequency for any unit-variance scaled series, which is a linear combination of the variables of .

slide-12
SLIDE 12

CSChE-2005, CPC Group, U of A 12

Simulation example

Noise 0.1 & 0.3 Hz 0.3 Hz 0.1 Hz

slide-13
SLIDE 13

CSChE-2005, CPC Group, U of A 13

Spectral Envelope

Spectral envelope can identify the oscillations at 0.1 and 0.3 Hz.

slide-14
SLIDE 14

CSChE-2005, CPC Group, U of A 14

Optimal Scalings at 0.1 Hz

Tag Scaling Power

1 0.5839 93.3877 10 0.5402 79.9361 2 0.4241 49.2677 3 0.2857 22.3598 9 0.2803 21.5237 4 0.1617 7.1653 11 0.0214 0.1255 8 0.0093 0.0239 12 0.0093 0.0239 7 0.0092 0.0233 6 0.0089 0.0223 5 0.0088 0.0211

Magnitude of scaling for each variable Power at 0.1 Hz for each variable

slide-15
SLIDE 15

CSChE-2005, CPC Group, U of A 15

Scaling plot VS Power plot at 0.1Hz

Power plot Scaling plot

Both plots can help us to categorize variables.

slide-16
SLIDE 16

CSChE-2005, CPC Group, U of A 16

Scaling plot VS Power plot at 0.3Hz

Power plot Scaling plot

Both plots can help us to categorize variables.

slide-17
SLIDE 17

CSChE-2005, CPC Group, U of A 17

Application to industrial data

slide-18
SLIDE 18

CSChE-2005, CPC Group, U of A 18

Distillation plant example

Data from Mitsubishi Chemical Corporation 58 process variables from a distillation plant 3600 observations sampled at 1 min interval

slide-19
SLIDE 19

CSChE-2005, CPC Group, U of A 19

Overview of the data

Interested in oscillations with period 2.5 hours ( about 150 samples/cycle, or 1/150 = 0.0067)

tag 41- 58 tag 1- 20 tag 21- 40

slide-20
SLIDE 20

CSChE-2005, CPC Group, U of A 20

Spectral Envelope

0.0069, 144 samples/cycle

Spectral envelope detect the oscillation of concern with a period of 144 samples/cycle.

slide-21
SLIDE 21

CSChE-2005, CPC Group, U of A 21

Power plot at 0.0069 (144 samples/cycle)

Power plot

slide-22
SLIDE 22

CSChE-2005, CPC Group, U of A 22

pv-op plot

  • 1. This plot shows a pattern of valve stiction.
  • 2. Simple closed-loop plant test had confirmed that

the valve really has stiction problem.

  • 3. Further plant test and maintenance has been

scheduled during the next plant shutdown.

slide-23
SLIDE 23

CSChE-2005, CPC Group, U of A 23

Root cause Diagnosis

slide-24
SLIDE 24

CSChE-2005, CPC Group, U of A 24

Conclusion

slide-25
SLIDE 25

CSChE-2005, CPC Group, U of A 25

Conclusion

Spectral Envelop (SE) method has been

successfully applied to industrial data to identify the oscillation frequencies and categorize the variables that have the same

  • scillations.

Scaling plot and power plot provide useful

information on the root-cause of oscillations.

slide-26
SLIDE 26

CSChE-2005, CPC Group, U of A 26

Acknowledgement

slide-27
SLIDE 27

CSChE-2005, CPC Group, U of A 27

Acknowledgement

NSERC, Matrikon and ASRA for financial

support

  • Dr. Bhushan Gopaluni, Matrikon Inc.

Colleagues of Computer Process Control

(CPC) group at the University of Alberta

slide-28
SLIDE 28

CSChE-2005, CPC Group, U of A 28

Thank you!
