degrees of freedom
play

Degrees of freedom charge Q ab Ferroelectricity Charge ordering - PowerPoint PPT Presentation

Coupled electricity and magnetism: magnetoelectrics, multiferroics and all that D. I. Khomskii Koeln University, Germany Introduction Magnetoelectrics Multiferroics; microscopic mechanisms Currents, dipoles and monopoles in frustrated systems

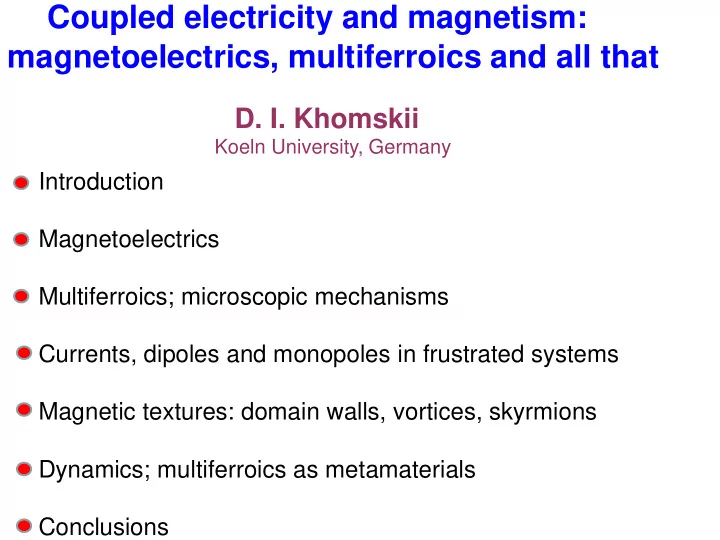

  1. Coupled electricity and magnetism: magnetoelectrics, multiferroics and all that D. I. Khomskii Koeln University, Germany Introduction Magnetoelectrics Multiferroics; microscopic mechanisms Currents, dipoles and monopoles in frustrated systems Magnetic textures: domain walls, vortices, skyrmions Dynamics; multiferroics as metamaterials Conclusions

  2. Degrees of freedom charge Q ab Ferroelectricity Charge ordering (quadrupole) r (r) (monopole) P or D (dipole) Spin Orbital ordering Magnetic ordering Lattice

  3. Maxwell's equations Magnetoelectric effect

  4.   Coupling of electric polarization to magnetism Time reversal symmetry   P P   t t   M M Inversion symmetry  a F HE   P P  r r   M M For linear ME effect to exist, both inversion symmetry and time reversal invariance has to be broken

  5. In Cr2O3 inversion is broken --- it is linear magnetoelectric In Fe2O3 – inversion is not broken, it is not ME (but it has weak ferromagnetism)

  6. Magnetoelectric coefficient α ij can have both symmetric and antisymmetric parts Symmetric: Then P i = α ij H i ; along main axes P ║ H , M ║ E For antisymmetric tensor α ij one can introduce a dual vector T is the toroidal moment (both P and T-odd). Then P ┴ H, M ┴ E, P = [ T x H ], M = - [ T x E ] For localized spins For example, toroidal moment exists in a magnetic vortex

  7. MULTIFERROICS Materials combining ferroelectricity, (ferro)magnetism and (ferro)elasticity If successful – a lot of possible applications (e.g. electrically controlling magnetic memory, etc) Field active in 60-th – 70-th, mostly in the Soviet Union Revival of the interest starting from ~2000 D.Kh. JMMM 306 , 1 (2006); Physics (Trends) 2 , 20 (2009)

  8. Magnetism: In principle clear: spins; exchange interaction; partially filled d-shells Ferroelectricity: Microscopic origin much less clear. Many different types, mechanisms several different mechanism, types of multiferroics Type-I multiferroics: Independent FE and magnetic subsystems 1) Perovskites: either magnetic, or ferroelectric; why? 2) “Geometric” multiferroics ( YMnO3) 3) Lone pairs (Bi; Pb , ….) 4) FE due to charge ordering Type-II multiferroics: FE due to magnetic ordering 1) MF due to exchange striction 2) Spiral MF 3) Electronic mechanism

  9. P(  C cm -2 ) material T FE (K) T M (K) BiFeO 3 60 - 90 1103 643 YMnO 3 914 5.5 76 HoMnO 3 875 72 5.6 TbMnO 3 28 41 0.06 TbMn 2 O 5 38 43 0.04 Ni 3 V 2 O 8 6.3 9.1 0.01

  10. Typ ype-I I multif multifer erroics oics : Independent ferroelectricity and magnetism Perovskites: d 0 vs d n Empirical rule:FE for perovskites with empty d-shell (BaTiO3, PbZrO3; KNbO3) contain Ti 4+ , Zr 4+ ; Nb 5+ , Ta 5+ ; Mo 6+ , W 6+ , etc. Magnetism – partially filled d-shells, d n , n>o Why such mutual exclusion? Not quite clear. Important what is the mechanism of FE in perovskites like BaTiO3 Classically: polarization catastrophy; Clausius-Mossotti relations, etc. Real microscopic reason: chemical bonds

  11. Ti 4+ : establishes covalent bond with oxygens (which “donate” back the electrons), using empty d-levels O------Ti-----O O--------Ti--O Better to have one strong bond with one oxygen that two weak ones with oxygens on the left and on the right Two possible reasons: d 0 configurations: only bonding orbitals are occupied Other localized d-electrons break singlet chemical bond by Hund’s rule pair - breaking (a la pair-breaking of Cooper pairs by magnetic impurities)

  12. Ti 4+ : establishes covalent bond with oxygens (which “donate” back the electrons), using empty d-levels O------Ti-----O O--------Ti--O Better to have one strong bond with one oxygen that two weak ones with oxygens on the left and on the right Two possible reasons: d 0 configurations: only bonding orbitals are occupied Other localized d-electrons break singlet chemical bond by Hund’s rule pair - breaking (a la pair-breaking of Cooper pairs by magnetic impurities)

  13. “ Geometric” multiferroics: hexagonal manganites RMnO3 YMnO3: T FE ~900 K; T N ~70 K The origin (T.Palstra, N. Spaldin): tilting of MnO5 trigonal bipiramids – a la tilting of MO6 octahedra in the usual perovskites leading to orthorombic distortion. In perovskites one AMO3 one A-O distance becomes short, but no total dipole moment – dipole moments of neighbouring cells compensate. In YMnO3 – total dipole moment, between Y and O; Mn plays no role!

  14. Lone pairs and ferroelectricity Bi 3+ ; Pb 2+ . Classically – large polarizability. Microscopically – easy orientation of the lone pairs Many nonmagnetic ferroelectrics with Bi 3+ ; Pb 2+ . – e.g. PZT [Pb(ZrTi)O3] Some magnetic: Aurivillius phases: good ferroelectrics, layered systems with perovskite slabs/Bi 2 O 2 layers (SrBi 2 Nb 2 O 9 ; SrBi 4 Ti 4 O 15 , etc). Exist with magnetic ions, but not really studied. PbVO3 – a novel compound. Distortion so strong that probably impossible to reverse polarization – i.e. it is probably not ferroelectric, but rather pyroelectric

  15. Ferroelectricity due to charge ordering

  16. d d

  17. Systems with ferroelectricity due to charge ordering Some quasi-one- dimensional organic materials (Nad’, Brazovskii & Monceau; Tokura) Fe3O4 : ferroelectric below Verwey transition at 119 K ! Also ferrimagnetic with large magnetization and high Tc LuFe2O4 ? RNiO3 ?

  18. Typ ype-II II multif multifer erroics oics : Ferroelectricity due to magnetic ordering Magnetostriction mechanism

  19. Ca 3 Co 2-x Mn x O 6 Co 2+ Mn 4+ Y.J. Choi et al PRL 100 047601 (2008)

  20. Spiral mechanism (cycloidal spiral) , (Mostovoy) (Katsura, Nagaosa and Balatsky)

  21. Magnetic ordering in TbMnO 3 28K < T < 41K Sinusoidal SDW spins along b axis T < 28K Helicoidal SDW spins rotating in bc plane M. Kenzelmann et al (2005)

  22. Ferroelectricity in a proper screw Sometimes also proper screw structures can give ferroelectricity They should not have 2-fold rotation axis perpendicular to the helix Special class of systems: ferroaxial crystals (L.Chapon, P.Radaelli) crystals with inversion symmetry but existing in two inequivalent modifications, which are mirror image of one another Characterised by pseudovector (axial vector) A κ = r 12 [ S 1 x S 2 ] Proper screw may be characterised by chirality Then one can have polarization P = κ A (or have invariant ( κ A P) ) Examples: AgCrO 2 , CaMn 7 O 12 , RbFe(MoO 4 ) 2

  23. Electronic Orbital Currents and Polarization in frustrated Mott Insulators L.N . Bulaevskii , C.D. Batista , M. Mostovoy and D. Khomskii PRB 78 , 024402 (2008) D. Khomskii J.Phys.-Cond. Mat. 22 , 164209 (2010) Mott insulators U          2 ( ) ( 1) , H t c c c c n     ij i j j i i 2  ij i Standard paradigm: for U>>t and one electron per site electrons are localized on sites. All charge degrees of freedom are frozen out; only spin degrees of freedom remain in the ground and lowest excited states 2 4 t    H ( S S 1/ 4). S 1 2 U

  24. Not the full truth! For certain spin configurations there exist in the ground state of strong Mott insulators spontaneous electric currents (and corresponding orbital moments)! For some other spin textures there may exist a spontaneous charge redistribution , so that <n i > is not 1! This, in particular, can lead to the appearance of a spontaneous electric polarization (a purely electronic mechanism of multiferroic behaviour ) These phenomena, in particular, appear in frustrated systems, with scalar chirality playing important role

  25. Spin systems: often complicated spin structures, especially in frustrated systems – e.g. those containing triangles as building blocks ? Isolated triangles (trinuclear clusters) - e.g. in some magnetic molecules (V15 , …) Solids with isolated triangles (La 4 Cu 3 MoO 12 ) Triangular lattices Kagome Pyrochlore

  26. Triangular lattices : Na x CoO 2 , LiVO 2 , CuFeO 2 , LiNiO 2 , NiGa 2 S 4 , …

  27. Kagome:

  28. The Cathedral San Giusto, Trieste, 6-14 century

  29. Spinels, pyrochlores: The B-site pyrochlore lattice: geometrically frustrated for AF

  30.   Often complicated ground states; sometimes S 0 i spin liquids  Some structures, besides , are characterized by: S i Vector chirality      S S i j Scalar chirality         S S S 1 1 123 1 2 3 - - solid angle + 2 2 3 3  may be + or - :

  31. But what is the scalar chirality physically? What does it couple to? How to measure it? Breaks time-reversal-invariance T and inversion P - like currents!  123  0 means spontaneous circular electric current 123  123  0 0 j L and orbital moment 1 1   χ L j + - 123 123 123 3 2 2 3 Couples to magnetic field :      ~ L H H

Download Presentation
Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend


More recommend
