Cup N Cake CNC Baked Goods Decorator Michelle Burroughs, Dan - PowerPoint PPT Presentation

Cup N Cake CNC Baked Goods Decorator Michelle Burroughs, Dan Fourie, Karen Hart, Amber Houghstow, Travis Tucker Sketch Model Demo Sketch Model Demo Cont. 2-axis head controlled by stepper

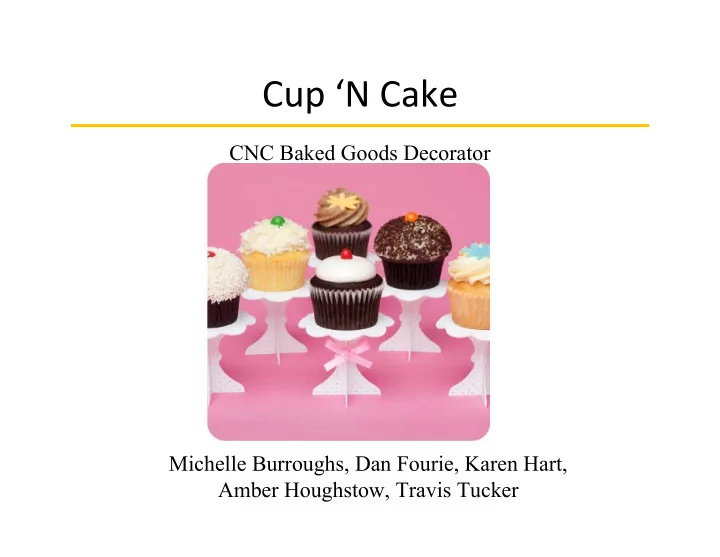

  1. Cup ¡‘N ¡Cake CNC Baked Goods Decorator Michelle Burroughs, Dan Fourie, Karen Hart, Amber Houghstow, Travis Tucker

  2. Sketch ¡Model ¡Demo

  3. Sketch ¡Model ¡Demo ¡Cont.  2-­‑axis ¡head ¡controlled by ¡stepper ¡motors  Mul>ple ¡hoppers ¡or extruders  12” ¡maximum ¡dessert diameter  Fros>ng ¡stored ¡at ¡back  Z-­‑stage ¡for ¡3D posi>oning  Top-­‑mounted ¡camera links ¡edge-­‑finding ¡to ¡UI.

  4. User ¡Interface

  5. Technical  Resolu>on: ¡ ¡Approx. ¡1mm  3D ¡prin>ng ¡is ¡ubiquitous MTM machine  5K ¡for ¡commercial desktop ¡3D ¡printers, ¡1K for ¡DIY ¡printers  Many ¡extruder/hopper op>ons  Open ¡source ¡soTware:  ¡MTM ¡Mul>fab, ¡Center ¡for Bits ¡and ¡Atoms, ¡MakerBot

  6. Unique ¡Features Cup ¡n’ ¡Cake Prior ¡Art  Mul>ple ¡material  Only ¡one ¡fros>ng dispensing type ¡is ¡used  Easy ¡user ¡interface  Not ¡consumer friendly  Accommodates ¡as large ¡as ¡12’ ¡by ¡12’ ¡of  Small baked ¡goods  Hand-­‑made

  7. Ques>ons?
