CSC 2400: Computer Systems Using the Stack for Function Calls Lecture Goals int add3(int a, int b, int c) { int d; How are function calls d = a + b + c; implemented at the return d; } machine level? int main() { int sum, avg;

slide-1
SLIDE 1

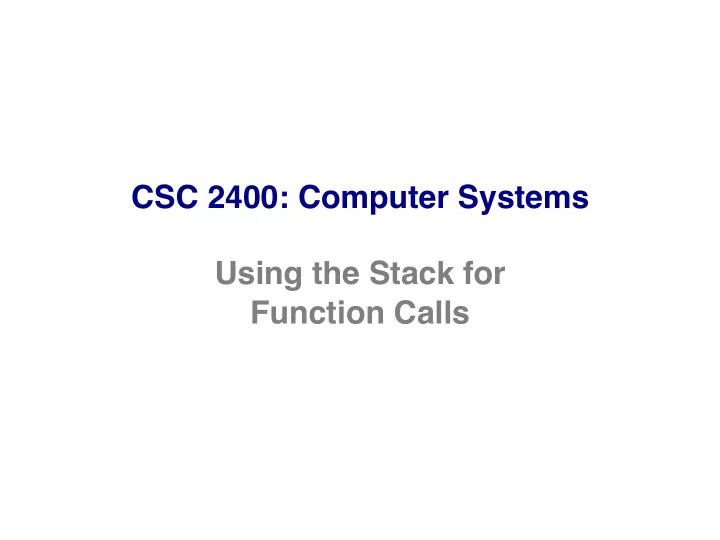

CSC 2400: Computer Systems Using the Stack for Function Calls

slide-2
SLIDE 2

Lecture Goals

  • Challenges:

! Providing info for the called function – Function arguments – Local variables ! Upon return, resume execution of caller – Return address – Register contents

  • Solution: use the stack

int add3(int a, int b, int c) { int d; d = a + b + c; return d; } int main() { int sum, avg; sum = add3(3, 4, 5); avg = sum / 3; return avg }

How are function calls implemented at the machine level?

slide-3
SLIDE 3

Lecture Goals

  • Challenges of supporting functions

! Providing information for the called function – Function arguments and local variables ! Allowing the calling function to continue where it left off – Return address and contents of registers

  • Solution: use the stack

! Stack frame: args, local vars, return address, registers ! Stack pointer ESP: pointing to the current top of the stack

  • Calling functions

! CALL and RET instructions ! Using the base pointer EBP as a reference point

slide-4
SLIDE 4

Function Calls

  • main calls add3

! Push arguments on the stack ! Push return address on stack ! Jump to add3 ! Allocate local variables on stack, save registers, etc.

  • Returning to main

! Clear the stack frame for add3 ! Pop return address from stack

int add3(int a, int b, int c) { int d; d = a + b + c; return d; } int main() { int sum, avg; sum = add3(3, 4, 5); avg = sum / 3; return avg }

Return Addr. Address

ESP

5 4 3 Stack Frame for add3

Return Address

Stack Frame for main

slide-5
SLIDE 5

The Stack

q The stack is a region of your

executable program used to facilitate function calls

  • it stores function arguments,

local variables, etc.

q The register ESP always

points to (contains the address of) the top stack element

ESP = Extended Stack Pointer

Always points to the top element of the stack

HEAP TEXT DATA MEMORY

7

23 5 11

ESP

STACK 1 2 . . .

slide-6
SLIDE 6

Function Calls

int add3(int a, int b, int c) { int d; d = a + b + c; return d; } int main() { int sum, avg; sum = add3(3, 4, 5); avg = sum / 3; return avg }

How are function calls implemented in assembly?

slide-7
SLIDE 7

Stack Frames

Bottom

q The stack frame, also known as

activation record, is the collection

  • f all data on the stack

associated with one function call

q The stack frame includes local

variables, arguments passed to functions, saved registers, etc.

int main() { int sum = 0,avg = 0; sum = add3(3, 4, 5); avg = sum / 3; return avg }

ESP

3 4 5 0 (avg) 0 (sum)

Stack Frame for main

slide-8
SLIDE 8

Stack Frames – High-Level Picture

main begins executing main calls A main’s Stack Frame

(Extended Stack Pointer)

ESP EBP

(Extended Base Pointer)

slide-9
SLIDE 9

High-Level Picture

main begins executing main calls A A calls B main’s Stack Frame A’s Stack Frame

Bottom ESP EBP

slide-10
SLIDE 10

High-Level Picture

main begins executing main calls A A calls B B returns main’s Stack Frame A’s Stack Frame B’s Stack Frame

Bottom ESP EBP

slide-11
SLIDE 11

High-Level Picture

main begins executing main calls A A calls B A returns B returns main’s Stack Frame A’s Stack Frame

Bottom ESP EBP

slide-12
SLIDE 12

High-Level Picture

main begins executing main calls A A calls B A returns B returns main returns main’s Stack Frame

ESP EBP

slide-13
SLIDE 13

High-Level Picture

main begins executing main calls P P calls Q Q returns P returns main returns

Bottom

slide-14
SLIDE 14

Function Calls

int add3(int a, int b, int c) { int d; d = a + b + c; return d; } int main() { int sum, avg; sum = add3(3, 4, 5); avg = sum / 3; return avg }

How are function calls implemented in assembly?

Let’s look at the disassembled code

slide-15
SLIDE 15

Disassembled code for main:

int main() { int sum, avg; sum = add3(3, 4, 5); avg = sum / 3; return avg }

ESP

5 4 3

... <main+17>: mov DWORD PTR [esp+0x8],0x5 <main+25>: mov DWORD PTR [esp+0x4],0x4 <main+33>: mov DWORD PTR [esp],0x3 <main+40>: call 0x8048394 <add3> <main+45>: mov DWORD PTR [ebp-0xc],eax ...

Stack before call <add3>

ESP+4 ESP+8

  • main prepares to call add3

! place arguments on the stack

slide-16
SLIDE 16

Disassembled code for main:

int main() { int sum, avg; sum = add3(3, 4, 5); avg = sum / 3; return avg }

main+45

5 4 3 Stack Frame for main

... <main+17>: mov DWORD PTR [esp+0x8],0x5 <main+25>: mov DWORD PTR [esp+0x4],0x4 <main+33>: mov DWORD PTR [esp],0x3 <main+40>: call 0x8048394 <add3> <main+45>: mov DWORD PTR [ebp-0xc],eax ...

return address (EIP)

  • call <add3>

! Push return address on stack ! Jump to add3

ESP

Stack after call <add3> Stack Frame for add3

slide-17
SLIDE 17

Disassembled code for add3:

main+45

ESP

5 (c) 4 (b) 3 (a) (return address)

<add3+0>: push ebp <add3+1>: mov ebp,esp <add3+3>: sub esp,0x10 <add3+6>: mov edx,DWORD PTR [ebp+0xc] <add3+9>: mov eax,DWORD PTR [ebp+0x8] <add3+12>: add eax,edx <add3+14>: add eax,DWORD PTR [ebp+0x10] ... <add3+23>: leave <add3+24>: ret

int add3(int a, int b, int c) { int d; d = a + b + c; return d; }

This is how the stack looks like before add3 starts executing ebp (copy) main+45

5 (c) 4 (b) 3 (a)

EBP ESP ESP EBP+4 EBP+8 EBP+12 EBP+16

slide-18
SLIDE 18

In general …

slide-19
SLIDE 19

CALL instruction

ESP after CALL Arg N Arg 1 Arg …

Return Address

ESP before CALL Arg N Arg 1 Arg … Arguments placed onto the stack before CALL CALL: push EIP on the stack and jump to callee EBP EBP

slide-20
SLIDE 20

Called Function uses Base Pointer EBP

  • As called function executes,

ESP may change

! e.g., calling another function

  • How to access arguments?

! Use EBP as fixed reference ! Save old EBP value first

  • Callee begins by executing

PUSH EBP MOV EBP, ESP ESP Arg N Arg 1 Arg …

Return Address Old EBP EBP EBP+4 EBP+8

Callee always finds the first argument at address EBP+8, second argument at address EBP+12, etc.

Old EBP

slide-21
SLIDE 21

Allocation for Local Variables

EBP Arg N Arg 1 Arg …

  • Local variables are also

allocated on the stack

  • Allocation done by moving the

stack pointer

  • Example: allocate two integers

! SUB ESP, 4 ! SUB ESP, 4 ! (or equivalently SUB ESP, 8)

  • Reference local variables

using the base pointer

! [EBP-4] ! [EBP-8] EBP-8 Var 1 Var 2

Return Address Old EBP

EBP-4 EBP+8

slide-22
SLIDE 22

Return Address Old EBP

EBP Arg N Arg 1 Arg …

Called function ends by executing

LEAVE RET Arg N Arg 1 Arg …

Return Address

EBP

Stack before LEAVE Stack after LEAVE

ESP ESP

slide-23
SLIDE 23

Return Address

Arg N Arg 1 Arg …

Called function ends by executing

LEAVE RET Arg N Arg 1 Arg … EBP

Stack before RET Stack after RET

EBP ESP ESP Return Address copied into EIP

slide-24
SLIDE 24

int sum(int x, int y) { return x+y; } int main () { int result; result = sum(0x11, 0x22); printf("%d\n", result); return 0; }

Compile: gcc sum.c –o xsum Debug: gdb ./xsum

set disassembly-flavor intel disas main

A Simple Example

slide-25
SLIDE 25

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

ESP

Example

  • Recall that:

! The stack grows from high addresses towards low addresses

slide-26
SLIDE 26

ESP

Example

  • Recall that:

! The stack grows from high addresses towards low addresses

EBP(os) main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

slide-27
SLIDE 27

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

ESP

EBP(os)

EBP(main)

slide-28
SLIDE 28

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

ESP

EBP(os)

EBP(main)

slide-29
SLIDE 29

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

ESP

0x22 EBP(os)

EBP(main)

slide-30
SLIDE 30

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET

ESP

0x11 0x22 EBP(os)

EBP(main)

slide-31
SLIDE 31

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET

RA

ESP

RA 0x11 0x22 EBP(os)

EBP(main) (return address)

slide-32
SLIDE 32

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET

RA

EBP(main) RA 0x11 0x22 EBP(os)

EBP(main) (return address) ESP

slide-33
SLIDE 33

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET

RA

EBP(main) RA 0x11 0x22 EBP(os)

EBP(main) (return address) ESP EBP(sum)

slide-34
SLIDE 34

Example

0x22

EAX

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET

RA

EBP(main) RA 0x11 0x22 EBP(os)

EBP(main) (return address) ESP EBP(sum)

slide-35
SLIDE 35

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET 0x33

EAX

RA

EBP(main) RA 0x11 0x22 EBP(os)

EBP(main) (return address) ESP EBP(sum)

slide-36
SLIDE 36

Example

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET <sum>: PUSH EBP MOV EBP, ESP MOV EAX, DWORD PTR [EBP+12] ADD EAX, DWORD PTR [EBP+8] POP EBP RET 0x33

EAX

RA

RA 0x11 0x22 EBP(os)

EBP(main) (return address) ESP

slide-37
SLIDE 37

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

Example

0x33

EAX

0x11 0x22 EBP(os)

EBP(main) ESP

slide-38
SLIDE 38

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

Example

0x11 0x22 0x33 EBP(os)

EBP(main) ESP

slide-39
SLIDE 39

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

Example

EAX

Prepare to: leave

0x11 0x22 EBP(os)

EBP(main) ESP

slide-40
SLIDE 40

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

Example

EAX

EBP(os)

EBP(main) ESP

slide-41
SLIDE 41

main: PUSH EBP MOV EBP,ESP ... SUB ESP, 0x14 MOV DWORD PTR [ESP+4], 0x22 MOV DWORD PTR [ESP], 0x11 CALL sum MOV DWORD PTR [EBP-4],EAX ... MOV EAX, 0 ADD ESP, 0x14 POP EBP RET

Example

EAX ESP

slide-42
SLIDE 42

Summary

  • Invoking a function

! CALL: call the function ! RET: return from the instruction

  • Stack Frame for a function call includes

! Function arguments ! Return address ! Local variables ! Saved registers

  • Base pointer EBP

! Fixed reference point in the Stack Frame ! Useful for referencing arguments and local variables
