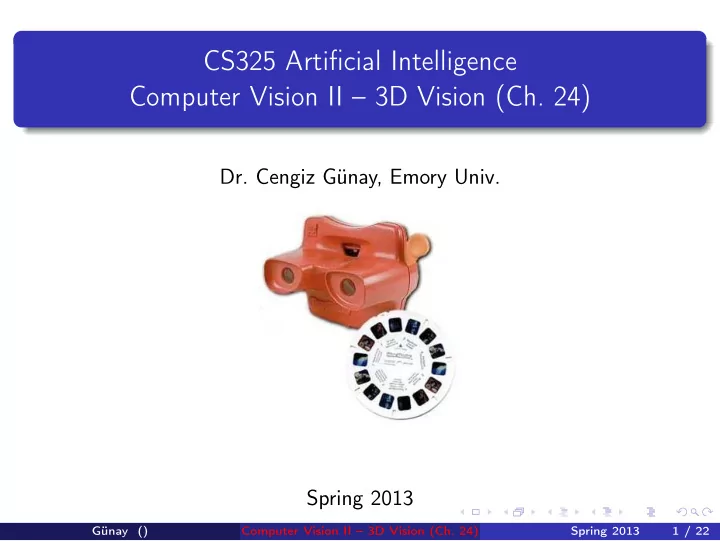

CS325 Artificial Intelligence Computer Vision II – 3D Vision (Ch. 24)

  • Dr. Cengiz Günay, Emory Univ.

Spring 2013

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 1 / 22

slide-2
SLIDE 2

Limits of 2D Projection

3D world is projected onto 2D image What happens to depth information?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 2 / 22

slide-3
SLIDE 3

Getting the Depth from Perspective Projection

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 3 / 22

slide-4
SLIDE 4

Getting the Depth from Perspective Projection

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 3 / 22

slide-5
SLIDE 5

Getting the Depth from Perspective Projection

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 3 / 22

slide-6
SLIDE 6

Getting the Depth from Perspective Projection

Giant panda, or just close?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 3 / 22

slide-7
SLIDE 7

Getting the Depth from Perspective Projection

Giant panda, or just close? Can only tell if we know exactly the size.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 3 / 22

slide-8
SLIDE 8

Alternative?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 4 / 22

slide-9
SLIDE 9

Alternative?

Use your two eyes: Stereo Vision

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 4 / 22

slide-10
SLIDE 10

Entry/Exit Surveys

Exit survey: Computer Vision I – Object Recognition

List some problematic states of objects for which an object recognition algorithm must be invariant for. What kind of a filter mask would you convolve with an image to detect diagonal lines?

Entry survey: Computer Vision II – 3D Vision (0.25 points)

What tasks would you find difficult if you had only one eye open? How do you think stereograms are made?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 5 / 22

slide-11
SLIDE 11
slide-12
SLIDE 12
slide-13
SLIDE 13

Stereo Vision

P: Target object. Z: Distance to object. B: Baseline; separation between eyes. x1, x2 : Disparity or parallax; different offsets at each eye.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 8 / 22

slide-14
SLIDE 14

Stereo Vision

P: Target object. Z: Distance to object. B: Baseline; separation between eyes. x1, x2 : Disparity or parallax; different offsets at each eye. Can we always find depth of P?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 8 / 22

slide-15
SLIDE 15

Stereo Vision

P: Target object. Z: Distance to object. B: Baseline; separation between eyes. x1, x2 : Disparity or parallax; different offsets at each eye. Can we always find depth of P? No, only sometimes.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 8 / 22

slide-16
SLIDE 16

Stereo Vision: Which One is Easier?

L R

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 9 / 22

slide-17
SLIDE 17

Stereo Vision: Which One is Easier?

L R

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 9 / 22

slide-18
SLIDE 18

Stereo Vision: How to Find Depth?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 10 / 22

slide-19
SLIDE 19

Stereo Vision: How to Find Depth?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 10 / 22

slide-20
SLIDE 20

Stereo Vision: How to Find Depth?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 10 / 22

slide-21
SLIDE 21

Stereo Vision: How to Find Depth?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 10 / 22

slide-22
SLIDE 22

Stereo Vision: How to Find Depth?

What’s different here? What don’t we need to find depth?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 10 / 22

slide-23
SLIDE 23

Stereo Vision: How to Find Depth?

What’s different here? What don’t we need to find depth? Original size.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 10 / 22

slide-24
SLIDE 24

Finding Correspondence Between Left and Right Images

Left Right P ? Where do we search on the right image?

1 2D: everywhere 2 1D: on a line 3 0D: we know the point Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 11 / 22

slide-25
SLIDE 25

Finding Correspondence Between Left and Right Images

Left Right P ? Where do we search on the right image?

1 2D: everywhere 2 1D: on a line 3 0D: we know the point Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 11 / 22

slide-26
SLIDE 26

Finding Correspondence Between Left and Right Images

Left Right P ? Where do we search on the right image?

1 2D: everywhere 2 1D: on a line 3 0D: we know the point Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 11 / 22

slide-27
SLIDE 27

Correspondence Problems

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 12 / 22

slide-28
SLIDE 28

Correspondence Problems

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 12 / 22

slide-29
SLIDE 29

Correspondence Problems

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 12 / 22

slide-30
SLIDE 30

Correspondence Problems

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 12 / 22

slide-31
SLIDE 31

Correspondence Problems

You get Phantom Points if you get the correspondence wrong.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 12 / 22

slide-32
SLIDE 32

A Real Correspondence Example

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 13 / 22

slide-33
SLIDE 33

A Real Correspondence Example

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 13 / 22

slide-34
SLIDE 34

A Real Correspondence Example

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 13 / 22

slide-35
SLIDE 35

A Real Correspondence Example

Can we find correspondence with any of:

1 Texture match? 2 Feature match? Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 13 / 22

slide-36
SLIDE 36

A Real Correspondence Example

Can we find correspondence with any of:

1 Texture match? 2 Feature match?

Both, actually.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 13 / 22

slide-37
SLIDE 37

Texture Match with SSD

SSD is not solid state drive, but it is sum of squared distance

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 14 / 22

slide-38
SLIDE 38

Sum of Squared Distance (SSD)

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 15 / 22

slide-39
SLIDE 39

Sum of Squared Distance (SSD)

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 15 / 22

slide-40
SLIDE 40

The Result: Disparity Maps

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 16 / 22

slide-41
SLIDE 41

How About Occlusions?

Left Right

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 17 / 22

slide-42
SLIDE 42

How About Occlusions?

Left Right

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 17 / 22

slide-43
SLIDE 43

How About Occlusions?

Left Right

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 17 / 22

slide-44
SLIDE 44

Using Cost to Optimize Correspondence

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 18 / 22

slide-45
SLIDE 45

Using Cost to Optimize Correspondence

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 18 / 22

slide-46
SLIDE 46

Using Cost to Optimize Correspondence

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 18 / 22

slide-47
SLIDE 47

Using Cost to Optimize Correspondence

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 18 / 22

slide-48
SLIDE 48

Using Cost to Optimize Correspondence

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 18 / 22

slide-49
SLIDE 49

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2):

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-50
SLIDE 50

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-51
SLIDE 51

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-52
SLIDE 52

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP? V (i, j) = max      match(i, j) + V (i − 1, j − 1)

  • ccl(i, j) + V (i − 1, j)
  • ccl(i, j) + V (i, j − 1)

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-53
SLIDE 53

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP? V (i, j) = max      match(i, j) + V (i − 1, j − 1)

  • ccl(i, j) + V (i − 1, j)
  • ccl(i, j) + V (i, j − 1)

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-54
SLIDE 54

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP? V (i, j) = max      match(i, j) + V (i − 1, j − 1)

  • ccl(i, j) + V (i − 1, j)
  • ccl(i, j) + V (i, j − 1)

State-of-the-art in computer vision!

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-55
SLIDE 55

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP? V (i, j) = max      match(i, j) + V (i − 1, j − 1)

  • ccl(i, j) + V (i − 1, j)
  • ccl(i, j) + V (i, j − 1)

State-of-the-art in computer vision! How would the brain do it?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-56
SLIDE 56

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP? V (i, j) = max      match(i, j) + V (i − 1, j − 1)

  • ccl(i, j) + V (i − 1, j)
  • ccl(i, j) + V (i, j − 1)

State-of-the-art in computer vision! How would the brain do it? In parallel, each node in matrix a separate neuron How fast?

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-57
SLIDE 57

So How to Compute Best Alignment?

Use dynamic programming: calculate correspondence matrix with O(n2): Does this look familiar? Can we use MDP? V (i, j) = max      match(i, j) + V (i − 1, j − 1)

  • ccl(i, j) + V (i − 1, j)
  • ccl(i, j) + V (i, j − 1)

State-of-the-art in computer vision! How would the brain do it? In parallel, each node in matrix a separate neuron How fast? O(1)

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 19 / 22

slide-58
SLIDE 58

Alignment Questions

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 20 / 22

slide-59
SLIDE 59

Alignment Questions

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 20 / 22

slide-60
SLIDE 60

Alignment Questions

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 20 / 22

slide-61
SLIDE 61

Alignment Questions

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 20 / 22

slide-62
SLIDE 62

Problem Cases for Alignment

Problems with: Foreground-background separation and circular edges.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 21 / 22

slide-63
SLIDE 63

Problem Cases for Alignment

Problems with: Reflection.

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 21 / 22

slide-64
SLIDE 64

New Technologies

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 22 / 22

slide-65
SLIDE 65

New Technologies

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 22 / 22

slide-66
SLIDE 66

New Technologies

Günay () Computer Vision II – 3D Vision (Ch. 24) Spring 2013 22 / 22
