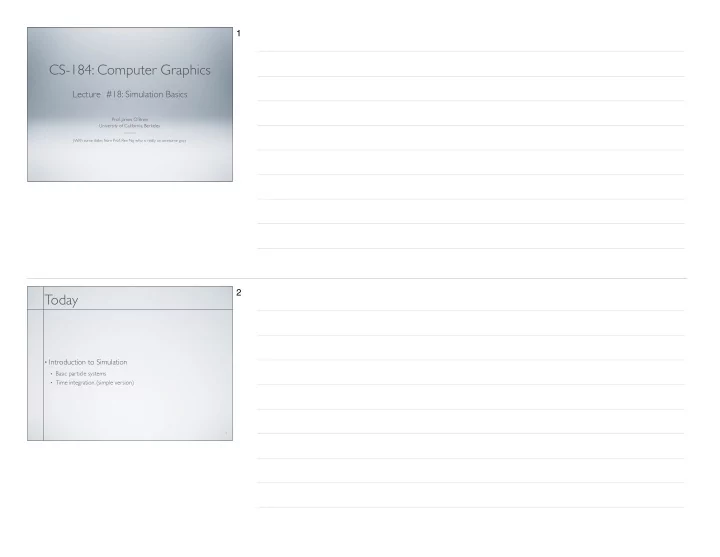

CS-184: Computer Graphics

Lecture #18: Simulation Basics

• Prof. James O’Brien

University of California, Berkeley

V2016-F-18-1.0

(With some slides from Prof. Ren Ng who is really an awesome guy.)

1

2

Today

• Introduction to Simulation
• Basic particle systems
• Time integration (simple version)

2

3

• Generate motion of objects using numerical simulation

methods

Physically Based Animation

xt+∆t = xt +∆t vt + 1 2∆t2at

g v

3

4

Physically Based Animation

4

Example: Cloth Simulation

5

5

Example: Fluids

6

Macklin and Müller, Position Based Fluids

6

Example: Fracture

7

7

Example: Fracture

8

8

9

Particle Systems

• Single particles are very simple
• Large groups can produce interesting effects
• Supplement basic ballistic rules
• Collisions
• Interactions
• Force fields
• Springs
• Others...

Karl Sims, SIGGRAPH 1990

9

10

10

11

• Single particles are very simple
• Large groups can produce interesting effects
• Supplement basic ballistic rules
• Collisions
• Interactions
• Force fields
• Springs
• Others...

Particle Systems

Feldman, Klingner, O’Brien, SIGGRAPH 2005

11

12

Basic Particles

• Basic governing equation
• is a sum of a number of things
• Gravity: constant downward force proportional to mass
• Simple drag: force proportional to negative velocity
• Particle interactions: particles mutually attract and/or repell
• Beware complexity!
• Force fields
• Wind forces
• User interaction

¨ x = 1 mf

f

O(n2)

12

13

Basic Particles

• Properties other than position
• Color
• Temp
• Age
• Differential equations also needed to govern these

properties

• Collisions and other constrains directly modify position

and/or velocity

13

Particle Rules

14 Bryan E. Feldman, James F . O'Brien, and Okan Arikan. "Animating Suspended Particle Explosions". In Proceedings of ACM SIGGRAPH 2003, pages 708–715, August 2003.

14

Gravitational Attraction

• Newton’s universal law of gravitation
• Gravitational pull between particles

15

Fg = Gm1m2 d2 G = 6.67428 × 10−11 Nm2kg−2

d

m1 m2

15

Example: Galaxy Simulation

16

Disk galaxy simulation, NASA Goddard

16

17

Integration

• Euler’s Method
• Simple
• Commonly used
• Very inaccurate
• Most often goes unstable

xt+∆t = xt + ∆t ˙ xt ˙ xt+∆t = ˙ xt + ∆t ¨ xt

17

18

Integration

• For now let’s pretend
• Velocity (rather than acceleration) is a function of force

f = mv ˙ x = f(x, t)

Witkin and Baraff

Note: Second order ODEs can be turned into first order ODEs using extra variables.

18

19

Integration

• For now let’s pretend
• Velocity (rather than acceleration) is a function of force

f = mv ˙ x = f(x, t)

Witkin and Baraff

Start

19

20

Integration

• With numerical integration, errors accumulate
• Euler integration is particularly bad

x := x + ∆t f(x, t)

Witkin and Baraff

20

21

Integration

• Stability issues can also arise
• Occurs when errors lead to larger errors
• Often more serious than error issues

˙ x = [ − sin(ωt) , − cos(ωt) ]

Witkin and Baraff

21

22

• Modified Euler

Integration

˙ xt+∆t = ˙ xt + ∆t ¨ xt xt+∆t = xt + ∆t 2 ( ˙ xt + ˙ xt+∆t) xt+∆t = xt + ∆t ˙ xt + (∆t)2 2 ¨ xt 22

23

Integration

• Midpoint method

a. Compute half Euler step b.

• Eval. derivative at halfway

c. Retake step

• Other methods
• Verlet
• Runge-Kutta
• And many others...

a b c

Witkin and Baraff

23

24

Integration

• Implicit methods
• Informally (incorrectly) called backward methods
• Use derivatives in the future for the current step

xt+∆t = xt + ∆t ˙ xt+∆t ˙ xt+∆t = ˙ xt + ∆t ¨ xt+∆t

¨ xt+∆t = A(xt+∆t, ˙ xt+∆t, t + ∆t) ˙ xt+∆t = V(xt+∆t, ˙ xt+∆t, t + ∆t)

24

25

Integration

• Implicit methods
• Informally (incorrectly) called backward methods
• Use derivatives in the future for the current step
• Solve nonlinear problem for and
• This is fully implicit backward Euler
• Many other implicit methods exist...
• Modified Euler is partially implicit as is Verlet

˙ xt+∆t = ˙ xt + ∆t A(xt+∆t, ˙ xt+∆t, t + ∆t)

xt+∆t

˙ xt+∆t

˙ xt+∆t = ˙ xt + ∆t V(xt+∆t, ˙ xt+∆t, t + ∆t)

25

26

Temp Slide

Need to draw reverse diagrams....

26

27

Integration

A(xt+∆t, ˙ xt+∆t) ≈ A(xt, ˙ xt) + C · (∆x) + D · (∆ ˙ x) V(xt+∆t, ˙ xt+∆t) ≈ V(xt, ˙ xt) + A · (∆x) + B · (∆ ˙ x)

  xt+∆t

˙ xt+∆t

   =   xt

˙ xt

   + ∆t       ˙

xt ¨ xt

   +   A B

C D

     ∆x

∆ ˙ x

     

• Semi-Implicit
• Approximate with linearized equations

27

28

Integration

• Explicit methods can be conditionally stable
• Depends on time-step and stiffness of system
• Fully implicit can be unconditionally stable
• May still have large errors
• Semi-implicit can be conditionally stable
• Nonlinearities can cause instability
• Generally more stable than explicit
• Comparable errors as explicit
• Often show up as excessive damping

28

29

Integration

• Integrators can be analyzed in modal domain
• System have different component behaviors
• Integrators impact components differently

29

Example: Mass Spring Rope

30

Credit: Elizabeth Labelle, https://youtu.be/Co8enp8CH34

30

Example: Mass Spring Mesh

31

Slide from Ren Ng

31

Example: Hair

32

Slide from Ren Ng

32

Example: Cloth

33 Huamin Wang, Ravi Ramamoorthi, and James F . O'Brien. "Data-Driven Elastic Models for Cloth: Modeling and Measurement". ACM Transactions on Graphics, 30(4):71:1–11, July 2011. Proceedings of ACM SIGGRAPH 2011, Vancouver, BC Canada.

33

Example: Clothing on Character

34

34

Strain Limiting

35 Huamin Wang, James F . O'Brien, and Ravi Ramamoorthi. "Multi-Resolution Isotropic Strain Limiting". In Proceedings of ACM SIGGRAPH Asia 2010, pages 160:1–10, December 2010.

35

36

A Simple Spring

• Ideal zero-length spring
• Force pulls points together
• Strength proportional to distance

fa→b = ks(b − a) fb→a = −fa→b

36

37

A Simple Spring

• Energy potential

fa→b = ks(b − a) fb→a = −fa→b

• 2
• 1

1 2

• 2
• 1

1 2 2 4 6 8

• 1

2

fa = raE =  ∂E ∂ax , ∂E ∂ay , ∂E ∂az

• E = 1/2 ks(b − a) · (b − a)

37

38

A Simple Spring

• Energy potential: kinetic vs elastic
• 6
• 4
• 2

2 4 6

• 1
• 0.5

0.5 1

E = 1/2 ks(b − a) · (b − a)

E = 1/2 m(˙ b − ˙ a) · (˙ b − ˙ a)

38

39

Non-Zero Length Springs

fa→b = ks b − a ||b − a|| (||b − a|| − l)

Rest length

E = ks (||b − a|| − l)2

• 2
• 1

1 2

• 2
• 1

1 2 1 2 3

• 1

2

39

40

Comments on Springs

• Springs with zero rest length are linear
• Springs with non-zero rest length are nonliner
• Force magnitude linear w/ discplacement (from rest length)
• Force direction is non-linear
• Singularity at

||b − a|| = 0

40

41

Damping

• “Mass proportional” damping
• Behaves like viscous drag on all motion
• Consider a pair of masses connected by a spring
• How to model rusty vs oiled spring
• Should internal damping slow group motion of the pair?
• Can help stability... up to a point

f = −kd ˙ a

f ˙ a

41

42

Damping

• “Stiffness proportional” damping
• Behaves viscous drag on change in spring length
• Consider a pair of masses connected by a spring
• How to model rusty vs oiled spring
• Should internal damping slow group motion of the pair?

fa = −kd b − a ||b − a||2(b − a) · (˙ b − ˙ a)

42

43

Spring Constants

• Two ways to model a single spring

l ∆l

∆l/2

l/2 l/2 ∆l/2 43

44

Spring Constants

• Constant gives inconsistent results with different

discretizations

• Change in length is not what we want to measure
• Strain: change in length as fraction of original length

ks

✏ = ∆l l0 Nice and simple for 1D... 44

45

Structures from Springs

• Sheets
• Blocks
• Others

45

46

Structures from Springs

• They behave like what they are (obviously!)

This structure will not resist shearing This structure will not resist out-

• f-plane bending either...

46

47

Structures from Springs

• They behave like what they are (obviously!)

This structure will resist shearing but has anisotopic bias This structure still will not resist

• ut-of-plane bending

47

48

• They behave like what they are (obviously!)

Structures from Springs

This structure will resist shearing Less bias Interference between spring sets This structure still will not resist

• ut-of-plane bending

48

49

• They behave like what they are (obviously!)

Structures from Springs

This structure will resist shearing Less bias Interference between spring sets This structure will resist out-of- plane bending Interference between spring sets Odd behavior How do we set spring constants?

49

50

Edge Springs

1 2 3 4 n e n

1 2 ^ ^ ^

n1

^

n2

^

From Bridson et al., 2003, also see Grinspun et al., 2003 u1 = |E| N1 |N1|2 u2 = |E| N2 |N2|2 u3 = (x1 −x4)·E |E| N1 |N1|2 + (x2 −x4)·E |E| N2 |N2|2 u4 = −(x1 −x3)·E |E| N1 |N1|2 − (x2 −x3)·E |E| N2 |N2|2

Fe

i = ke

|E|2 |N1|+|N2| sin(θ/2)ui,

50

Example: Thin Material

51

Discrete Shells

SCA 2003 Eitan Grinspun, Anil Hirani, Mathieu Desbrun and Peter Schröder

51

Sharp Creases

52

52

Sharp Creases

53

Anisotropic remeshing avoids locking.

53

Fracture

54

Dominated by discretization artifacts Natural appearance

54

Variety of Materials

55

55
